Product Weight: 0.1350KG
It is widely used in 7 days programmable control of streetlight, neon light (sign), lamp, water heater, air conditioner, billboard, electric cooker, booster, sprayer, bottler, preheater, agriculture facilities and broadcasting equipment etc. Din rail installation Advanced pre-setting one week before Digital electronics general purpose time switch with daily and programs Repeat programs with 16 on/off settings, 18 times pulse programs,and setting on/off manually Built-in battery for backup the memory when power failure Auto time error correction +/- 30 sec, weekly Built-in 1.2v /40mA rechargeable battery, high precision, industrial-grade chip, strong anti-interference.
Specification:
Delay range: each week or day according to the set program cycle, 1 minute ~168 hours
Working voltage: AC220V/50Hz
Working temperature: – 20~ 55
Switch capacity: 16A
Programmable number: 8 switches/day
Consumption power consumption:5W
Timing error:2 seconds per day
Installation: guide rail
Battery cell: rechargeable battery

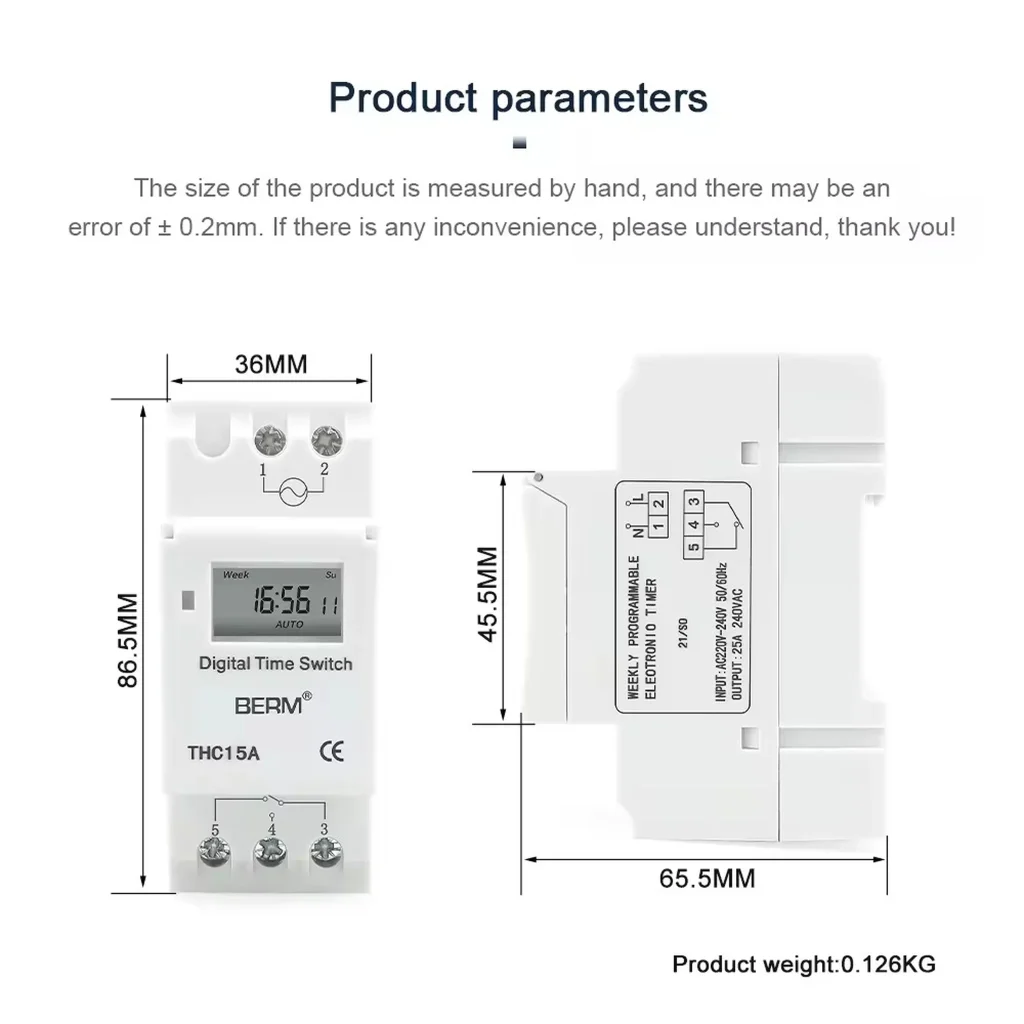

Size: 86*36*65mm
Weight: Approx.135g
