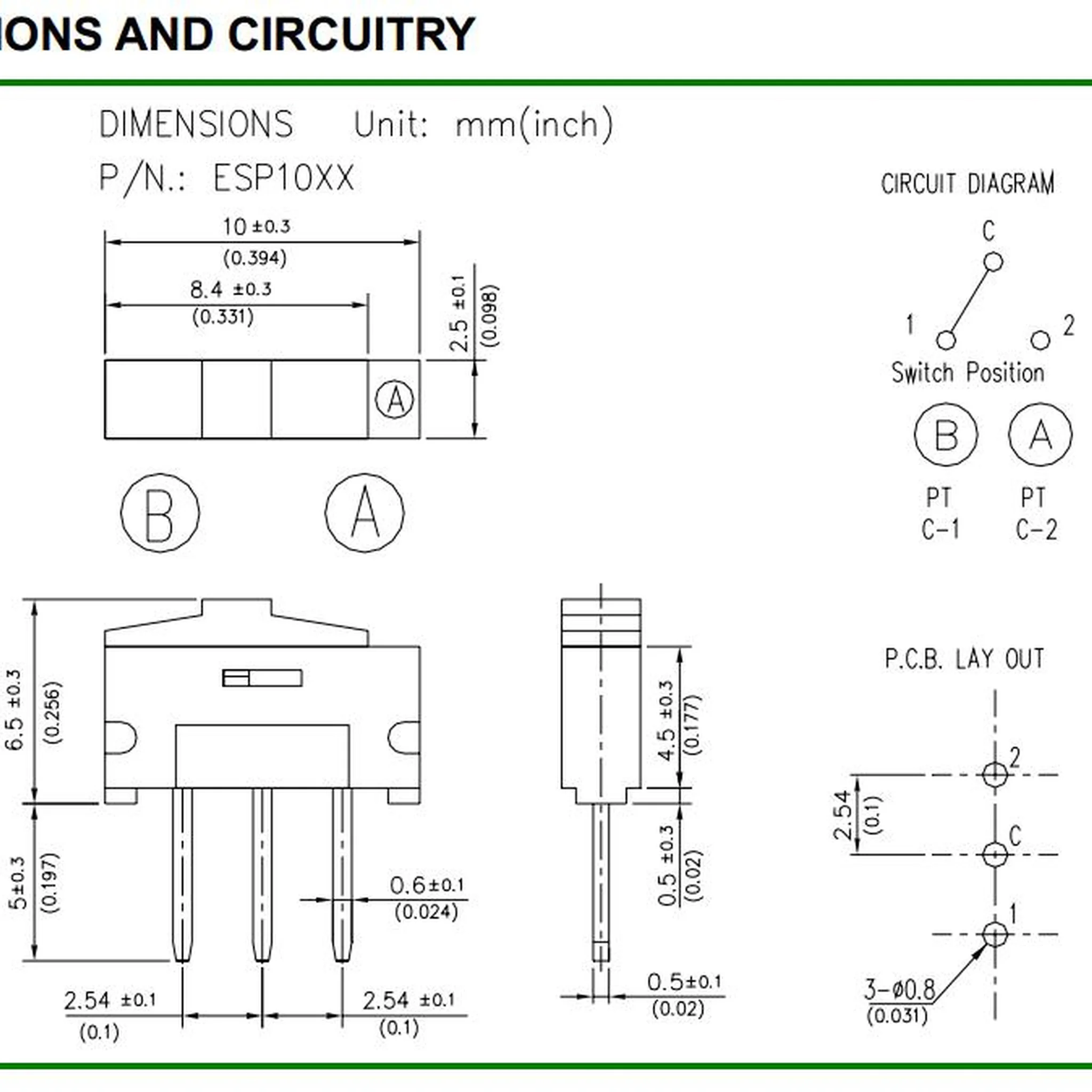

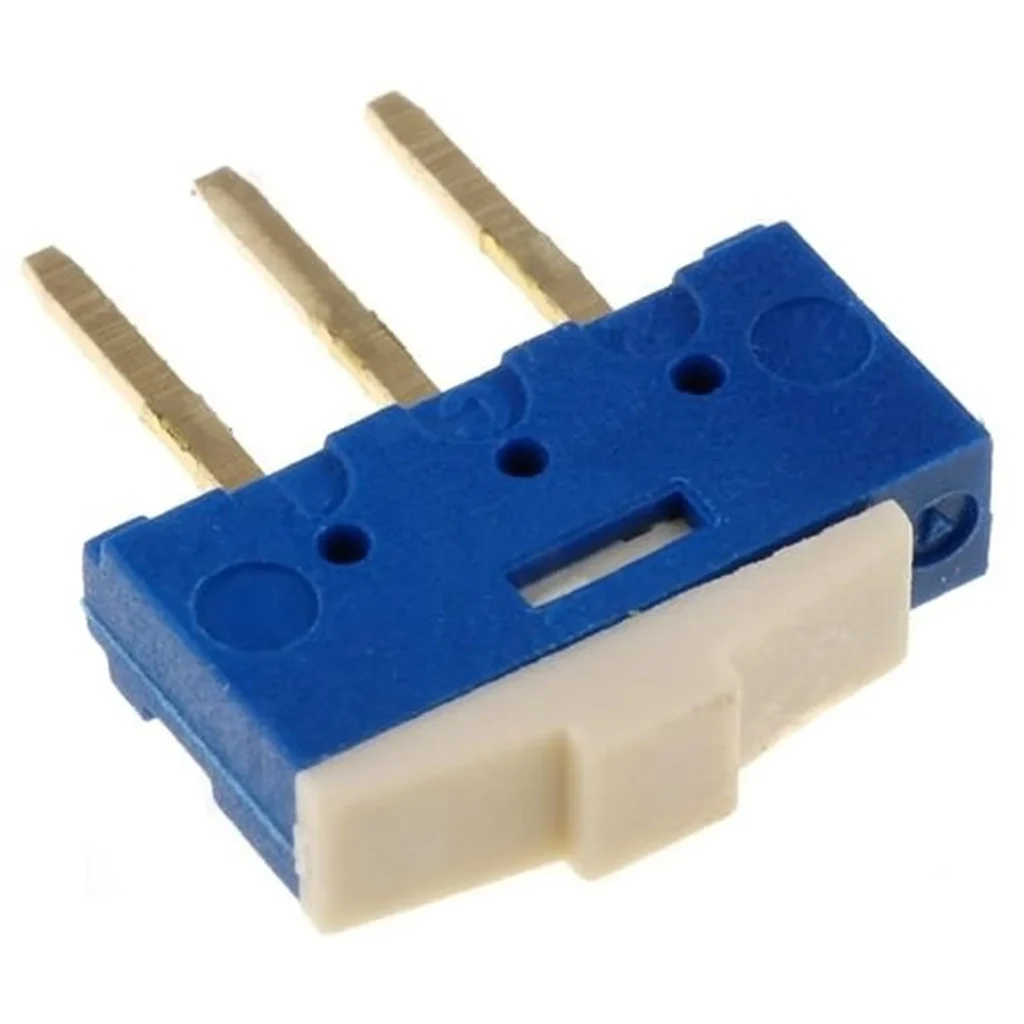

Subminiature Micro Switch without lever, RoHS

■   FEATURES

– The distance of 2 adjacent pins or stacked devices is 2.54 mm pitch
– All plastics are UL 94V-0 grade fire retardant.
– Low contact resistance and long mechanical life, suitable for signal switching and communication equipments.

■   APPLICATIONS

– Measuring point changeover switches
– Service switch
– Controls for consumer devices

■   SPECIFICATIONS

– Contact rating: 0.2A, 24VDC; 0.5A, 12VDC
– Minimum contact rating: 1mA, 10mV
– Contact resistance
       initial: 50mΩ Max.
       after life test: 100mΩ Max.
– Insulation resistance: 10000MΩ Min. under 500VDC
– Dielectric strength: 2mA, 500VDC for 60sec.
– Capacitance between adjacent switches 1.5pF Max.
