Product Weight: 0.0600KG

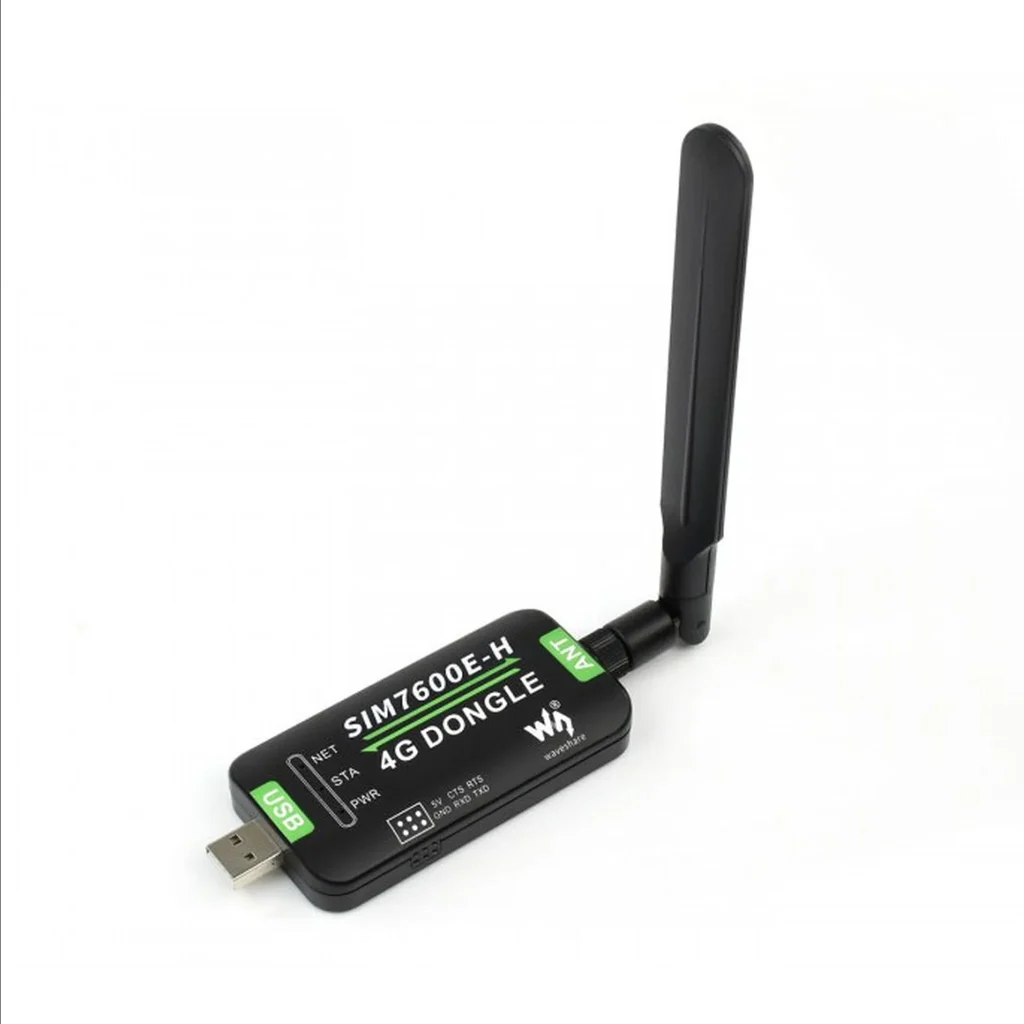

SIM7600E-H 4G DONGLE, GNSS Positioning, for Europe
This is an industrial grade 4G dongle, which features up to 150Mbps downlink rate and 50Mbps uplink rate, supports operating systems including Windows/Linux. By simply connecting it to laptop, PC, Raspberry Pi, drone, industrial computer, or other IoT host device, it is easy to use 4G network connection on the go.
Features at a glance
| SIM7600E-H | |||||
|---|---|---|---|---|---|
| Applicable regions* | Europe / the Middle East / Africa / South Korea / Thailand | ||||
| Band | |||||
| LTE Cat-4 / LTE Cat-1 | LTE-TDD: B38/B40/B41 LTE-FDD: B1/B3/B5/B7/B8/B20 |
||||
| 3G | UMTS/HSPA+: B1/B5/B8 | ||||
| 2G | GSM/GPRS/EDGE: 900/1800 MHz | ||||
| GNSS | GPS/Beidou/GLONASS/GALILEO/QZSS | ||||
| Data Rate | |||||
| LTE Cat-4 | 150Mbps(DL) / 50Mbps(UL) | ||||
| 3G (HSPA+) | 42Mbps(DL) / 5.76Mbps(UL) | ||||
| 2G (EDGE) | 236.8Kbps(DL) / 236.8Kbps(UL) | ||||
| 2G (GPRS) | 85.6Kbps(DL) / 85.6Kbps(UL) | ||||
| Software Features | |||||
| Operating system | Windows/Linux | ||||
| Network protocol | TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/HTTPS/DNS | ||||
| Dial-up protocol | NDIS/RNDIS/PPP | ||||
| SMS | Supports MT, MO, CB, Text, PDU | ||||
| Hardware Description | |||||
| Communication interface | USB / UART | ||||
| UART baud rate | 300bps ~ 4Mbps (115200bps by default) | ||||
| Indicator | NET：network indicator | ||||
| STA：status indicator | |||||
| PWR：power indicator | |||||
| SIM card support | Nano SIM card (1.8V / 3V) | ||||
| Antenna connector | LTE | MAIN LTE, GNSS | MAIN LTE, AUX LTE, GNSS | ||
| Power supply | 5V | ||||
| Logic level | 3.3V | ||||
| Outline dimensions |
89.20 × 45.26 × 14.62mm
|
||||
Multi host support
working with laptop / Raspberry Pi / industrial computer…
up to 150Mbps downlink and 50Mbps uplink*
* stands for idealized data rate, the actual data rate may fluctuate greatly, depending on factors like network coverage, traffic congestion, base station condition, etc.
Multi system support
supports Windows/Linux
Just plug it into USB port, go through some driver installation and simple configuration, the high speed 4G network connection would be ready to use
Cloud Communication
supports USB/UART communication interfaces
supports TCP/UDP/FTP/FTPS/HTTP/HTTPS communication protocols
GNSS positioning
Supports GPS / Beidou / GLONASS / GALILEO / QZSS positioning
The GNSS antenna is NOT included.
flexible structure antenna design, allows multidimensional rotation for better connection
4G SIM card slot
onboard nano SIM card slot with sliding cover, easy to use
easy to check the operating status, convenient for programming/debugging
