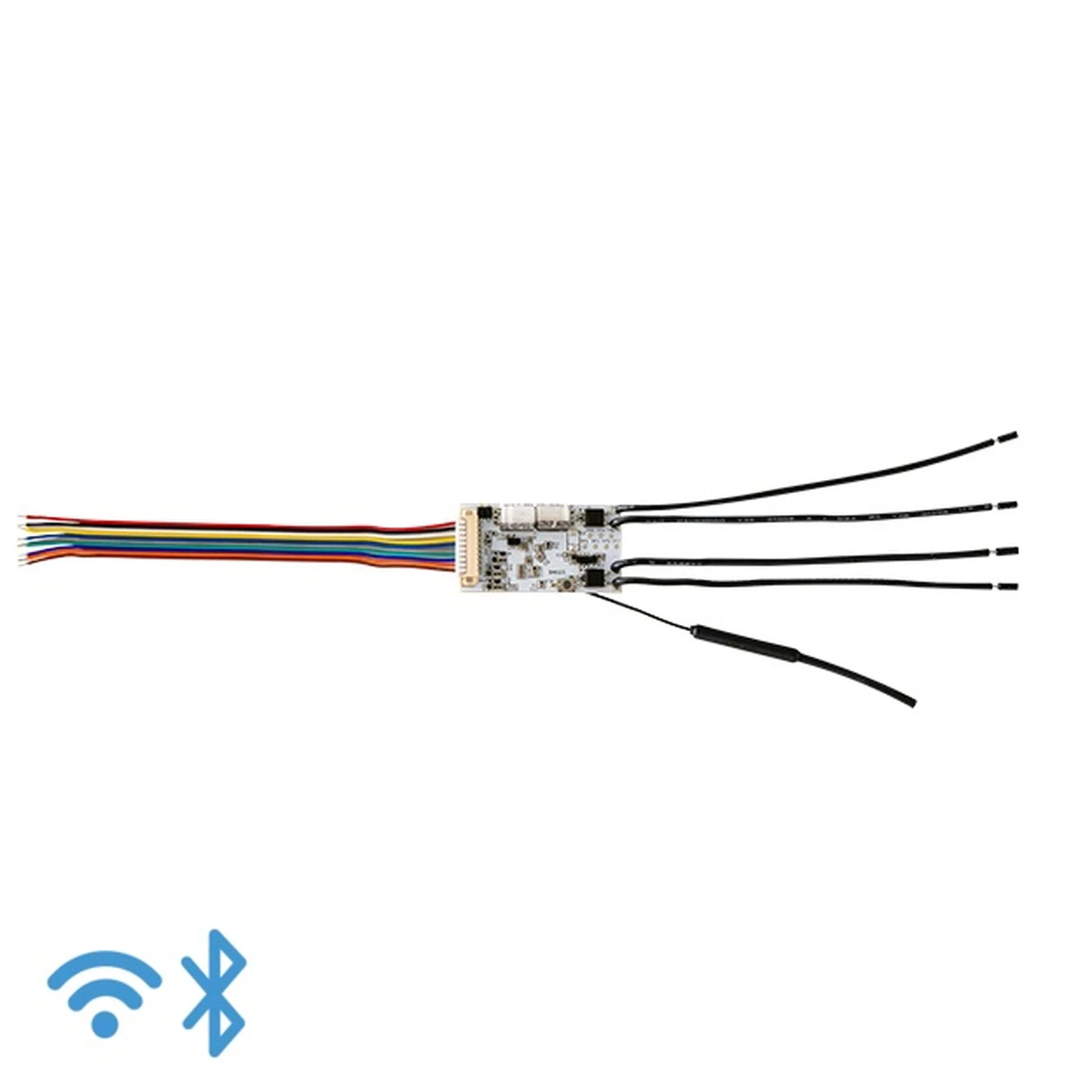

Shelly Plus Uni

Product Weight: 0.0200KG

Shelly Plus Uni

Specifications

Wi-Fi operational range (depending on local conditions):
Dimensions (LxWxH)	37x42x16 mm / 1.46×1.65×0.63 in (without the cables)
Weight	8.5 g / 0.3 oz
Ambient temperature	-20 °C to 40 °C / -4 °F to 104 °F
Humidity	30 % to 70 % RH
Power supply	8-24 VAC / 9-28 VDC / 5 VDC (stabilized, via +5 VDC and GND)
Power consumption	< 1 W
Digital inputs resistance	50 kΩ
Digital inputs triggering voltage	1.5 V (active low level)
Max switching voltage	30 V
Max switching current	250 mA
Voltmeter	0-15 VDC / 0-30 VDC (Two-range)
Pulse counter input triggering voltage	1.5 V (active low level)
Pulse counter max frequency	1 kHz
External sensors supported	Single DHT22 or up to five DS18B20
RF band	2400 – 2495 MHz
Max. RF power	< 20 dBm
Wi-Fi protocol	802.11 b/g/n
up to 50 m / 160 ft	outdoors
up to 30 m / 100 ft	indoors
Bluetooth protocol	4.2
Bluetooth operational range (depending on local conditions):
up to 30 m / 100 ft	outdoors
up to 10 m / 33 ft	indoors
CPU	ESP32
Flash	4 MB
Schedules	20
Webhooks (URL actions)	20 with 5 URLs per hook
Scripting	Yes
MQTT	Yes
