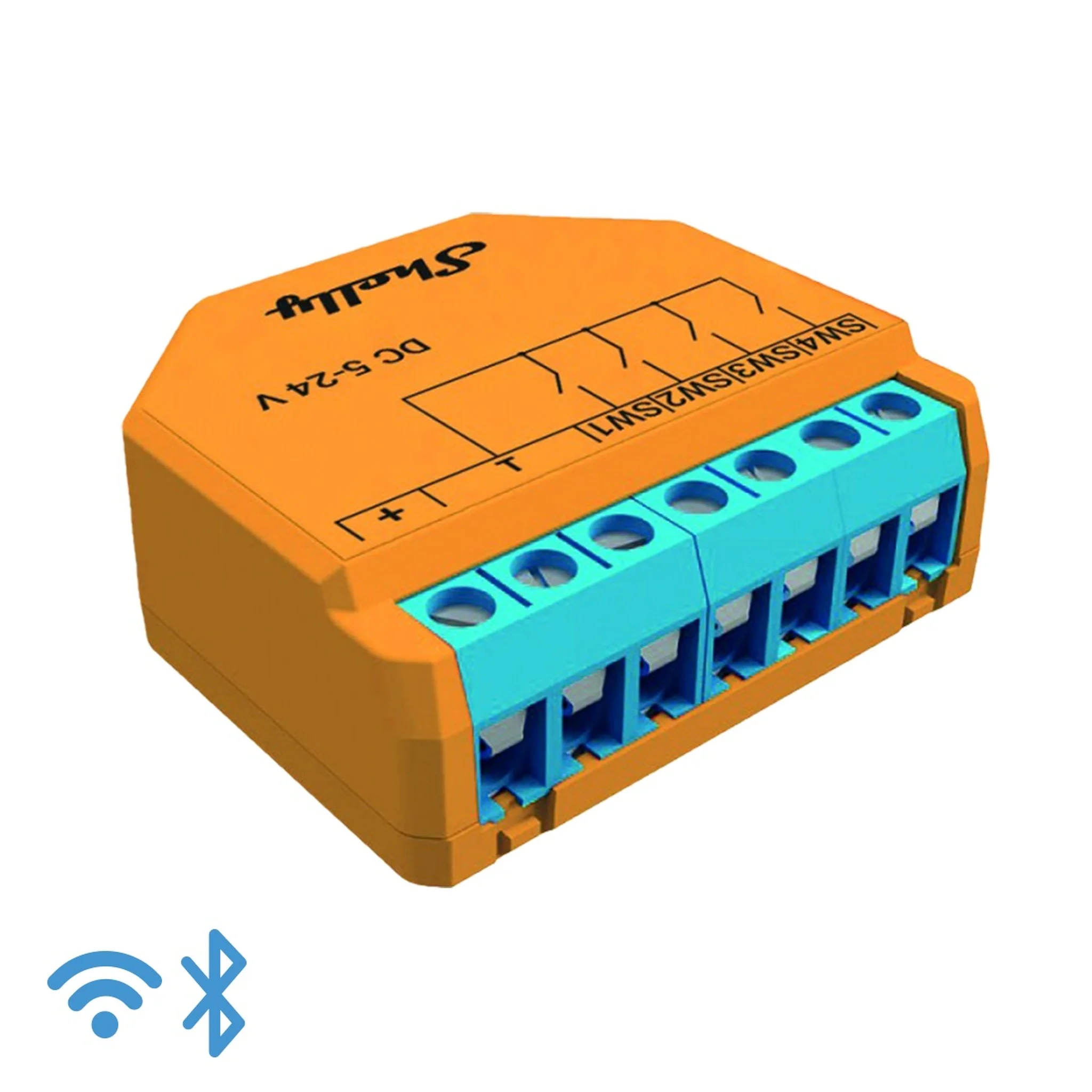

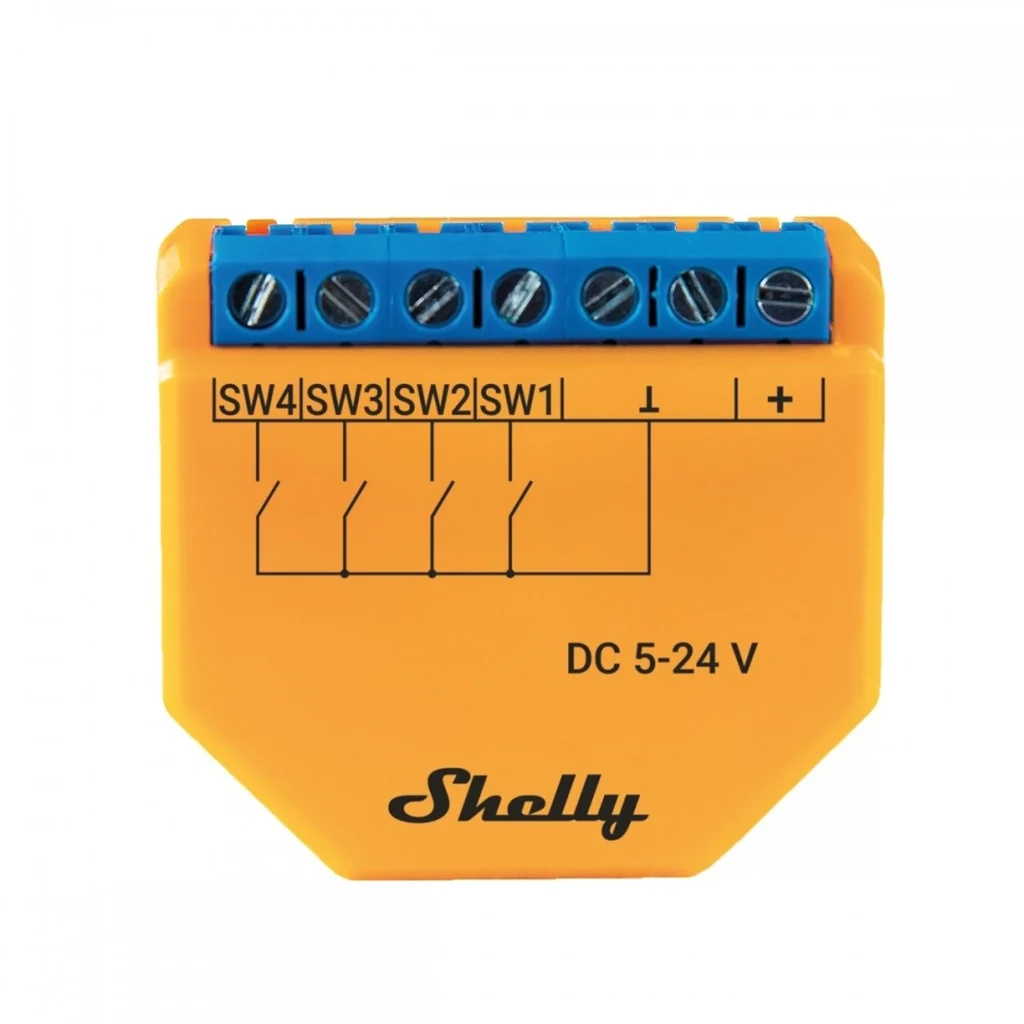

Shelly Plus i4 DC

Product Weight: 0.0200KG

Shelly Plus i4 DC

Specifications

Physical
Size (HxWxD):	37x42x16 ±0.5 mm / 1.46×1.65×0.63 ±0.02 in
Weight:	17 g / 0.6 oz
Mounting:	Wall box
Screw terminals max torque:	0.4 Nm / 3.5 lbin
Conductor cross section:	0.5 to 1.5 mm² / 20 to 16 AWG
Conductor stripped length:	5 to 6 mm / 0.20 to 0.24 in
Shell material:	Plastic
Environmental
Ambient temperature:	-20 °C to 40 °C / -5 °F to 105 °F
Humidity	30 % to 70 % RH
Max. altitude	2000 m / 6562 ft
Electrical
Power supply:	5 – 24 VDC
Power consumption:	< 1 W
Sensors, meters
Temperature sensor:	Yes
Radio
RF band:	2400 – 2495 MHz
Max. RF power:
Wi-Fi protocol:	802.11 b/g/n
Wi-Fi Range:	Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions)
Bluetooth Protocol:	4.2
Bluetooth Range:	Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions)
MCU
CPU:	ESP32
Flash:	4 MB
Firmware capabilities
Webhooks (URL actions):	20 with 5 URLs per hook
Scripting:	mJS
MQTT:	Yes
CoAP:	No
