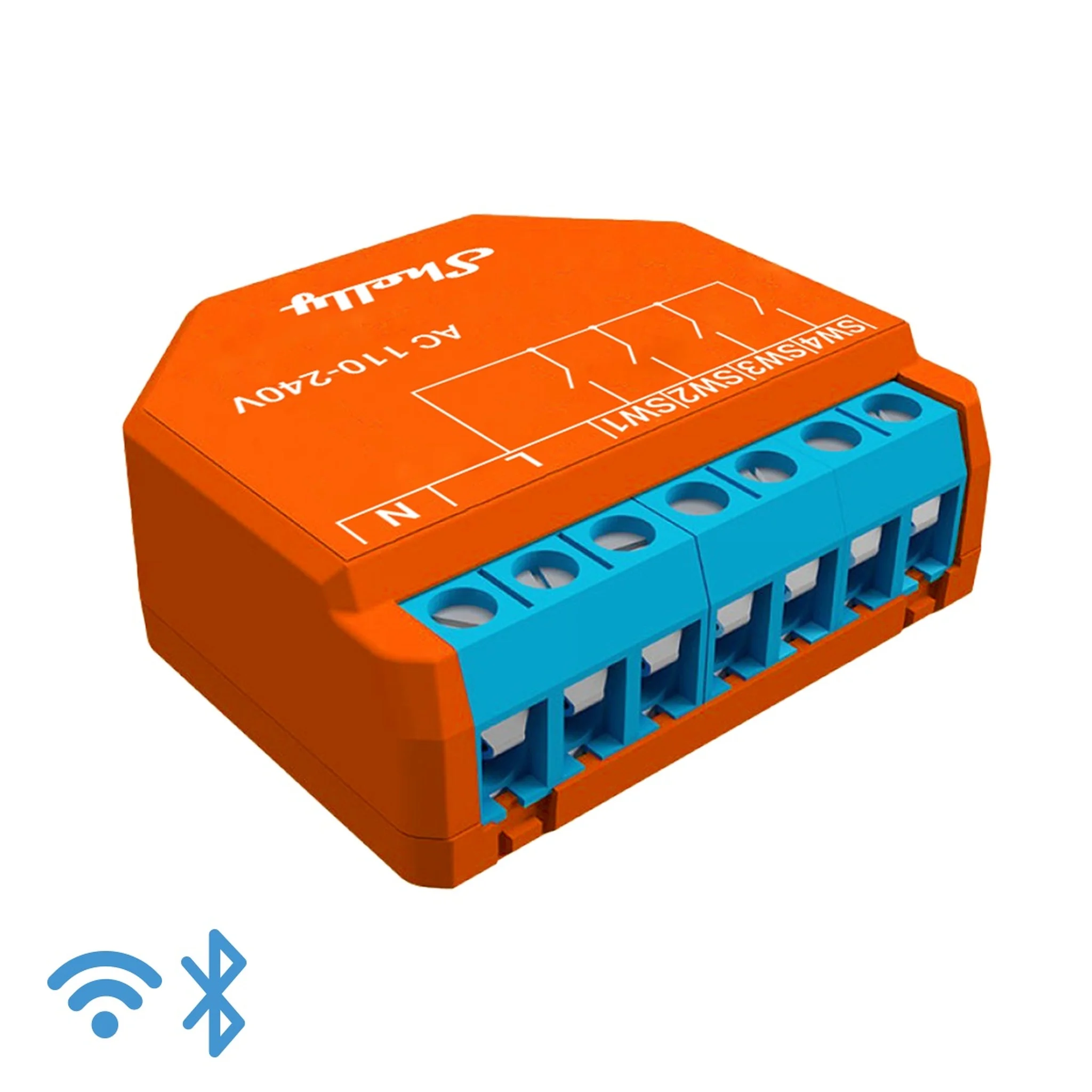

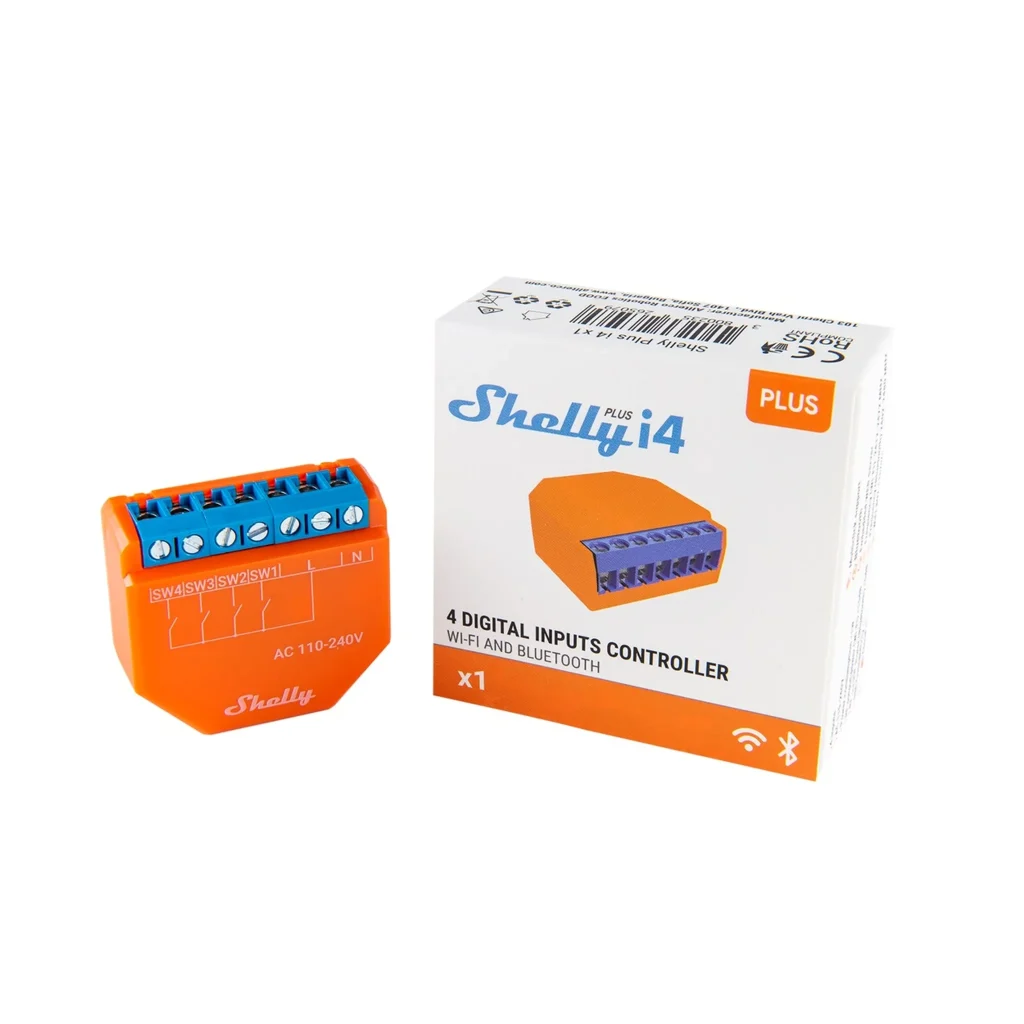

Shelly PLUS i4

Product Weight: 0.0200KG

Shelly PLUS i4

Specifications

POWER
Power supply AC	110-230V ±10%, 50/60Hz
Power supply DC	No
SPECIAL FUNCTIONS
Complex scenes control	Activate or deactivate synchronized actions of several Shelly devices
Overload protection	No
Power measurement	No
Working without a neutral line	No
FEATURES
Inputs	4 inputs
HTTP/HTTPS webhooks	Yes
Custom scripts(mJs)	Yes
Operational temperature	-20° to 40 °C
Device power consumption	< 1 W
Local and remote control	Yes
Sunrise/Sunset	No
Weekly Schedule	No
UL Listed option	No
CONNECTIVITY
Wireless/Wi-Fi Protocol	802.11 b/g/n
Radiofrequency	2400 – 2500 MHz
Range	Up to 50 m outdoors and up to 30 m indoors (depending on the building materials)
DIMENSIONS
Size	42x38x17 mm
Voltmeter (AC)	Yes
Ammeter (AC)	Yes
Radio
RF band:	2400 – 2495 MHz
Max. RF power:
Wi-Fi protocol:	802.11 b/g/n
Wi-Fi Range:	Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions)
Bluetooth Protocol:	4.2
Bluetooth Range:	Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions)
MCU
CPU:	ESP32
Flash:	4 MB
Firmware capabilities
Schedules:	20
Webhooks (URL actions):	20 with 5 URLs per hook
Scripting:	mJS
MQTT:	Yes
CoAP:	No
