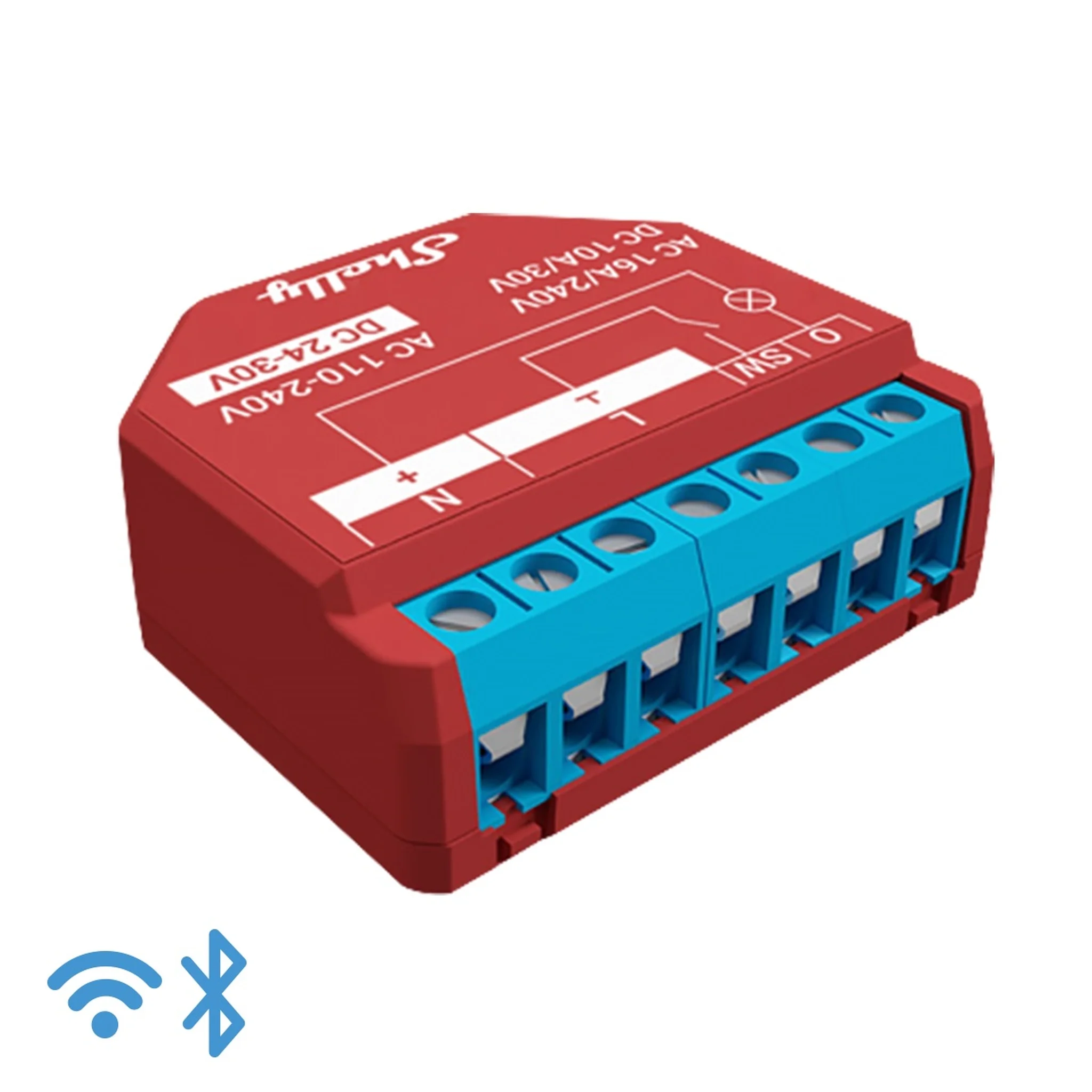

Shelly Plus 1PM

Product Weight: 0.0200KG

Shelly Plus 1PM

Specifications

POWER
Power supply AC	110-230V ±10%, 50/60Hz
Maximum load	16A
Power supply DC	24 – 30V
Channels	1 Channel
SPECIAL FUNCTIONS
Dry contacts	No
Roller shutter mode	No
Device temperature protection	Yes
Overload protection	Yes
Power measurement	Yes
Working without a neutral line	No
FEATURES
HTTP/HTTPS webhooks	Yes
Custom scripts (mJs)	Yes
Operational temperature	-20°C to + 40 °C
Device power consumption	< 1 W
Intelligent On/Off	Yes
Local and remote control	Yes
Sunrise/Sunset	Yes
Weekly Schedule	Yes
UL Listed option	No
CONNECTIVITY
Wireless	Yes
Wi-Fi Protocol	802.11 b/g/n
Wi-Fi Radio frequency	2412 – 2484 MHz
Wi-Fi Radio signal power	1mW
Wi-Fi Range	up to 50 m outdoors and up to 30 m indoors (depending on the building materials)
Bluetooth	Yes
DIMENSIONS
Size	42 x 38 x 17mm
