Features
Perfect match for Helium hotspots that need 12V power input, including Bobcat / MerryIoT / SyncroB.it / Nebra / Kerlink / Heltec / FreedomFi / Panther and more
Supports 10/100/1000Mbps high data speed, ensuring good and stable internet connection in the various scenarios.
Industrial standard operating temp from -40℃ to +80℃, better heat dissipation with delicate metal high-quality enclosure.
Excellent performance and stability, your reliable mate in hotspot set-up and various IoT applications
Description

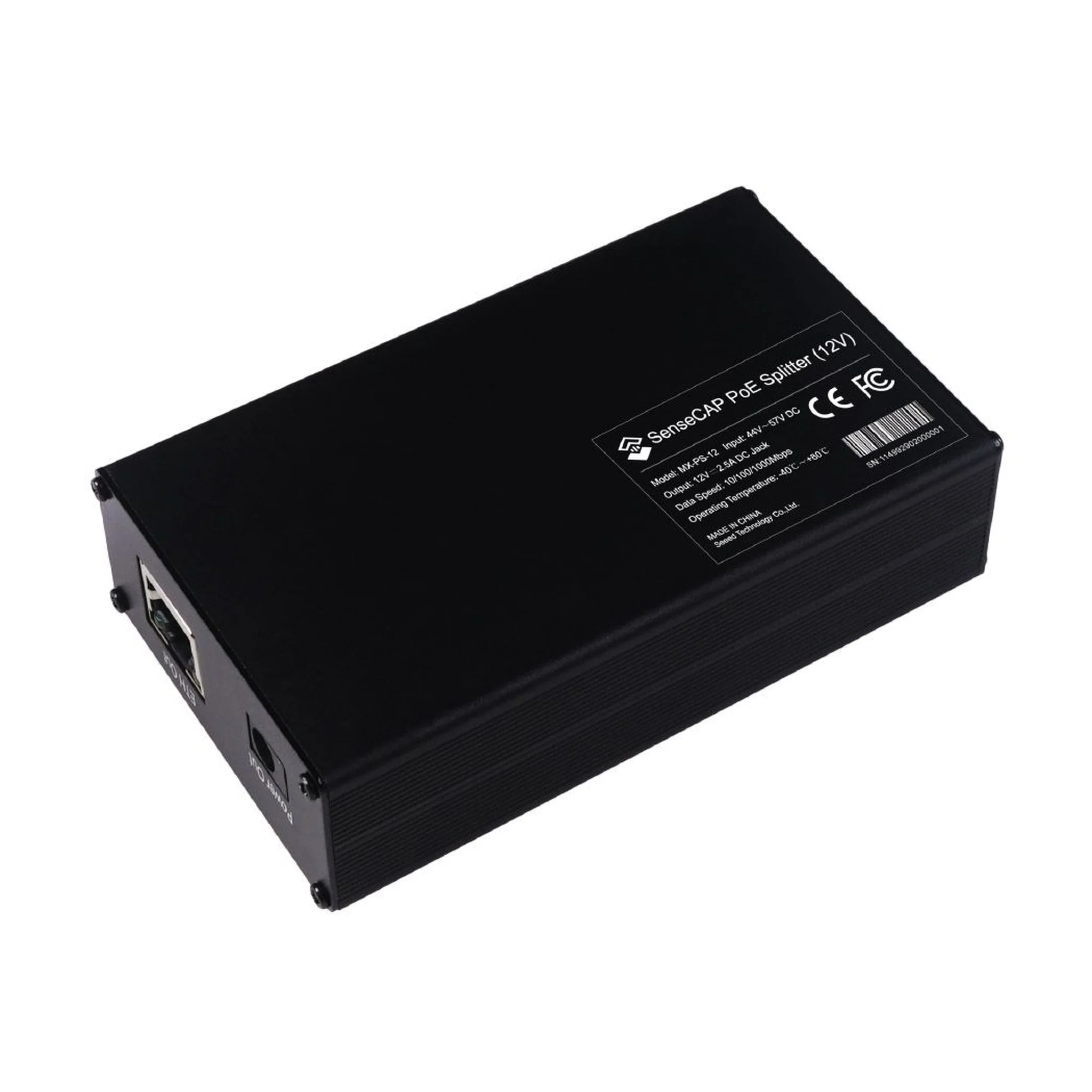

SenseCAP PoE Splitter is specially designed for hotspots and devices that do not have an embedded PoE (Power on Ethernet) function. One single ethernet cable to provide both internet and power supply connection.
It features industrial standard operating temperature from -40℃ to +80℃ and better heat dissipation with a delicate metal high-quality enclosure. Even working in the enclosure and being placed outdoor, SenseCAP PoE Splitter could offer excellent performance and high standard stability.
SenseCAP PoE Splitter supports 10/100/1000Mbps data speed, ensuring a good and stable internet connection in the various scenarios.
SenseCAP PoE Splitter has excellent performance and stability and will be your perfect choice for outdoor hotspot placement and off-grid IoT applications.
SenseCAP PoE Splitter Jack 12V supports 44V~57V DC power input and 12V output through DC Jack connector, including but not limited to the below Helium Hotspot Miners:
- Bobcat Miner 300
- Bobcat Miner 500
- MerryIoT V1
- SyncroB.it V1
- SyncroB.it V2
- Nebra HNT Indoor Hotspot Miner
- Kerlink Wirnet iFemtoCell Miner
- Kerlink Wirnet iFemtoCell Evolution Miner
- Heltec Indoor Hotspot (HT-M2808)
- FreedomFi Gateway
- Panther X1
Specification
|
Version
|
SenseCAP PoE Splitter Jack 12V
|
|
|
Input Voltage
|
DC 44-57V
|
|
Output Voltage
|
DC 12V
|
|
|
Max Output Current
|
2.5 A
|
|
|
Operating Temperature
|
-40～+80℃
|
|
Operating Humidity
|
30%~90%RH (non-condensing)
|
|
Connector Type
|
DC5521 Female
|
|
|
Power Pin
|
1/2(+),3/6(-)
or
4/5(+),7/8(-)
|
|
Data Pin
|
1/2,3/6,4/5,7/8
|
|
Data Speed
|
10/100/1000 Mbps
|
|
PoE Standards
|
IEEE 802.3 af/at
|
