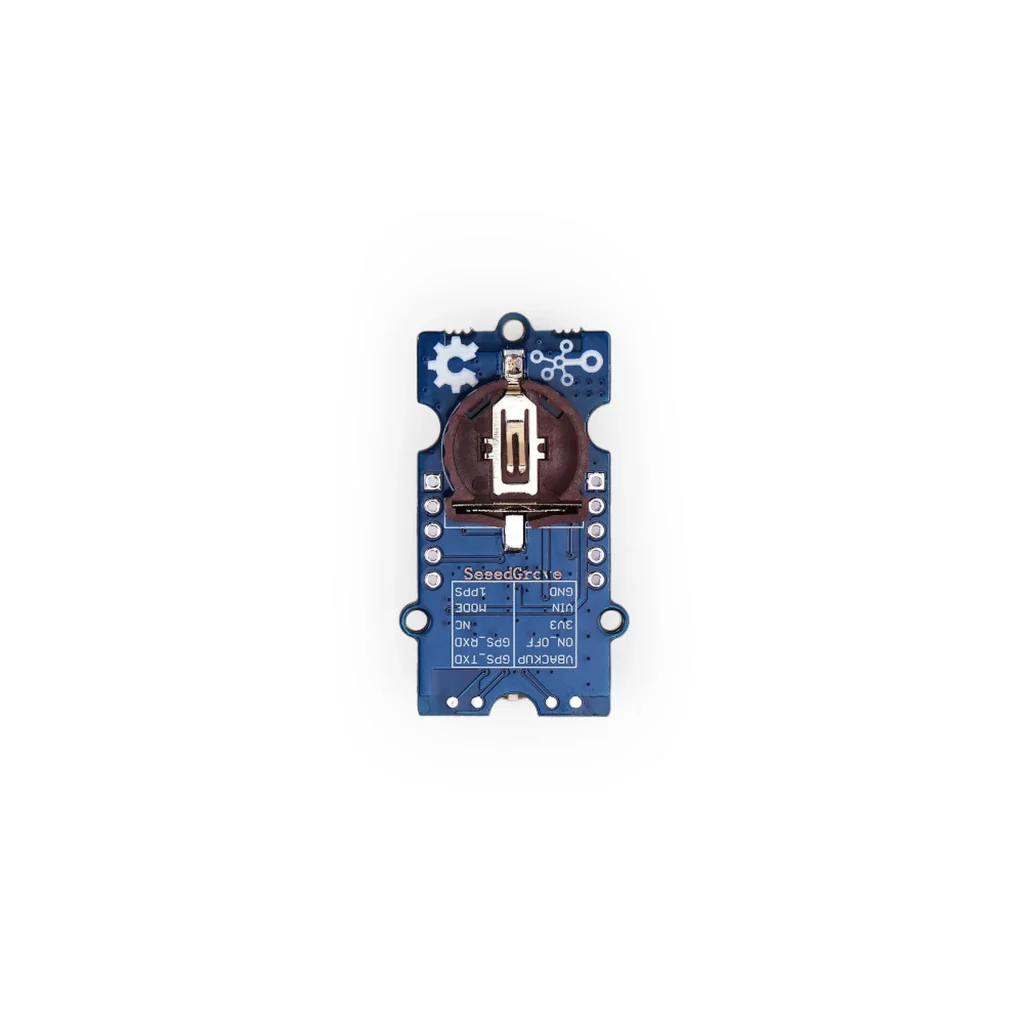

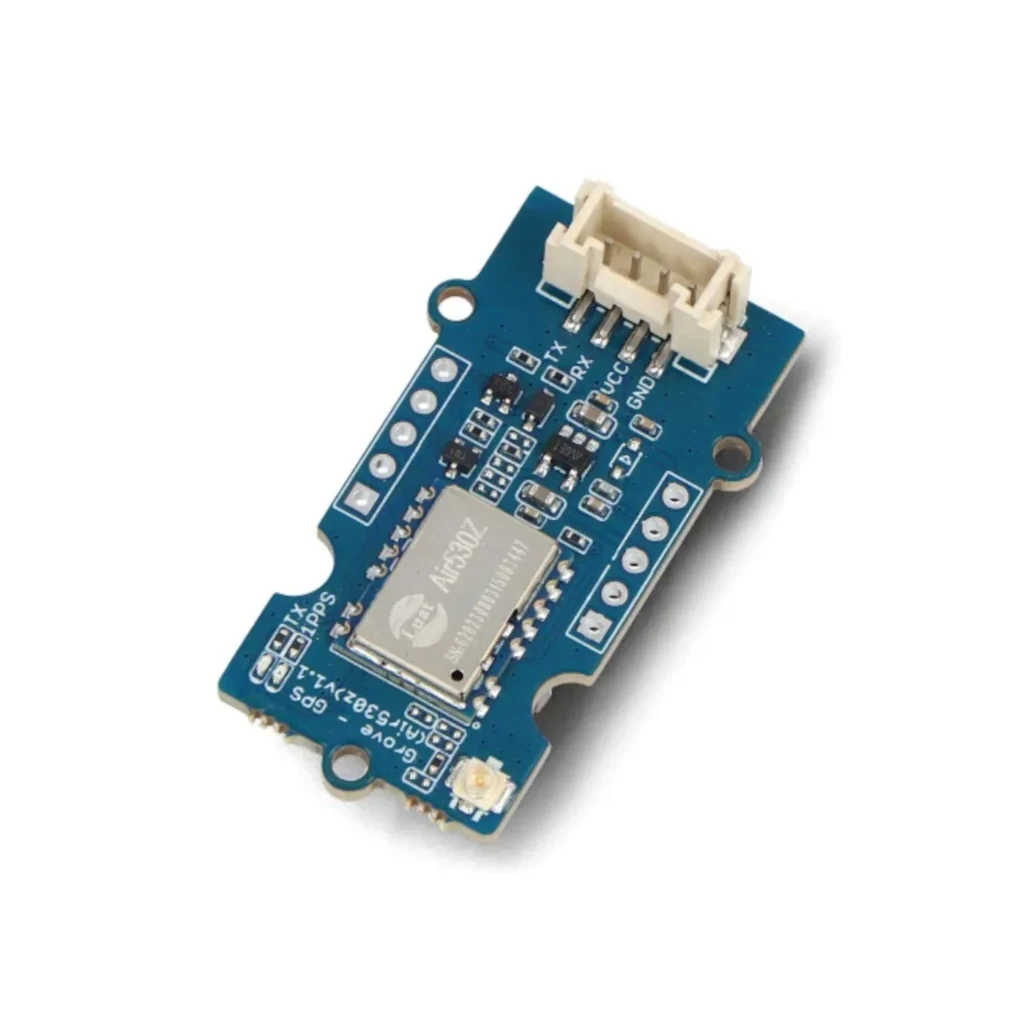

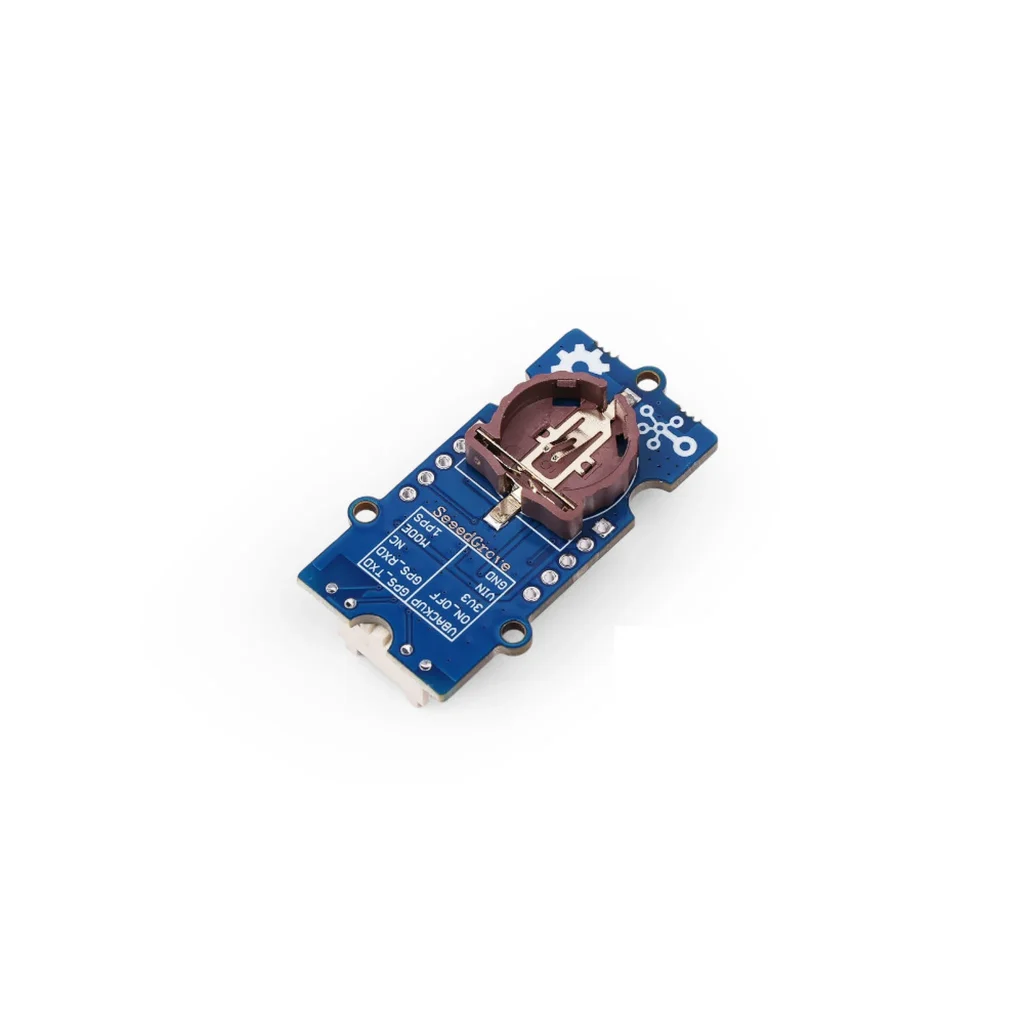

SeeedGrove – GPS (Air530),GPS location, Long-distance communication

Description

SeeedGrove-GPS (Air530) is a high-performance, highly integrated multi-mode satellite positioning and navigation module, supporting plenty of location systems, such as GPS/Beidou/Galileo and etc.

Feature

• Highly Integrated Multi-mode Satellite Positioning: Multi-mode satellite positioning & navigation and support more than 6 satellites at the same time
• High precision Positioning: Positioning error within 10 meters,and the position still quickly and accurately under the condition of bad signal
• The Integrated Design of RF Baseband: Adopt the integrated design of RF baseband, which integrates DC/DC, LDO, LNA, RF front-end, baseband processing, 32-bit RISC based chip, RAM, FLASH storage, RTC, and power management functions
• Low Power Consumption: Low power consumption at only 31uA
• High Compatibility: Compatible hard/soft interface for other modules

Specifications

• Size: 40mm x 20mm x 13mm
• Baud Rate: 9600 –921600
• Navigation Sensitivity: –166dBm
• Power Requirements: 3.3/5V
• Time to first start: Cold start: 30 seconds / Warm Start: 4 seconds
• Antennas: Antenna included
• Accuracy: 2.5m Horizontal positioning accuracy
