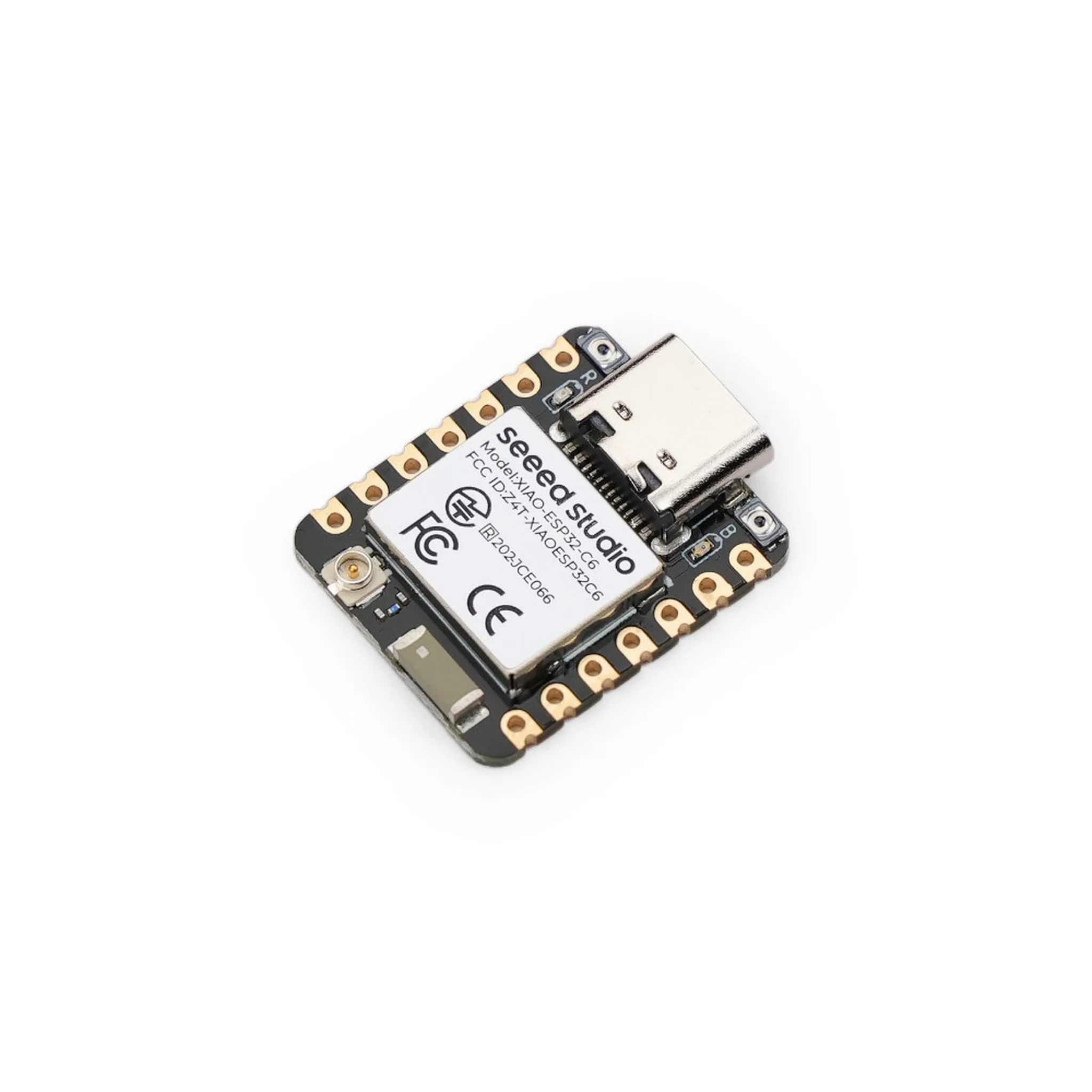

Seeed Studio XIAO ESP32C6

Feature

• Enhanced Connectivity: Combines 2.4GHz Wi-Fi 6 (802.11ax), Bluetooth 5(LE), and IEEE 802.15.4 radio connectivity, allowing you to apply the Thread and Zigbee protocols.
• Matter Native: Supports building Matter-compliant smart home projects thanks to its enhanced connectivity, achieving interoperability
• Security Encrypted on Chip: Powered by ESP32-C6, it brings enhanced encrypted-on-chip security to your smart home projects via secure boot, encryption, and Trusted Execution Environment (TEE)
• Outstanding RF performance: Has an on-board antenna with up to 80m BLE/Wi-Fi range, while reserving an interface for external UFL antenna
• Leveraging Power Consumption: Comes with 4 working modes, with the lowest being 15 μA in deep sleep mode, while also supporting lithium battery charge management.
• Dual RISC-V Processors: Incorporates two 32-bit RISC-V processors, with the high-performance processor running up to 160 MHz, and the low-power processor clocking up to 20 MHz
• Classic XIAO Designs: Remains the classic XIAO designs of the thumb-size form factor of 21 x 17.8mm, and single-sided mount, making it perfect for space-limited projects such as wearables
• Seamless integration with mainstream Cloud Platforms: ESP Rain Maker, AWS IoT, Microsoft Azure, and Google Cloud

Specification

• Processor: Espressif ESP32-C6 SoC, two 32-bit RISC-V processors, with the high-performance one running up to 160 MHz, and the low-power one clocking up to 20 MHz
• Wireless: Complete 2.4GHz Wi-Fi 6 subsystem, BLE: Bluetooth 5.0, Bluetooth mesh
• On-chip Memory: 512KB SRAM & 4MB Flash

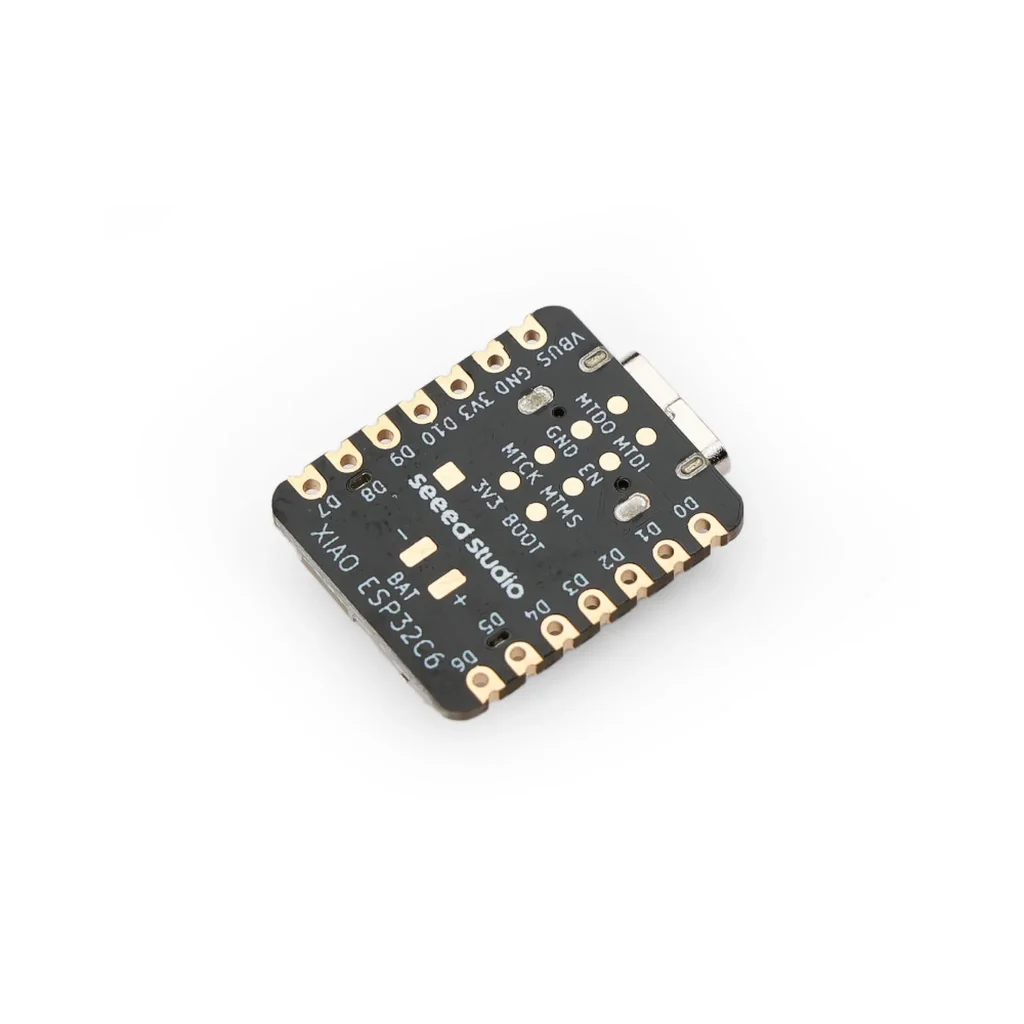

• Interface:1x UART,1x LP_UART, 1x IIC, 1x LP_IIC, 1x SPI,11x GPIO(PWM), 7x ADC, 1xSDIO, 1x Reset button, 1x Boot button

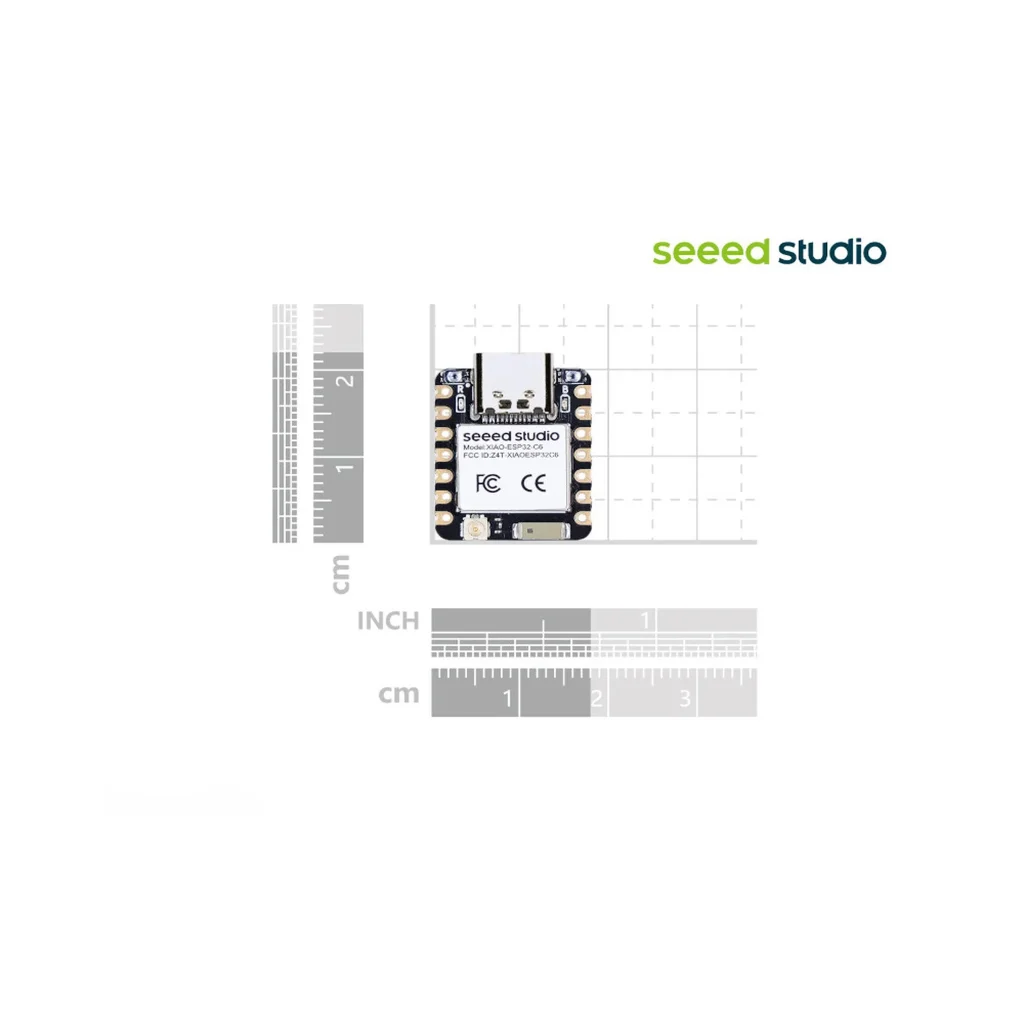

• Dimensions: 21 x 17.8mm
• Power:  Input voltage (Type-C): 5V Input voltage (BAT): 4.2V, Circuit operating Voltage (ready to operate):– USB:5V@9mA– BAT:3.8V@9mA
• Power Consumption Model: Modem-sleep Model: ~ 30 mA, Light-sleep Model: ~ 2.5 mADeep, Sleep Model: ~ 15 μA
• Working Temperature: -40°C ~ 85°C
