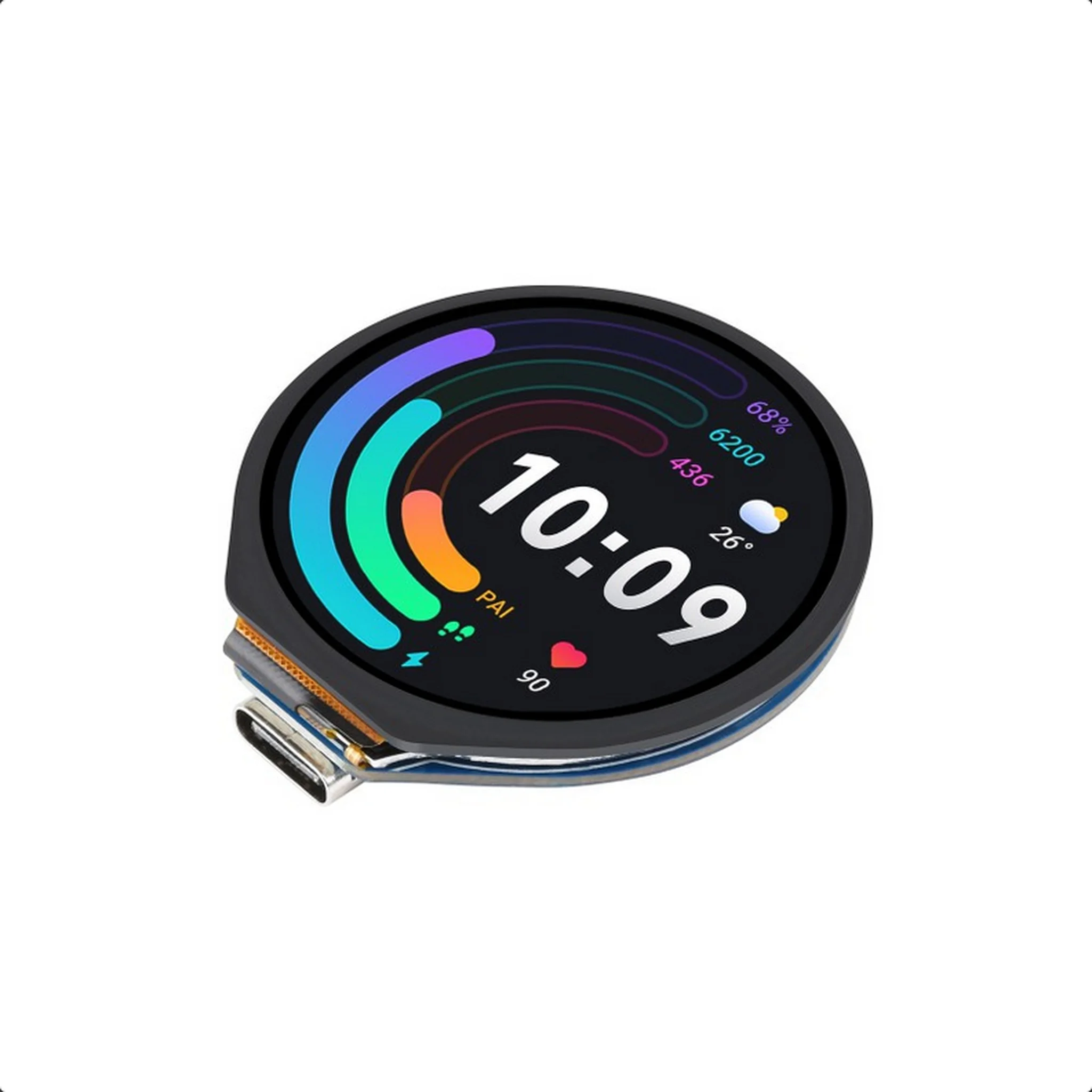

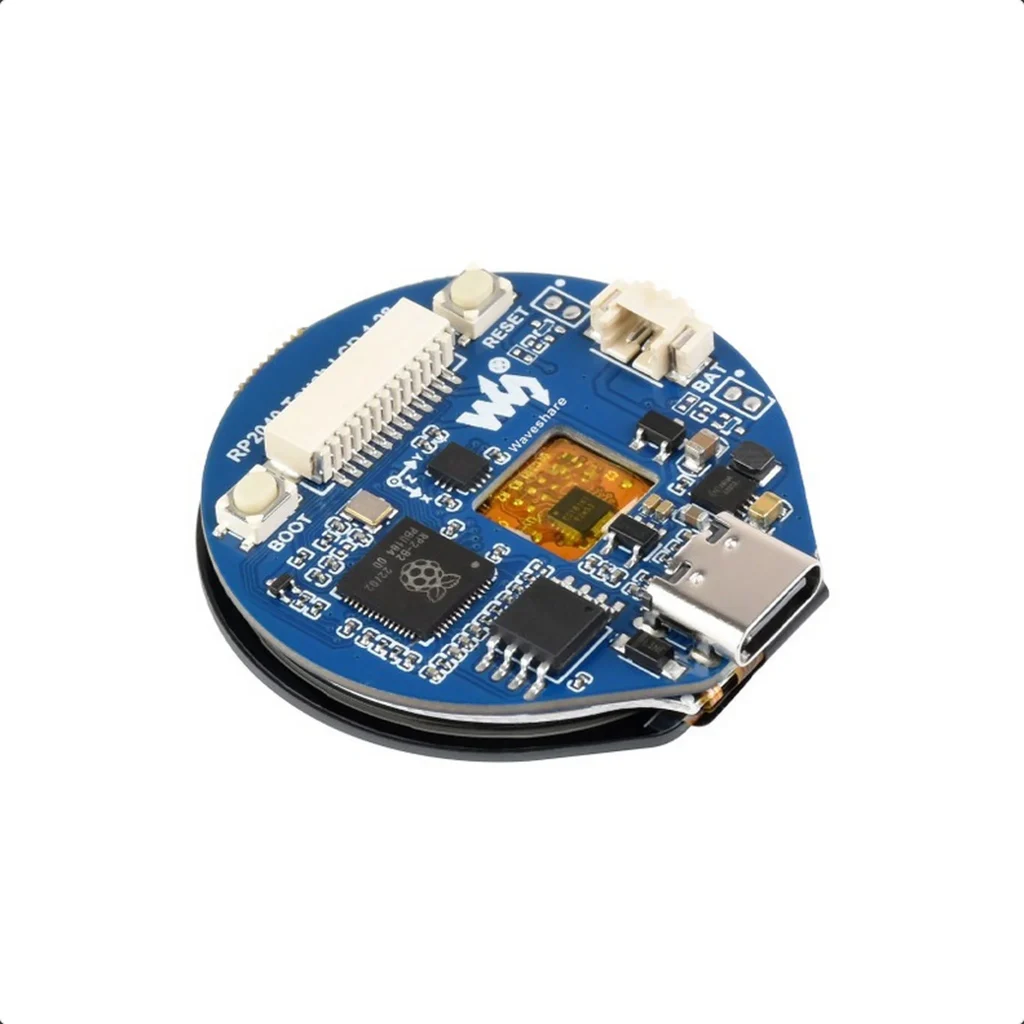

RP2040-Touch-LCD-1.28 is a low-cost, high-performance MCU board designed by Waveshare, tiny size, with onboard 1.28inch capacitive touch display, Li-ion battery recharge manager, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope), and so on, which makes it easy for you to develop and integrate it into products quickly.

Key features include:

• RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
• Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
• 264KB of SRAM, and 4MB of on-board Flash memory
• Type-C connector, keeps it up to date, easier to use

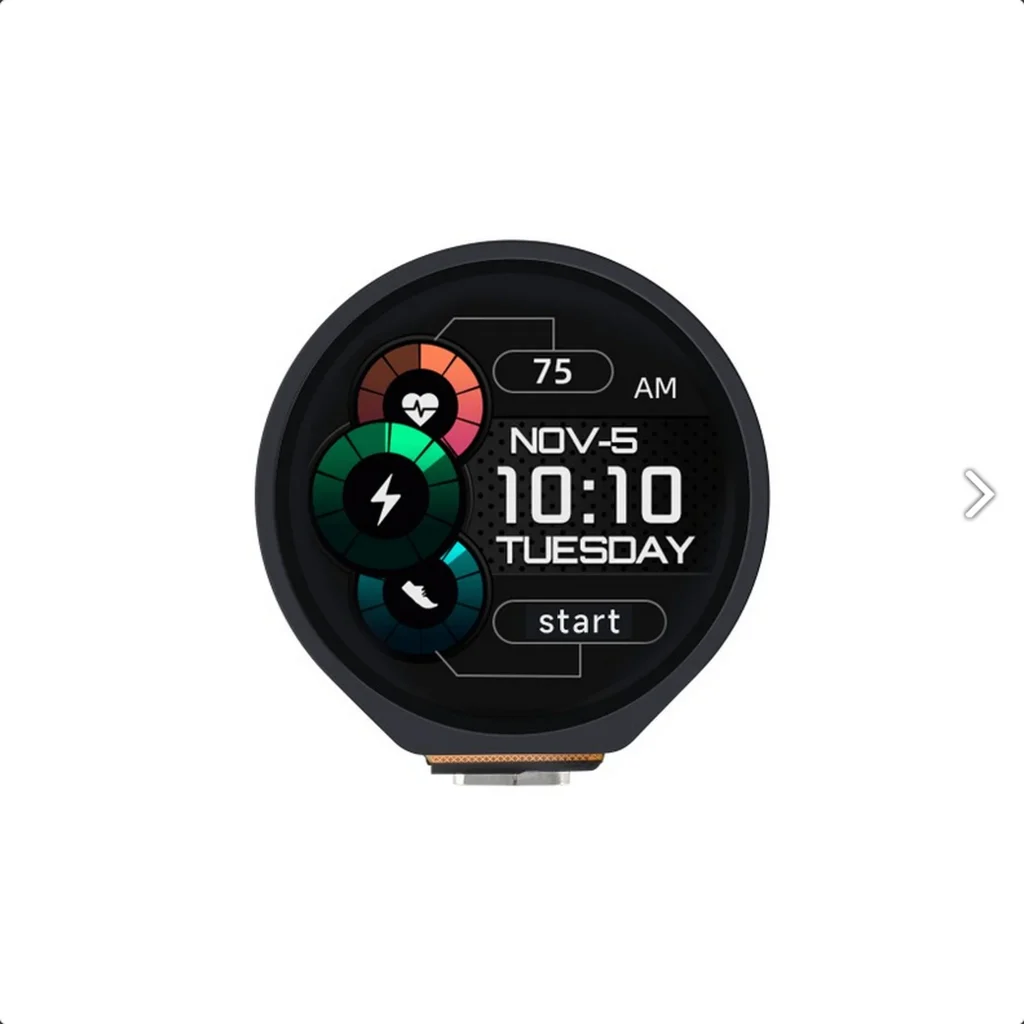

• Onboard 1.28inch capacitive touch display, 240×240 resolution, 65K color
• Lithium battery recharge/discharge header, suitable for mobile devices
• USB 1.1 with device and host support
• Low-power sleep and dormant modes
• Drag-and-drop programming using mass storage over USB
• Accurate clock and timer on-chip
• Temperature sensor
• 6 × GPIO pin via SH1.0 connector
