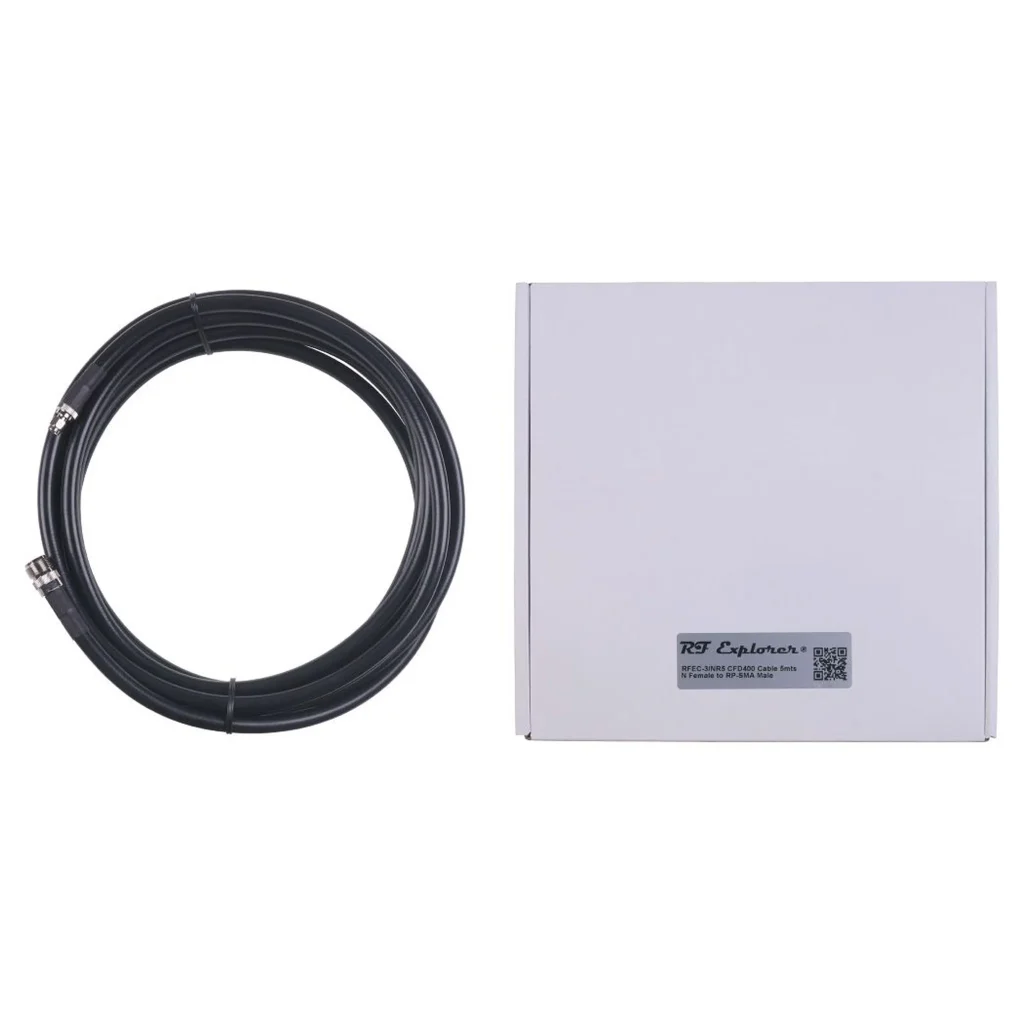

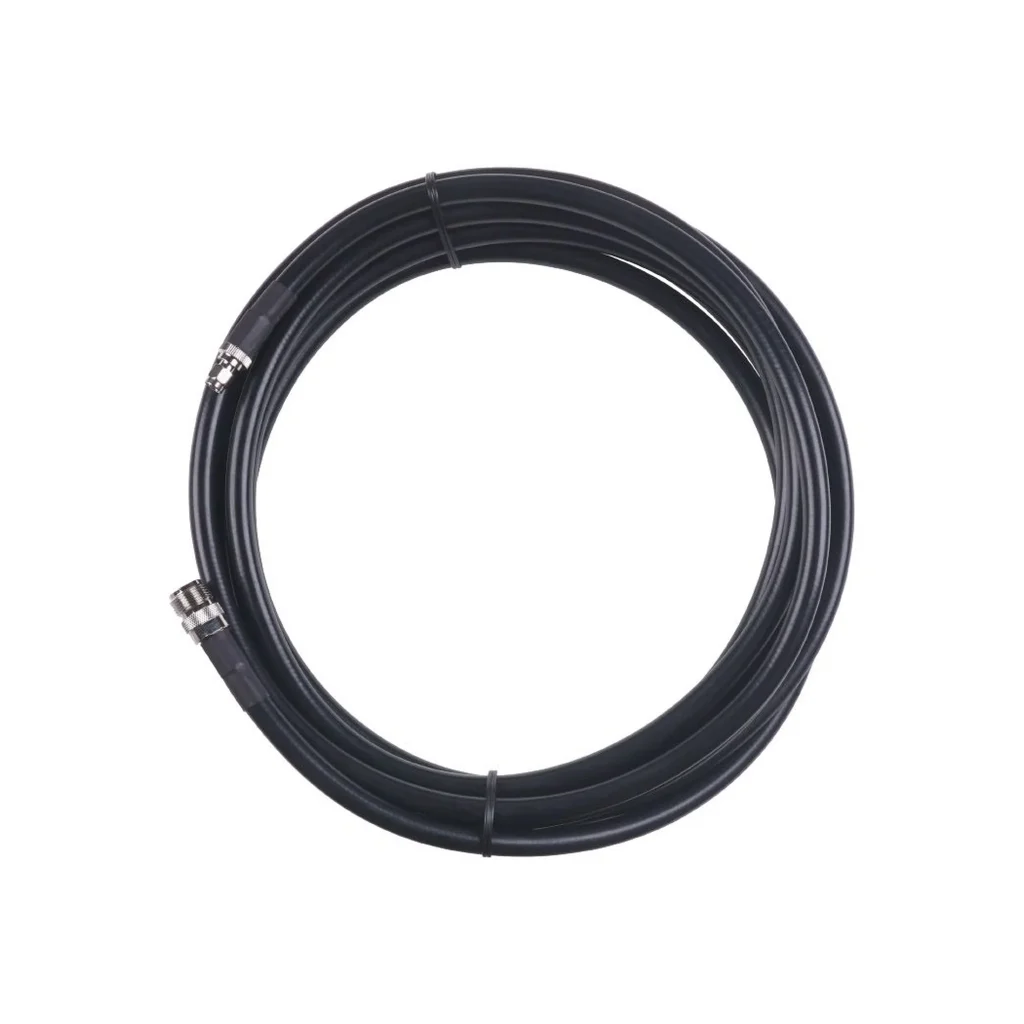

RF Cable; N Female to RP-SMA Male-CFD400-Black-5m; For SenseCAP M1 Indoor Gateway and Fiberglass Antenna

Features

• Perfect connector match with RF Explorer high-performance antennas and SenseCAP M1 Indoor Gateway
• Low insertion loss: Typical 0.45db @ 900MHz
• Low VSWR: Typical 1.1 @ 900MHz
• Robust construction for outdoor usage: Tinned copper wire for braid material, significantly reduces the interruption.

Description

CFD400 is an industrial-grade cable that provides low signal loss, long working expectations, and qualification for outdoor deployment. It is able to connect to an antenna for better coverage and connect to SenseCAP M1 Indoor Gateway and SenseCAP Outdoor Gateway for better data transmission.
Specification

Frequency Range : 0-6000MHz
Length : 5 meter ±50mm
Impedance : 50Ω
VSWR : Typical 1.1 @ 900MHz
            ≤1.5 max @ 6GHz
Insertion Loss : Typical 0.9db @ 900MHz
             ≤2.5dB max @ 6GHz
Capacitance : 76pF/m
Velocity of Propagation : 85%
Connectors : Type N Male/Jack
                   Type RP SMA Male
Insulation Resistance : > 1,000 MΩ
Bend Radius : Min 25.4mm
 Voltage Breakdown :  2.5KV
External Cable Diameter : 10.3mm
Connectors : Type N Female
                  Type RP-SMA Male
Mating Cycles : > 500
Jacket Material : PE
Conductor Material : Copper
Binder Material : Aluminum/PE Tape
Braid Material : Tinned copper wire
Operation Temperature : -30°C to +65°C
Environmental : RoHS
