REKA:BIT – Simplifying Robotics for micro:bit

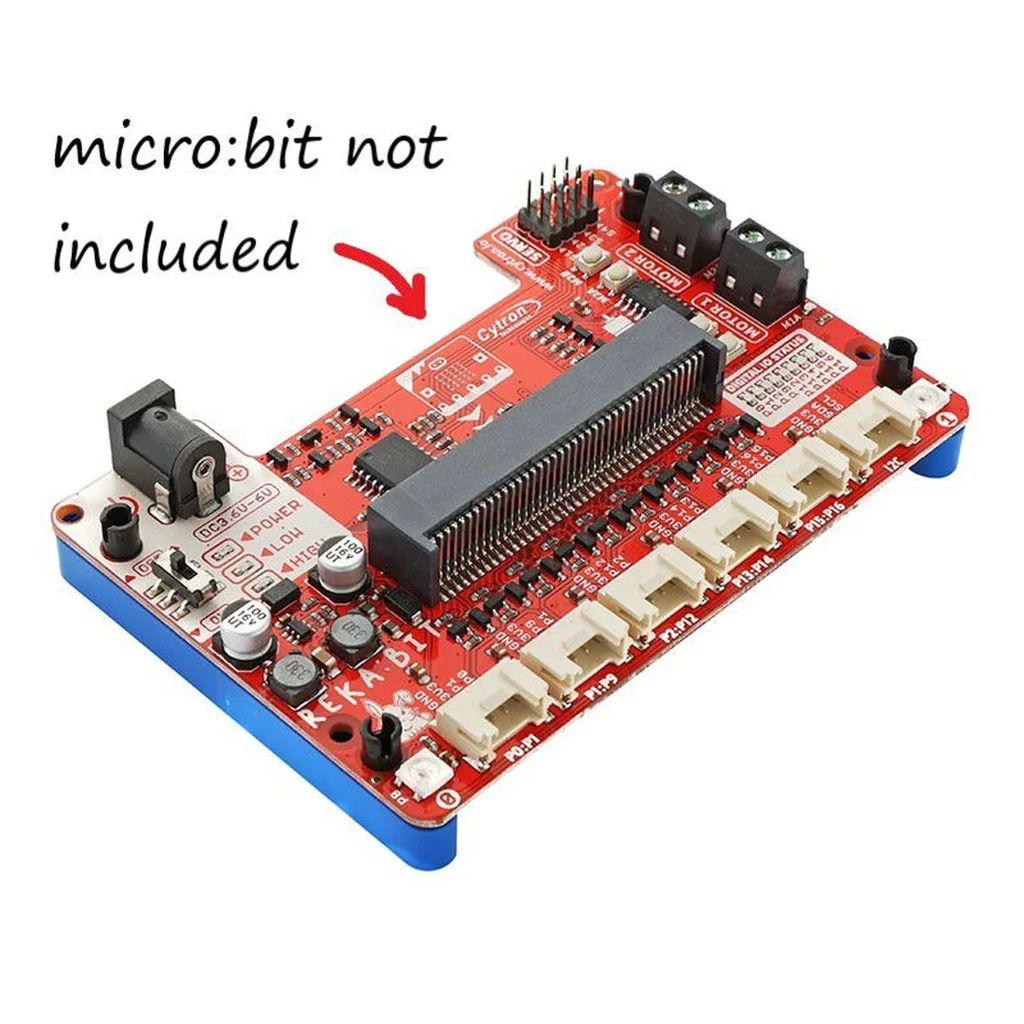

**(micro:bit NOT include)

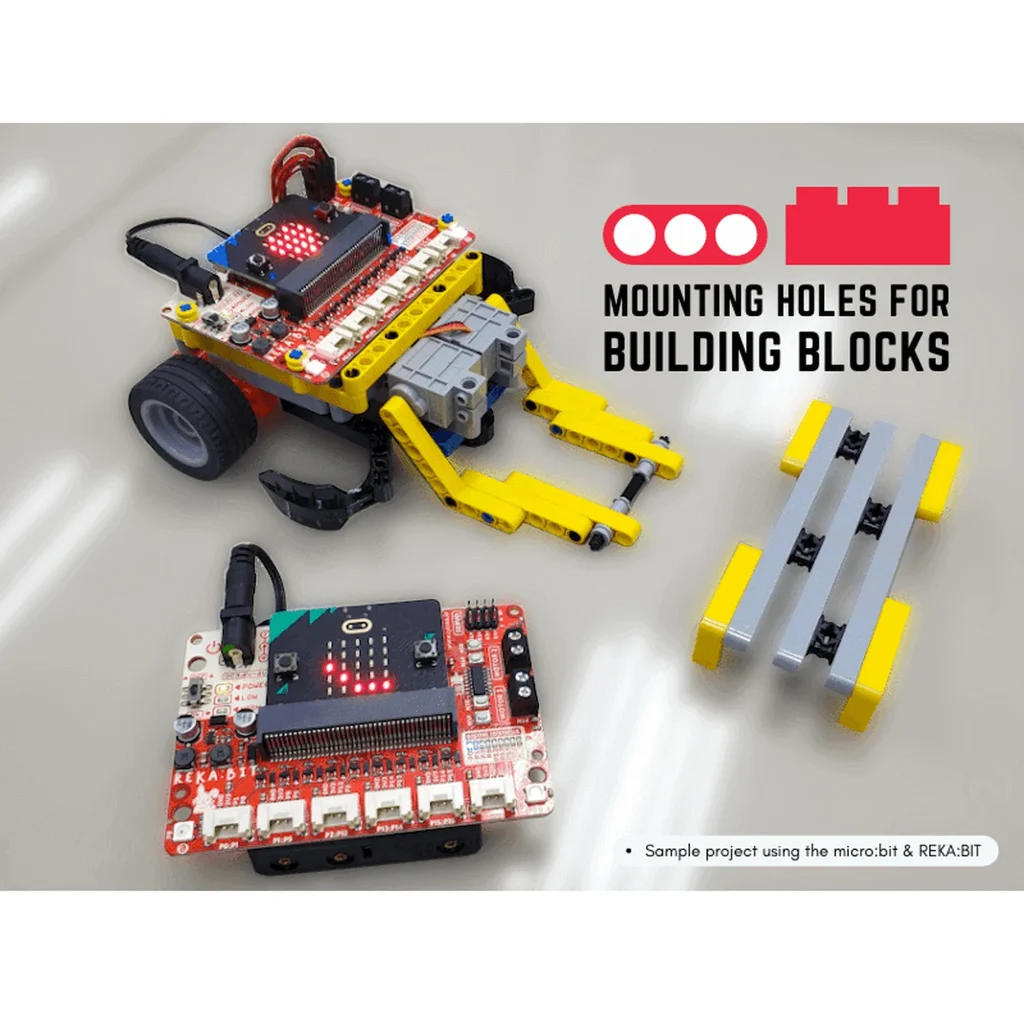

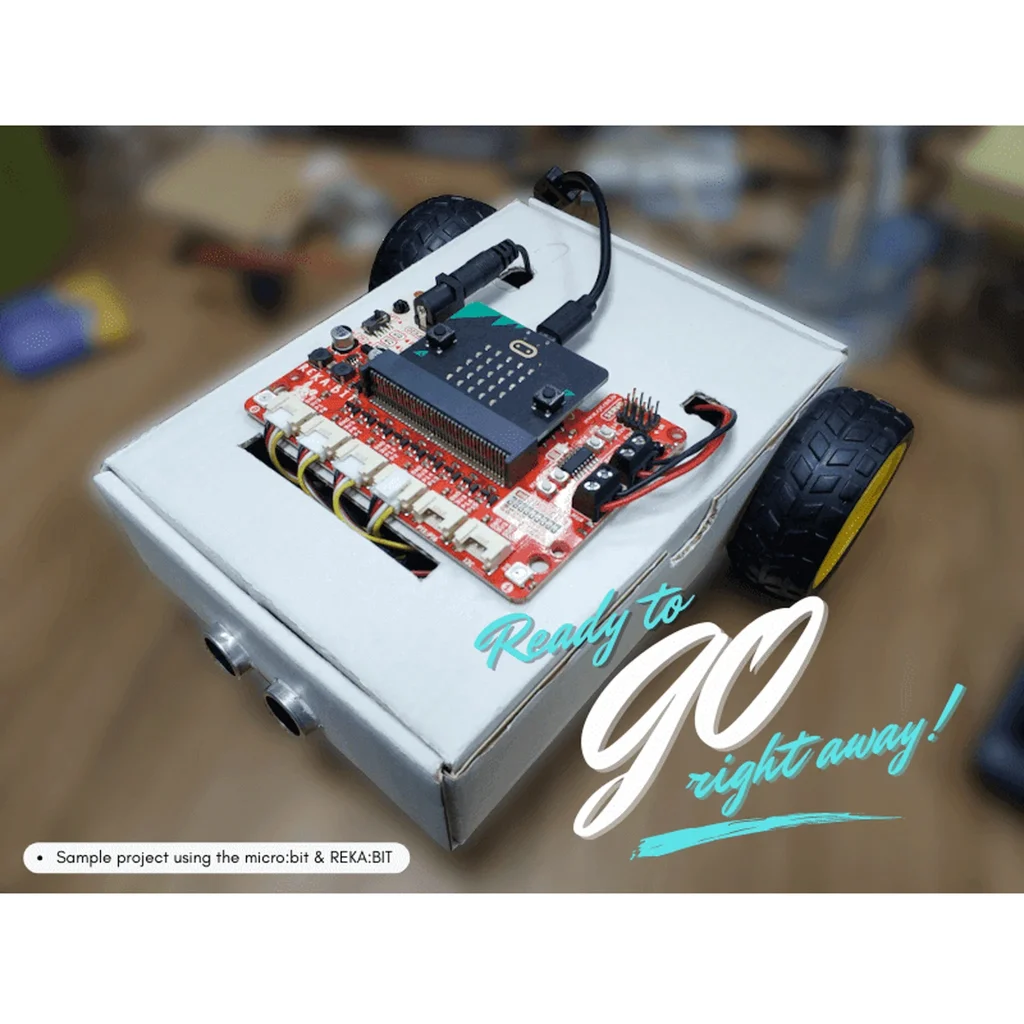

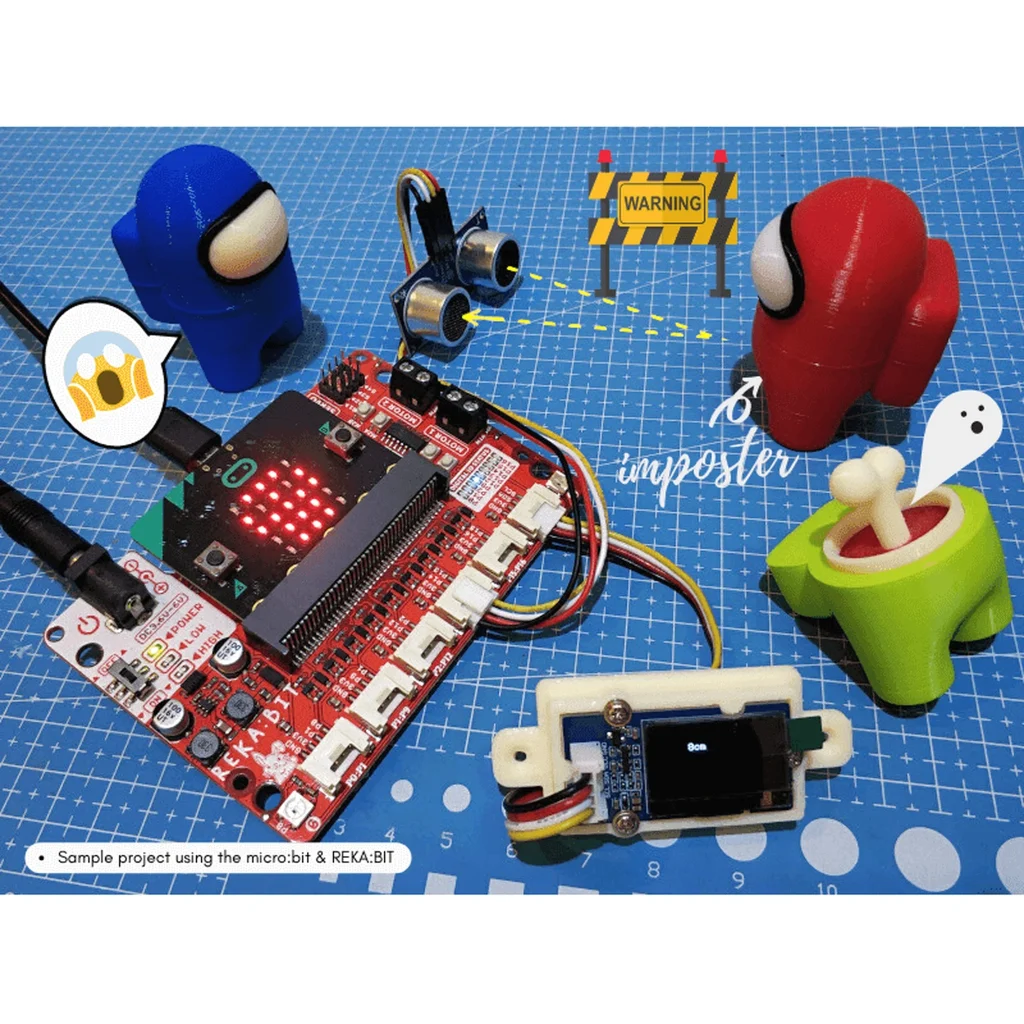

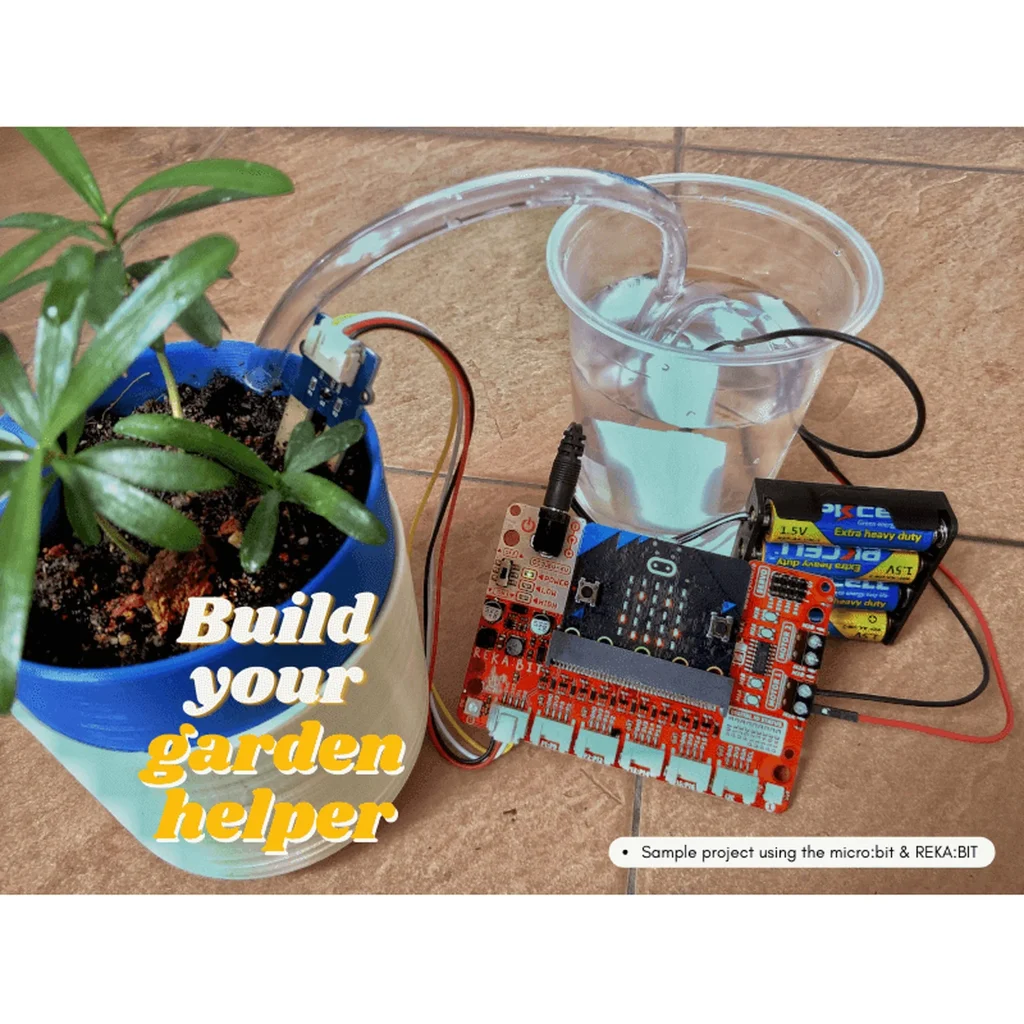

With the fundamental concepts acquired from EDU:BIT’s 10+1 hands-on lessons, one is able to bring it further to apply the knowledge in creating more fun applications and even solving real-life problems with this micro:bit expansion board. Its much smaller board size is perfect for building innovation projects for schools and competitions, or even just to tame your cravings for DIY and making.

Program your REKA:BIT with Microsoft MakeCode Editor. Just add REKA:BIT MakeCode Extension and you’re good to go. If you’re a beginner, you can start with the block programming mode; simply drag, drop and snap the coding blocks together. For more advanced users, you can easily switch into JavaScript or Python mode on MakeCode Editor for text-based programming.

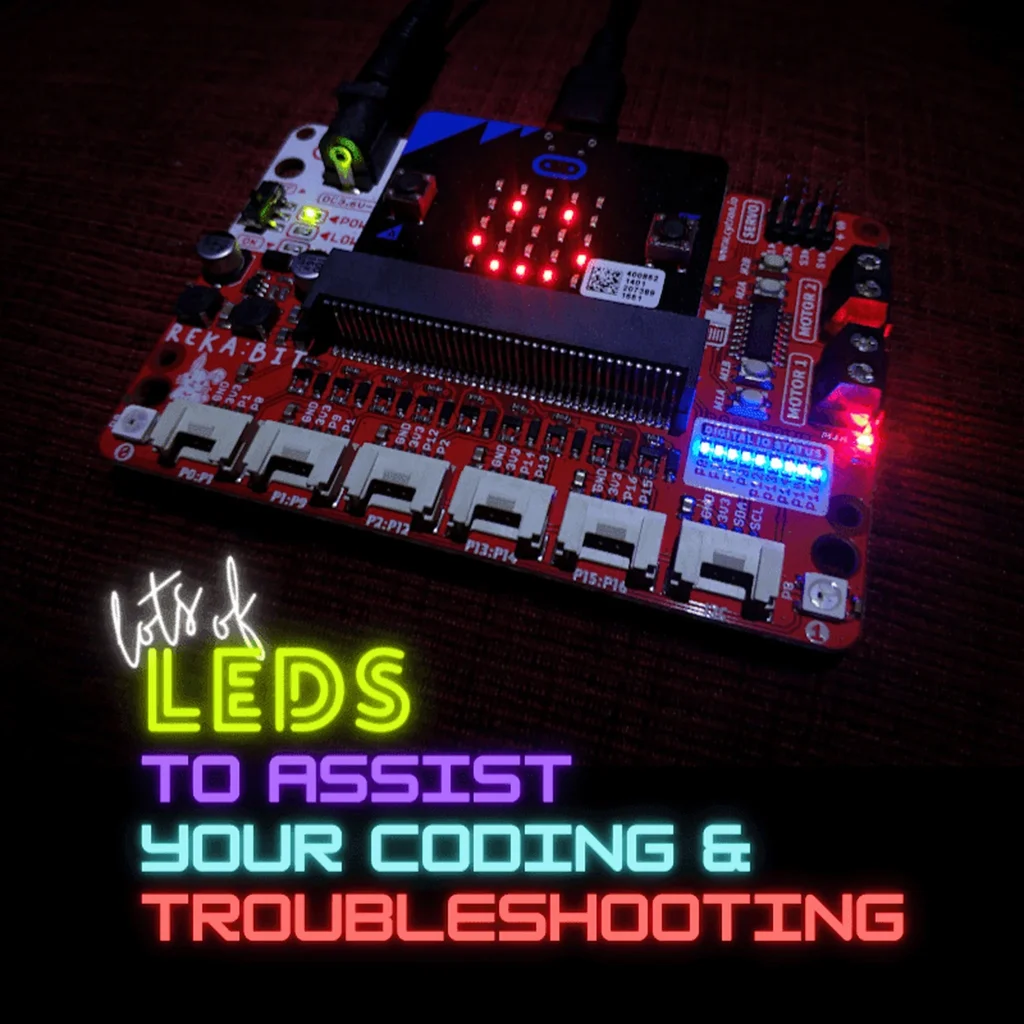

 REKA:BIT possesses a lot of indicator LEDs to assist your coding and troubleshooting. It covers the IO pins connected to all six Grove ports and DC motor outputs from the co-processor. One is able to check his/her program and circuit connection easily by monitoring these LEDs.

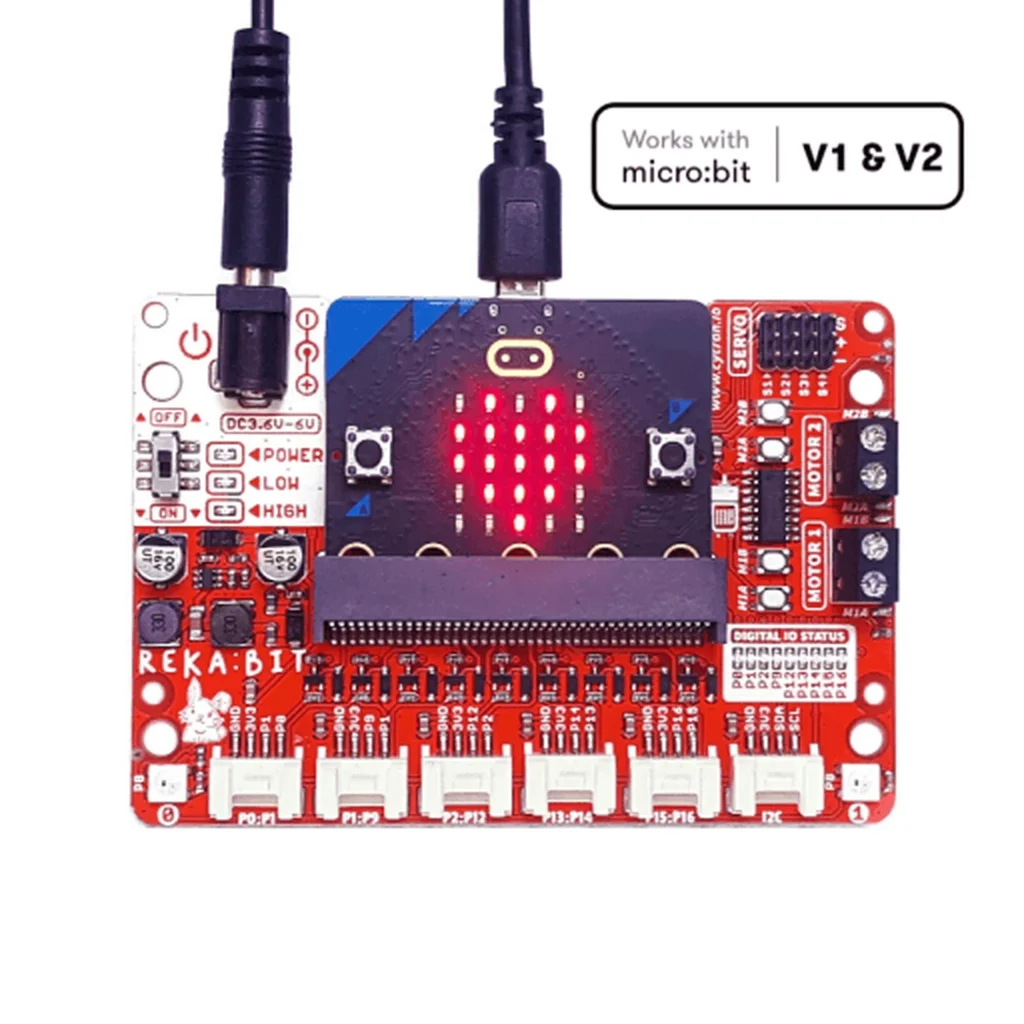

 Features

•     2x DC motor terminals
          built-in motor quick test buttons (no coding needed)
•     4x Servo motor ports
•     2x Neopixel RGB LEDs
•     6x Grove port (3.3V)
          3x Analog Input / Digital IO ports
          2x Digital IO ports
          1x I2C Interface
•     DC jack for power input (3.6 – 6VDC)
•     ON/OFF switch
•     Power on indicator
•     Undervoltage (LOW) indicator & protection
•     Over-voltage (HIGH) indicator & protection


Dimension:

10.4mm x 72mm x 15mm

 **Δεν περιέχεται το micro:bit, μπορείτε να το προμηθευτείτε εδω
