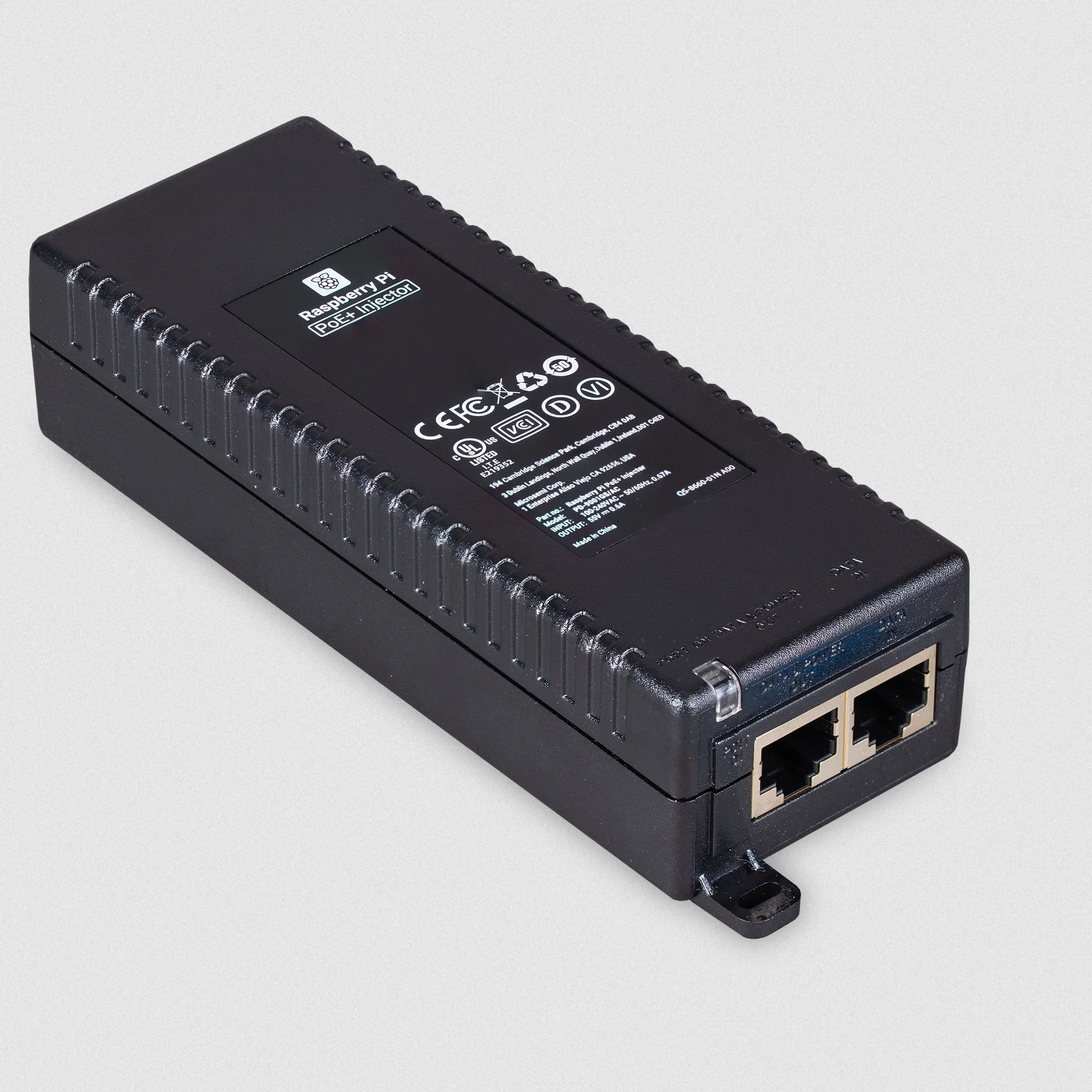

Raspberry Pi PoE+ Injector

A single-port 30W injector suitable for powering devices conforming to the IEEE 802.3af and 802.3at specifications, including all generations of Raspberry Pi PoE HAT.

Specifications

• Data rate: 10/100/1000 Mbps
• Input voltage: 100 to 240 V AC
• Output power: 30W
• Power output on pins: 4/5 (+), 7/8 (–)
• Nominal output voltage: 55 V DC
• Dimensions: 159 mm (L) × 51.8 mm (W)  × 33.5 mm (H)
• Data connectors: Shielded RJ-45, EIA 568A and 568B
• Power connector: IEC c13 mains power input (not included)
• Operating ambient temperature: –10⁰C to +50⁰C
• Operating humidity: Maximum 90%, non-condensing
• Storage temperature: –20⁰C to +70⁰C
• Storage humidity: Maximum 95%, non-condensing
• Operating altitude: –300m to 3000m
• MTBF: 200,000 hrs @ 25⁰C
