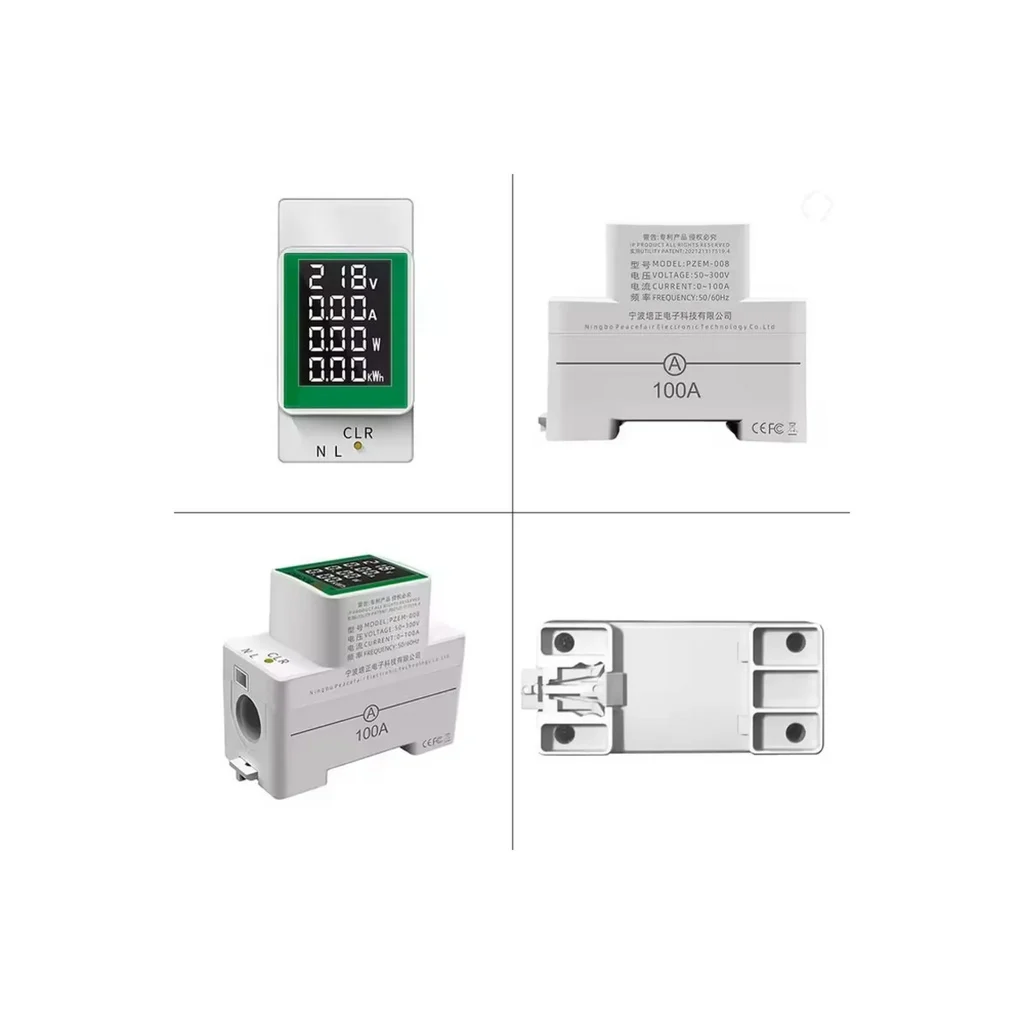

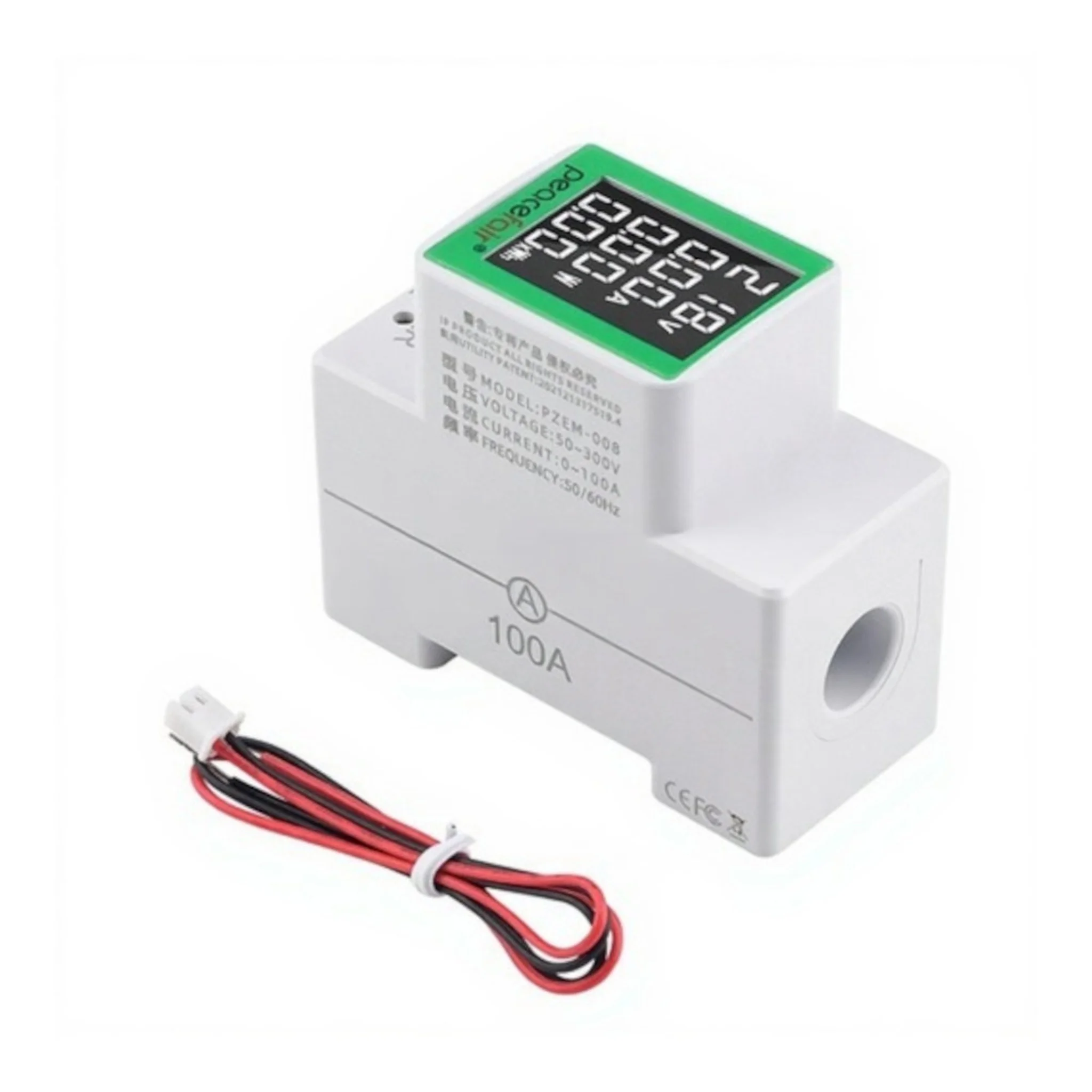

PZEM-008 AC 50-300V/100A Digital Display Voltmeter and Ammeter
Χαρακτηριστικά :
Dimensions 78*34mm
Operating Temperature -10-60degree
Output Voltage 50-300V
Accuracy Class 1.0
Measuring Energy Range 0-1999kwh
Phase single phase
Model Number PZEM-008
Max Operating Current 80A – 99A
Rated Voltage 220V
Power Supply AC
Display Type Digital Only
Display LCD Display
Type DIN Rail Mounting Energy Meter
Frequency 45-65Hz
Installation 35mm Din Rail
Power range 0-30kw
Energy range 0-1999kwh
Voltage Measurement Accuracy ±1%
Starting Current 0.02A
Starting Power 0.5W

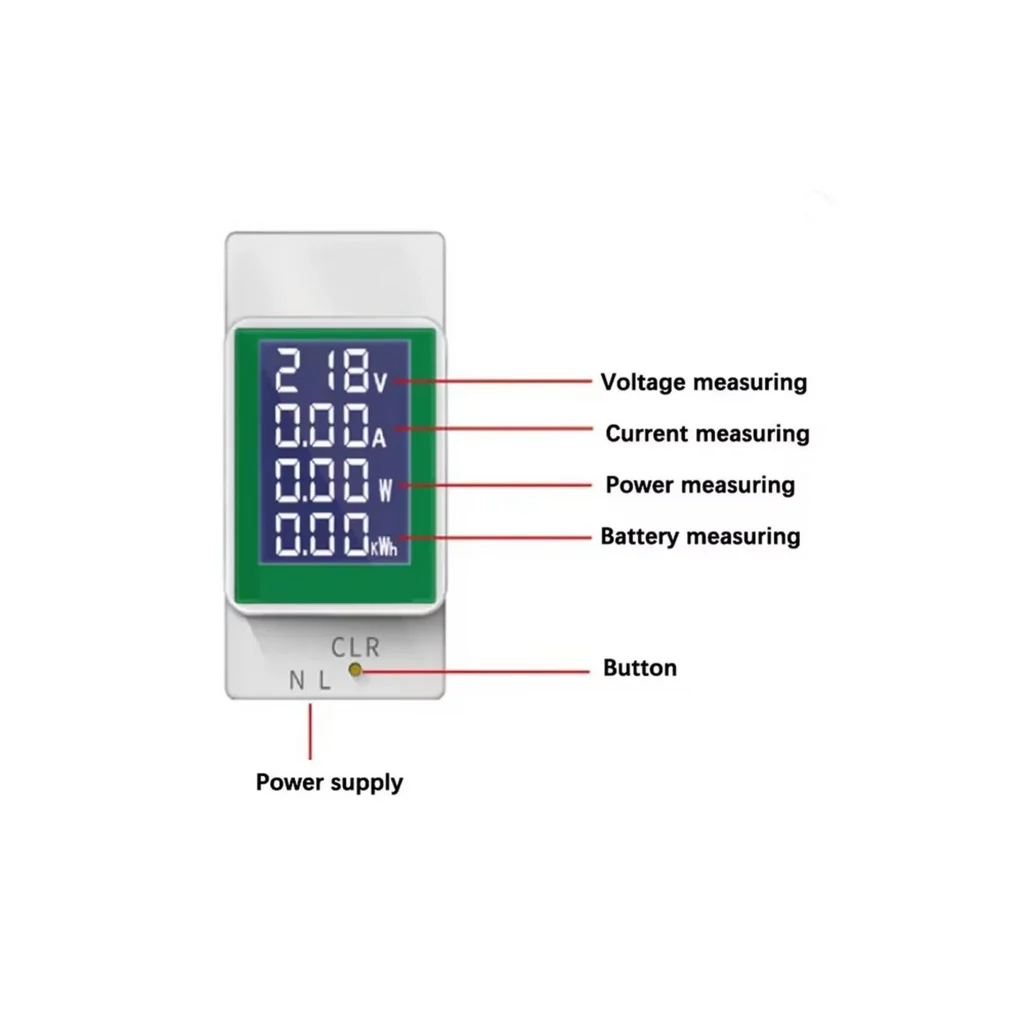

1. Backlight control The backlight can be turned on or of by short press the key 2. Reset energy Long press the key over 3 seconds until the energy data flash, then release the key, short press the key again to reset the energy, otherwise after 3 seconds it will stop flashing and the energy will not be reset. 3. Data storage When the power off, the enrgy data and backlight status can be saved.
