Product Weight: 0.0800KG
Raspberry Pi offers cost-effective, high-performance computing for businesses and the home. Designed and manufactured in the UK.
Designed For Applications Required Power Management
Provides a powerful power management solution, such as timing power on/off,
measuring working voltage, etc. Fast load transient response for fast switching
among multiple power supplies
| Main controller | RP2040 |
|---|---|
| Communication interface | UART + GPIO |
| Communication baud rate | 115200bps by default (configurable) |
| Power supply interface | USB port or PH2.0 connector |
| USB power input voltage | 5V |

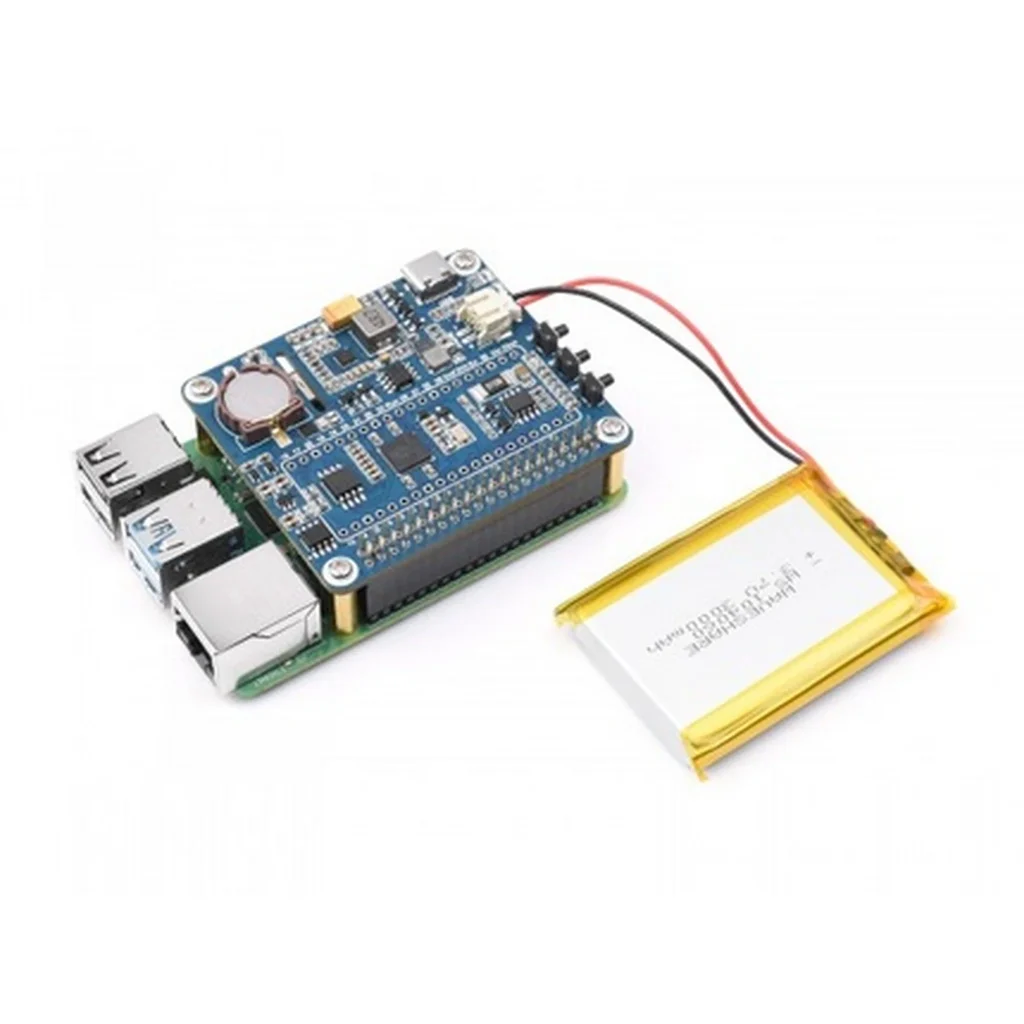

| PH2.0 power input voltage | 3.3 ~ 4.2V (3.7V lithium battery) |
| Embedded circuits | battery anti-reverse, counter current proof, voltage/current monitoring |
| Dimensions | 56.5 x 65.0mm |
| Mounting hole diameter | 3.0mm |

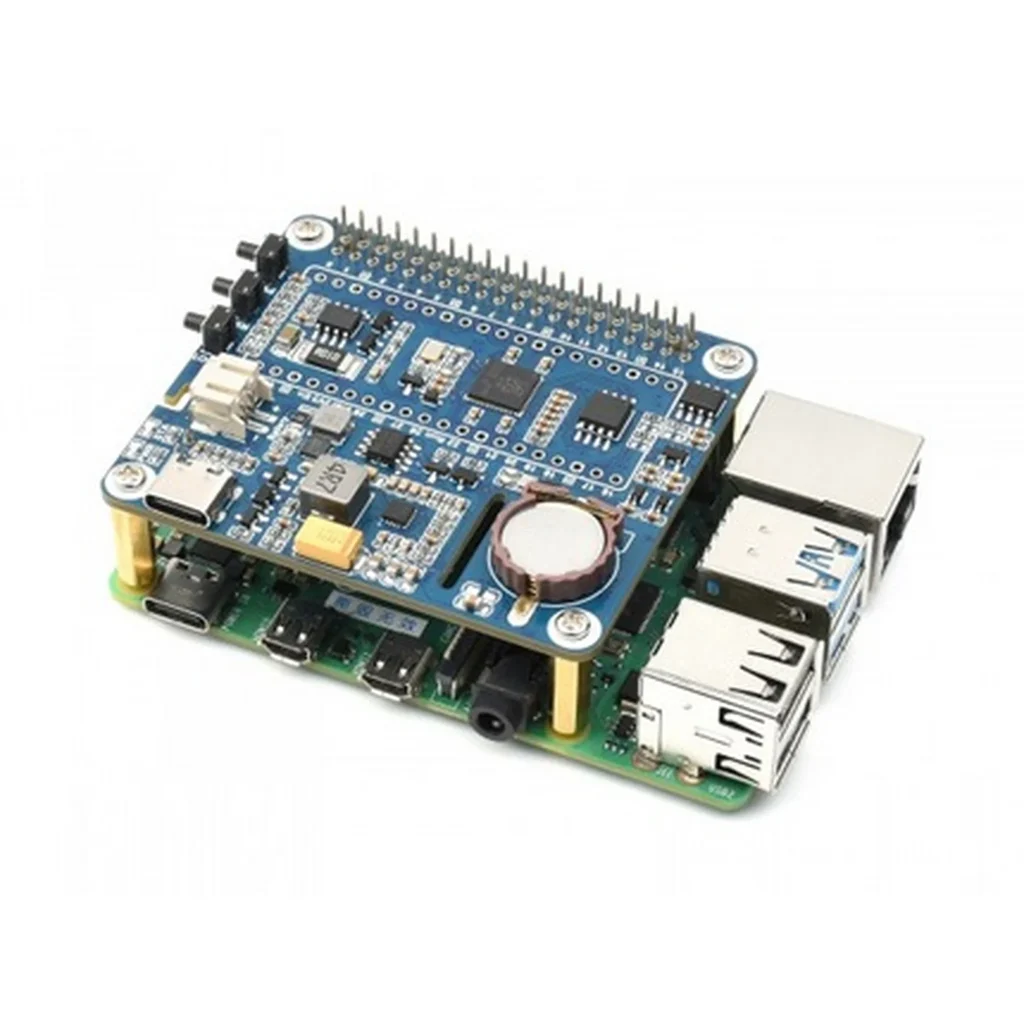

Customized For Raspberry Pi Series Board
Using RP2040 Microcontroller Chip Designed By Raspberry Pi, Powerful & Easy To Use
Compatible with Raspberry Pi Pico standard pinout, for connecting with Pico HAT

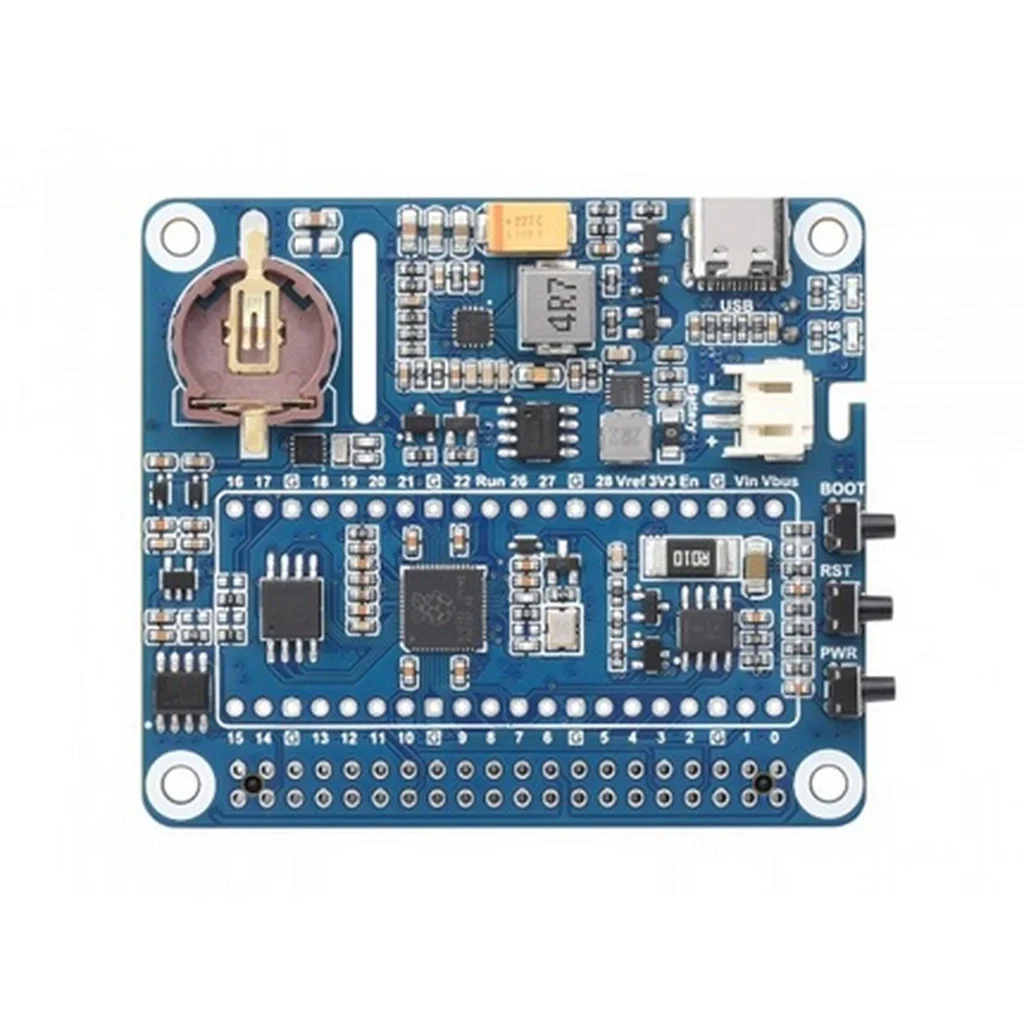

Onboard PCF85063 RTC chip with button cell holder
Onboard MP28167-A buck-boost DC chip, supports fast load transient response
Fast switching among multiple power supplies
* for reference only, please refer to the part list for detailed package content.
Can be used as the power button for Raspberry Pi start up, software shutdown and forced shutdown
Onbaord power supply anti-reverse, counter current proof, Voltage/current monitoring circuit, to ensure stable and safe operating
