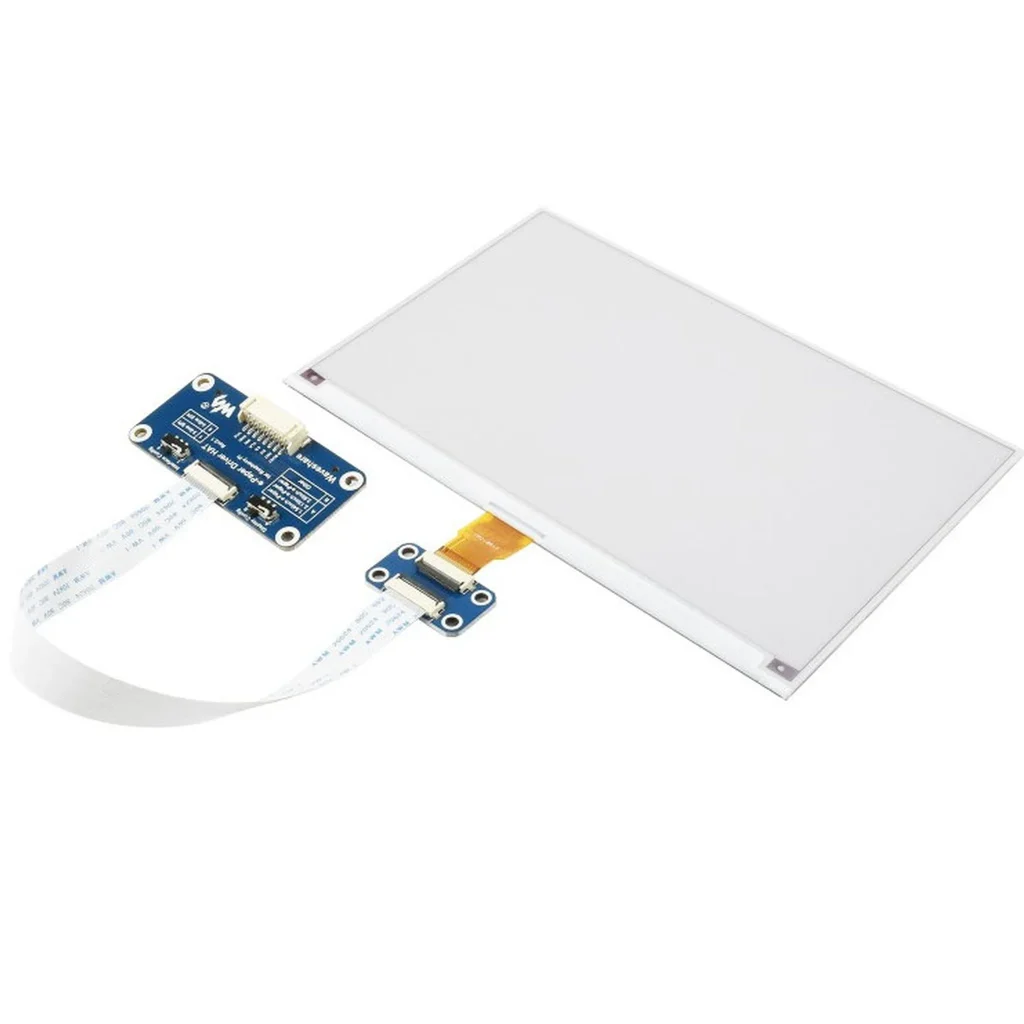

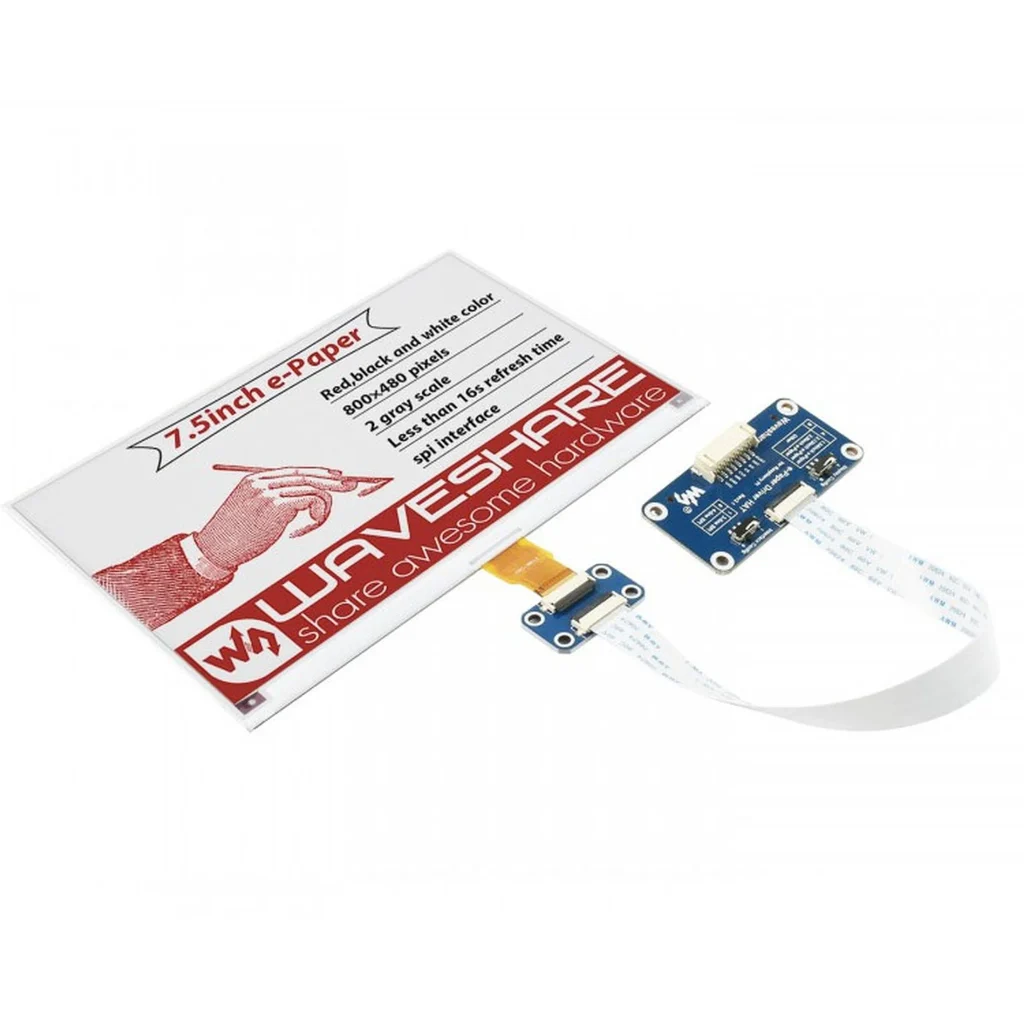

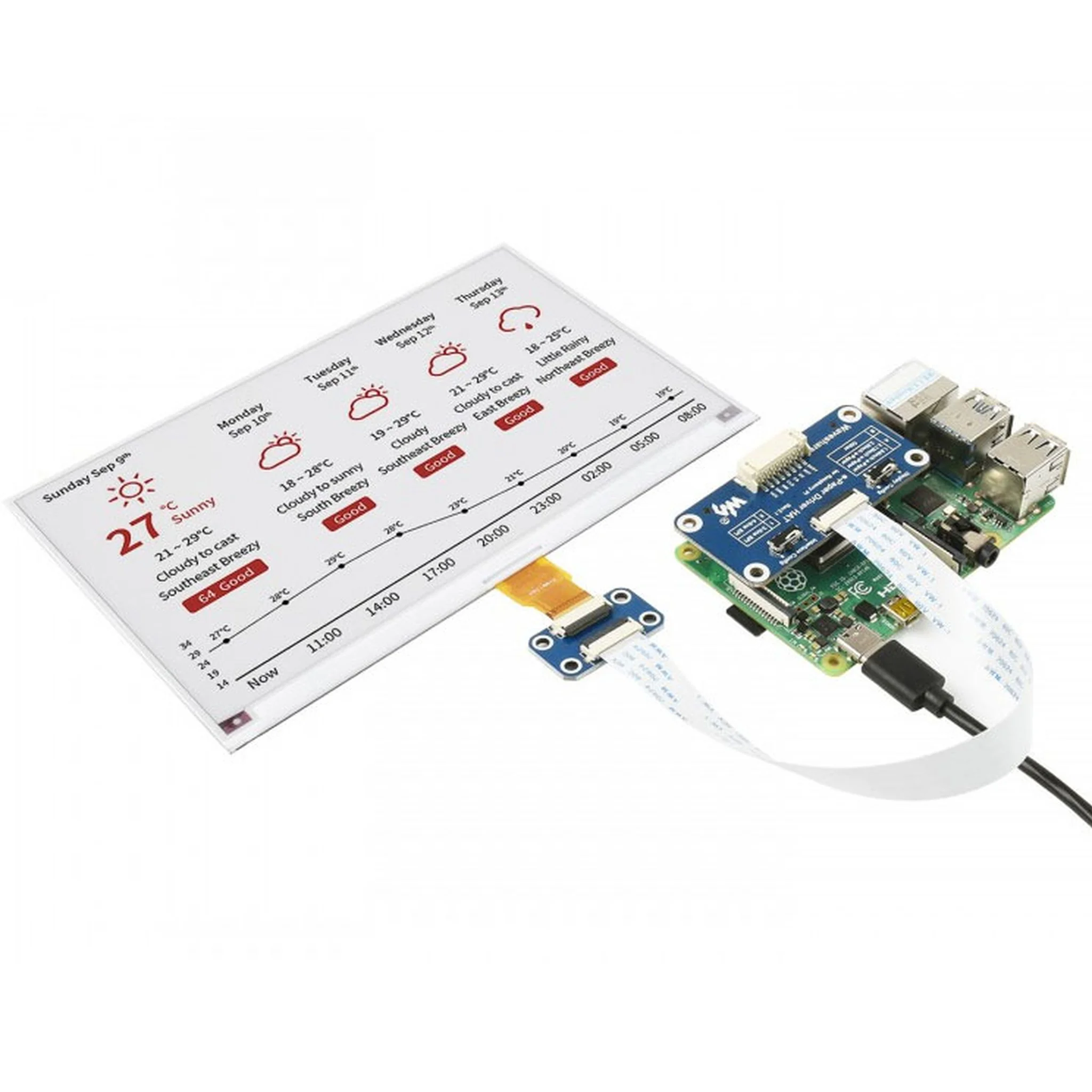

Pi Display e-Paper 7.5″ HAT 800×480, Red / Black / White, SPI

Features at a glance
  •     No backlight, keeps displaying last content for a long time even when power down
  •     Ultra low power consumption, basically power is only required for refreshing
  •     Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
  •     SPI interface, for connecting with controller boards like Raspberry Pi/Jetson Nano/Arduino/STM32, etc.
  •     Onboard voltage translator, compatible with 3.3V / 5V MCUs
  •     Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
Specifications



operating voltage 3.3V/5V display color red, black, white
interface 3-wire SPI, 4-wire SPI grey scale 2
outline dimensions 170.2 × 111.2mm full refresh time 16s
display size 163.2 × 97.92mm refresh power 48mW (typ.)
dot pitch 0.205 × 0.204mm standby current
resolution 800 × 480 pixels viewing angle >170°



  • VCC     3.3V/5V
  • GND     Ground
  • DIN     SPI MOSI pin
  • CLK     SPI SCK pin
  • CS     SPI chip selection, low active
  • DC     Data / Command selection (high for data, low for command)
  • RST     External reset, low active
  • BUSY     Busy status output, high active



Application examples

Suitable for price Tags, asset/equipment Tags, shelf labels, conference name tags…

Outline dimensions

Inches
  • • 7
Κατάσταση
  • • New

Related Products

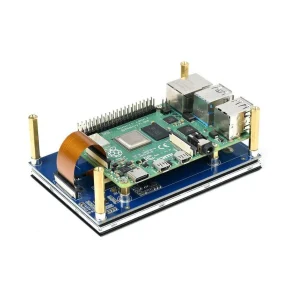

Pi Display 4.3″ 800×480, DSI interface, Capacitive Touchscreen
Pi Display 4.3″ 800×480, DSI interface, Capacitive Touchscreen
Available
SKU : 48-16239
€ 88.00

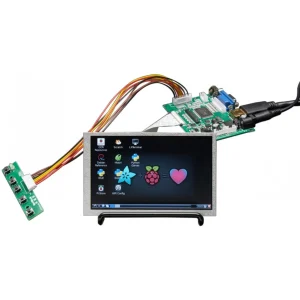

HDMI 4 Pi: 5 Display w/Touch and Mini Driver – 800×480 HDMI for Raspberry Pi
HDMI 4 Pi: 5 Display w/Touch and Mini Driver – 800×480 HDMI for Raspberry Pi
Available
SKU : ADA-2109
€ 198.00
1.28 Inch TFT 240*240 IPS LCD Display Round Screen Module
1.28 Inch TFT 240*240 IPS LCD Display Round Screen Module
Available
SKU : 12-0S1333-1
€ 18.00

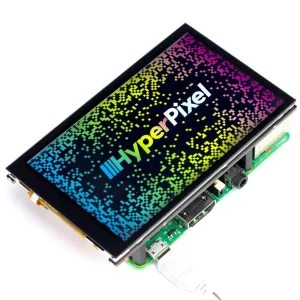

HyperPixel 4.0 – Hi-Res Display touch for Raspberry Pi
HyperPixel 4.0 – Hi-Res Display touch for Raspberry Pi
Available
SKU : PIM369
€ 140.00

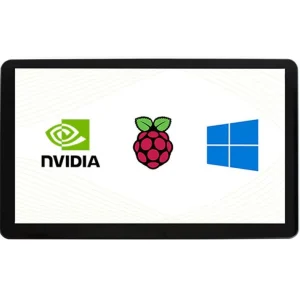

Pi Display 15.6 HDMI 1280×800 IPS Capacitive Touchscreen with Case V2
