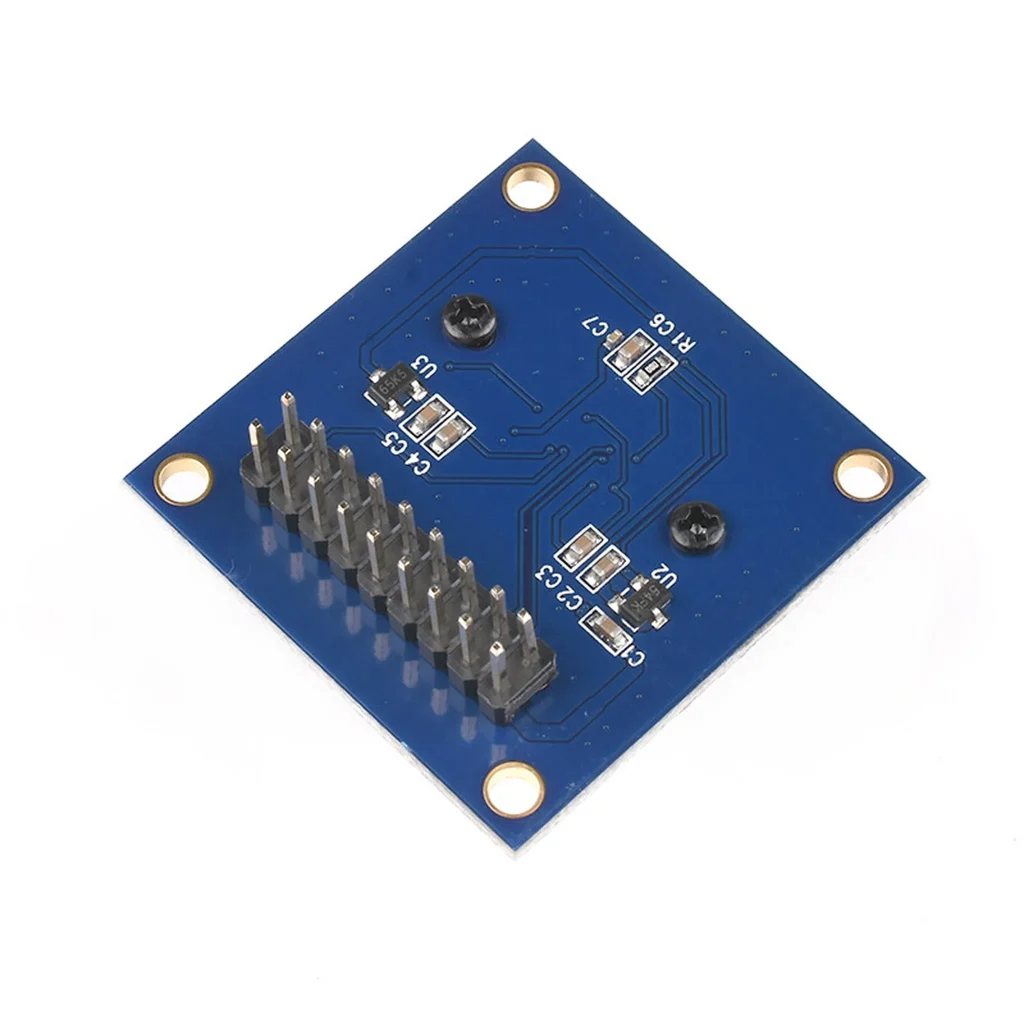

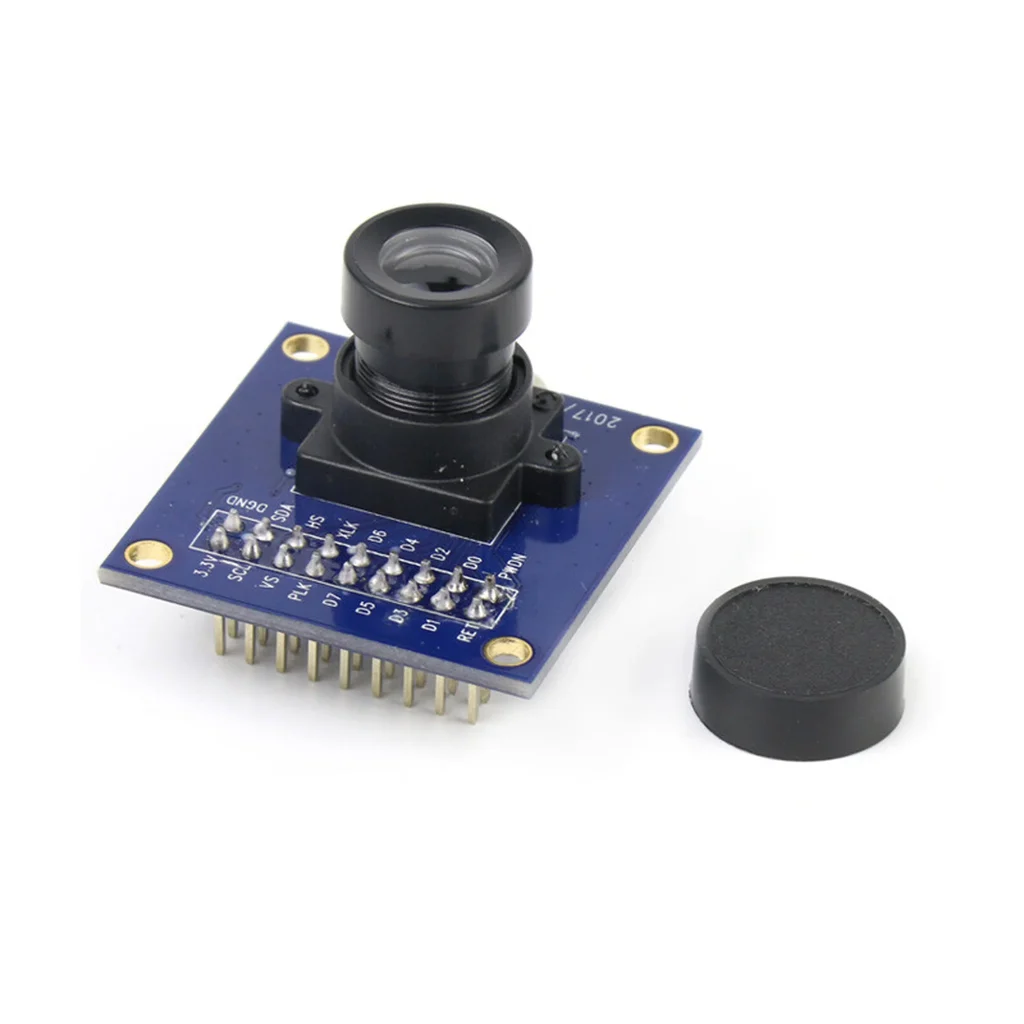

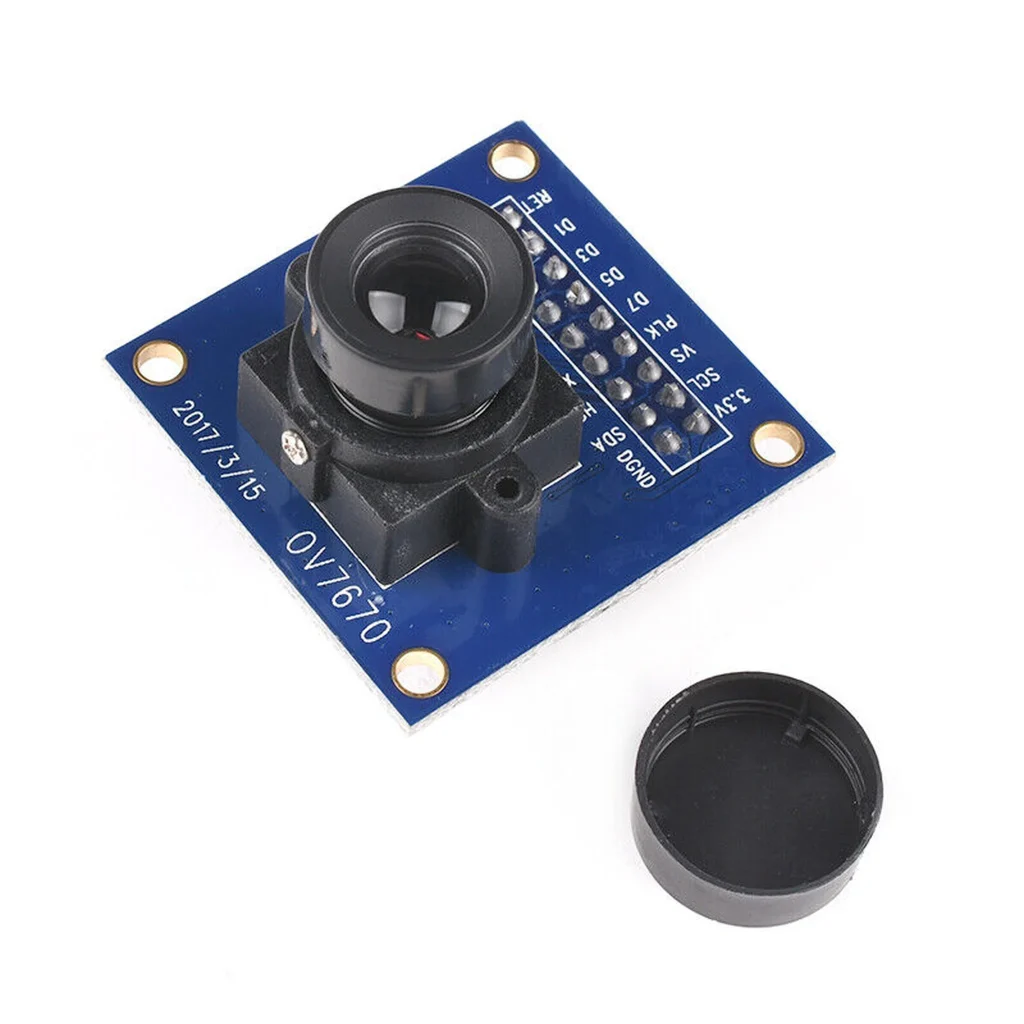

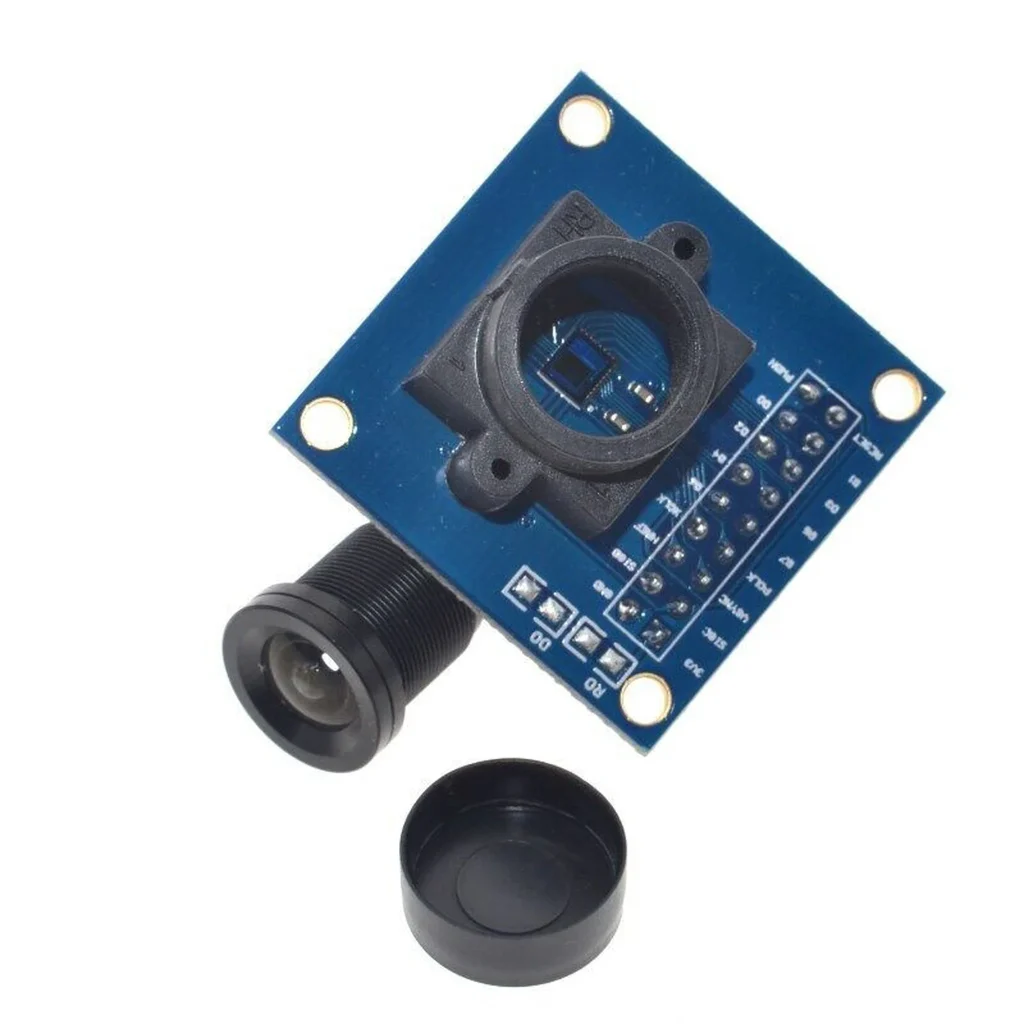

OV7670 Camera Module STM32 Driver Microcontroller

Specification：
Photosensitive array: 640X480
Core voltage: 1.8V ± 10%
Analog voltage: 2.45V to 3V
IO voltage: 1.7 to 3V
Power consumption: 60mW / 15fpsVGAYUV
Sleep: <20μA
Temperature operation: -30 ℃ to 70 ℃
Stable work: 0 ℃ to 50 ℃
Output format (8 bits): YUV / YCbCr4: 2: 2 RGB565 / 555/444 GRB4: 2: 2 Raw RGB Data
Optical size: 1/6 “
Viewing angle: 25 °
Maximum chastity rate: 30fps VGA
Sensitivity: 1.3V / (Lux-sec)
Signal to noise ratio: 46 dB
Dynamic range: 52 dB
Browse Mode: Progressive
Electronic exposure: Line 1 to Line 510
Pixel area: 3.6μm x 3.6μm
Dark current: 12 mV / s at 60 ℃
Well capacity: 17Ke
