Product Weight: 0.4000KG
Raspberry Pi offers cost-effective, high-performance computing for businesses and the home. Designed and manufactured in the UK.
Designed For Raspberry Pi 5
Larger internal space, onboard rich interfaces, with strong expandability
Fast And Easy To Build Your Own Raspberry Pi 5 Mini-Computer
Pi5 Module BOX-A
Supports PCIe to Gigabit Ethernet port
Pi5 Module BOX-B
Supports PCIe to 4-ch USB3.2 Gen1 ports
Pi5 Module BOX-C
Supports PCIe to M.2 interface
* the Raspberry Pi 5 is NOT included, please purchase separately if needed.

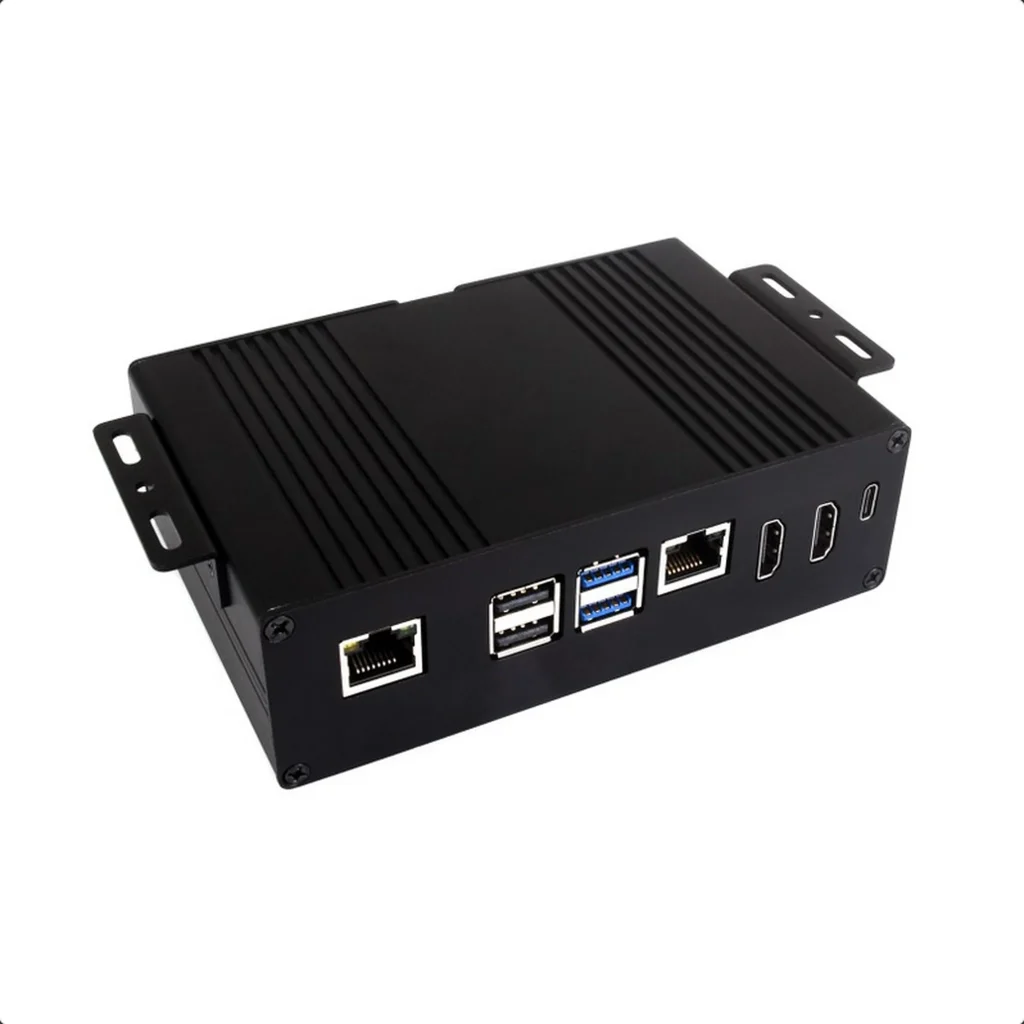

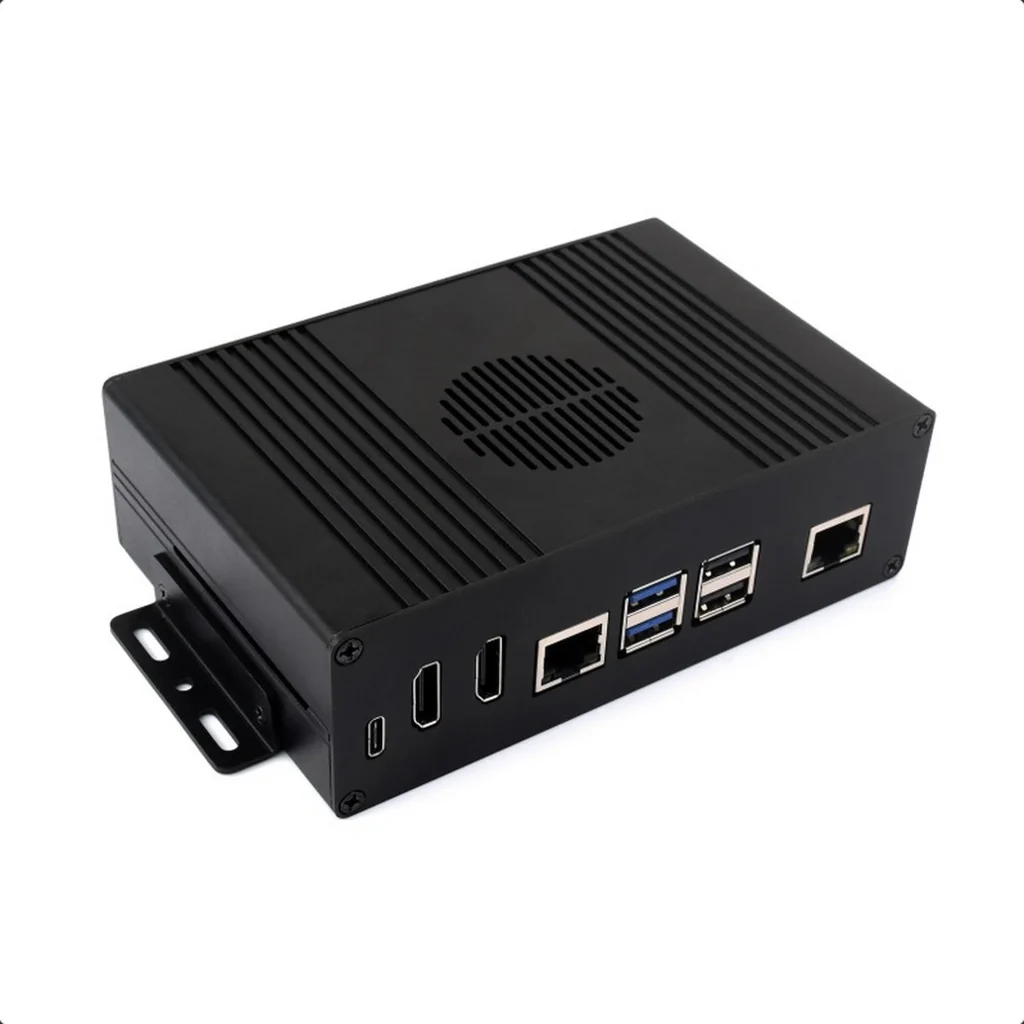

Pi5 Module BOX-A: supports PCIe Extending to Gigabit Ethernet port
Pi5 Module BOX-B: Supports PCIe Extending to 4-ch USB3.2 Gen1 ports
Pi5 Module BOX-C: Supports PCIe Extending to M.2 interface
Larger internal space, supports connecting to various HATs such as PoE HAT, etc. also with space left for cable management

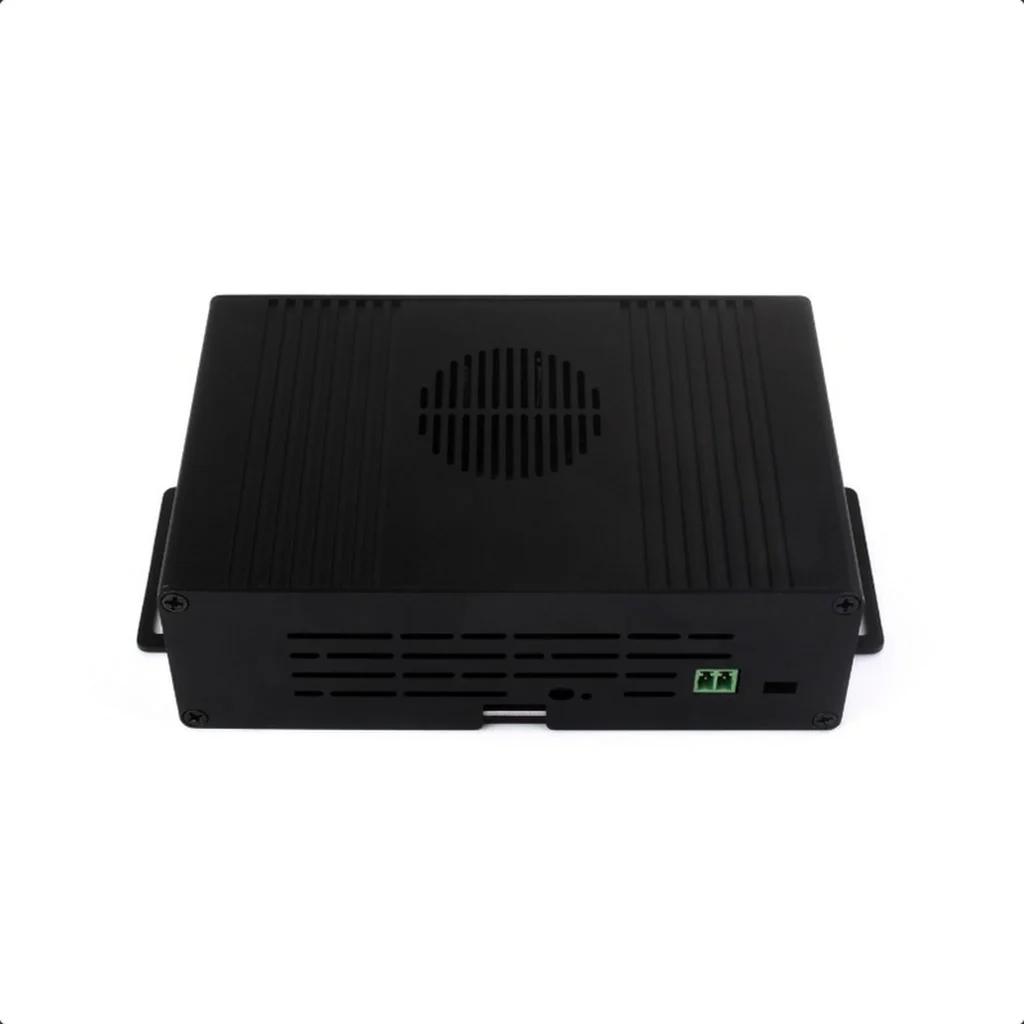

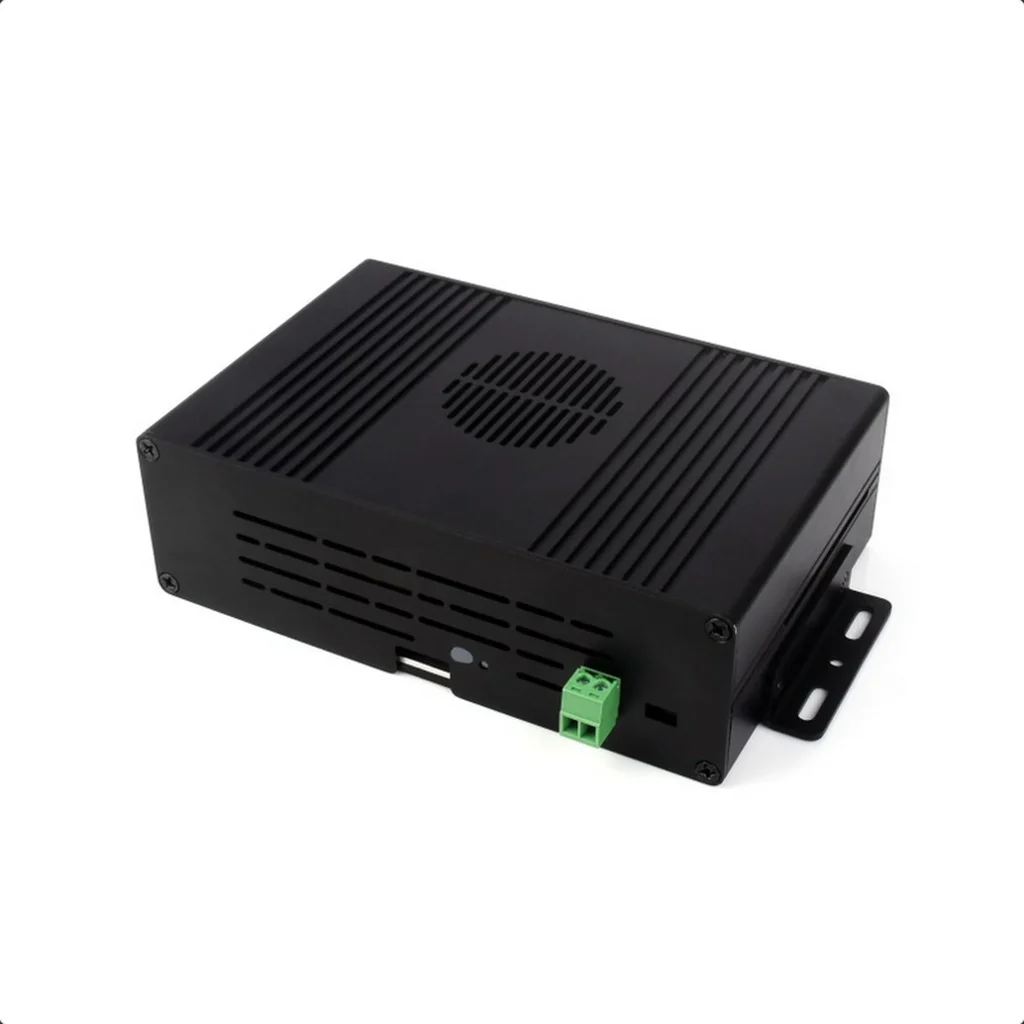

adapting Type-C, dual HDMI Female Ports, and screw terminal For Easier Connection with peripherals, Supports Two Power Supply connection methods from the front side or the back side
supports installing cooling fan for better heat dissipation
* for reference only, the cooling fan is NOT included.
Prepare the screws as shown above
1. Connect the HDMI adapter board to the Raspberry Pi 5 first, and mounting them on the white aluminum alloy base plate with 7x ① screws.
2. Then install the PCIe expansion board according to the version you purchased (here we take the PCIe to Gigabit Ethernet adapter as an example) on the white aluminum alloy base plate with 2x ① screws, and connect the power cable and UART debug cable as shown. Set it aside for later use.
3. Fix the two wall-mount brackets with 4x ② screws and the back panel with 2x ② screws to the case. And then install the silicone button to the position as shown.
4. Slide the Raspberry Pi 5, the adapter boards and the base plate assembled in step 2 horizontally into the bottom rail of the case. Be careful not to dislodge the silicone button.
5. Align the front panel with the interfaces and fix it with 2x ② screws.
6. Attach the top cover and fix it with 4x ② screws to complete the assembly.
