Product Weight: 0.2000KG
Raspberry Pi offers cost-effective, high-performance computing for businesses and the home. Designed and manufactured in the UK.

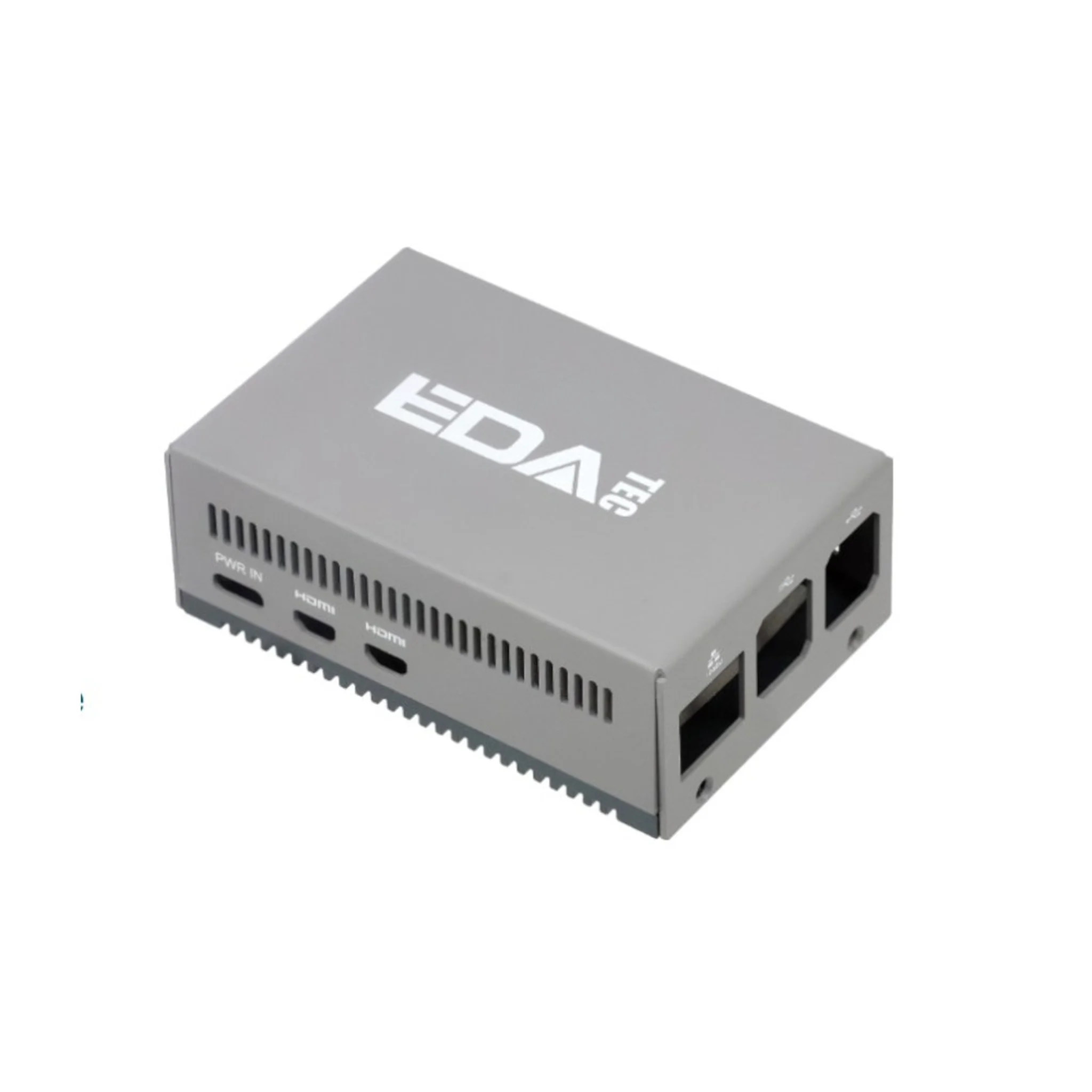

| Metal Case supporting Raspberry Pi 5 + HAT |
| Sheet metal powder spraying + aluminium profile technology, simple design |
|
Both top and bottom case provide passive cooling for Raspberry Pi 5 though thermal pads & metal body, excellent cooling performance
|
|
Good protection for Raspberry Pi 5, Raspberry Pi Active Cooler and Raspberry Pi M.2 HAT+
|
|
Support installation of Raspberry Pi 5 + Raspberry Pi M.2 HAT+
|
| Support installation of Raspberry Pi Active Cooler |
|
HDMI, Ethernet port, USB, SD card, ON/OFF button and PWR/ACT indicator are all accessible
|
|
Reserved camera cable slots and mounting holes for installing the Raspberry Pi Camera on the case
|
|
All-metal casing with an attractive appearance for commercial and industrial scenarios
|
| Cooling Performance | ||
|
Test Device Configuration
|
Raspberry Pi 5 + Raspberry Pi AI Kit + Raspberry Pi Active Cooler
|
Raspberry Pi 5 + Raspberry Pi AI Kit + Raspberry Pi Active Cooler + ED-Pi5Case-EXT
|
| Software Configuration |
● CPU 4 cores running at full load via sysbench
● Run stress_test in Hailo Module
|
|
| Ambient Temperature | 25℃ | |
|
Hailo*1 Module stable
operating temperature (℃) |
93.1 | 73.3 |
|
Stable running temperature
of CPU (℃)
|
65.1 | 65.1 |
|
*1: Hailo module is an operation module located on Raspberry Pi AI kit.
Test Results: Under the environment of 25℃, when the device is running in a stable state, ED-Pi5Case-EXT can reduce the temperature of Raspberry Pi AI Kit by about 20℃, and also reduce the temperature fluctuation range of Raspberry Pi 5 CPU.
|
||
| Mechanical Characteristics | ||
|
Dimensions
|
91mm x 61mm x 33mm | |
| Material | Sheet Metal (Top Cover) + Aluminium Profile (Bottom Cover) | |
| Datasheet Download |
