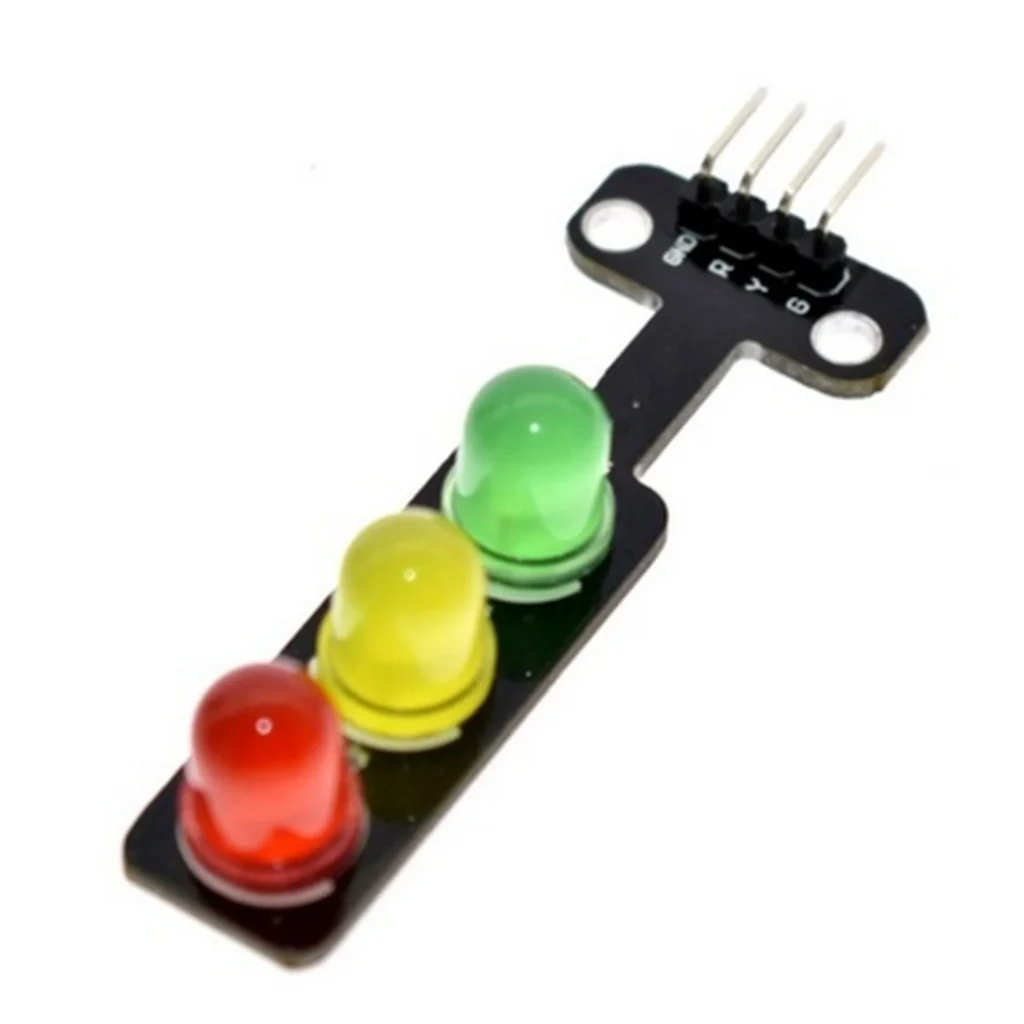

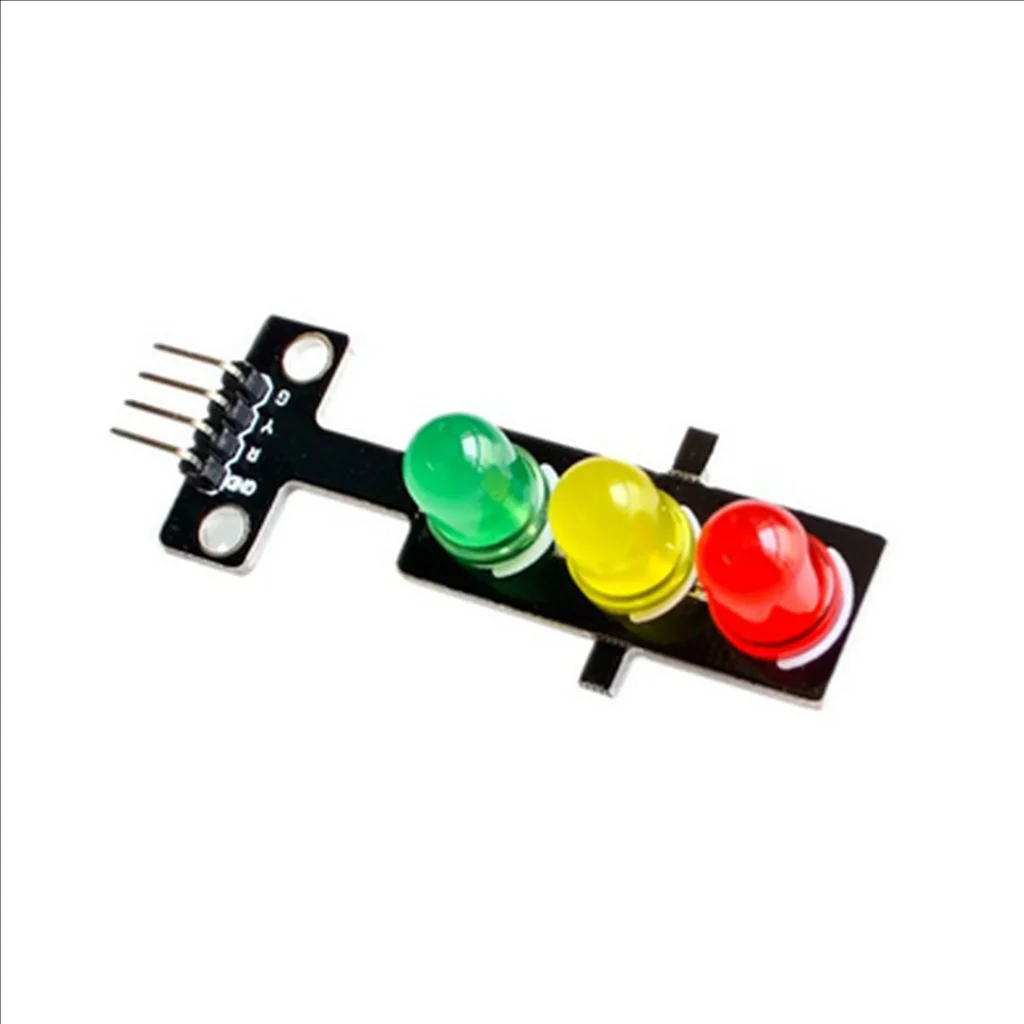

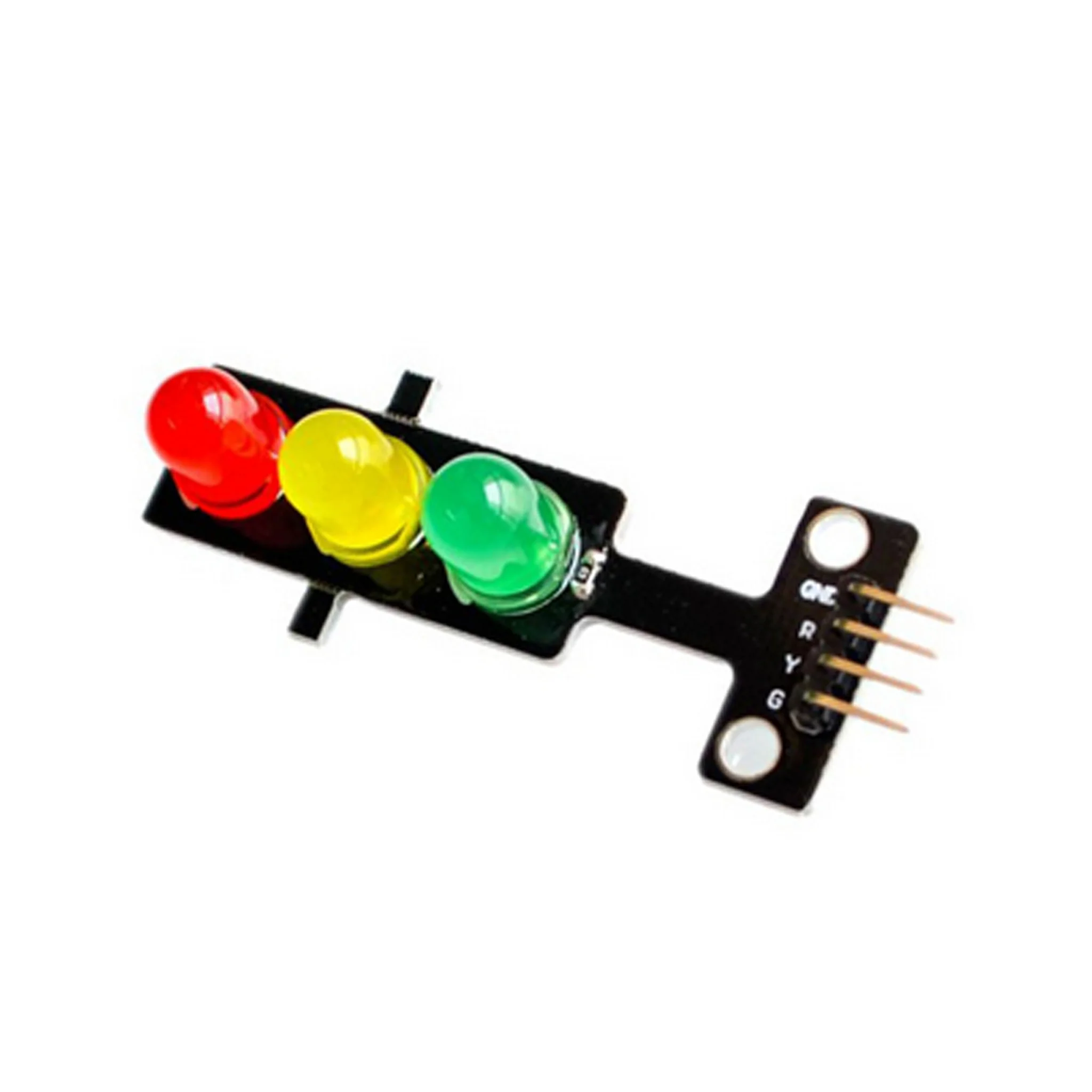

LED Traffic Light Module 5V

Description

This is a mini traffic light display module, suitable for Raspberry Pi or other traffic light system models. The green light is darker, the yellow light is brighter than the green light, and the red light is the brightest.

 Feature

    Interface: common cathode, red, yellow, and green are controlled separately.
    Quick response: The module is Ultra-fast response, has a strong anti-interference ability with cost-effectiveness.
    Good performance: It not only has ultra-low energy consumption but also has a long transmission distance.

Specification

    Size: 61 * 21 * 11mm
    Light Color: Red, Green, Yellow
    LED: 5mm * 3
    Brightness: Ordinary brightness
    Voltage: 5V
    Input: Digital signal output
    Interface: Common cathode, red yellow green separate control
    Weight: 4g
    Operating current: Red 13mA; Yellow 13mA; Green 25mA

Παράδειγμα συνδεσμολογίας με Raspberry Pi Pico

Το Module έχει τέσσερα (4) pins. Για το κόκκινο R, πράσινο G, Κίτρινο Υ και GND.
