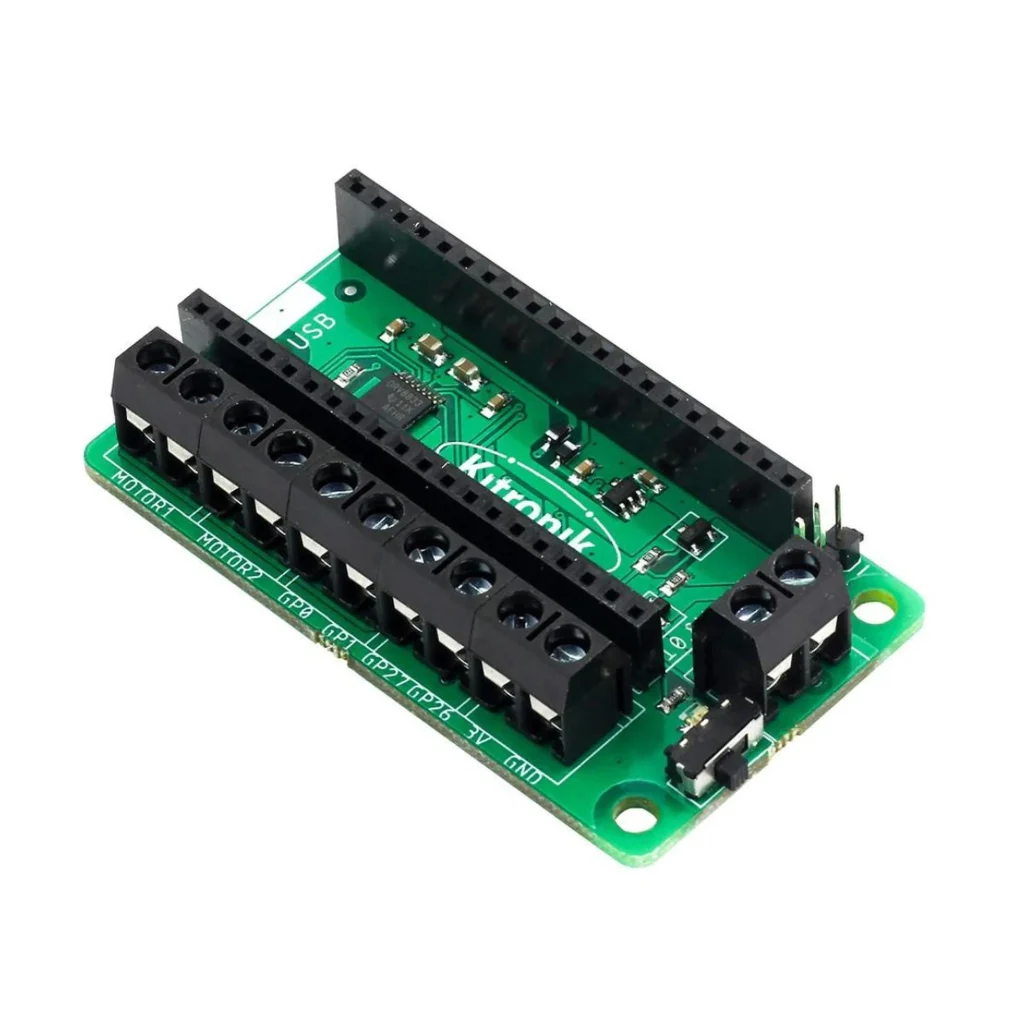

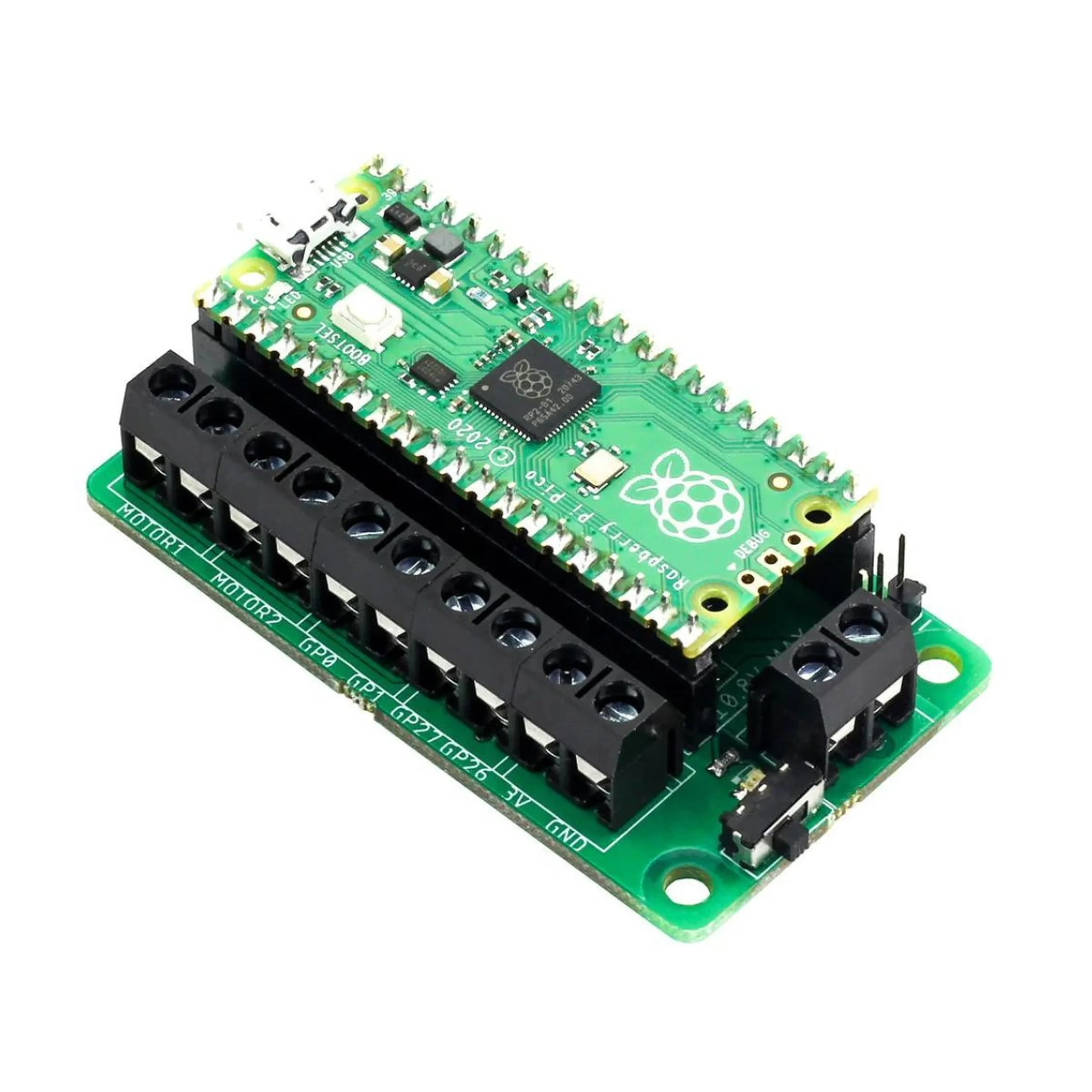

This board allows the Raspberry Pi Pico to drive two motors simultaneously with full forward, reverse and stop control, making it ideal for Pico controlled buggy projects. Alternatively, the board can be used to power a stepper motor. The board features the DRV8833 motor driver integrated circuit, which has built-in short circuit, overcurrent and thermal protection The board has 4 external connections on GPIO pins and 3V and GND power supply from the Pico. This allows additional IO options for your buggy builds that can be read or controlled by the Pico. In addition, there is an on/off switch and a power status LED, allowing you to see at a glance if the board is powered on and saving your batteries when your project is not in use To use the motor driver board, the Pico must have a soldered terminal header and be firmly inserted into the connector. The motor driver board is powered either through screw terminals or through a servo type connector Features: A compact yet feature-packed board designed to be at the heart of your Raspberry Pi Pico robotic buggy projects The board can drive 2 motors simultaneously with full forward, reverse and stop control It features the DRV8833 motor driver integrated circuit, which has built-in short-circuit, overcurrent and thermal protection In addition, the board has an on/off switch and a power status LED The board is powered by a terminal block type connector The 3V and GND terminals are also separated, allowing powering of external devices Code it with MicroPython via a processor such as the Thonny processor When used with a stepper motor, half-stepping is supported  but not micro-stepping Requires a Ruspberry Pi Pico board
