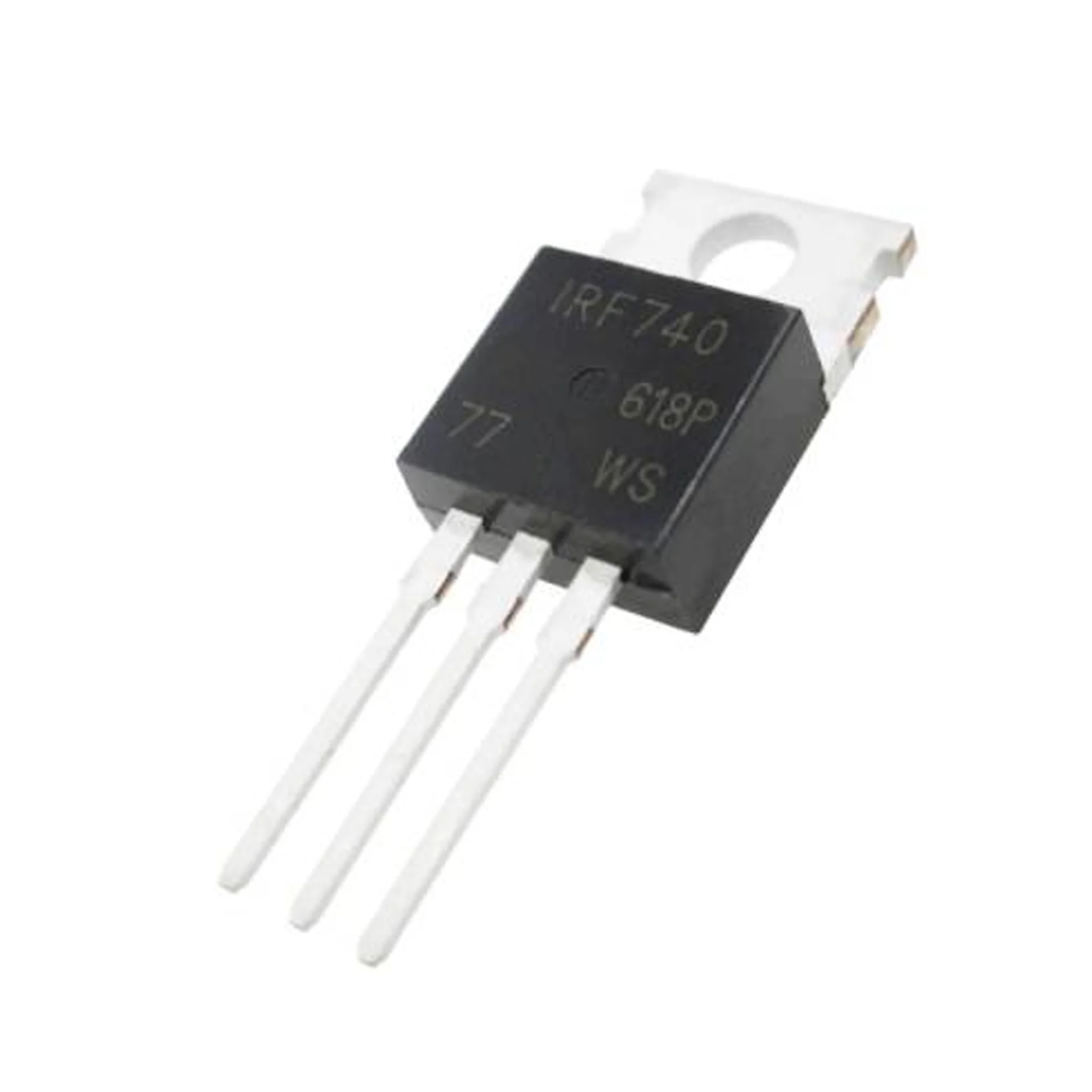

IRF740 N-Channel Power Mosfet
The IRF740 is an N-Channel Power MOSFET which can switch loads upto 400V.
Pin Configuration

|
Pin Number
|
Pin Name
|
Description
|
|
1
|
Source
|
Current flows out through Source (maximum 10A)
|
|
2
|
Gate
|
Controls the biasing of the MOSFET (Threshold voltage 10V)
|
|
3
|
Drain
|
Current flows in through Drain
|
Features
· N-Channel Power MOSFET
· Continuous Drain Current (ID): 10A
· Gate threshold voltage (VGS-th) is 10V (limit = ±20V)
· Drain to Source Breakdown Voltage: 400V
· Drain Source Resistance (RDS) is 0.55 Ohms
· Rise time and fall time is 27nS and 24nS
· Available in To-220 package
Alternatives for IRF740
IRFB13N50A, UF450A, SSF13N15
