Raspberry Pi offers cost-effective, high-performance computing for businesses and the home. Designed and manufactured in the UK.
| ED-IPC3020 Series Features | |
| Functions | Parameters |
| CPU |
Broadcom BCM2712 2.4GHz quad-core 64-bit Arm Cortex-A76
|
| RAM |
4GB and 8GB LPDDR4X-4267 SDRAM are optional
|
| Storage | Support Micro SD Card and M.2 NVMe SSD storage expansion |
| Video |
Dual 4Kp60 HDMI display output
|
| Audio |
Stereo audio input and output with separately 3.5mm audio jack
|
| Interface |
1 x Gigabit ethernet port with optional PoE, 2 x USB 3.0, 2 x USB 2.0, 1 x RS232, 1 x RS485 and 1 x Buzzer
|
| Power Input |
5V DC power input via USB-C, support ON/OFF power button
|
| Other |
Built-in RTC, support SuperCAP and CR1220 battery backup
|
| Operating Temperature | -25°C ~ 60°C |
| Mechanical |
102.8mm(W) x 89.5mm(D) x 32.5mm(H), 300g
Fanless design with high-quality metal case and big heatsink, providing excellent cooling performance |
| System | |
| CPU | Broadcom BCM2712 2.4GHz quad-core 64-bit Arm Cortex-A76 |
| VPU | 4Kp60 HEVC decoder |
| GPU | OpenGL ES 3.1 & Vulkan 1.2 |
| Memory | 4GB and 8GB LPDDR4X-4267 SDRAM are optional |
| Storage | Micro SD Card Slot, supporting to select the 00GB/32GB/64GB SD card M.2 NVMe SSD, supporting to select the 00GB/128GB/256GB SSD |
|
Software
|
|
| Operating System |
– Raspberry Pi OS(Desktop) 32-bit
– Raspberry Pi OS(Lite) 32-bit
– Raspberry Pi OS(Desktop) 64-bit
– Raspberry Pi OS(Lite) 64-bit
|
|

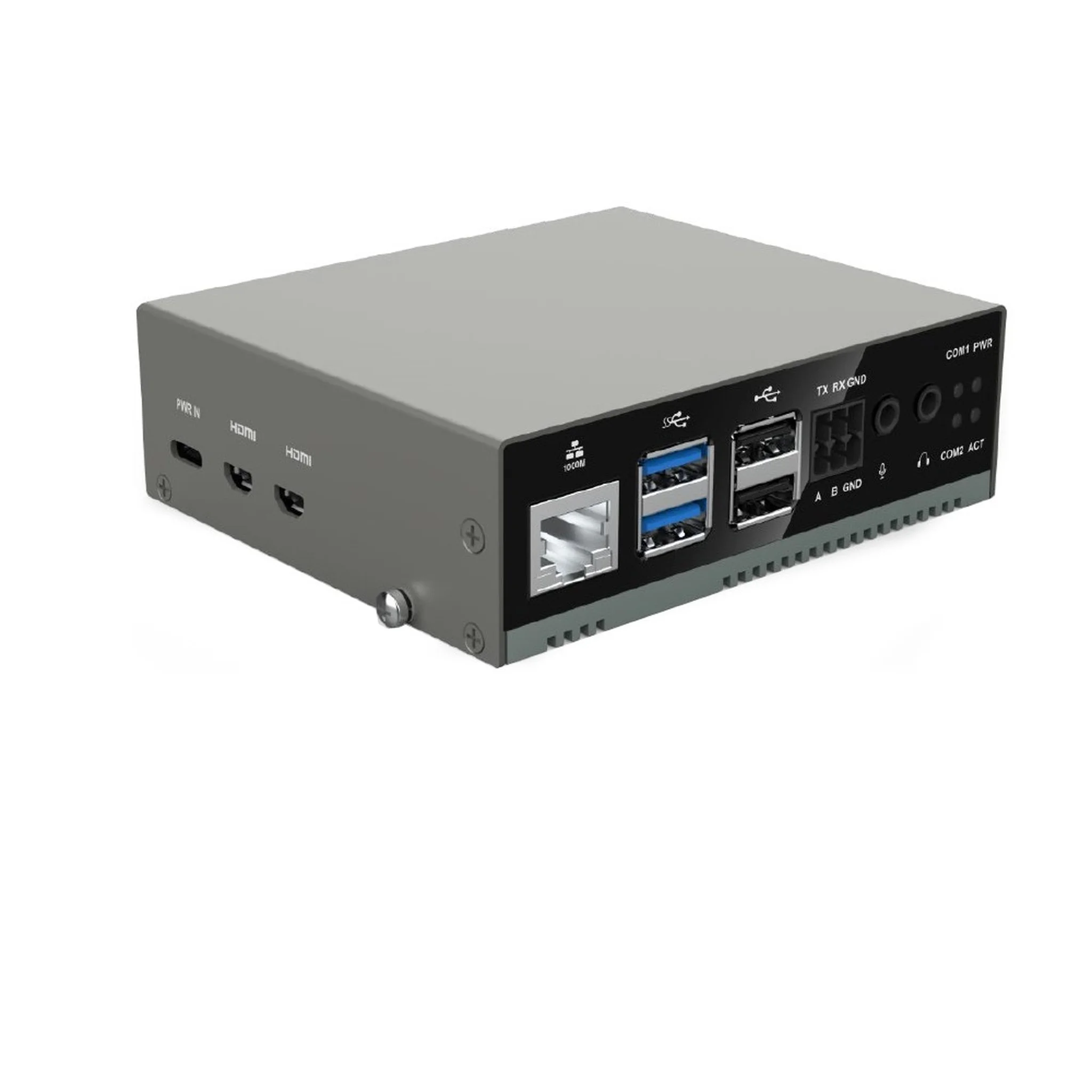

Front I/O
|
|
| Audio OUT | 1 x Audio Output(HPO), 3.5mm audio jack connector(green), stereo audio output. |
| Audio IN | 1 x Audio Input(LINE IN), 3.5mm audio jack connector(red), supporting stereo audio input. |
| RS485 | 1 x RS485 port, 3-Pin 3.5mm spacing phoenix terminals with 120Ω terminal resistor. The signal is defined as GND/A/B. |
| RS232 | 1 x RS232 port, 3-Pin 3.5mm spacing phoenix terminals, the signal is defined as GND/TX/RX. |
| USB 2.0 | 2 x USB 2.0 ports, dual layer type A connector, each channel supports up to 480Mbps. |
| USB 3.0 | 2 x USB 3.0 ports, dual layer type A connector, each channel supports up to 5Gbps. |
| 1000M Ethernet |
1 x adaptive 10/100/1000M ethernet port, RJ45 connector. It can be used to access the network.
PoE can be supported through expansion module.
|
| Rear I/O | |
| SD Card Slot |
1 x Micro SD card slot, which is used to install SD card. It supports booting the OS from SD card.
|
| Side I/O | |
|
HDMI
|
2 x HDMI ports, Micro HDMI connector, supporting 4K 60Hz.
|
| Power | 1 x power in port, USB Type-C connector, supporting 5V/5A DC power input. |
| Buttons and Indicators | |
| ON/OFF | 1 x power button, which is used to turn on and turn off the device. |
| PWR | 1 x red power indicator, which is used to check the status of device power-on and power-off. |
| ACT | 1 x green system indicator, which is used to check the working status of device. |
| COM1~COM2 | 2 x green UART indicators, which is used to check the communication status of UART port |
