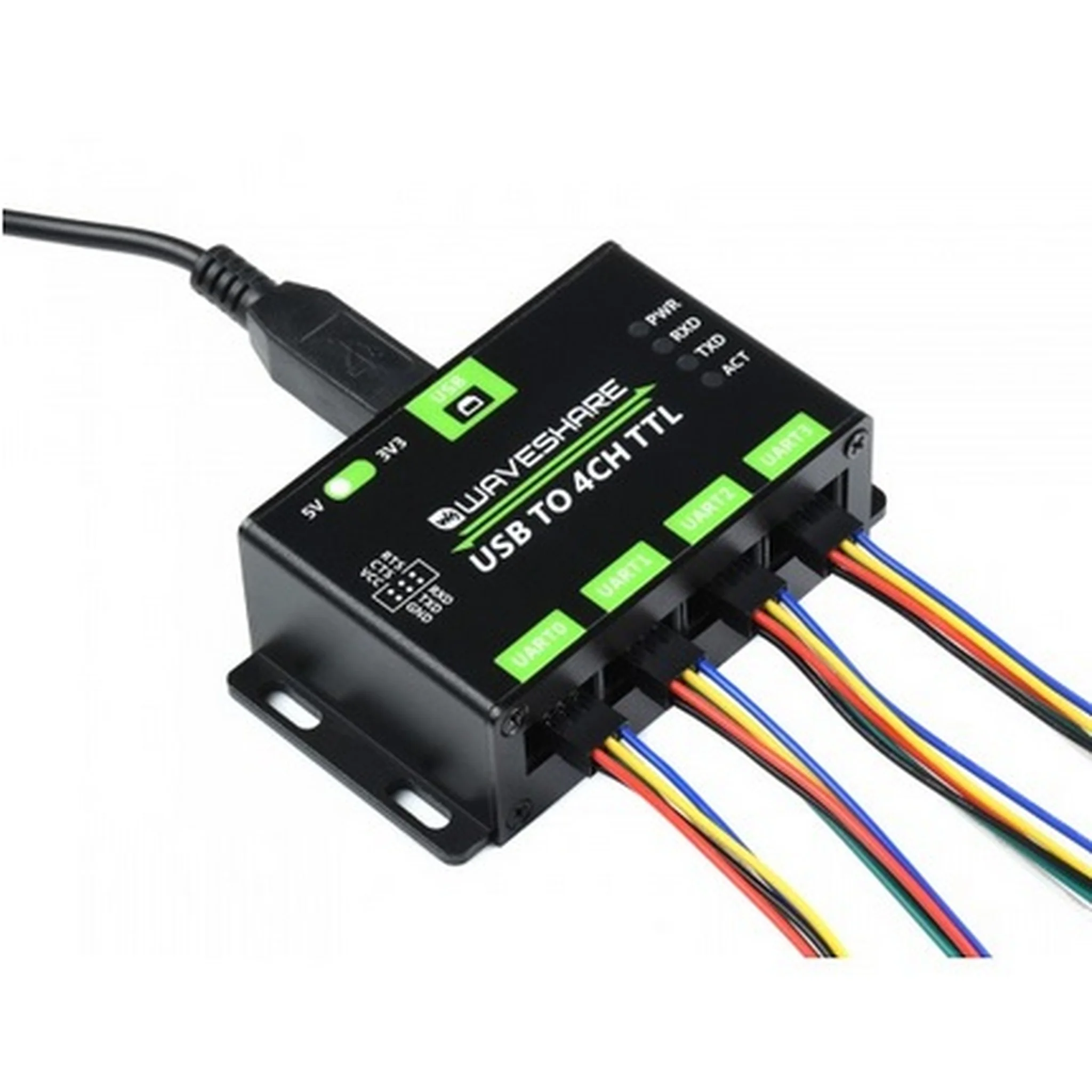

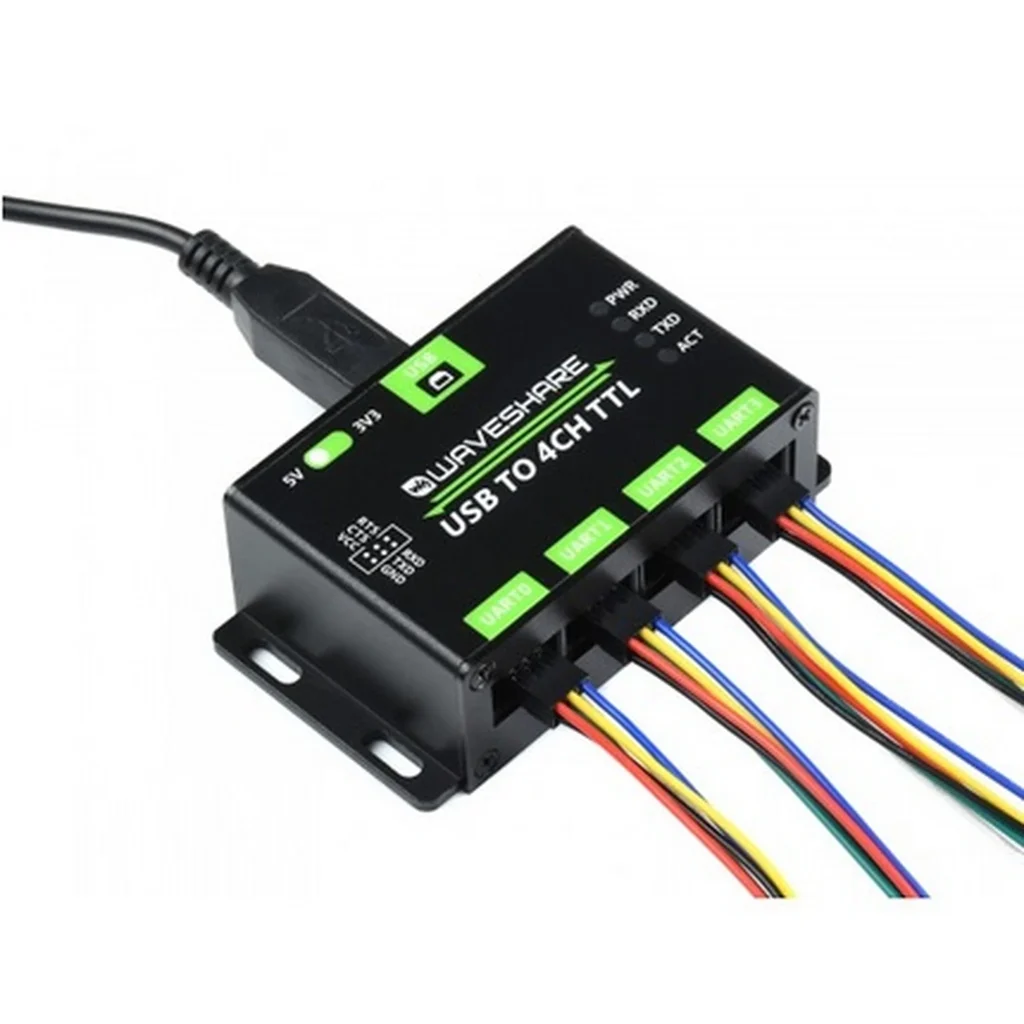

Industrial USB TO 4CH TTL Converter, USB To UART, Multi Protection & Systems Support
Stable Transmission | Multi Devices | Multi Systems
Features At A Glance
Specifications
| Host port | USB |
|---|---|
| Device Port | UART |
| Baudrate | 1200bps ~ 460800bps |
| USB port | Connector: USB-B Protection: resettable fuse, ESD protection |
| UART port | Connector: 6PIN fool-proof header Protection: IO protection diode |
Multiple protection, safe and stable
Onboard resettable fuse and protection diode, provides over-current/over-voltage proof, improves shock proof performance; Onboard voltage translator circuit, with surge suppress and ESD protection, safe and stable communication

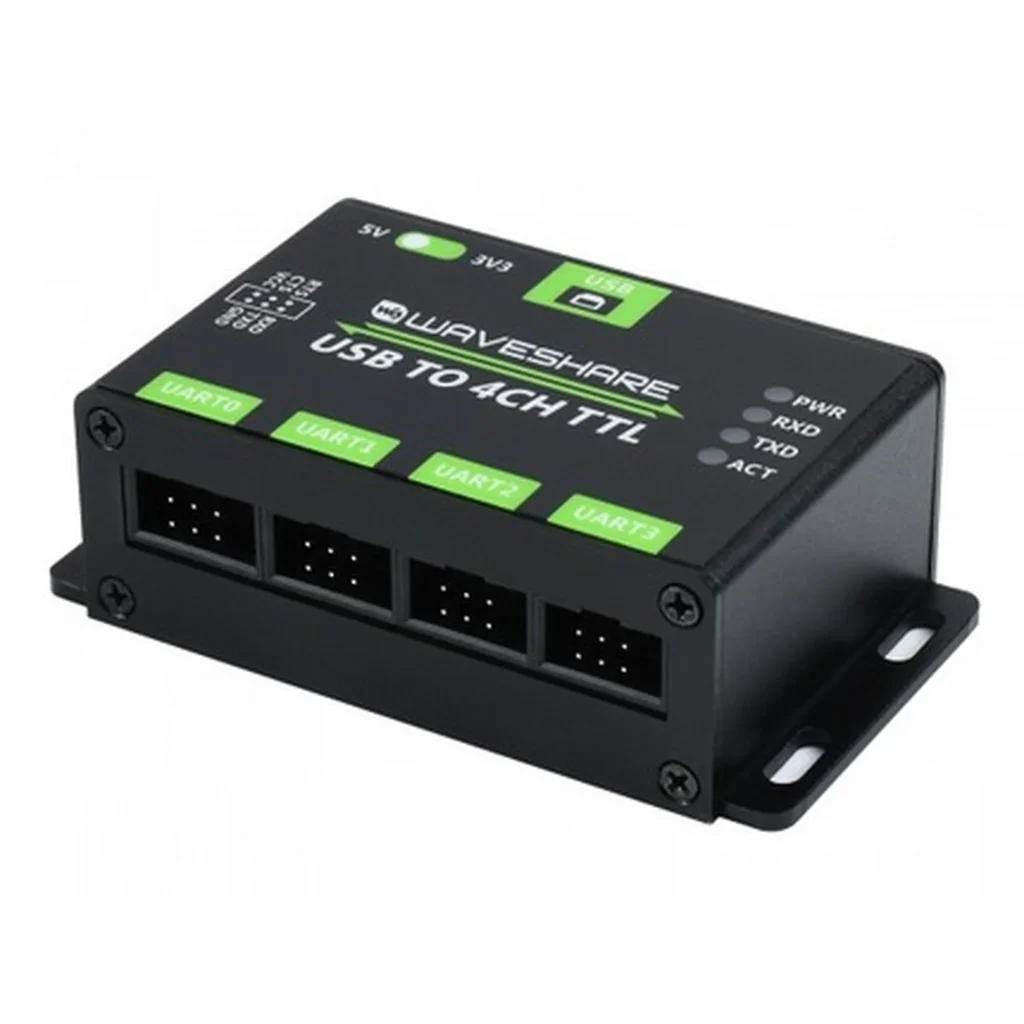

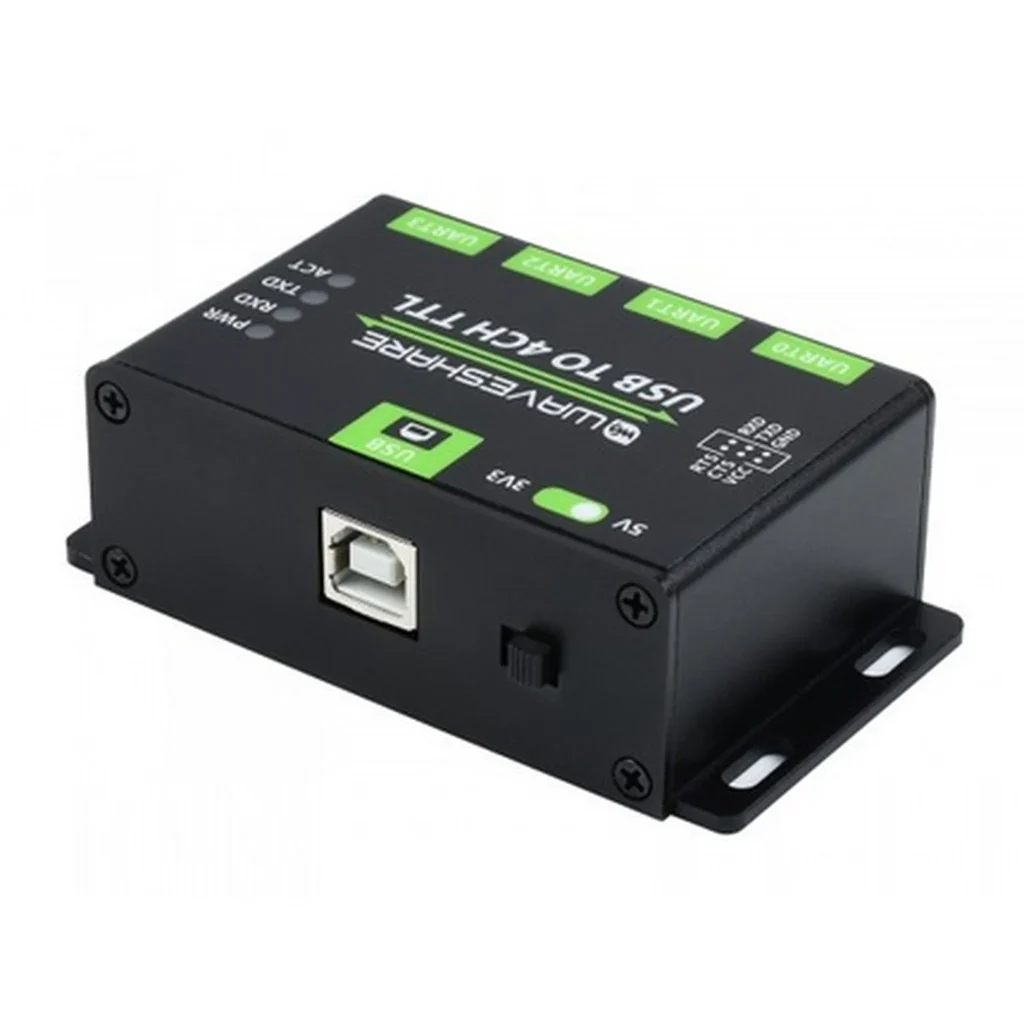

Interface introduction

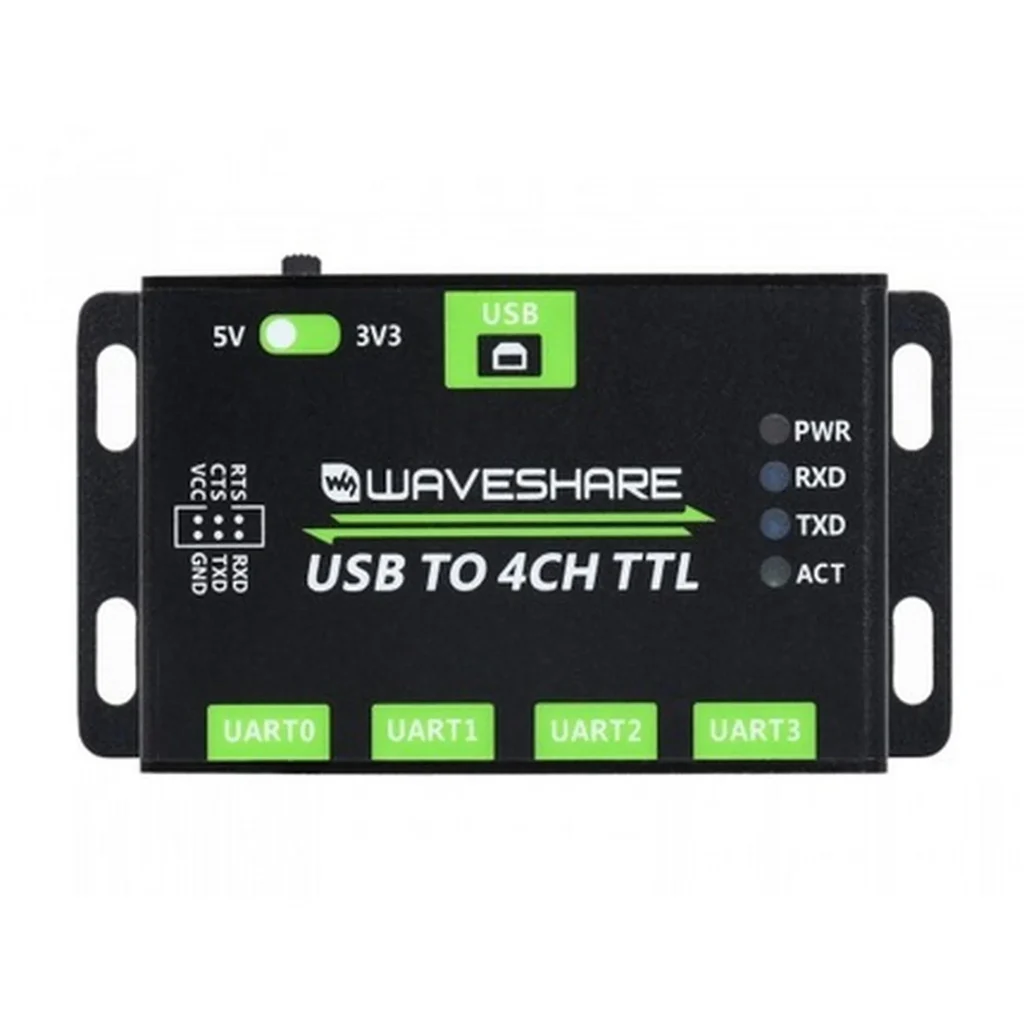

Indicators description
| PWR | power indicator, lights up while the USB is connected and voltage is detected |
|---|---|
| RXD | receiving indicator, lights up while the device port is receiving data |
| TXD | sending indicator, lights up while the USB port is sending data |
| ACT | status indicator, lights up while the converter is properly operating |
Pinout definition
| VCC | 5V or 3.3V output, configured by switch |
|---|---|
| GND | Ground |
| TXD | Connecting to MCU.RXD |
| RXD | Connecting to MCU.TXD |
| RTS | Connecting to MCU.CTS |
| CTS | Connecting to MCU.RTS |
Outline dimensions
