USB To 4-ch RS232
FT4232HL | Stable transmission | Multiple devices applicable | Multi-OS compatible

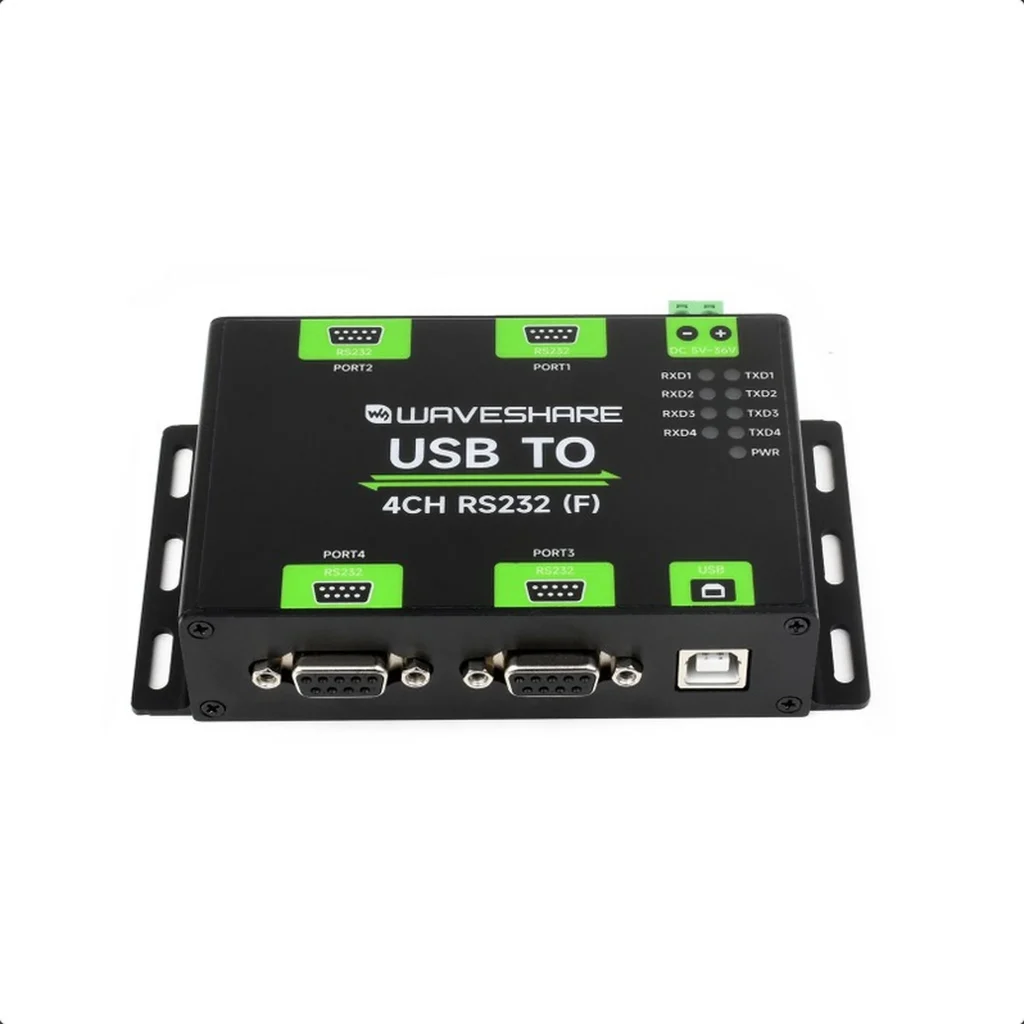

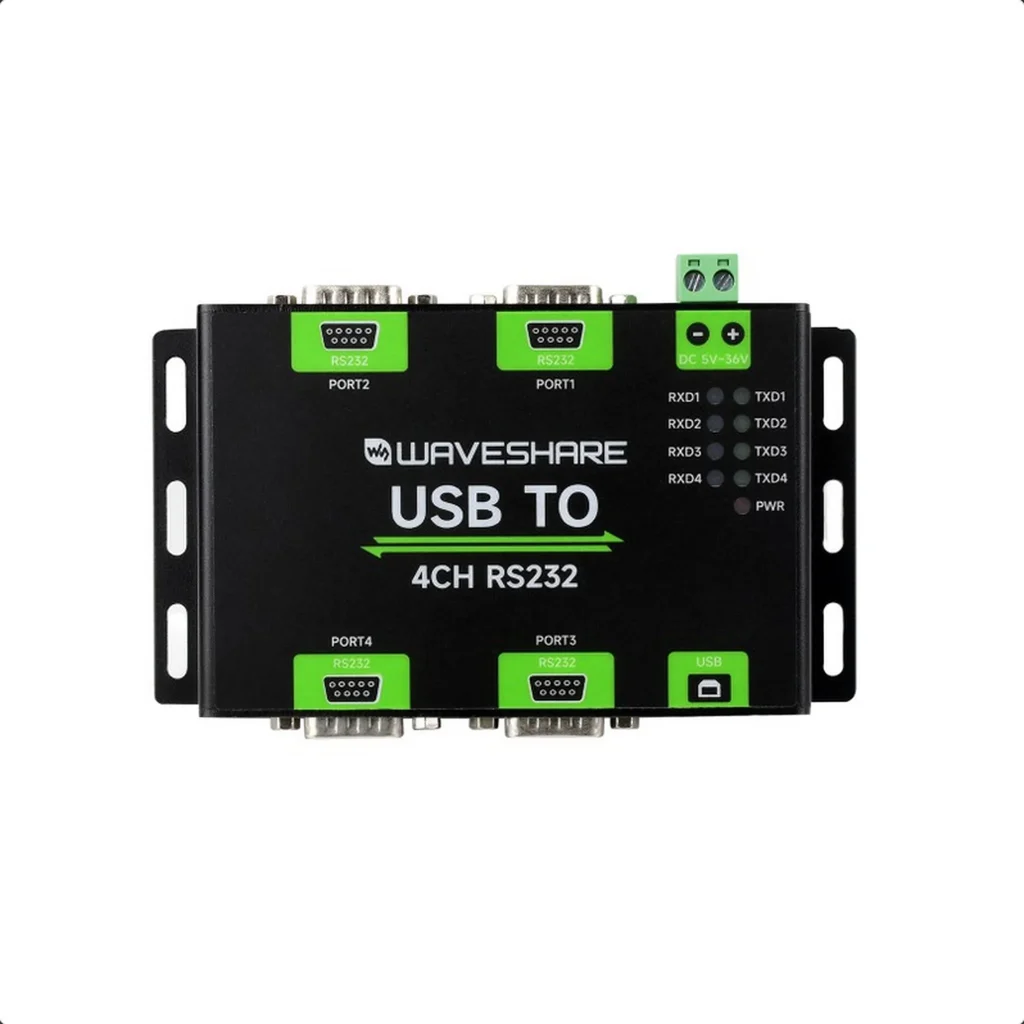

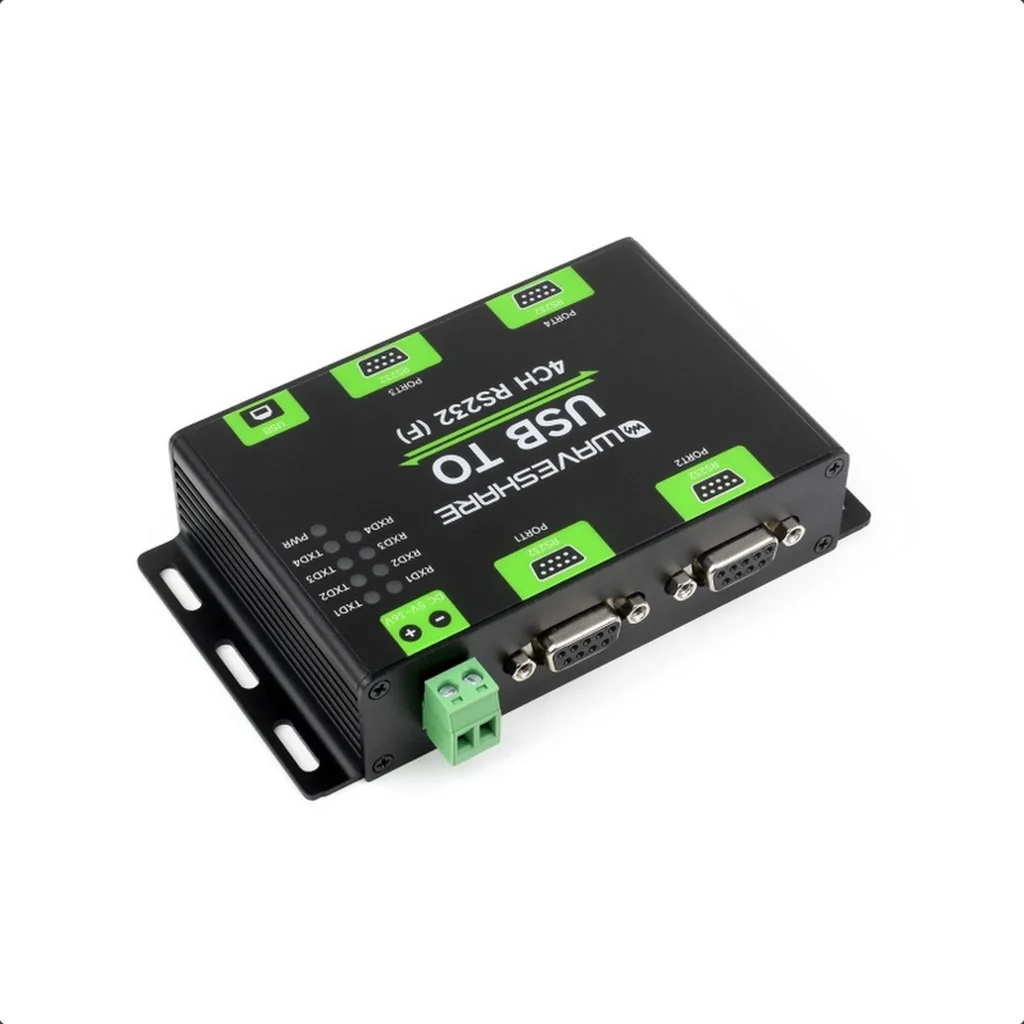

USB TO 4CH RS232 (F)
to 4-ch RS232 female port
| PRODUCT TYPE | Industrial USB to RS232 isolated converter | |
|---|---|---|
| Host port | USB | |
| Device port | RS232 | |
| Baud rate | 300bps ~ 921600bps | |
| USB | Operating voltage | 5V |
| Connector | USB-B | |
| Protection | 200mA self-recovery fuse, isolated output | |
| Transmission distance | about 5m | |
| POWER SUPPLY INTERFACE | Power supply | 5~36V DC screw terminal |
| Protection | Anti-reverse | |
| isolated RS232 | Connector | DB9 male/female |
| Protection | TVS diode, surge protection & ESD protection, power isolation and signal isolation | |
| Transmission mode | Point-to-point | |
| Transmission distance | about 15m | |
| Indicators | PWR | Red power indicator, lights up when there is USB connection and voltage is detected |
| TXD1~4 | Green TX indicator, blinking when the RS232 port is sending data | |
| RXD1~4 | Blue RX indicator, blinking when the RS232 port is receiving data | |
| operating environment | Temperature range | -40℃ ~ 85℃ |
| Humidity range | 5%RH~95%RH | |
| Operating system | MacOS, Linux, Android, Windows 11 / 10 / 8.1 / 8 / 7 | |
Onboard original FT4232HL chip,
Fast communication, stable & reliable, better compatibility
Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & ESD protection. Onboard self-recovery fuse and protection diodes, ensure the current/voltage stable outputs, provide over-current/over-voltage proof, improve shock proof performance.
Supports MacOS, Linux, Android, Windows 11 / 10 / 8.1 / 8 / 7, etc.

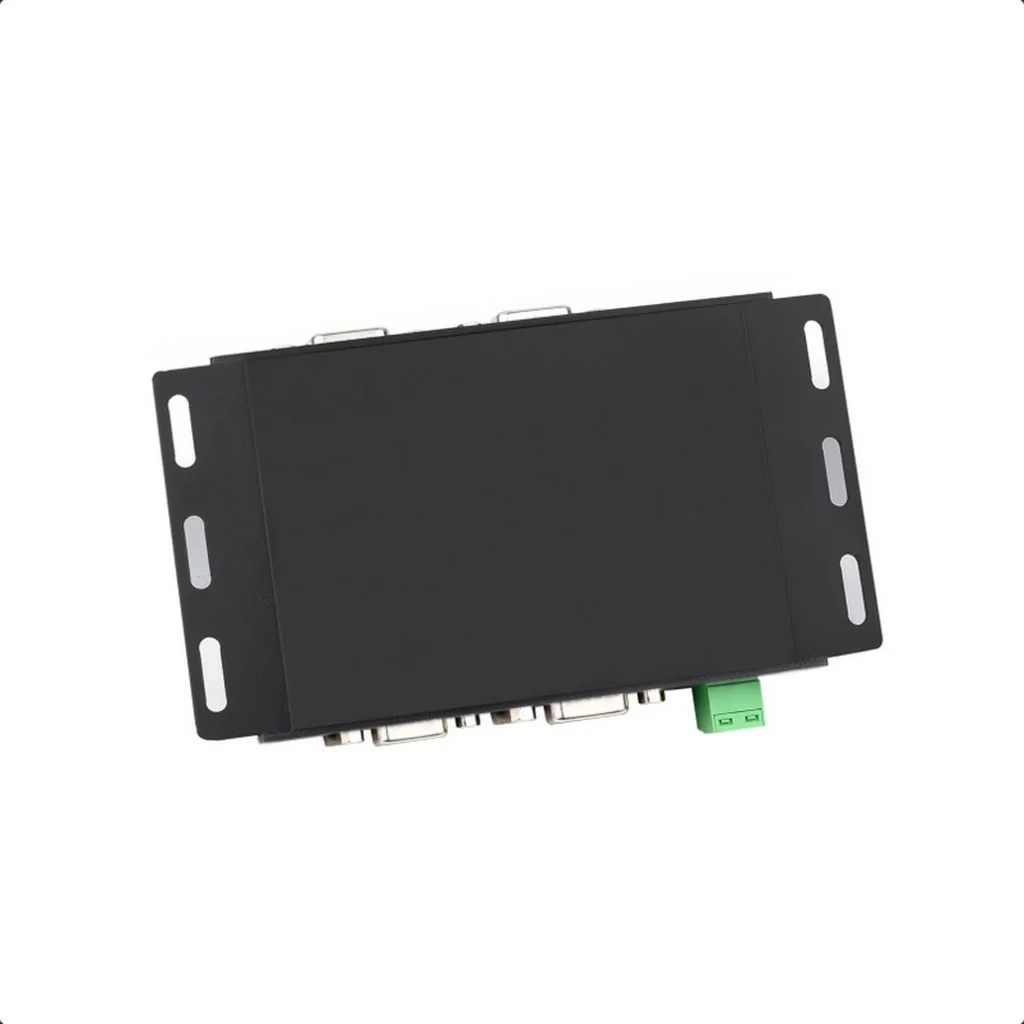

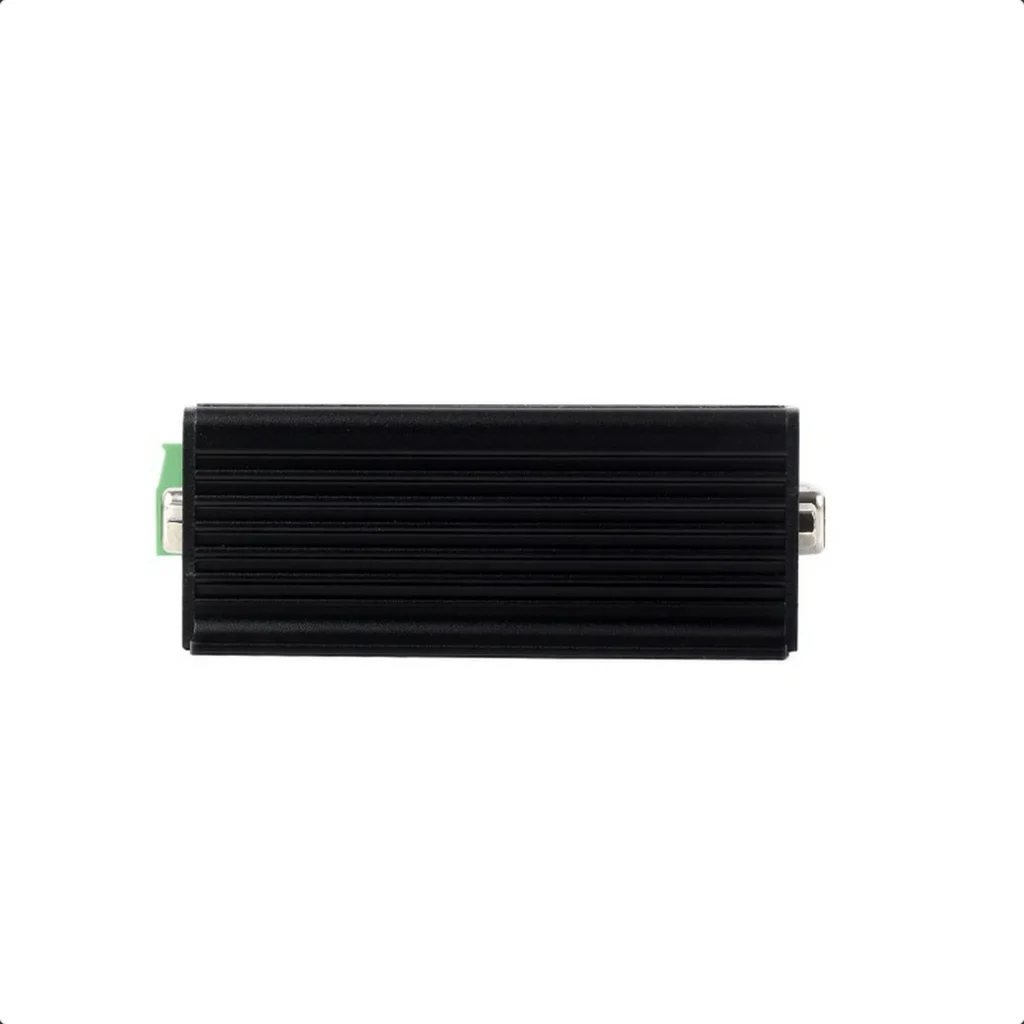

Aluminum alloy enclosure with sand blasting and anodic oxidation, Solid and durable
