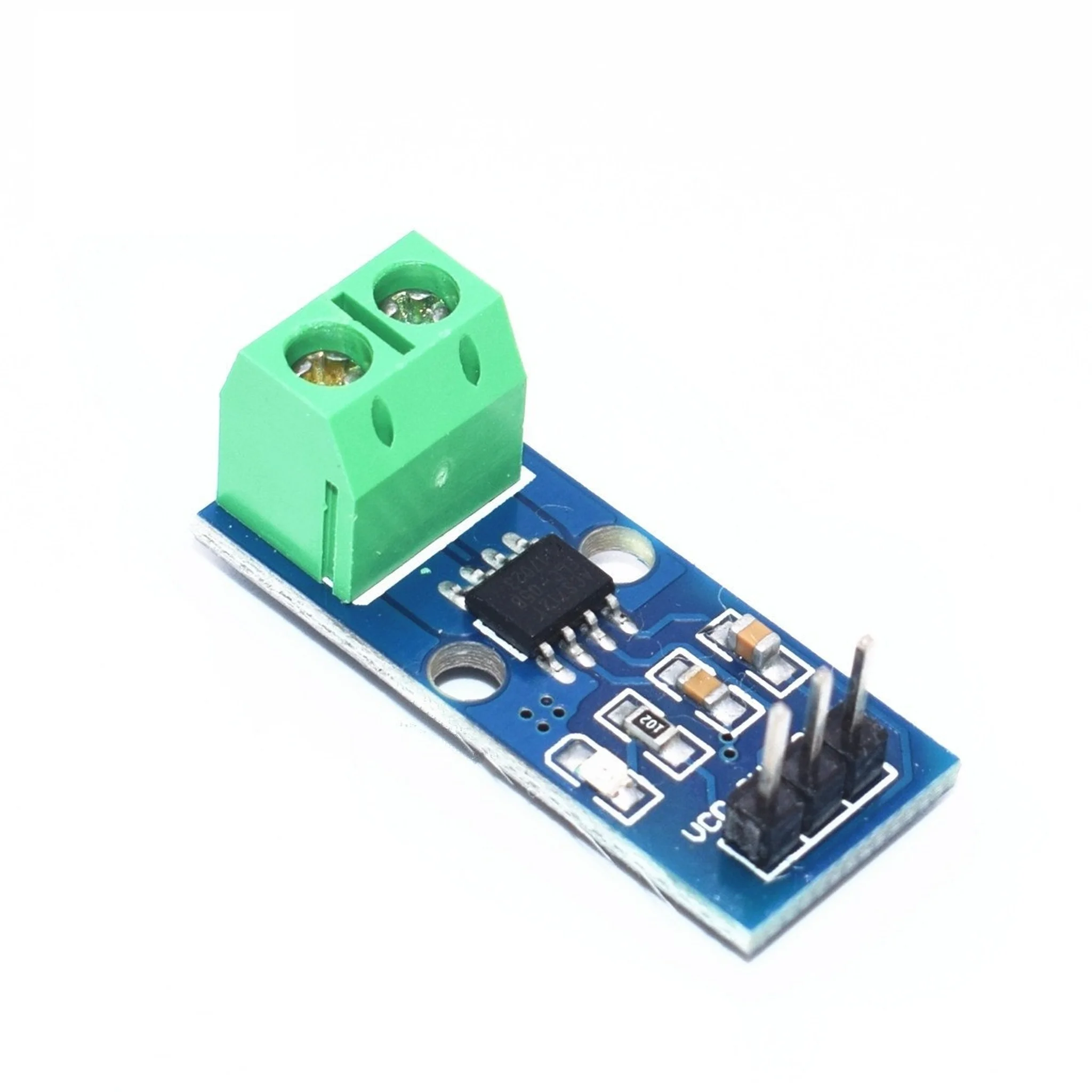

Hall Current Sensor Module ACS712 5A model

Product Specification

The current sensor chips: ACS712ELC-05B.
Pin 5V power supply, on-board power indicator.
The module can measure the positive and negative 5 amps, corresponding to the analog output 185mV / A.
Built in a potentiometer for sensitivity control. Convenient and easy to install.

Package Content :

5A Current Sensor Module

Features

• Product Name : Current Sensor Module;Model : ACS712
• Range Current : 5A;Size : 31 x 12mm/ 1.2″ x 0.47″ (L*W)
• Material : Electric Part, Plastic
• Net Weight : 4g
• Package Content : 1 x Current Sensor Module

Additional Information

• Manufacturer: SenMod
• Shipping Weight: 5


Product Dimensions:

• Width: 2.70
• Length: 3.70
• Height: 0.50
