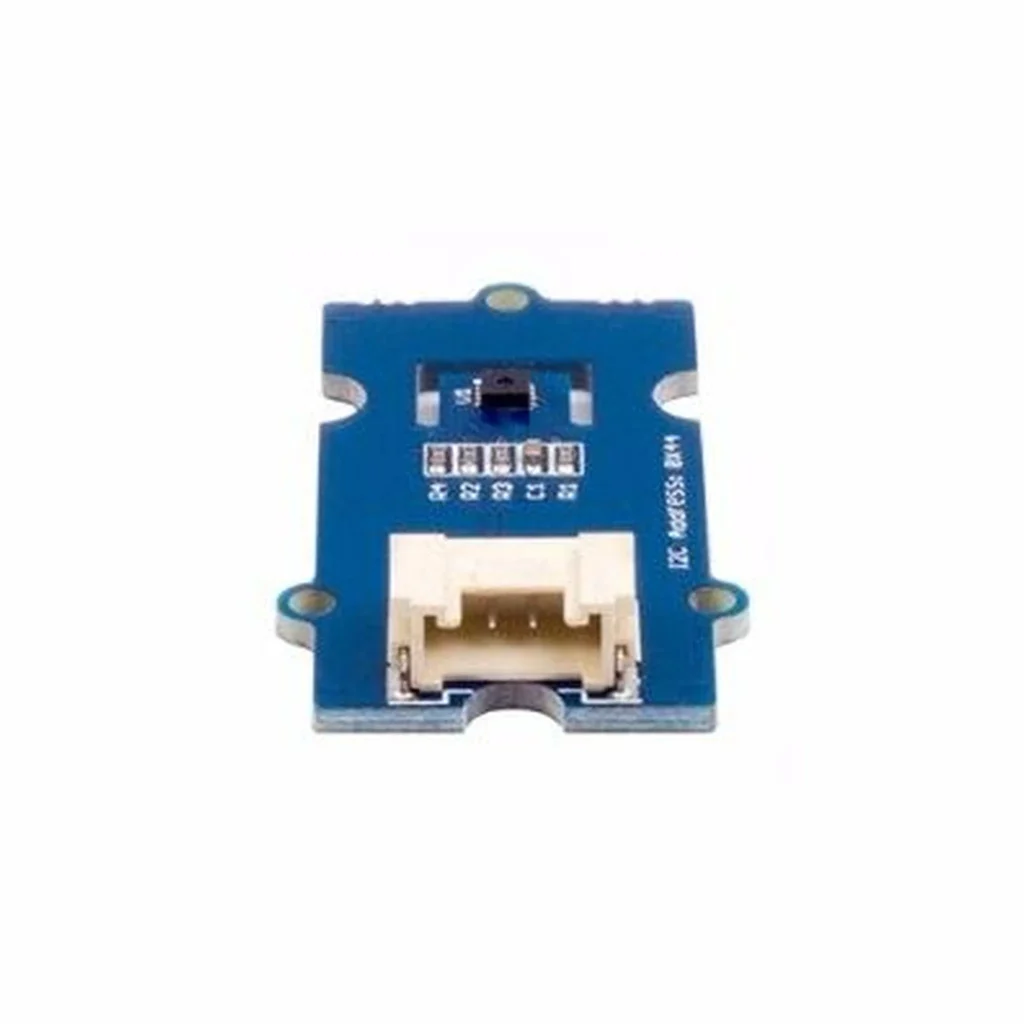

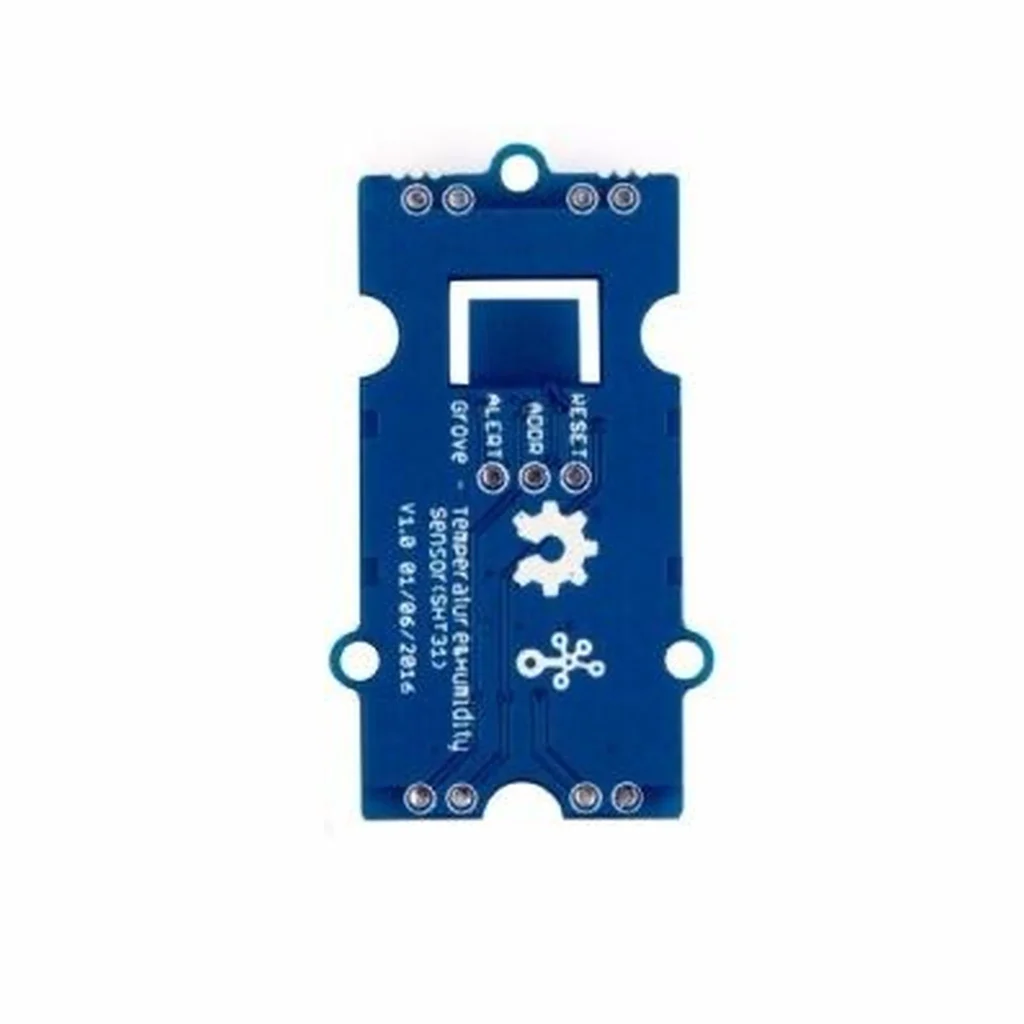

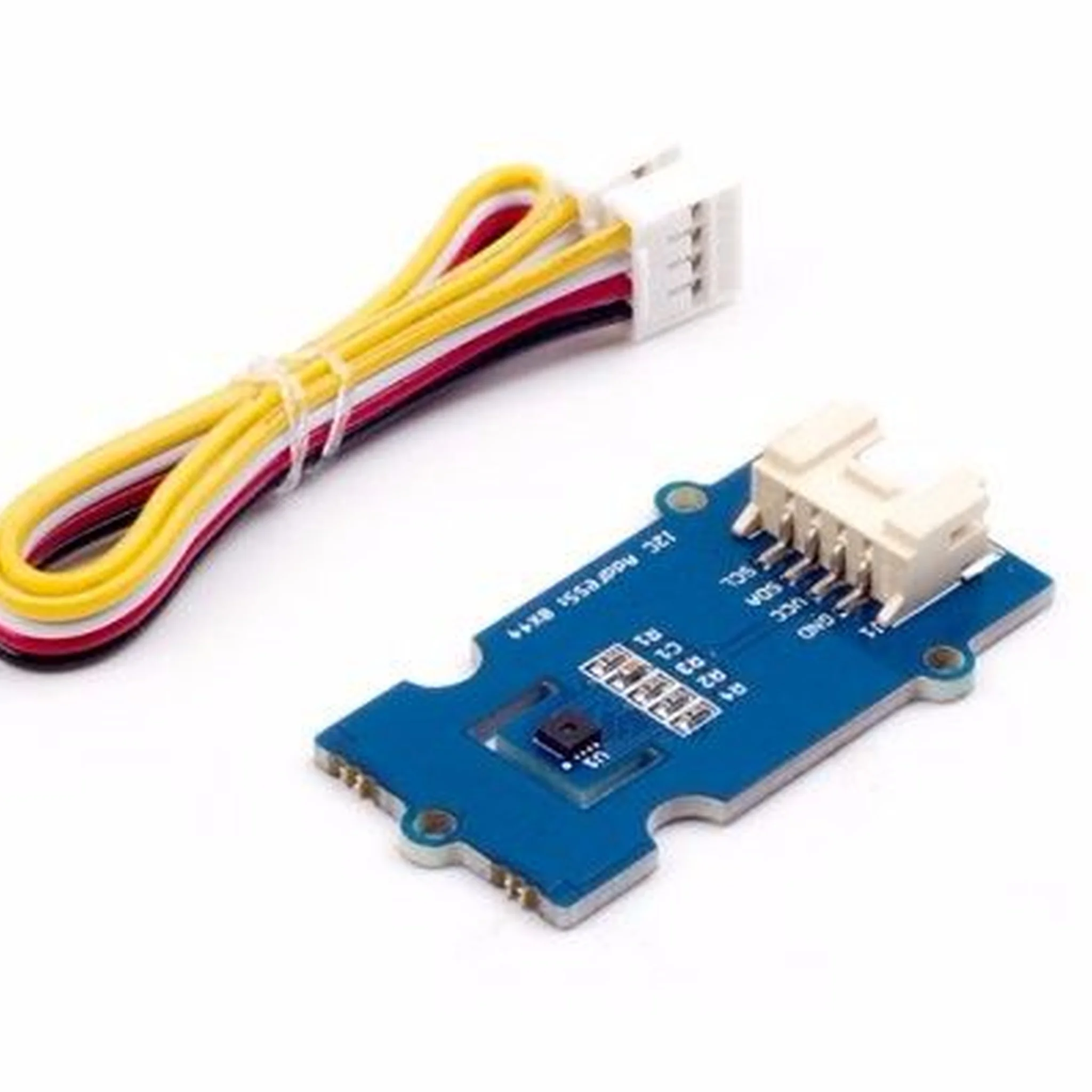

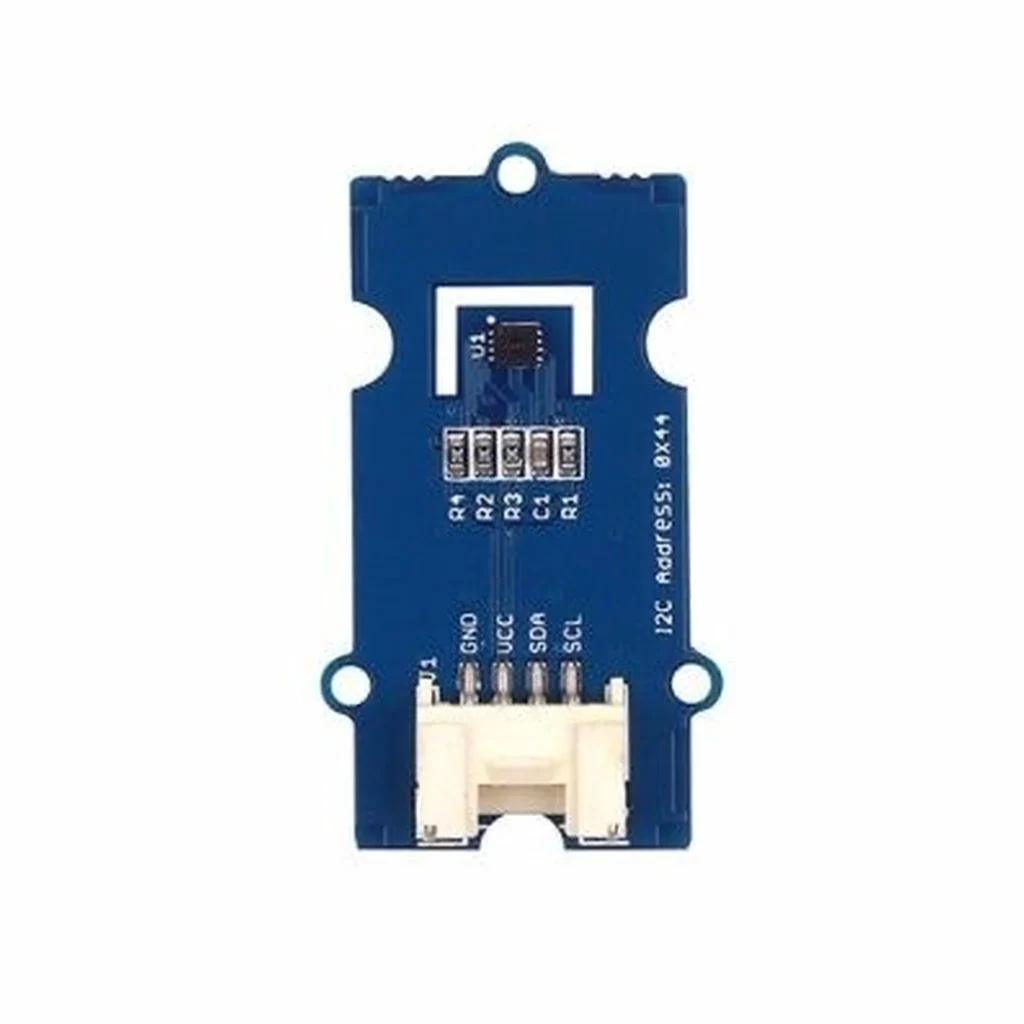

Grove – Temperature&Humidity Sensor (SHT31)

Note
We have this part available in Geppetto. Easy modular electronic design with Seeed and Geppetto. Build it Now!

When we are talking about environmental sensors, we always want it to be accurate, and also easy-to-use. Now, we’ve got a really fine sensor module that has both, the Grove – Temperature&Humidity Sensor (SHT31).

The SHT31 sensor could be the finest and highest-accuracy humidity sensor you can find, as it can acquire the relative humidity at only ±2% error. On the other side it  also features an excellent performance in terms of temperature measurement, you can use it in some extreme conditions, like -40 degree or 125 degree, and it still keeps an accuracy of ±0.3 degree.

If you are familiar with our Grove system, you should be aware of how easy it is to get started with such a module that has a GROVE prefix. We design it as a Grove module so you don’t need any bread-boarding, meshing or soldering to make it work.

If your development board is a Seeeduino, simply connect it to the I2C port and download a few line of code, then you are ready to roll!

Features

• High accuracy, ±0.3 °C accuracy for temperature and ±2% for humidity
• Easy-to-use Grove Compatible Interface
• For projects that you would like to share with the community, please visit Recipe.

NOTE

As the sensor is quite sensitive to the environmental conditions, please DO NOT touch it with your fingers as you might damage it.

Technical details
Dimensions     89mm x140mm x7.5mm
Weight     G.W 10g
Battery     Exclude
Supply Voltage     5V or 3.3V
Current Consumption     100 uA

Temperature Measurement:
Range     -40°C to 125°C
Accuracy     ±0.3
Humidity Accuracy     ±2%
Communication Interface     I2C
Dimensions     20mm x 40mm

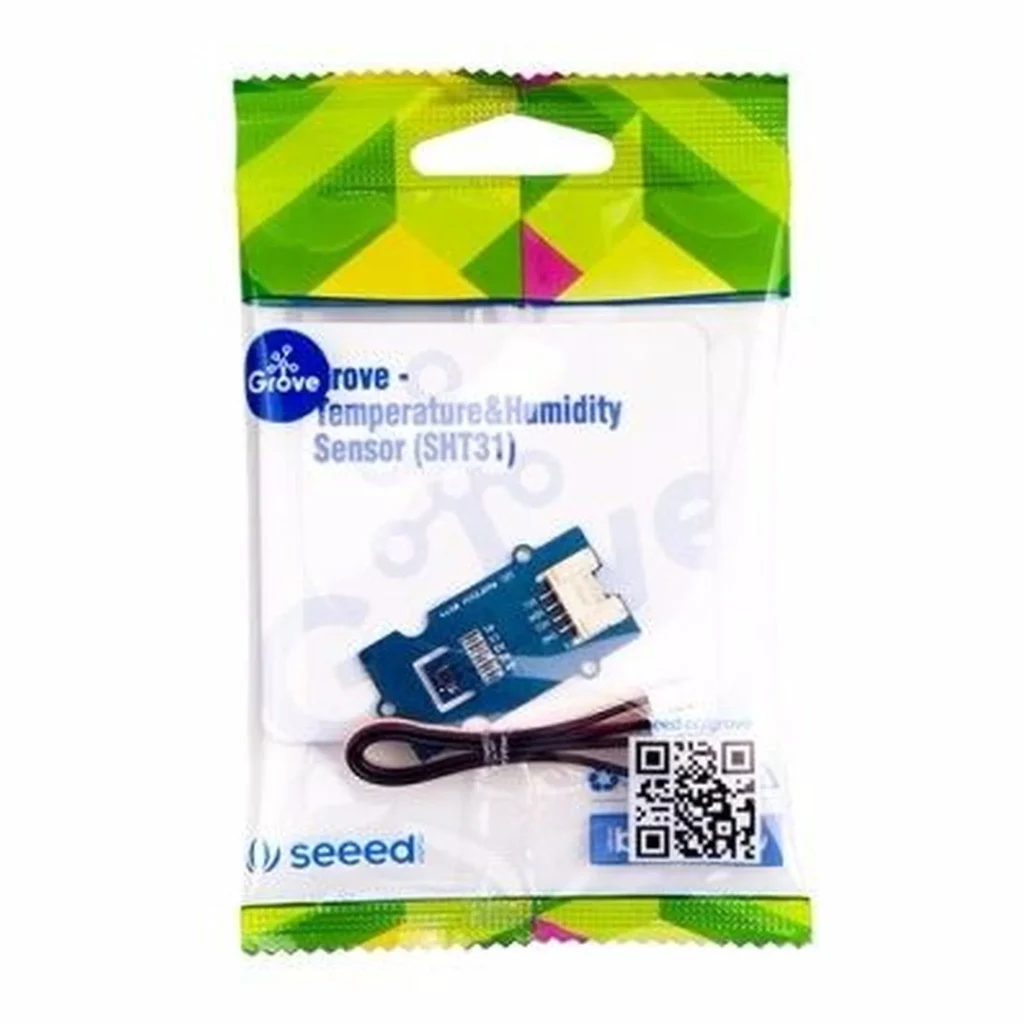

Part List
Grove – Temperature&Humidity Sensor (SHT31)     1

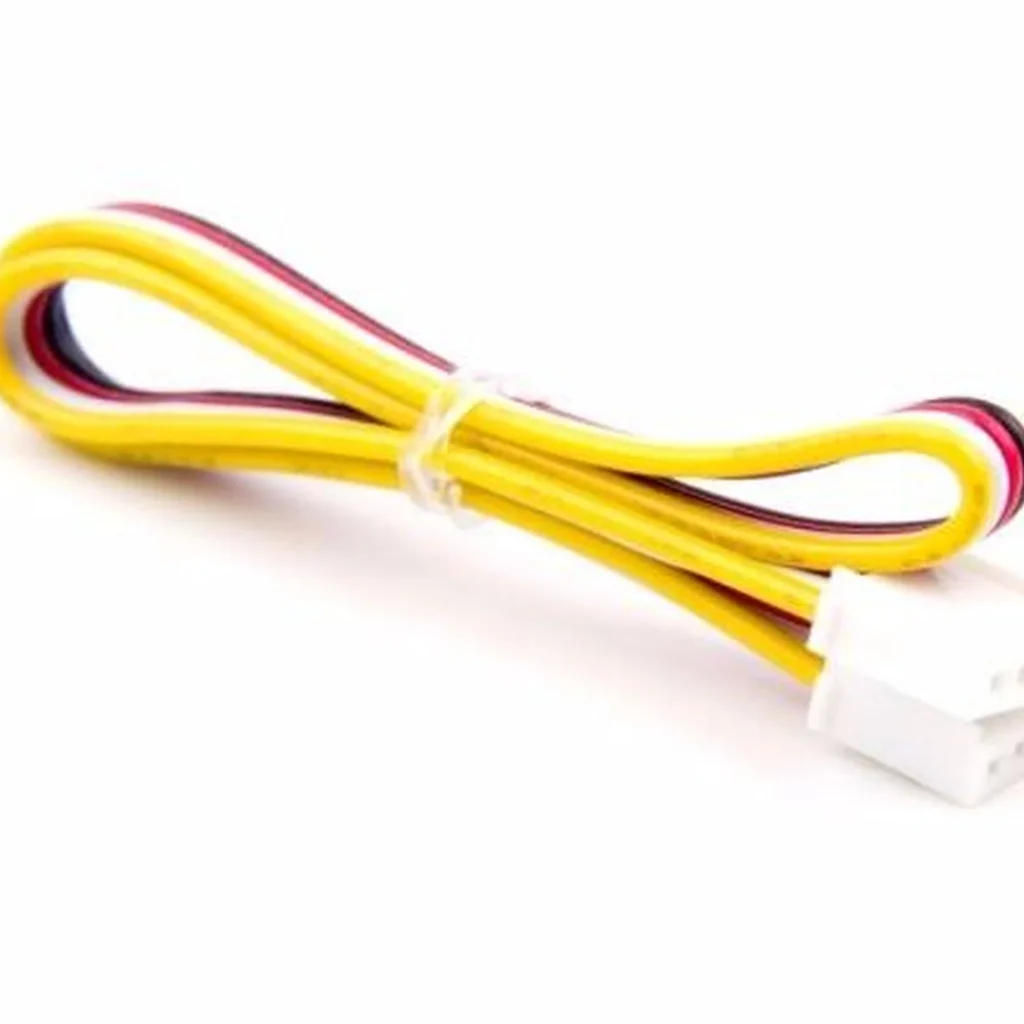

Grove Cable     1
