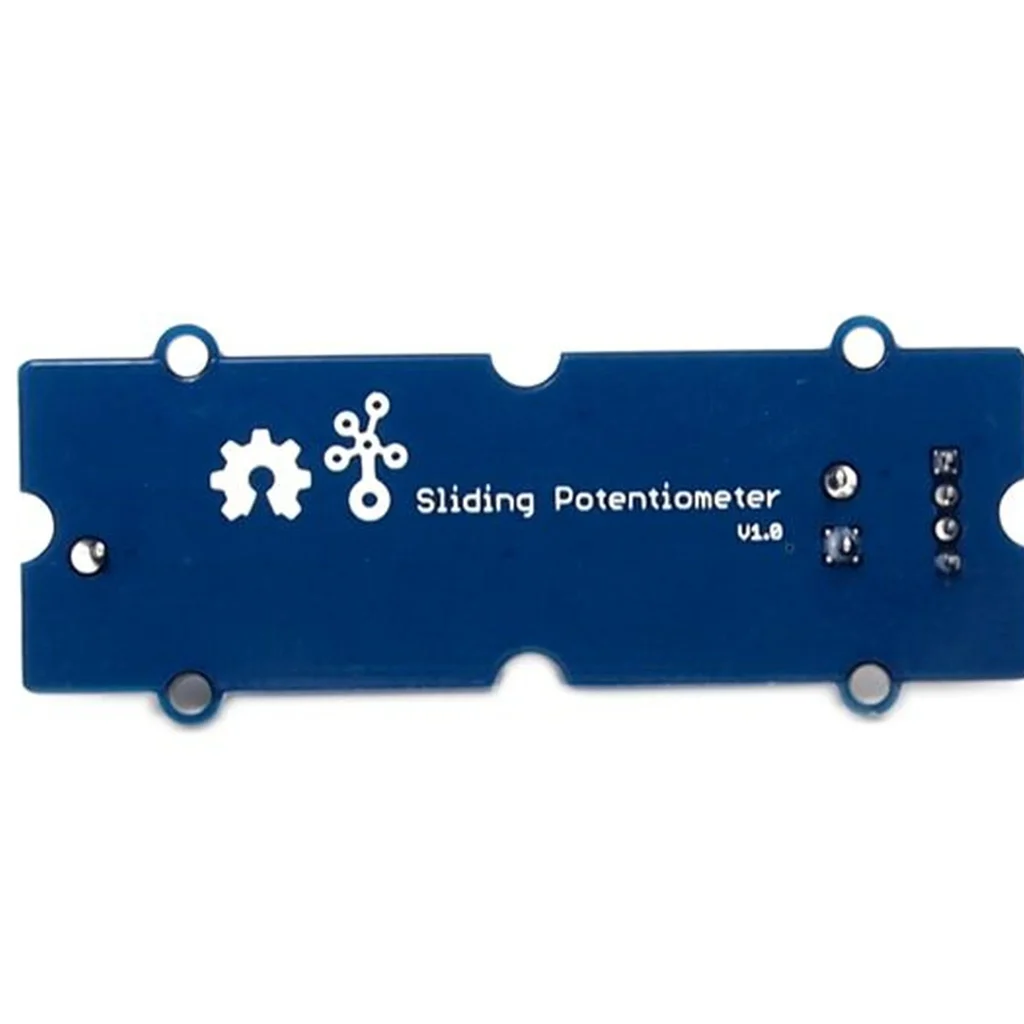

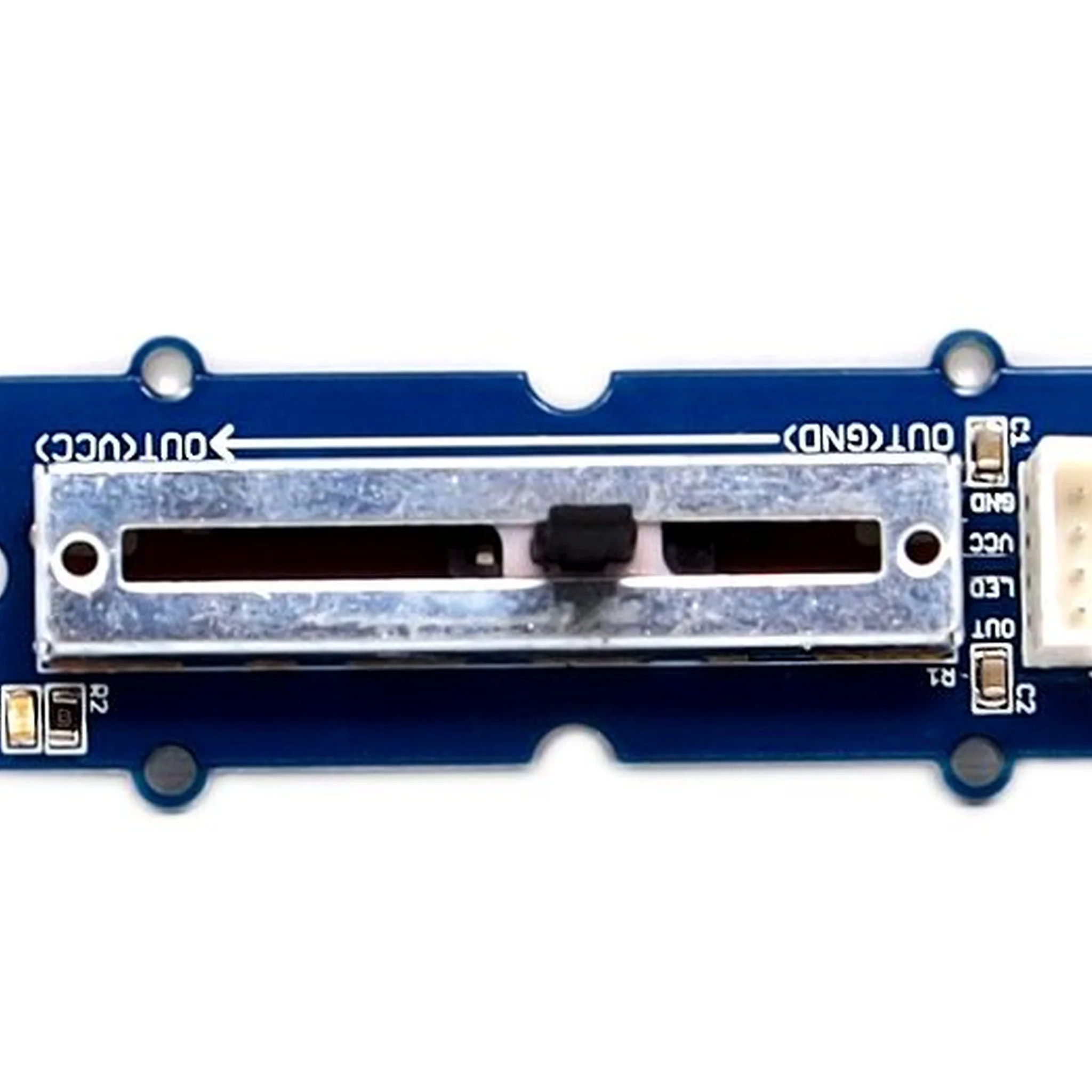

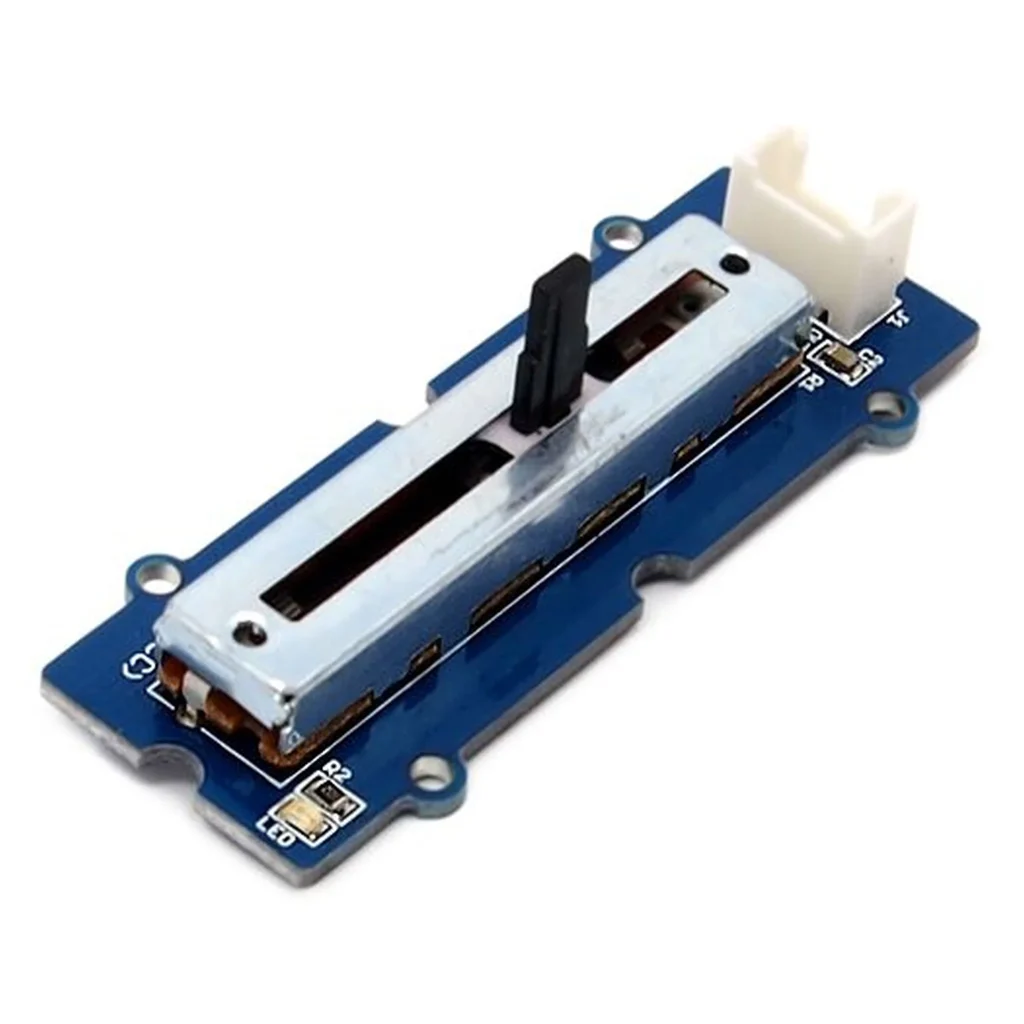

Grove – Slide Potentiometer

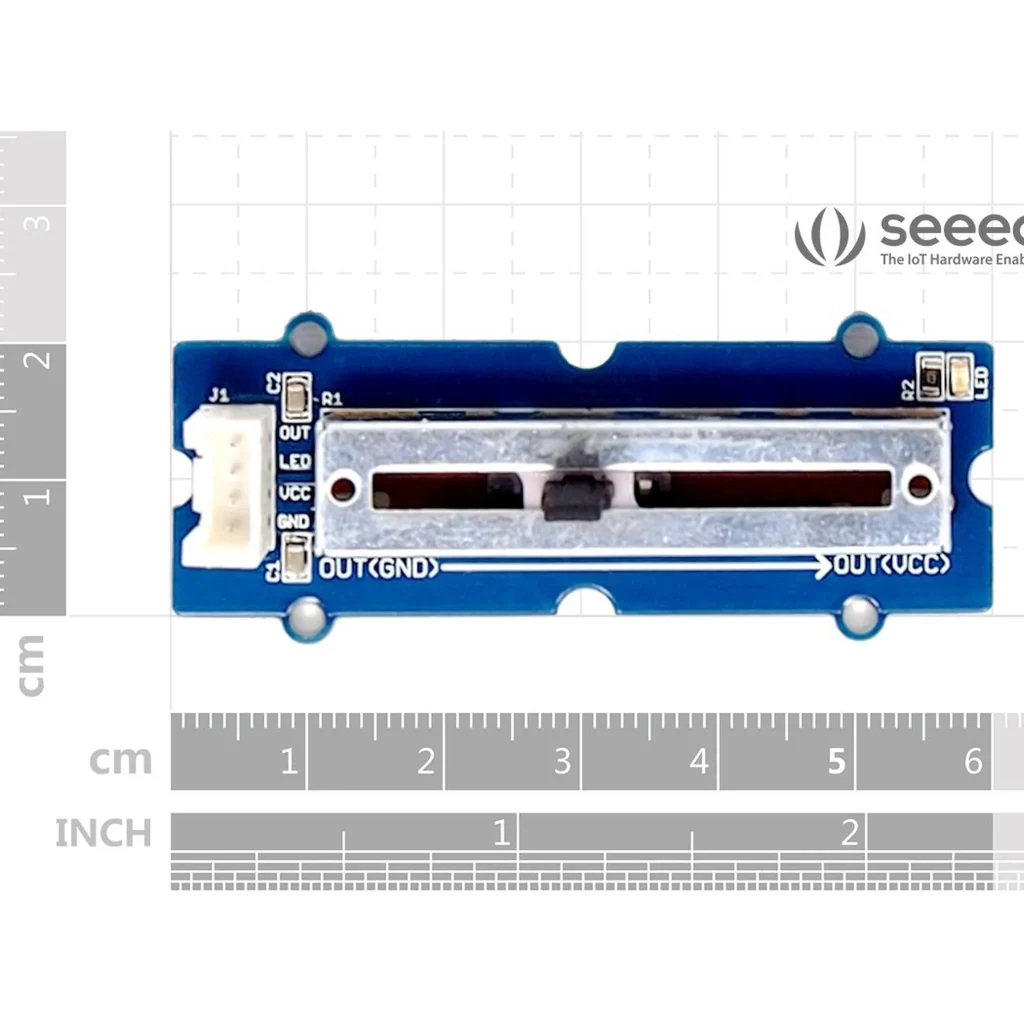

This slide potentiometer is a linear variable resistor with a total resistance of 10k. When you move the lever from one side to the other, its output voltage will range between 0 V to the VCC you apply. Three of four Grove pins are connected to VCC, GND and the ADC IN on the slide, while the remaining pin is connected to a green indicator LED. You can use the indicator LED to visually display the change on the potentiometer.

Features

• 30 mm long slide length
• Linear resistance taper
• Grove compatible

Application Ideas

• Voltage divider: a linear circuit that produces an output voltage as a fraction of its input voltage
• HID for controlling panels

For all Grove users (especially beginners), we provide you guidance PDF documents. Please download and read through Preface – Getting Started and Introduction to Grove before your using of the product.

Technical details
Dimensions     0mm x0mm x0mm
Weight     G.W 13g
Battery     Exclude

Part List
Grove – Slide Potentiometer     1
