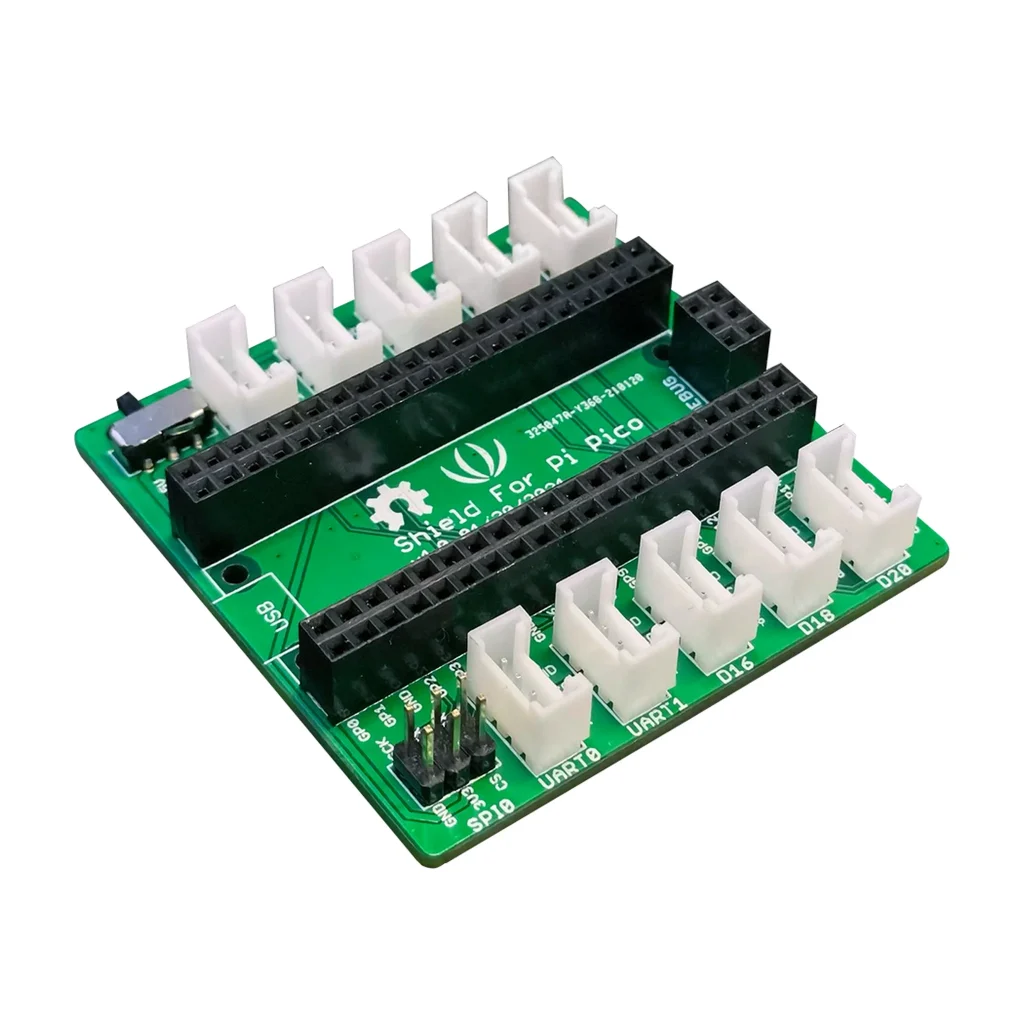

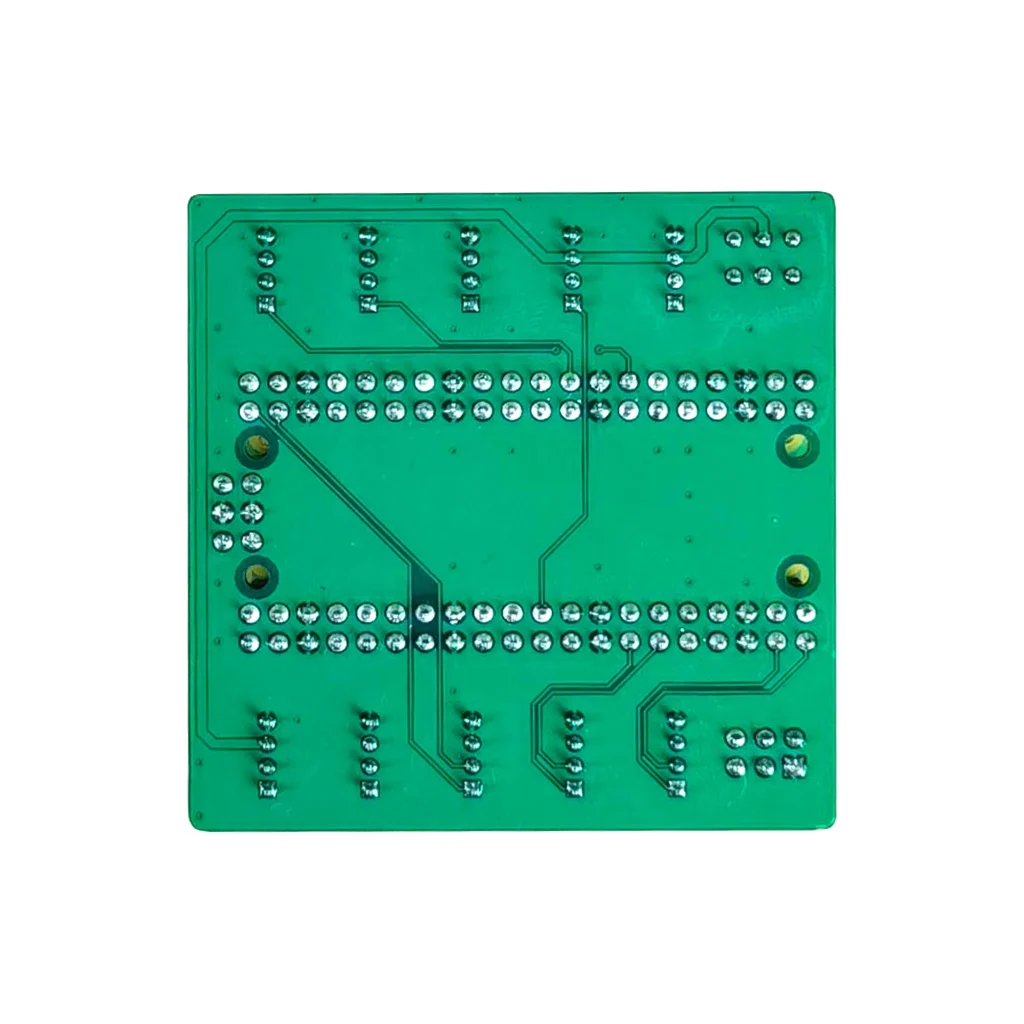

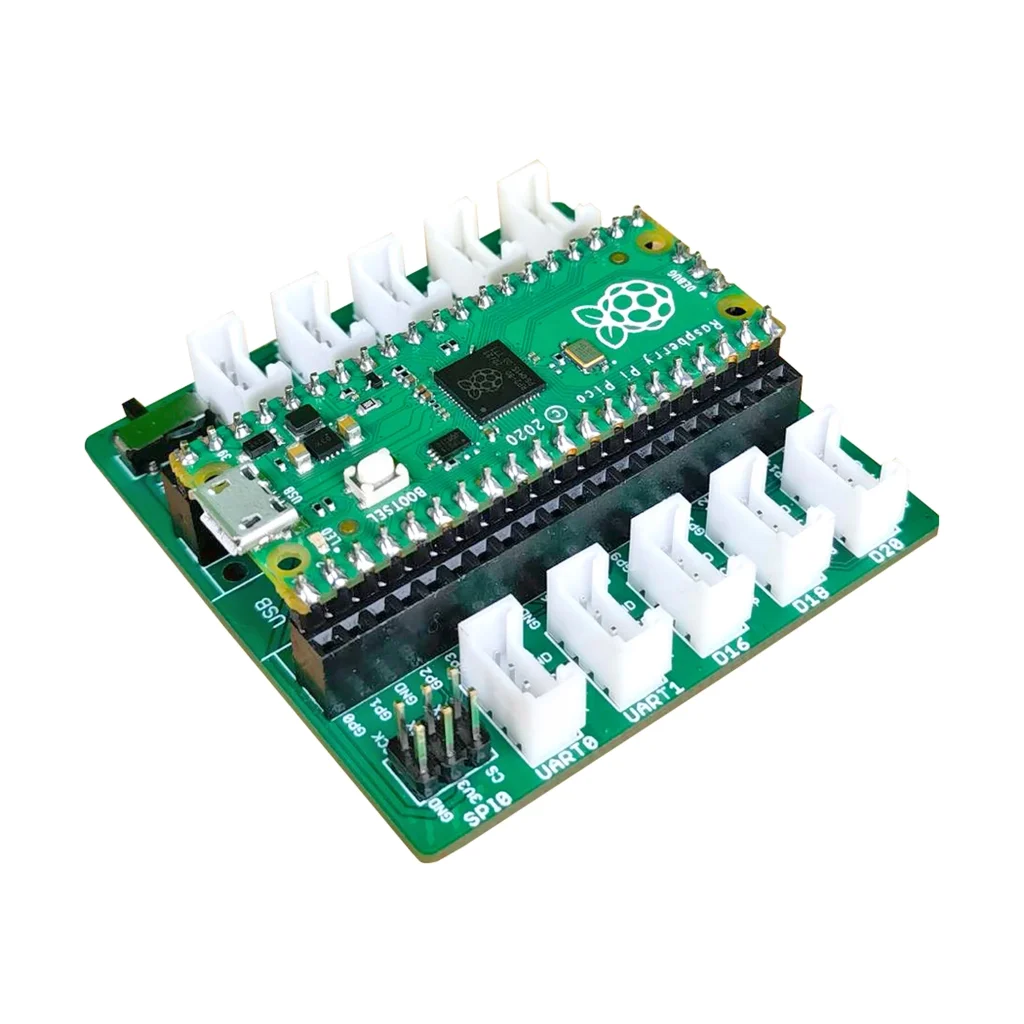

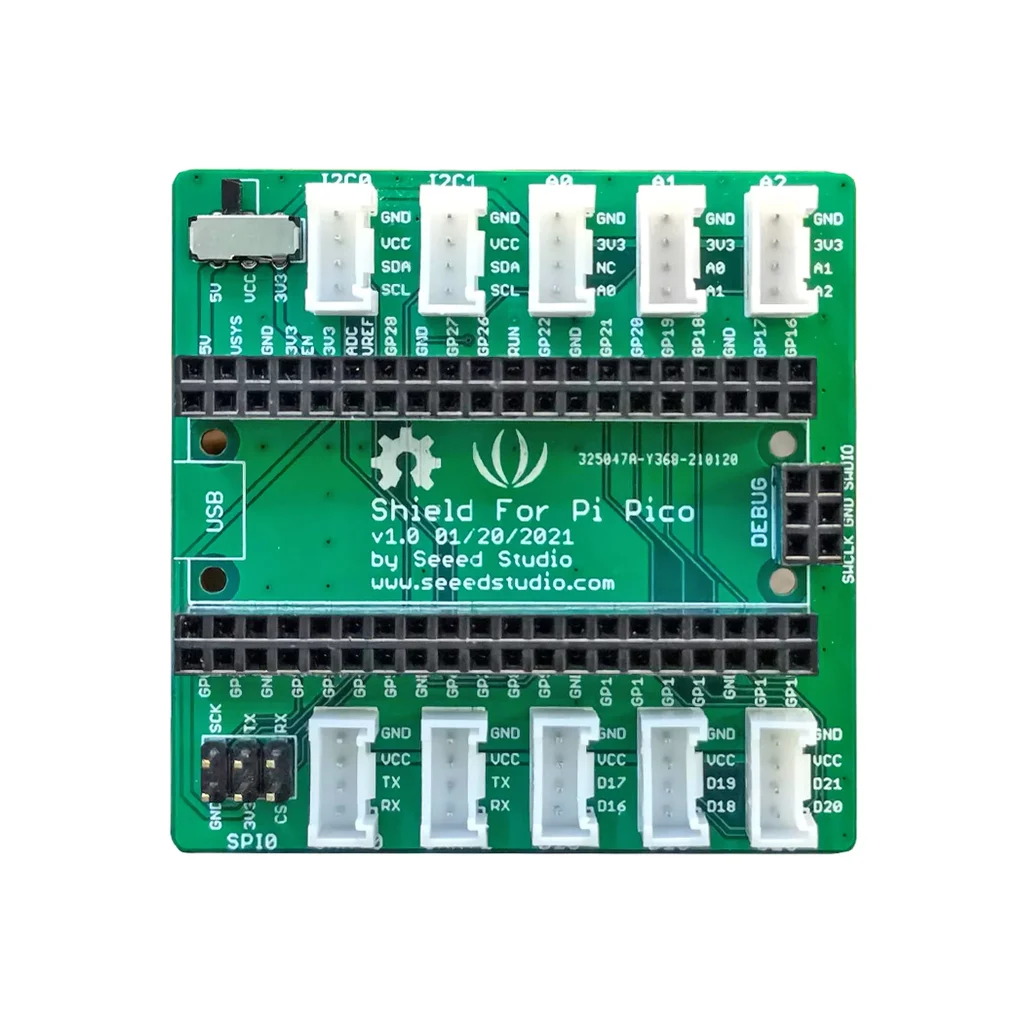

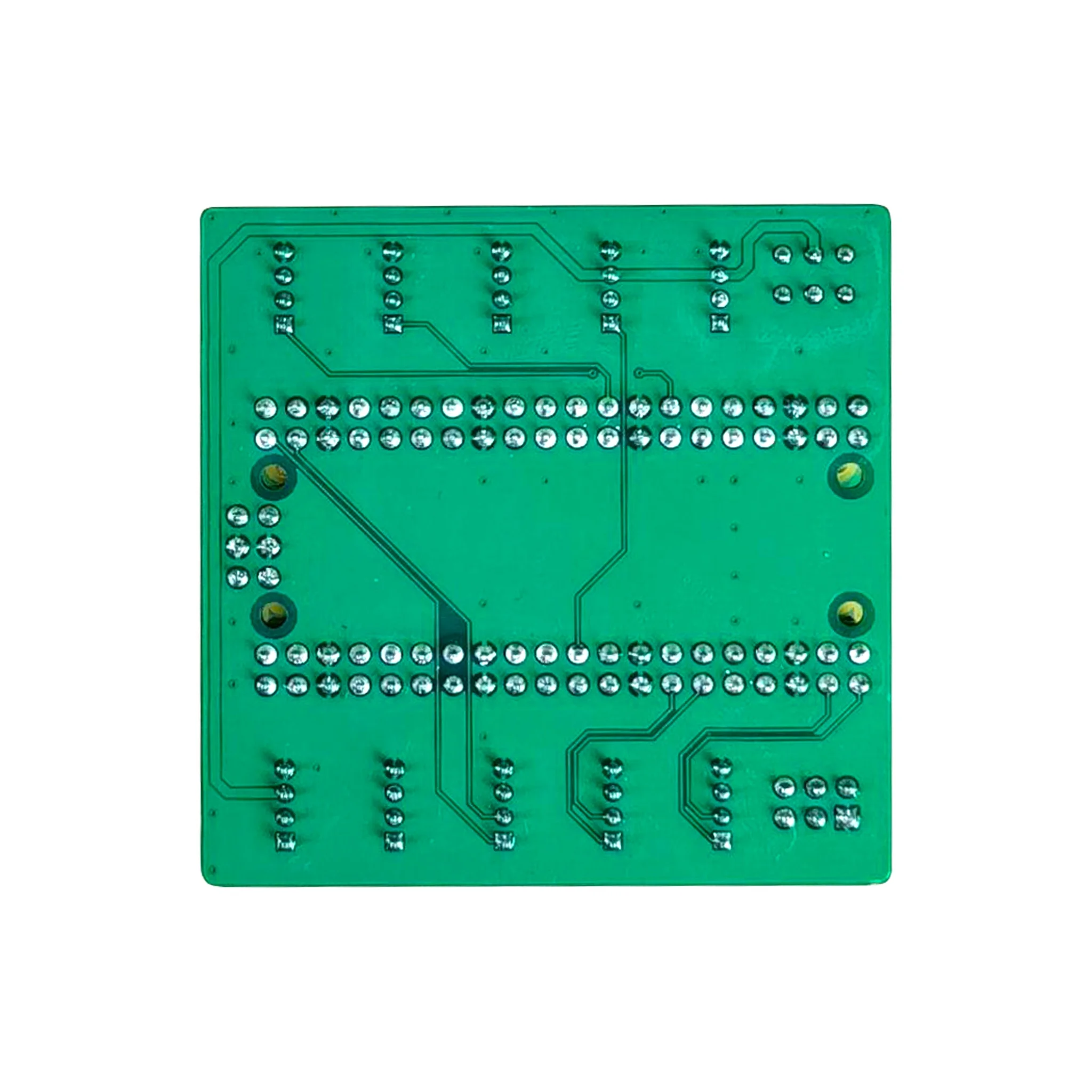

Grove Shield for Pi Pico v1.0
The Grove Shield for Pi Pico v1.0 is a plug-and-play shield for Raspberry Pi Pico which integrates with various kinds of Grove connectors, such as I2C, UART, Digital, Analog ports. It enables the build prototype and project in an easy and quick way without solder and jumper wire , you could explore infinite possibilities of Pico.
Key Features
- Quick Prototyping: Easy debug and Plag and play with grove connectors and SWD pin.
- Rich peripherals: 2 × I2C, 2 × UART, 3 × Digital, 3 ×Analog, SPI, SWD Debug interface.
- No Soldering Needed: All pin led out. Convenient plug and play Grove connectors support multiple data protocols, including IIC, Uart, Analog/Digital
Description
The Raspberry Pi Pico is a new popular low-cost, high-performance microcontroller board, so how to integrate Grove sensor to it? The grove shield perfectly solved this problem.
The Grove Shield for Pi Pico v1.0 is a plug-and-play shield for Raspberry Pi Pico which integrates with various kinds of Grove connectors, including 2*I2C, 3*Analog, 2*UART, 3*Digital ports, SWD debug interface and SPI pin, 3.3v/5v selectable power switch. It enables the build prototype and project in an easy and quick way without jumper wire and breadboard, you could explore infinite possibilities of Pico. The shield board is a stackable add-on board which acts as a bridge for Pi Pico and Seeed’s Grove system.
