Grove – Red LED Matrix w/Driver

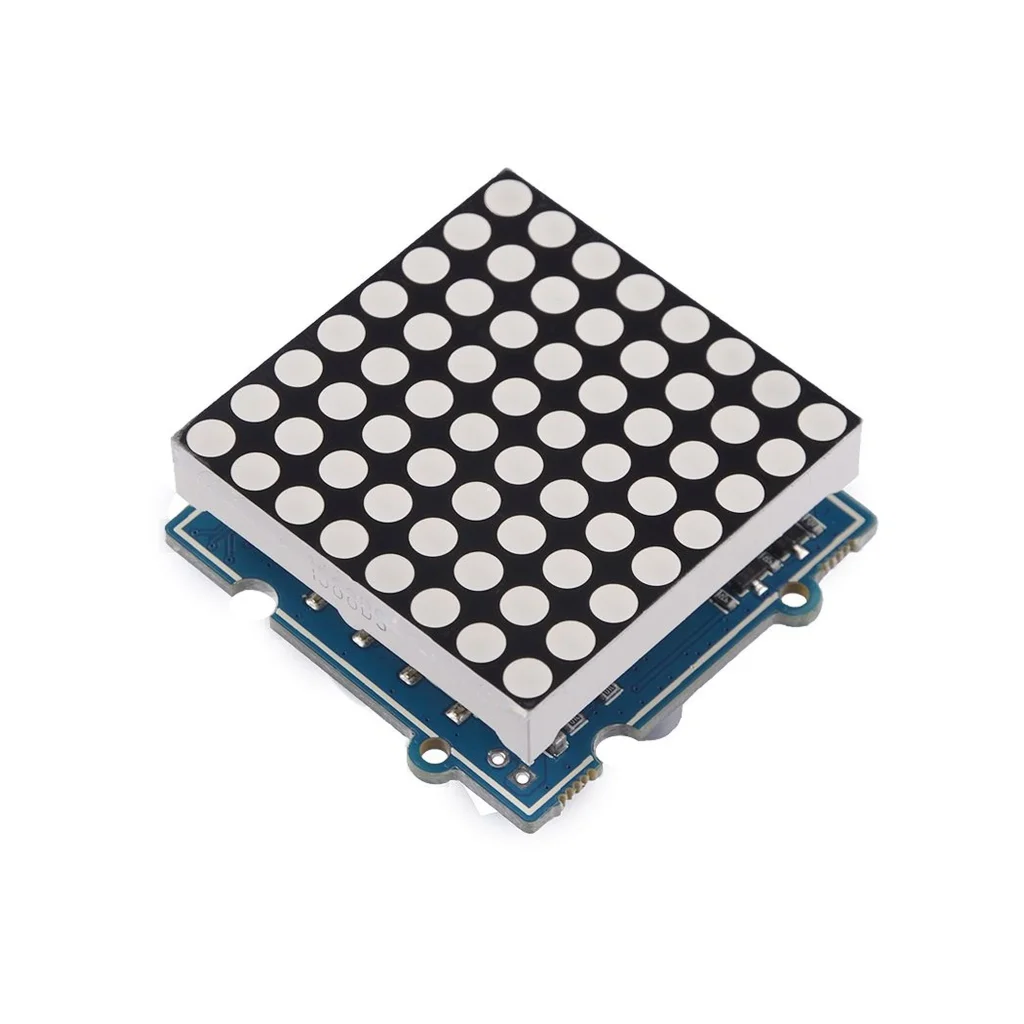

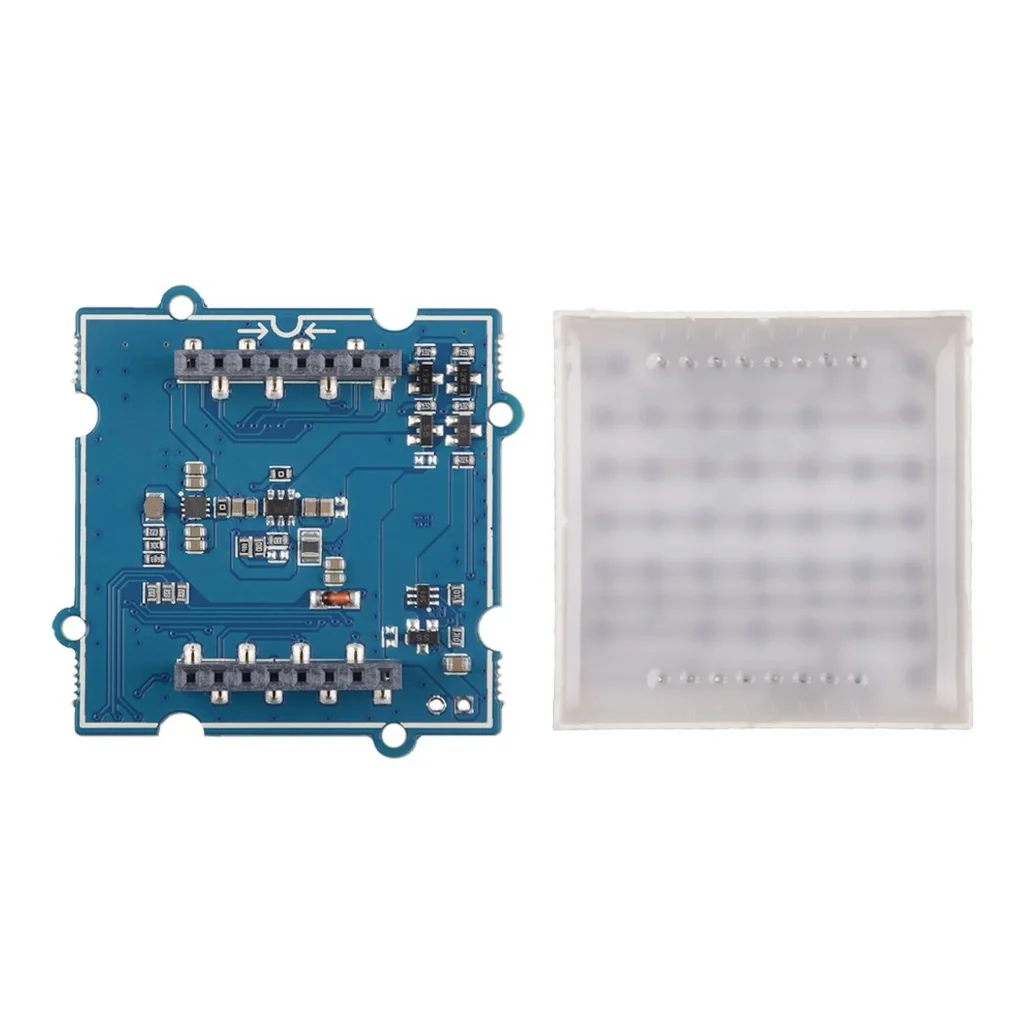

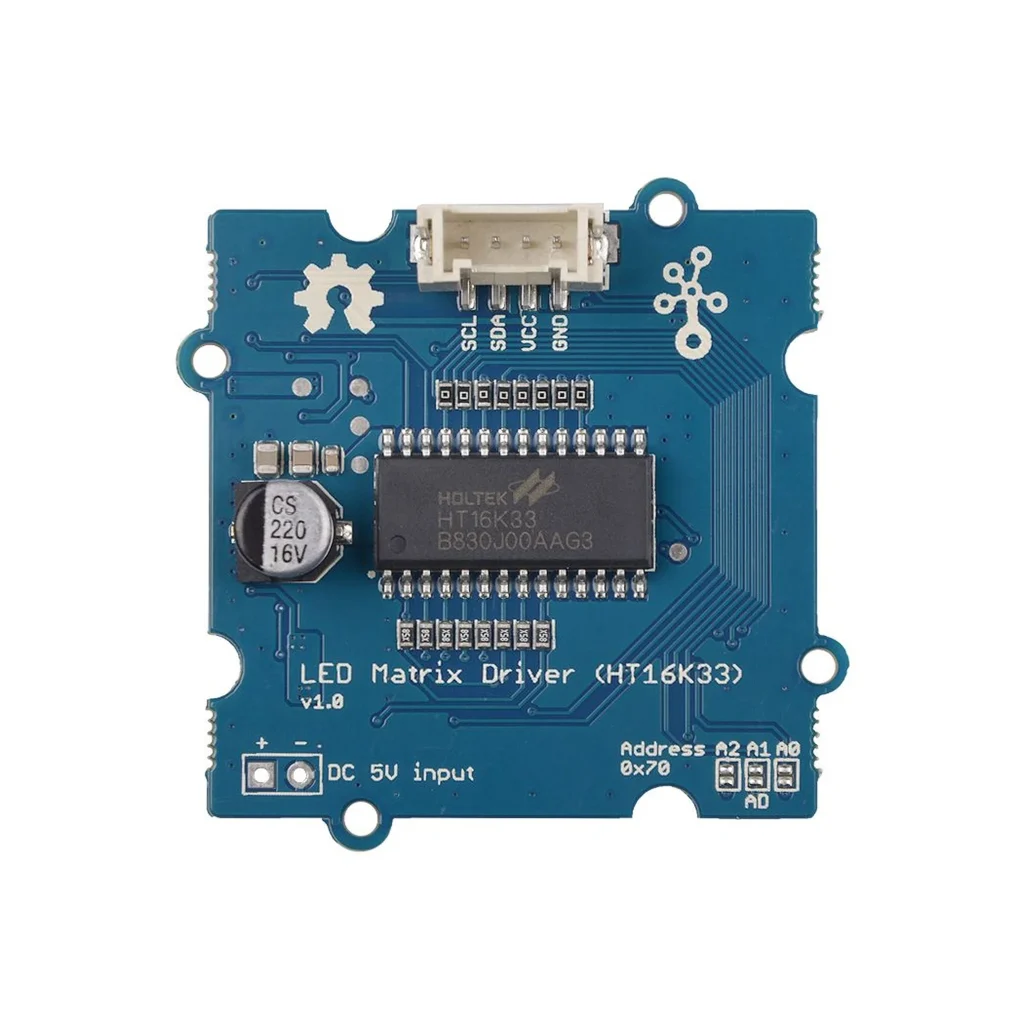

LED Matrix is low cost and usually used to display simple numbers and images. Grove – Red LED Matrix w/Driver is the combination of the 20mm 8*8 square LED Matrix – Red and the Grove – LED Matrix Driver. The HT16K33 is a memory mapping and multi-function LED controller driver which allows you to control the LED matrix with our prepared and easy-to-use libraries, or you can create your own library to control it to satisfy your needs.

Features

• Integrated RC oscillator
• R/W address auto increment
• Max. 8 x 8 patterns
• I2C-bus interface

Typical Appications

• Industrial control indicators
• Digital clocks, thermometers, counters, multimeters
• Combo sets
• VCR sets
• Instrumentation readouts
• Other consumer applications
• LED Displays
