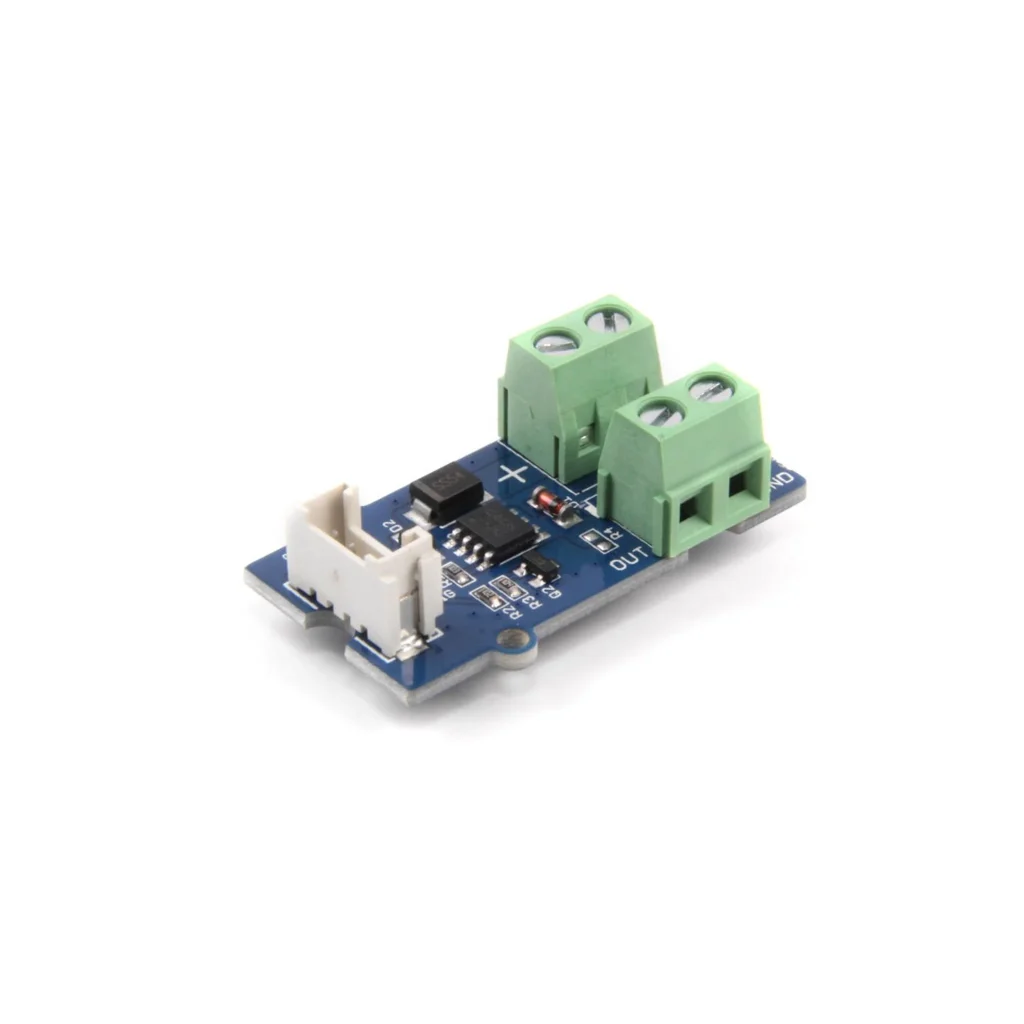

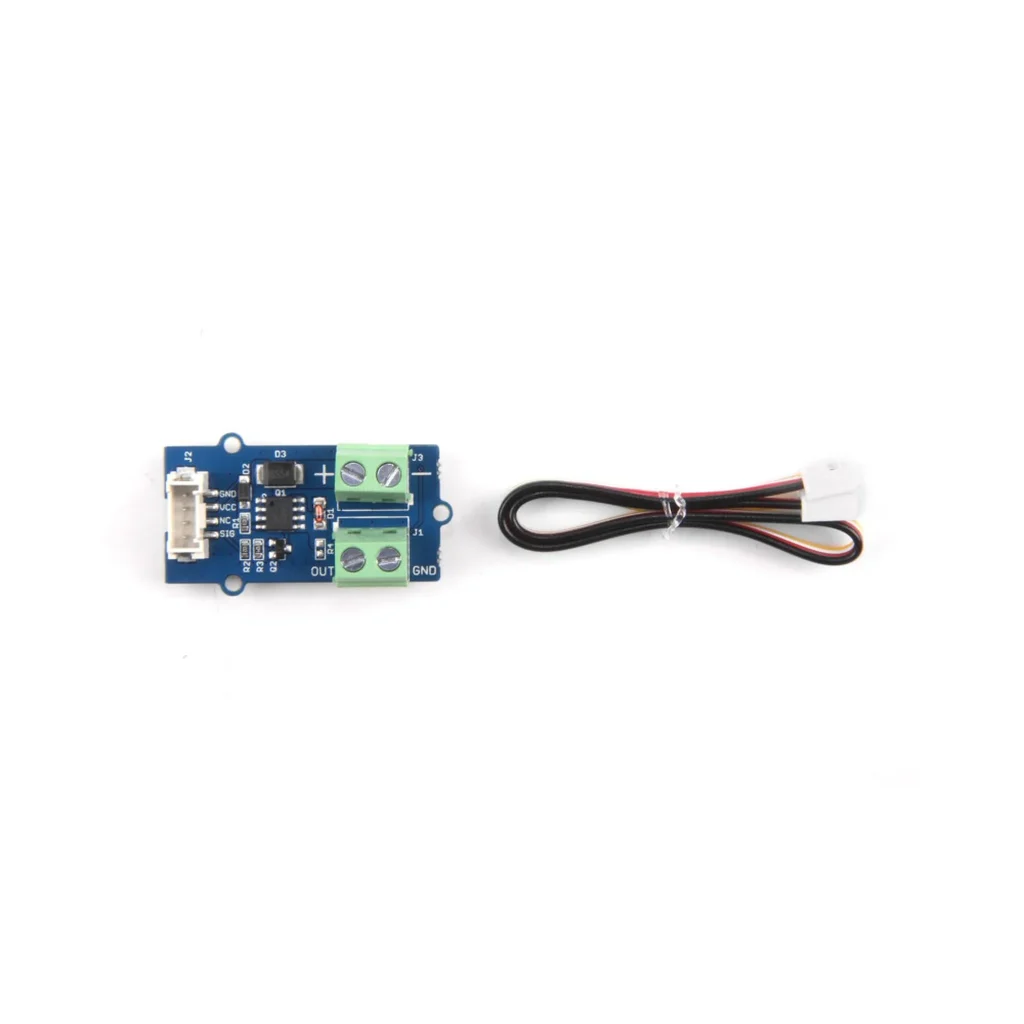

Grove – MOSFET enables you to control higher voltage project, say 15VDC, with low voltage, say 5V, on microcontroller. MOSFET is also a kind of switch, but its switching frequency can reach up to 5MHz, much faster than normal mechanical relay. There are two screw terminals on the board. One for outer power source and the other for device you want to control. Grove – MOSFET will pass the power from one end to another when closed. But if outer power source is absent, your device can still draw power from microcontroller via the Grove interface.

 For all Grove users (especially beginners), we provide you guidance PDF documents. Please download and read through Preface – Getting Started and Introduction to Grove before your using of the product.

Technical details

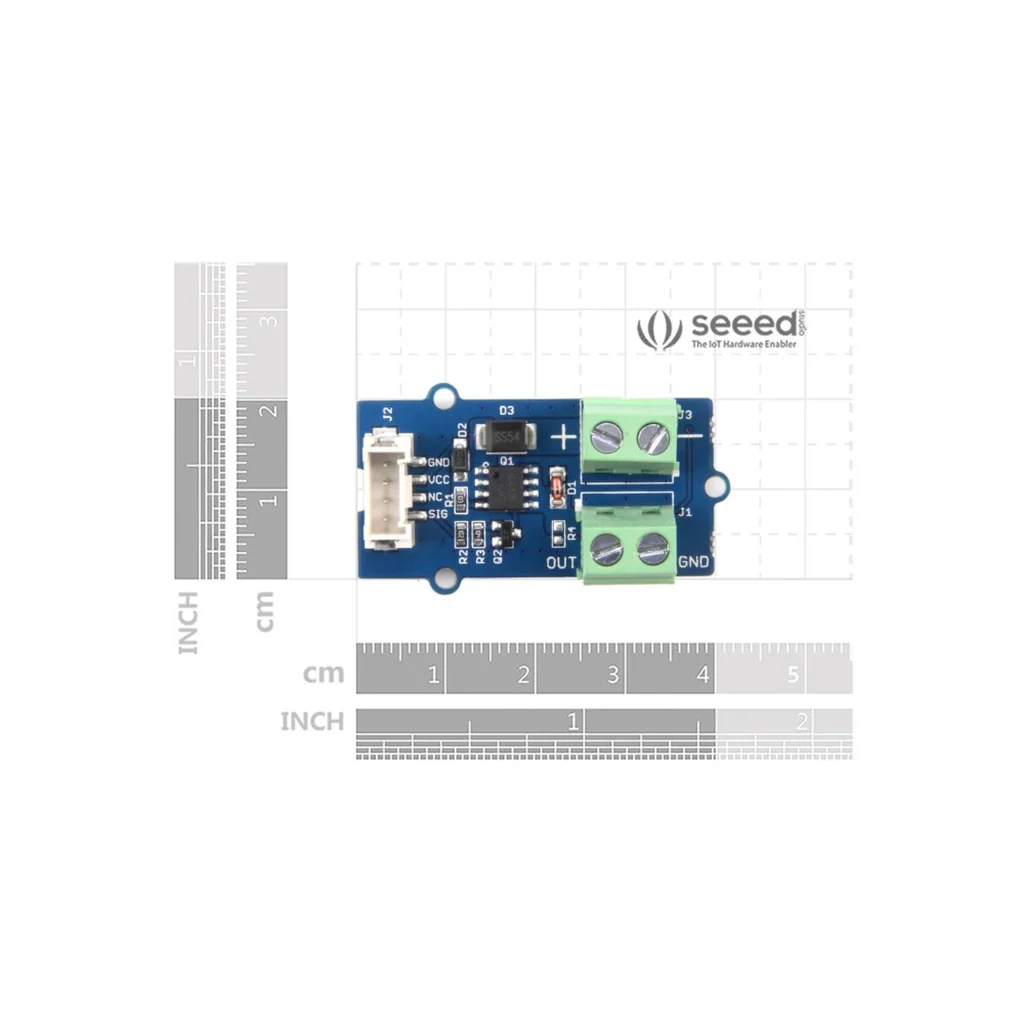

Dimensions : 40mm x20mm x15mm
Weight : G.W 14g
Battery : Exclude
Working voltage: 5V
Vin: 5 ~ 15V
MOSFET Model: CJQ4435
