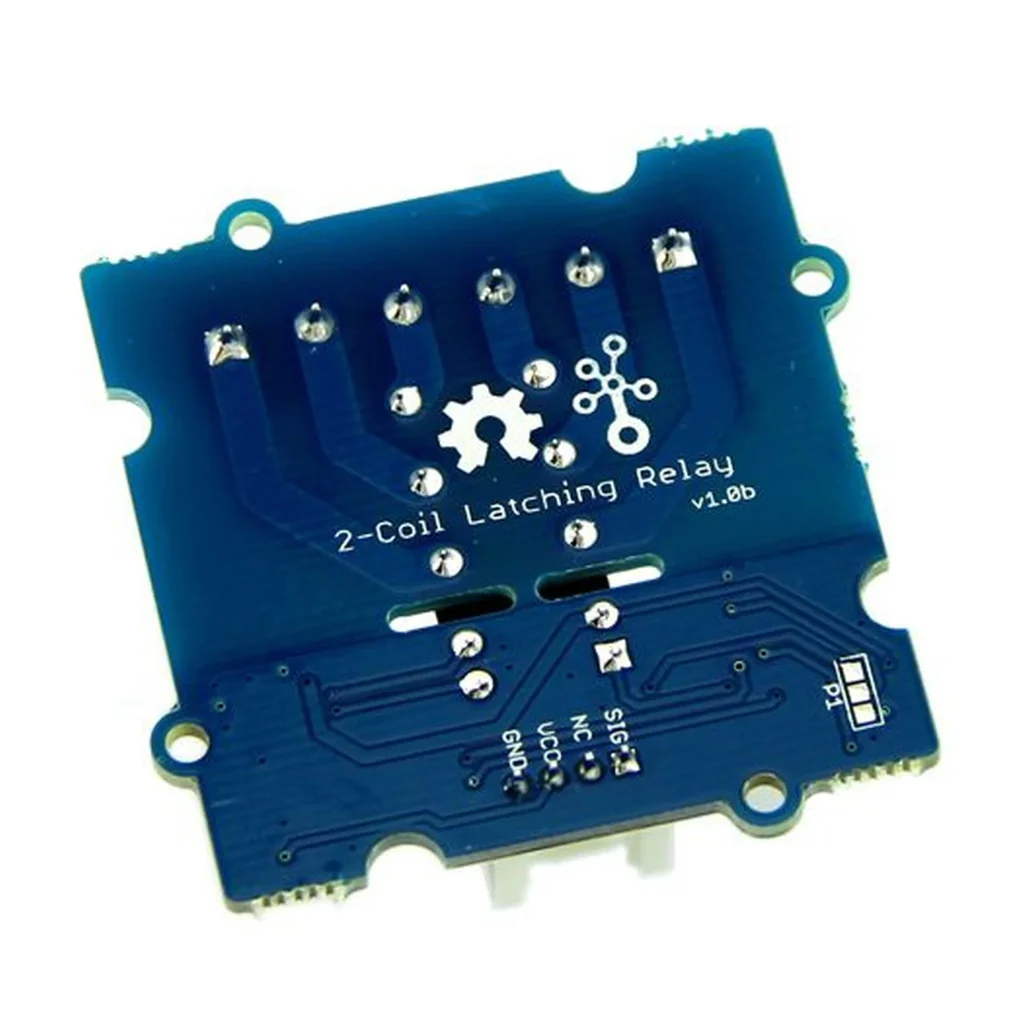

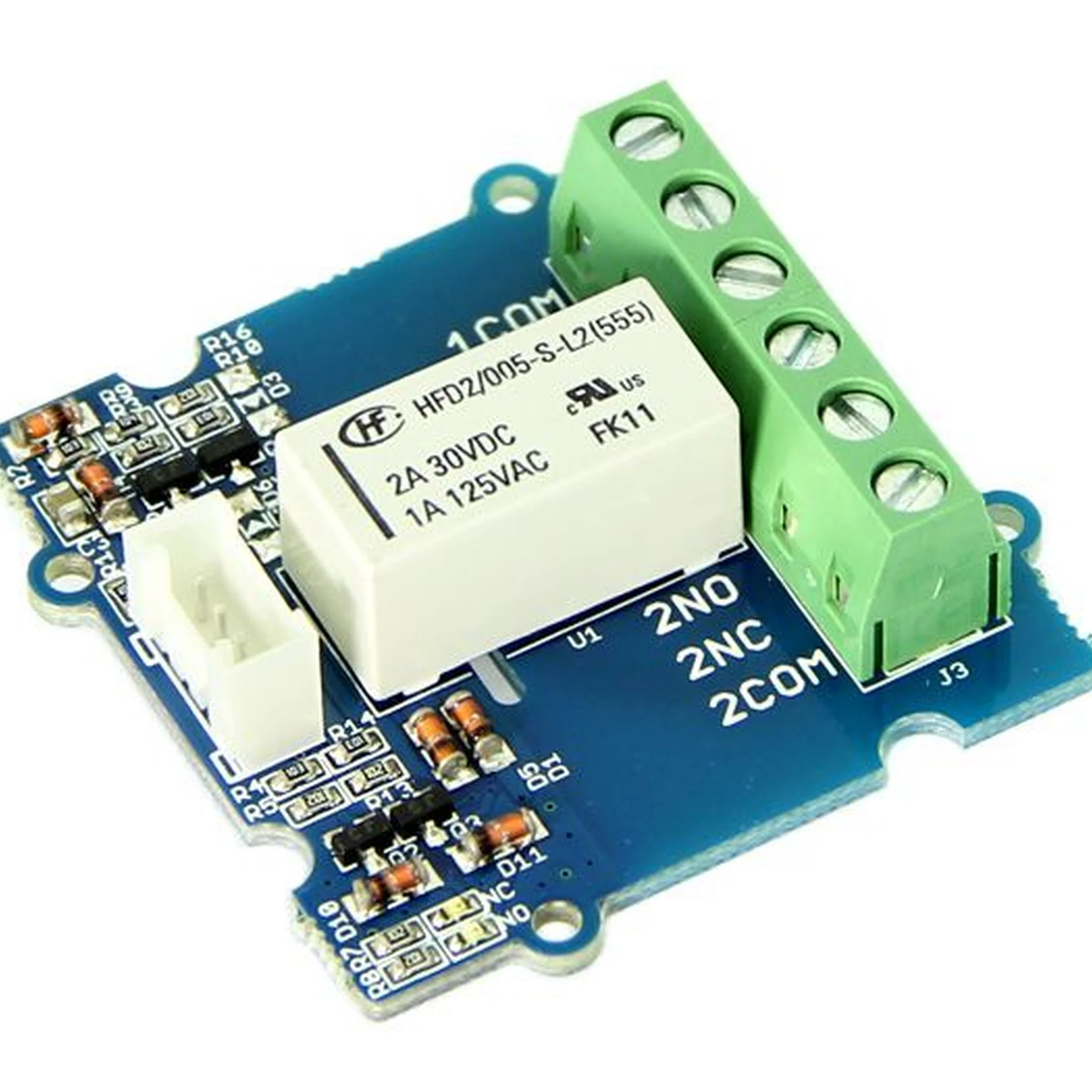

Grove – 2-Coil Latching Relay

Note
We’ve released the Seeed Relay Selection Guide, it will help you choose the relay that best suits your needs.

This module is based on 2-Coil Latching Relay. Contrast to the ordinary relay, this latching relay do not need continuous power to keep the state, only a rising/falling pulse is needed to change the work state. Even the power can be removed when the work state do not need to change, making this module especially suitable for low-power projects.

Features

• Grove Connector
• Low power consumption
• Dual Switch

For all Grove users (especially beginners), we provide you guidance PDF documents. Please download and read through Preface – Getting Started and Introduction to Grove before your using of the product.

Technical details

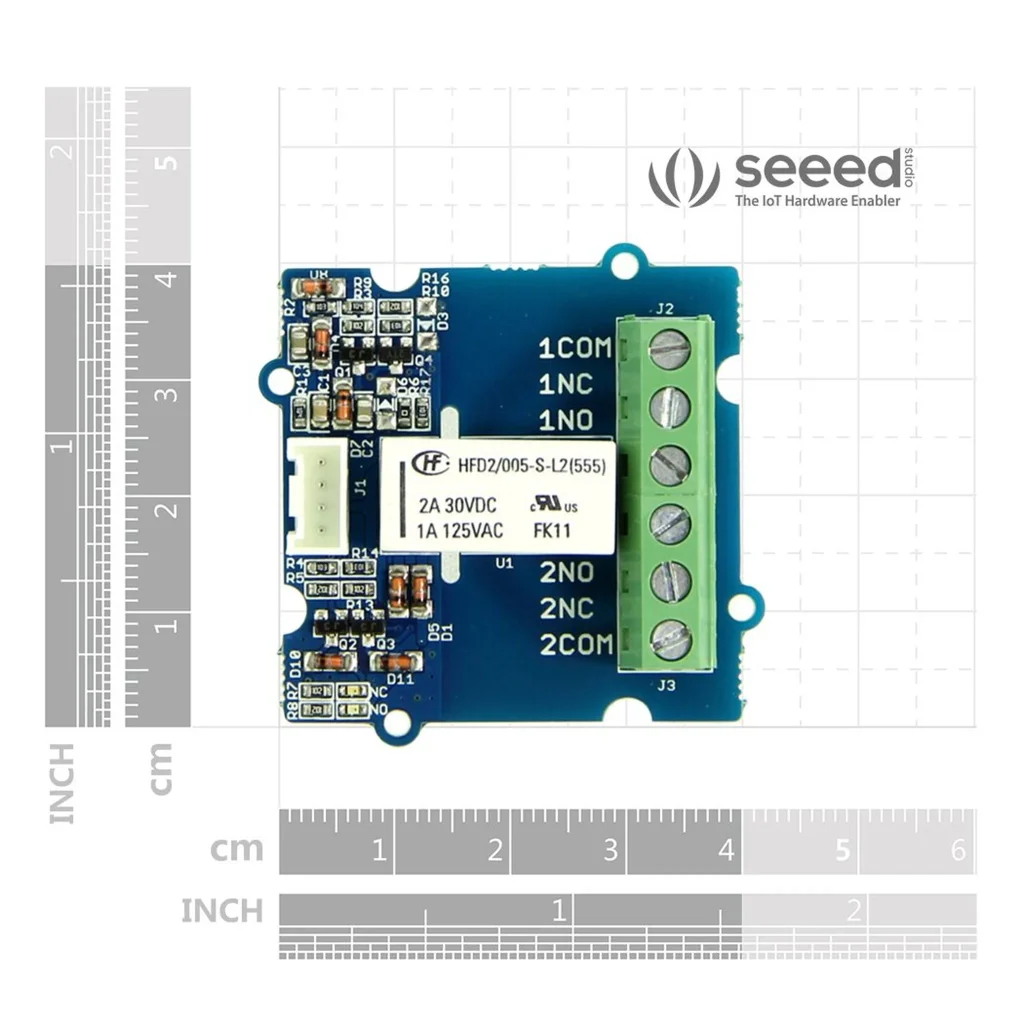

Dimensions     130mm x90mm x15mm
Weight     G.W 21g
Battery     Exclude

Part List
Grove – 2-Coil Latching Relay     1
