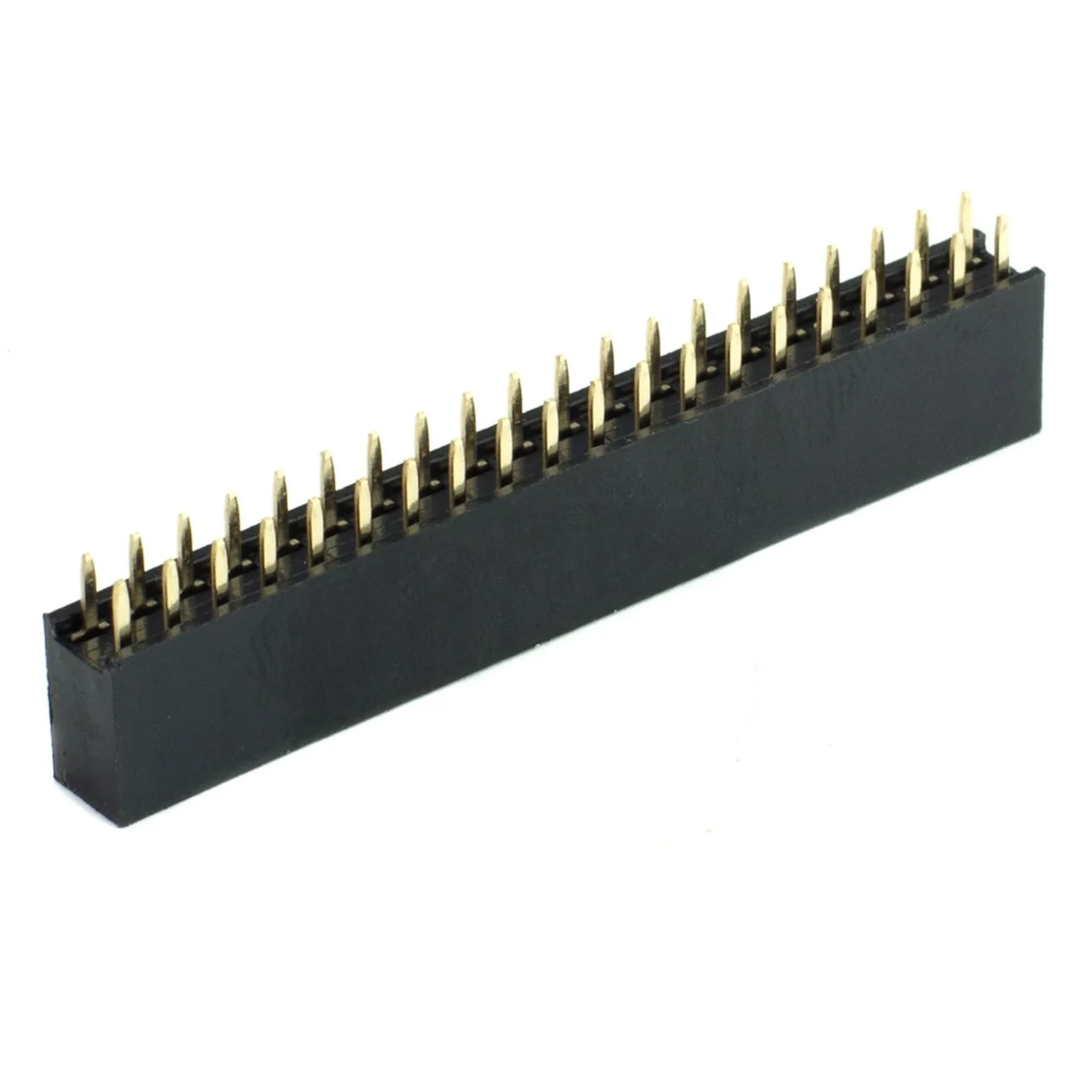

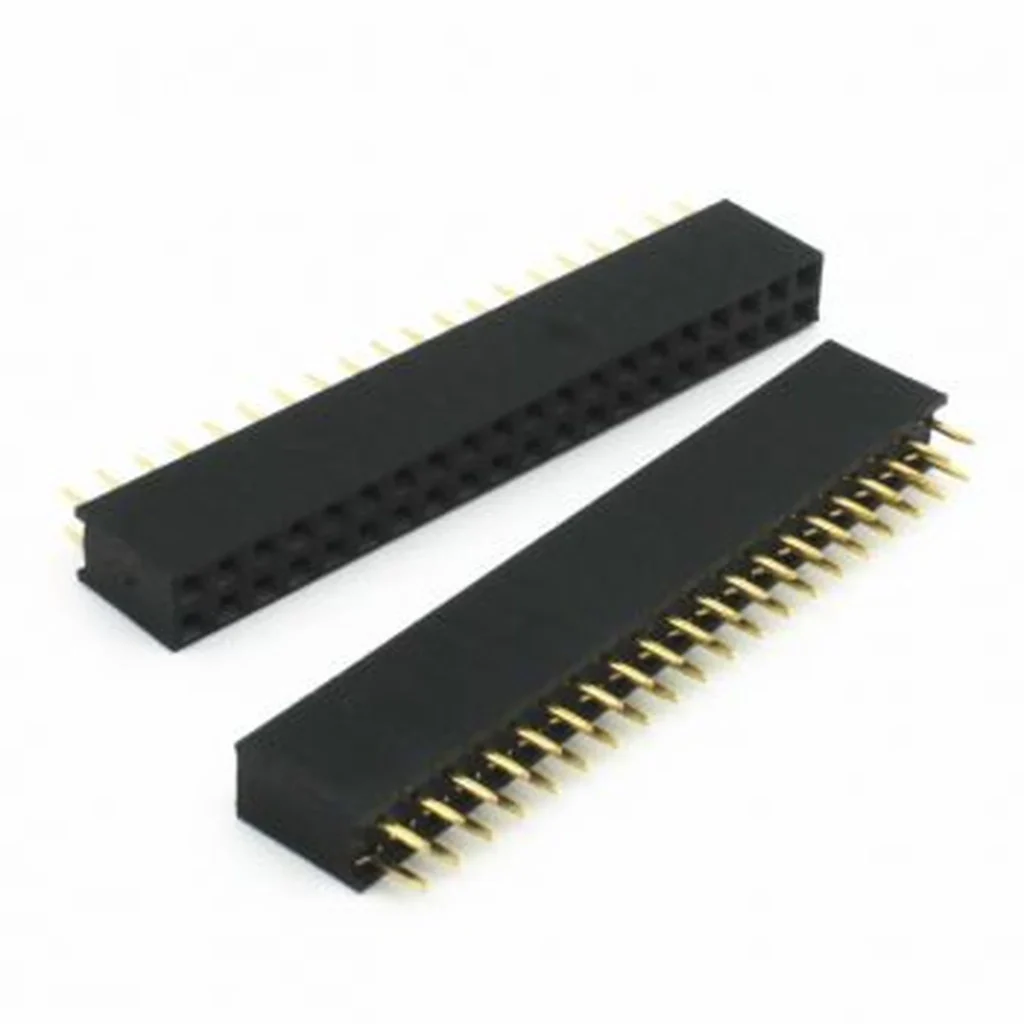

GPIO Header for Raspberry Pi A+/B+/Pi 2/Pi 3 – 2×20 Female Header

Connect your own PCB to a Raspberry Pi with this normal-height female header.  The female header part is about 8.5mm tall, good for small HATs that do not to clear the USB/Ethernet jacks. This header has 3mm of pins, compared with our stacking version which is the same base height but has 10mm header pins instead. With 3mm you don’t have to cut the really long pins, so its ideal for basic Pi HAT design

You’ll get one header per order.

Note: The Raspberry Pi Model A+, Raspberry Pi 2 and Raspberry Pi 3 are also compatible with this product!

TECHNICAL DETAILS

Dimensions: 5mm x 51mm x 12mm / 0.2″ x 2″ x 0.5″
Pins: 3mm
Pin Spacing: 2.5mm / 0.1″
Pin Thickness: 0.6mm / 0.2″
Weight: 3.56g
