Product Weight: 0.0500KG

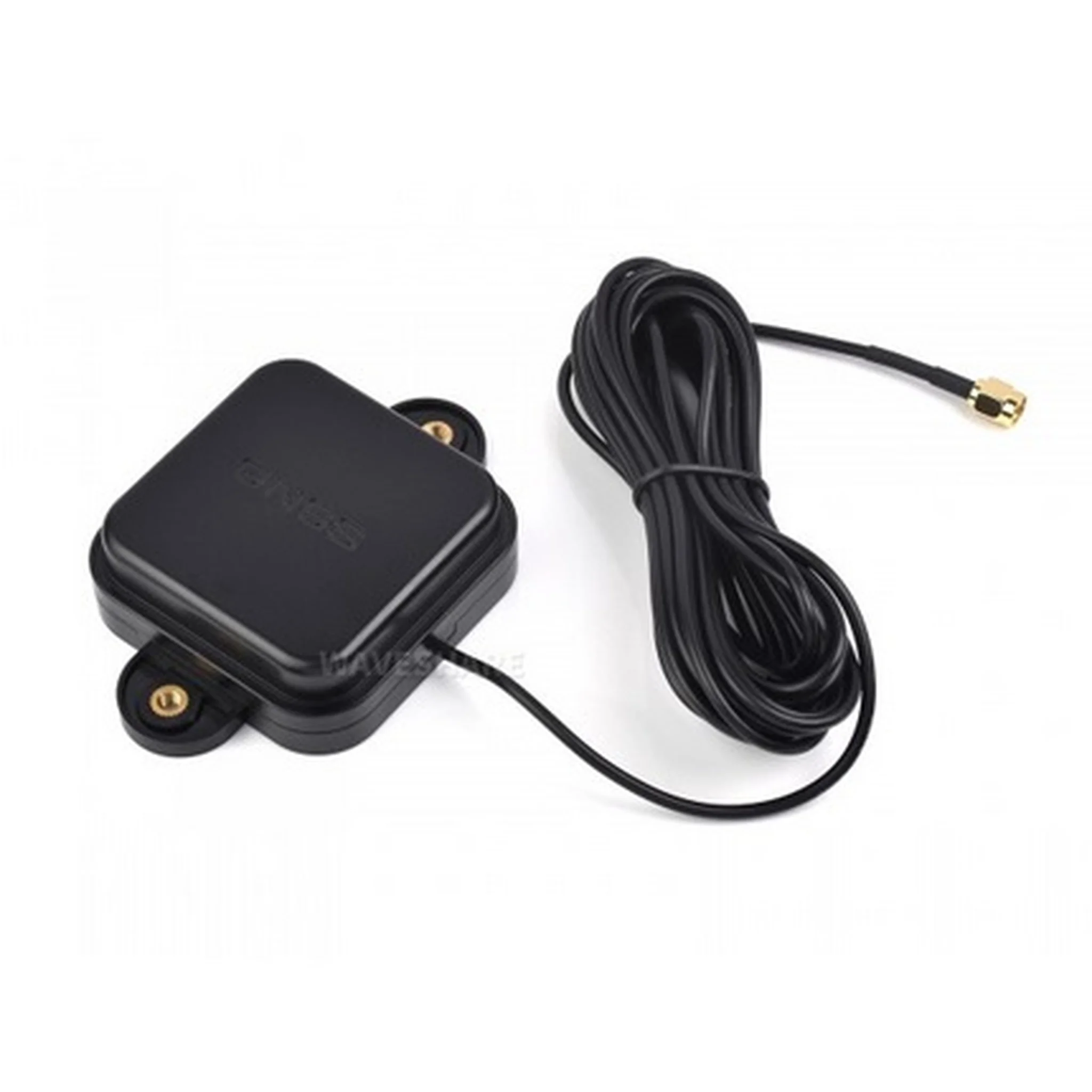

GNSS L1+L2+L5 Multi-GNSS & Multi-Frequency Active Antenna, SMA-J Connector, Supports Multi-GNSS Positioning Systems
GNSS L1+L2+L5 Multi-GNSS & Multi-Frequency Active Antenna, SMA-J Connector, Supports Multi-GNSS Positioning Systems, Sunproof and IP67 Waterproof, High Temperature Tolerance
GNSS L1+L2+L5
Multi-GNSS & Multi-Frequency Active Antenna
Sunproof | High Temperature Tolerance | IP67 Waterproof
Supports Multiple GNSS such as BD, GPS, GLONASS, Galileo, etc.
| Frequency range | BDS B1/B2/B3 GPS L1/L2/L5 GLONASS G1/G2/G3 GALILEO E1/E2/E5a/E5b/E6 |
phase center error | ±2mm |
|---|---|---|---|
| LNA Gain | 40±2dB | Polarisation | Right-Hand Circular Polarization |
| Gain | 4dBi | connector | SMA-J |
| VSWR | ≤2.0 | Antenna size | 108×76×27mm |
| Output impedance | 50Ω | Cable | RG174 |
| Working current | ≤45mA | Cable length | 5m |
| Working voltage | DC 3.0~18.0V | working temperature | -40~70˚C |
| Axial Ratio | ≤3.0dB | Storage temperature | -55~85˚C |
| Noise figure | ≤1.8dB | Mounting | Magnetic base |
* for reference only, the Raspberry Pi board and GPS HAT are NOT included
Note: supports mass customization for cable length and antenna connector
