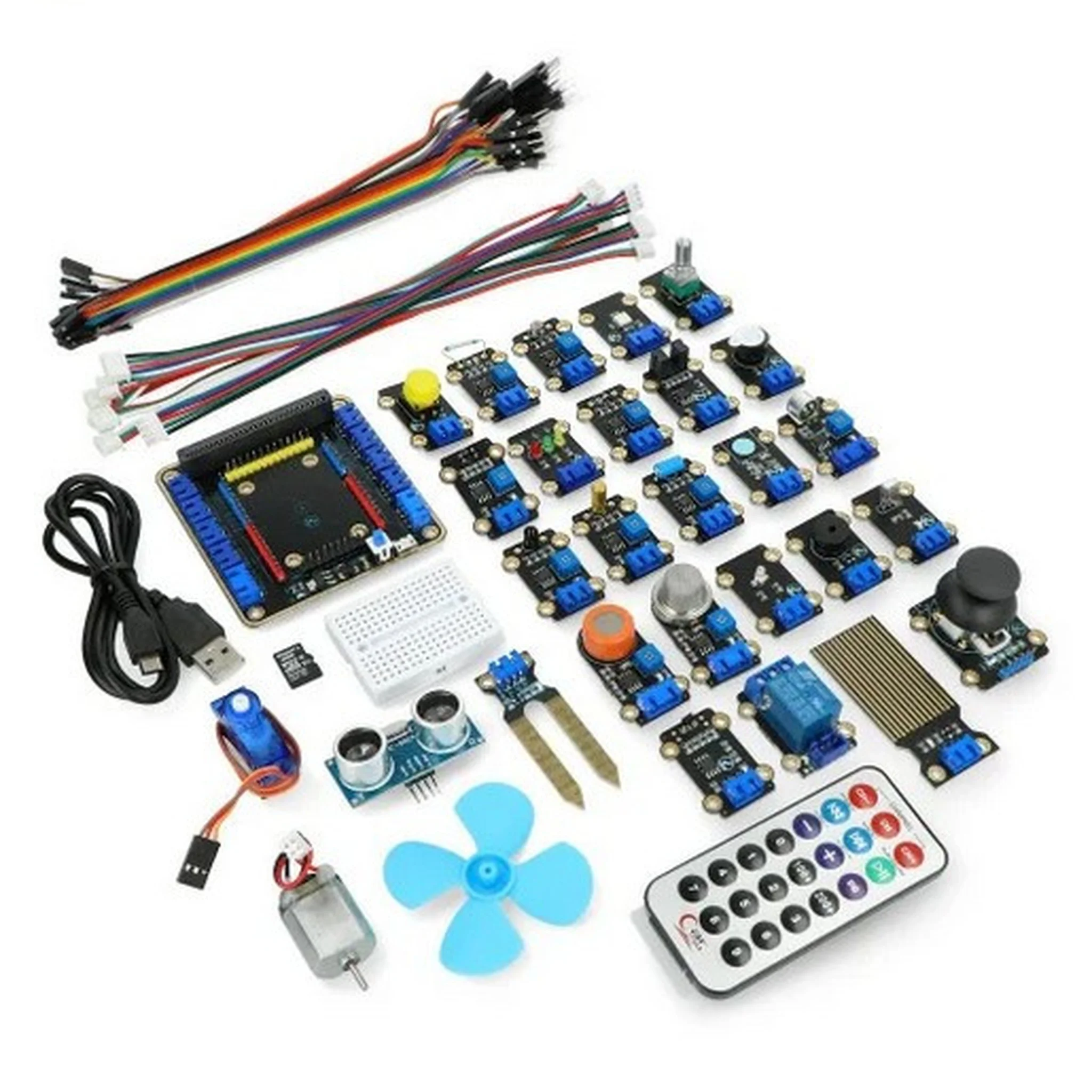

Getting started learning kit for Micro: bit – 36 parts

 A BBC micro:bit starter kit consisting of 36 parts. The kit includes, among other things, an expansion board for the minicomputer’s male pin connectors and 3-pin and 4-pin connectors, as well as various types of sensors like distance, smoke, temperature and humidity sensors, actuator modules, cables, contact board and more.

Micro:bit module is not included in the set

 The kit includes

1        A micro:bit expansion board, which leads its connectors to goldpin and 3-pin or 4-pin sockets.
2        Contact plate- 170 fields. Allows to create prototypes without soldering.
3        Relay module. Allows control ofactuators by cutting or supplying power. For proper operation it requires a 5 V power supply and a digital control signal supply.
4        A module with a passive buzzer. Enables the creation of sound signals after a constant voltage signal is given. Powered by 5V.
5        Push button module. Tact Swich button with yellow, round cap.
6        A module with three LEDs. Three LEDs in yellow, green and red can emit a light signal.
7        Module with optical slot sensor – transoptor.
8        Shock sensor module. Can detect changes in position.
9        Module with active buzzer.The moduleemits a steady tone when the high state is given. When using the PWM, it can generate different sounds and effects. Powered by 5 V.
10      Sound sensor module. The sensor is equipped with an electret microphone to detect sound, such as clapping.
11      Reflective sensor module. Allows you to detect lines or distinguish edges.
12      A module with a photoresistor. The photoresistor allows to determine the level of light intensity by changing the resistance.
13      The flame detector detects a firewhose sensitivity level can be set using the built-in potentiometer.
14      The alcohol sensor. Used to detect the alcohol concentration in the air.
15      Module with two-colour LED. Board with integrated red and green light emitting diode.
16      Module with tilt sensor. Can detect a change in position.
17      A module with a potentiometer. Can be used to limit the current to set the brightness of the LED.
18      Smoke detector. It detects smoke in the air.
19      Module with reed switch. Can be used as a door opening / closing sensor.
20      Hall sensor module. Enables magnetic field detection.
21      Module with RGB SMD LED. The diode can emit different types of colors.
22      Module with IR receiver. The IR remote control is also included.
23      Touch button module.
24      Thermistor plate. The module enables temperature reading by changing the resistance of the thermistor.
25      Ultrasonic sensor HC-SR04. Enables measuring distancesfrom 2 cm to 200 cm.
26      A module with a joystick. Amodule equipped with a joystick similar to analog devices used e.g. in game controllers.
27      Water level sensor. An analogue water level sensor that allows you to determine the water level by changing the resistance.
28      Soil moisture sensor. A sensor that determines the soil moisture by changing the resistance.
29      Fan kit. Fan kit consisting of a small DC motor and a blue propeller.
30      Mini SG90 servo. Small SG90 9 g servo.
31      IR pilot. IR remote control HS-021, the IR receiver is also included.
32      A set of wires: 10 male to male, 10 female to female and 10 female to male.
33      Cable set with 4-pin and 3-pin plug. Includes 2 4-pin cables with 20 cm length and 5 3-pin cables with 20 cm length.
34      Micro USB cable. Used to connect the cap with a PC.
35      Magnet with 10 mm diameter.
36      Plastic container for storing the contents of the set.
