EDU:BIT Training & Project Kit for micro:bit (without micro:bit)

This beginner-friendly micro:bit kit is specially designed to encourage kids to explore STEAM and learn coding.

 Note  This kit DOES NOT include micro:bit board. Full kit with micro:bit board is available here.

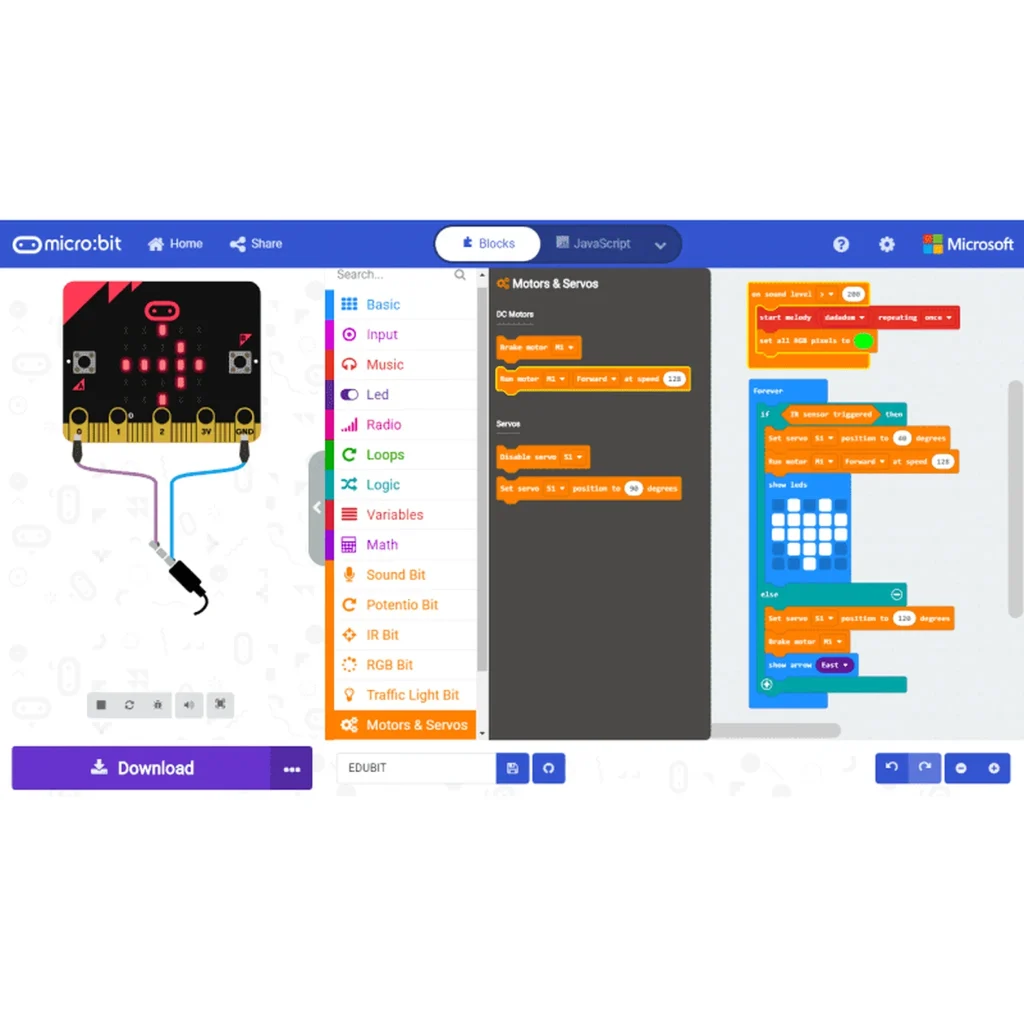

 You can easily program EDU:BIT using open-sourced Microsoft MakeCode Editor. Just add EDU:BIT MakeCode Extension and you’re good to go. If you’re a beginner, you can start with the block programming mode; simply drag, drop and snap the coding blocks together. For more advanced users, you can easily switch into JavaScript or Python mode on MakeCode Editor for text-based programming.

Παρακάτω θα βρείτε μερικά βίντεο με τις δυνατότητες μάθησης από το συγκεκριμένο προιον

https://cdn.cytron.io/EDUBIT/EDUBIT-intro-v3.mp4

https://cdn.cytron.io/EDUBIT/EDUBIT-MakeCode-demo.mp4

https://cdn.cytron.io/EDUBIT/EDUBIT-booklet-flip-v2.mp4

https://cdn.cytron.io/EDUBIT/EDUBIT-no-more-messy-wires-480p.mp4

https://cdn.cytron.io/EDUBIT/EDUBIT-music-servo-motor.mp4

 New to coding? Don’t worry. This kit comes with a booklet covering 10+1 hands-on coding lessons, which have been creatively structured to introduce programming basics in a fun and engaging manner. Each chapter features a classic childhood game such as Rock Paper Scissors, Snakes and Ladders, Twister, and Simon Says. Follow the step-by-step guide to build the games and then have fun playing with your friends! *Game accessories are provided in this kit.

 At the end of each chapter, there is a challenge which requires you to apply what you’ve learned to build a useful application for your classroom. Give it a try and if you’re stuck, we’re always here to help you. You can go to our online Resource Hub for sample codes and extra resources.

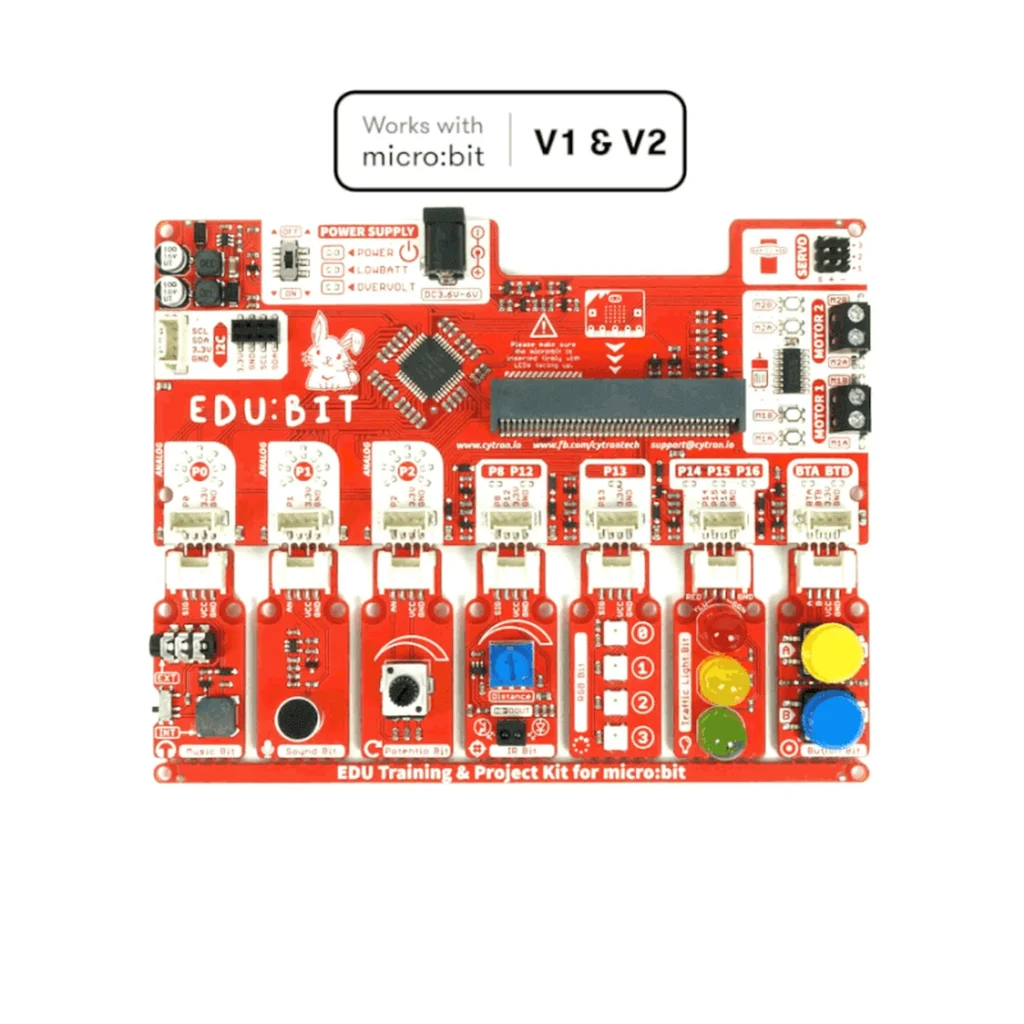

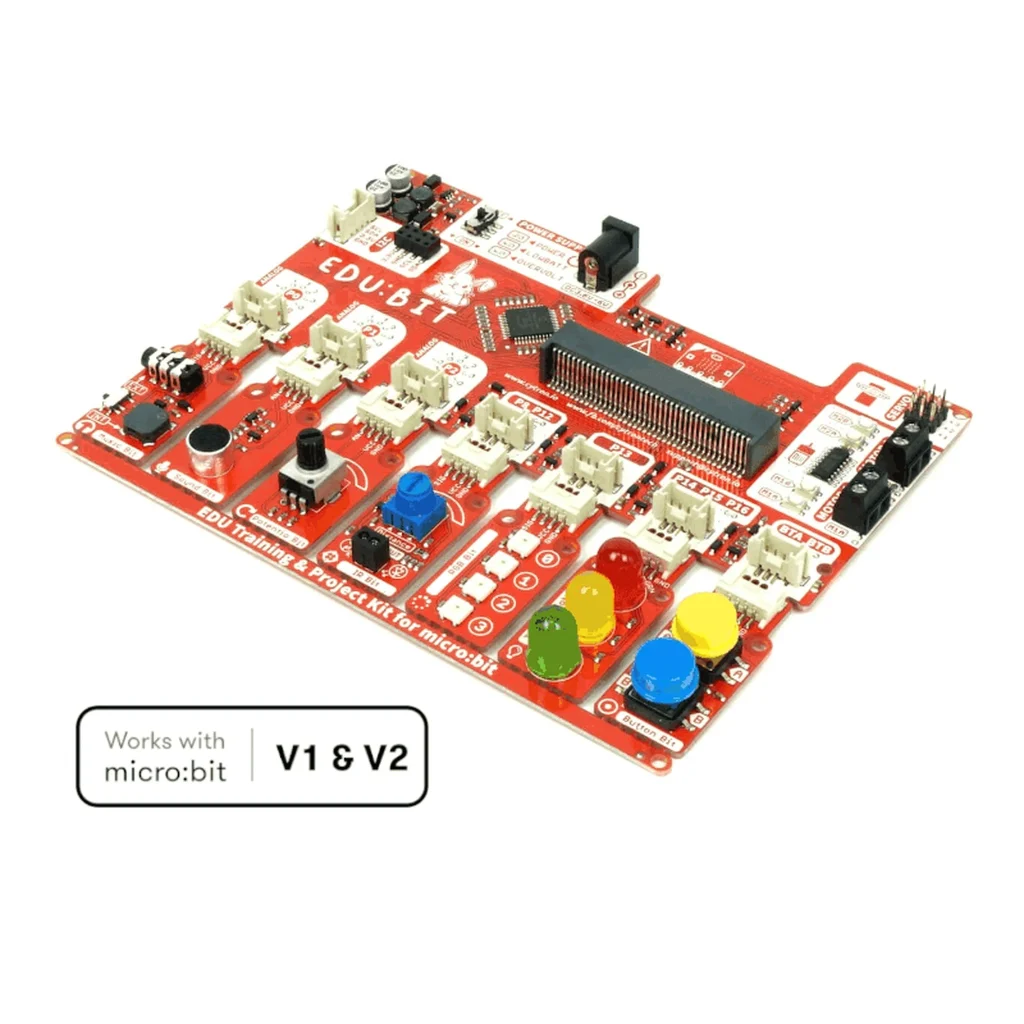

EDU:BIT Specifications:

•     1x Piezo buzzer with audio jack
•     1x Sound sensor
•     1x Potentiometer
•     1x IR sensor
•     4x Programmable RGB LEDs
•     3x Big LEDs (traffic light module – red, yellow green)
•     2x Push buttons
•     3x ports for servo motors
•     2x ports for DC motors
•     1x port for I2C Interface (3.3V)
•     Dimension:  157.50 mm x 124.50 mm x 19.00 mm

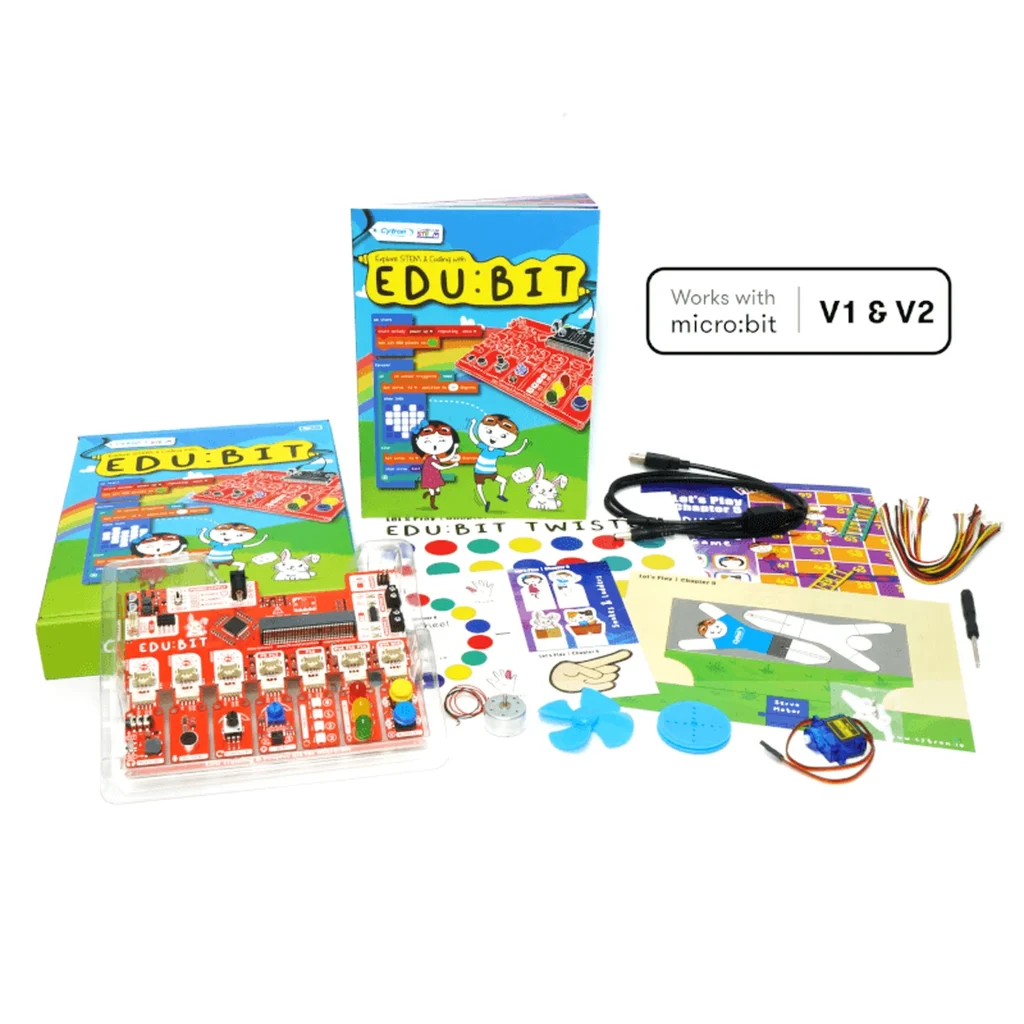

What’s included in this kit?

•     1x EDU:BIT board
•     1x BBC micro:bit board   Note  This kit DOES NOT include micro:bit board. Δεν περιέχει την πλακέτα micro:bit
•     1x Step-by-step Guide Book
•     1x USB power and data cable
•     2x Game maps
•     2x Game accessories
•     7x Grove cables
•     1x Servo motor
•     1x DC motor
•     1x Pulley wheel
•     1x Fan blade

Resources

• EDU:BIT Resource Hub (with sample codes and extra resources)
• EDU:BIT Out-of-the-box Demo Code
• micro:bit Getting Started Guide (by microbit.org)
• MakeCode Online Editor
• MakeCode Offline Editor
• EDU:BIT Schematic, PCB Layout and PIC16F1937 Co-Processor Source Code
• MicroPython library for EDU:BIT
