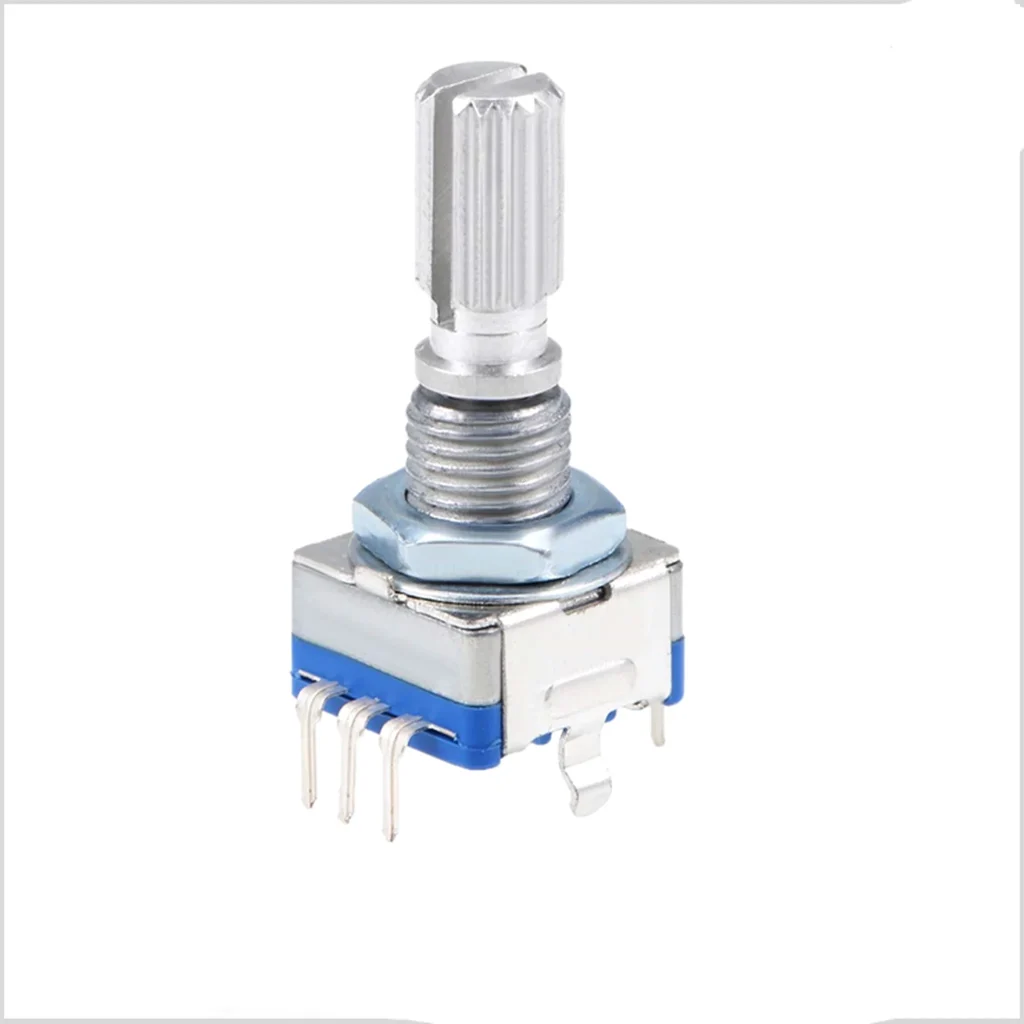

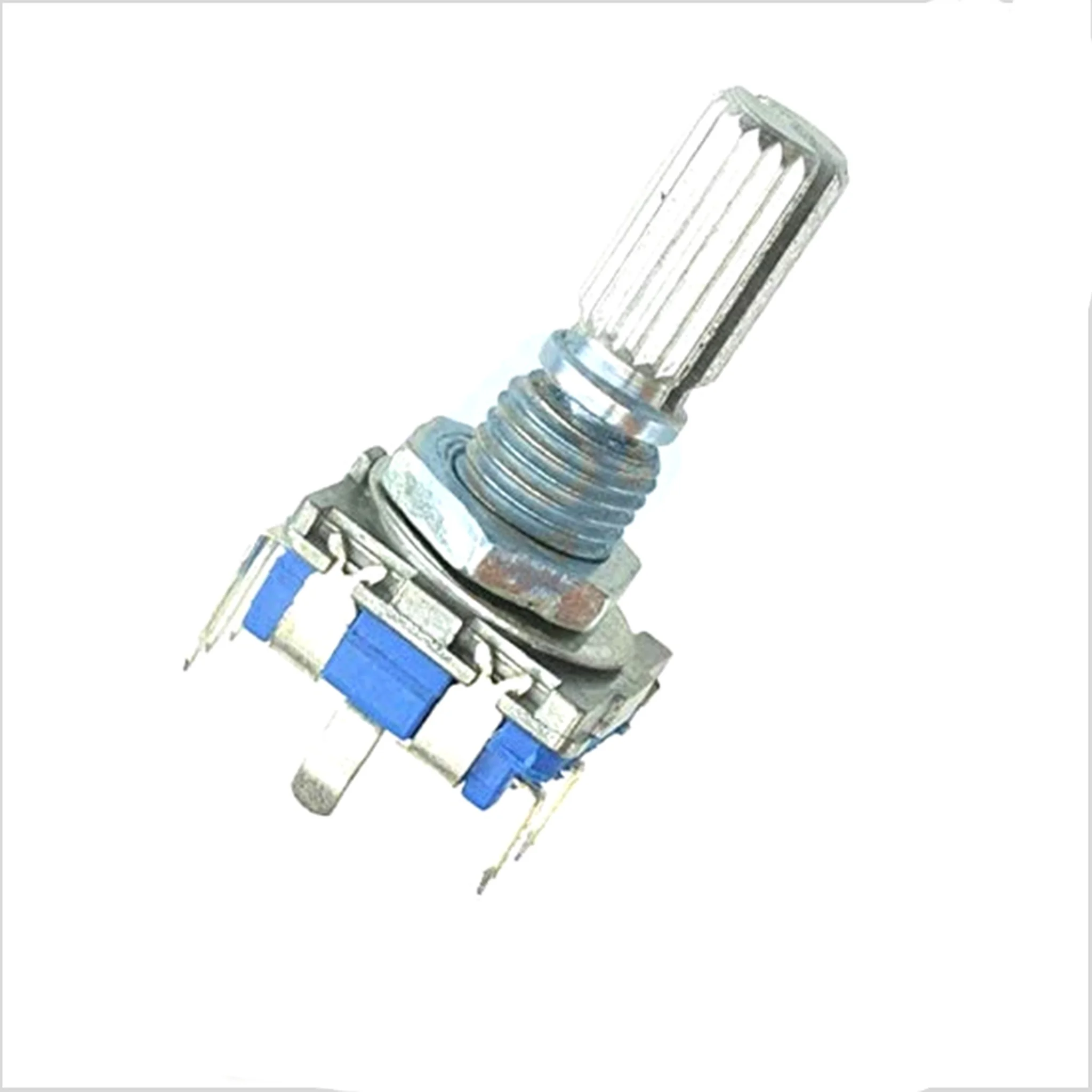

EC11 20mm Rotary Encoder Push Button Switch

Description

This rotary encoder is a rotary input device (as in knob) that provides an indication of how much the knob has been rotated AND what direction it is rotating in. It’s a great device for stepper and servo motor control. You could also use it to control devices like digital potentiometers. Compact design, long life and high reliability.

Specification:

• Model No: EC11.
• Type: Rotary Encoder with Push button switch.
• Shaft Style: Knurled.
• Pulses/Revolution: 20/360°.
• Step Angle: 18°.
• Switch: Single pole single throw (Push-on).
• Shaft Diameter: Ø6mm.
• Encoder Reading: Incremental.
• Encoder Signal: Digital Square Wave.
• Shaft Length: 20mm.
• Mounting Type: Through Hole.
• Output: 2-bit gray code
• Closed Circuit Resistance: 3 ohms maximums
• Max. Rating: 10 mA at 5 VDC
• Operating Temperature Range: 30 to 70 degrees celsius
