DIY Toggle Collision Switch

€1.00

Product Weight: 0.0050KG

Add To Wishlist Add To Compare

Product Details

SKU : 12-00J013
Stock : Available

Guaranteed Safe Checkout

Hotline Order:

Mon - Fri: 07:00 am - 05:30 pm

(+357) 22 261 615

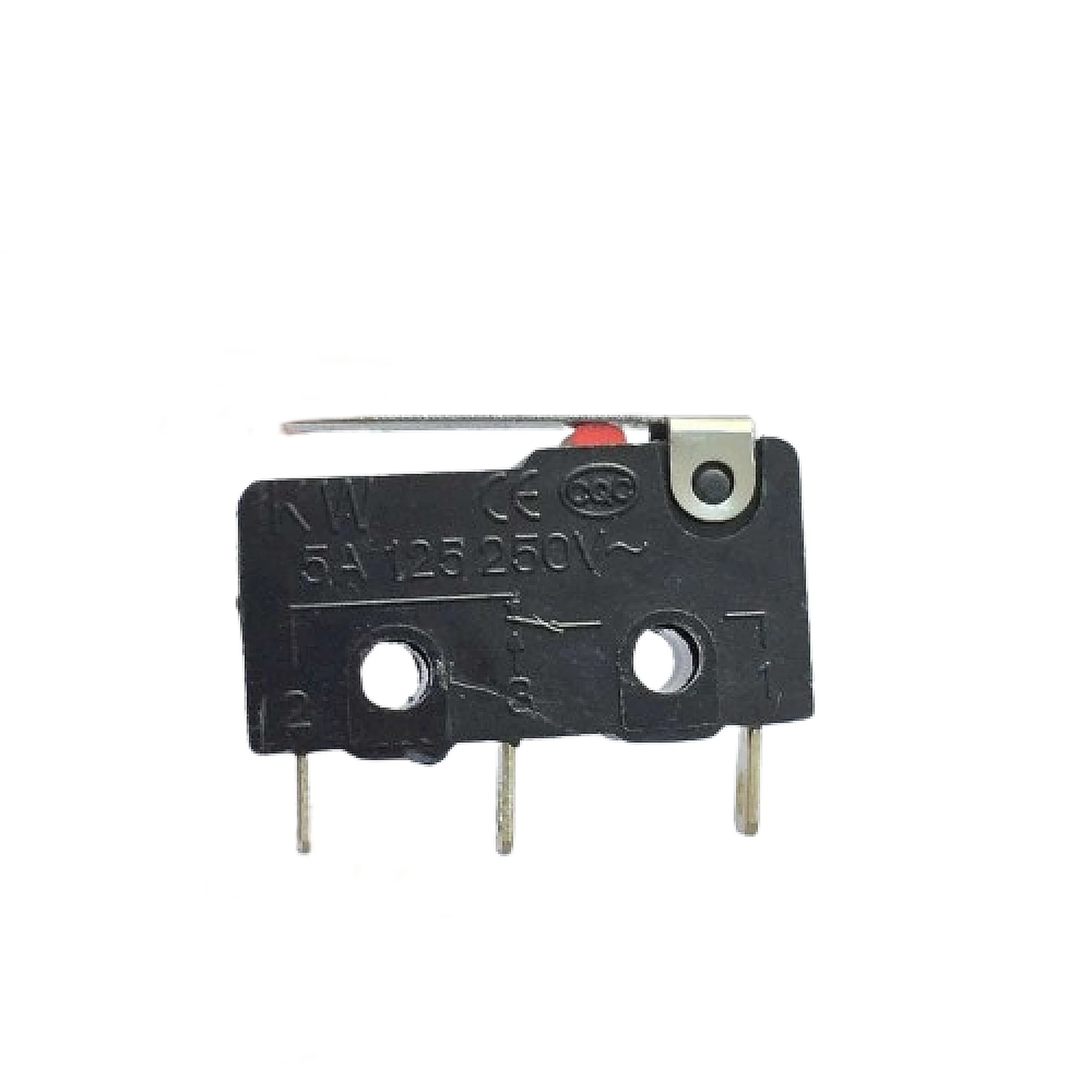

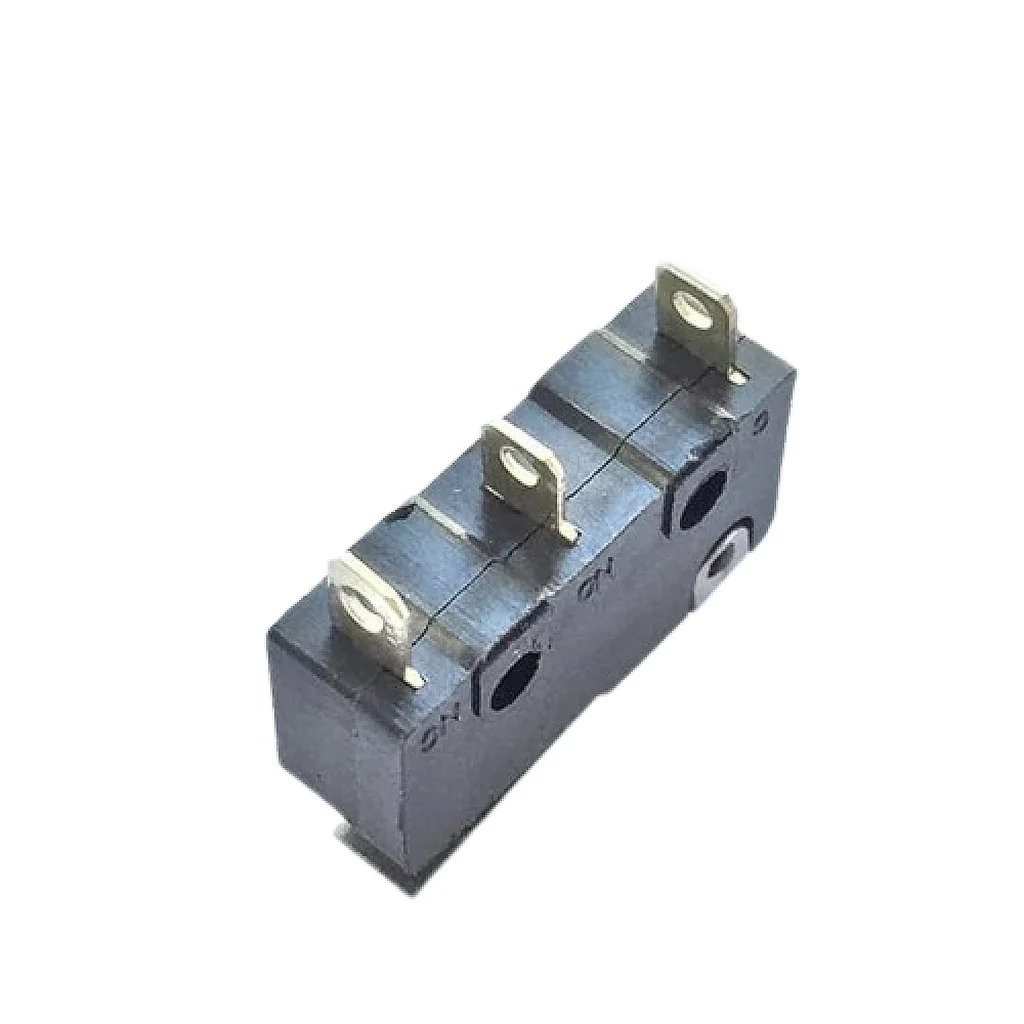

DIY Toggle Collision Switch

Περιγραφή

Collision switch is a special switch, when pressed, it will change the closed state of the circuit. The suitable voltage range is 0-24 v.

(1) The three legs are com, NC and No
(2) The a terminal is connected with the positive pole of a circuit, the B terminal is connected with the positive pole of B circuit, and the common terminal is connected with the common negative pole
(3) If circuit a is connected and circuit B is powered off when the metal handle is pressed, circuit a is powered off and circuit B is connected

Product Name: Toggle Collision Switch
Max. Current:5A
Pins Number : 3
Body Size: 20 * 11 * 6mm

DIY Toggle Collision Switch
