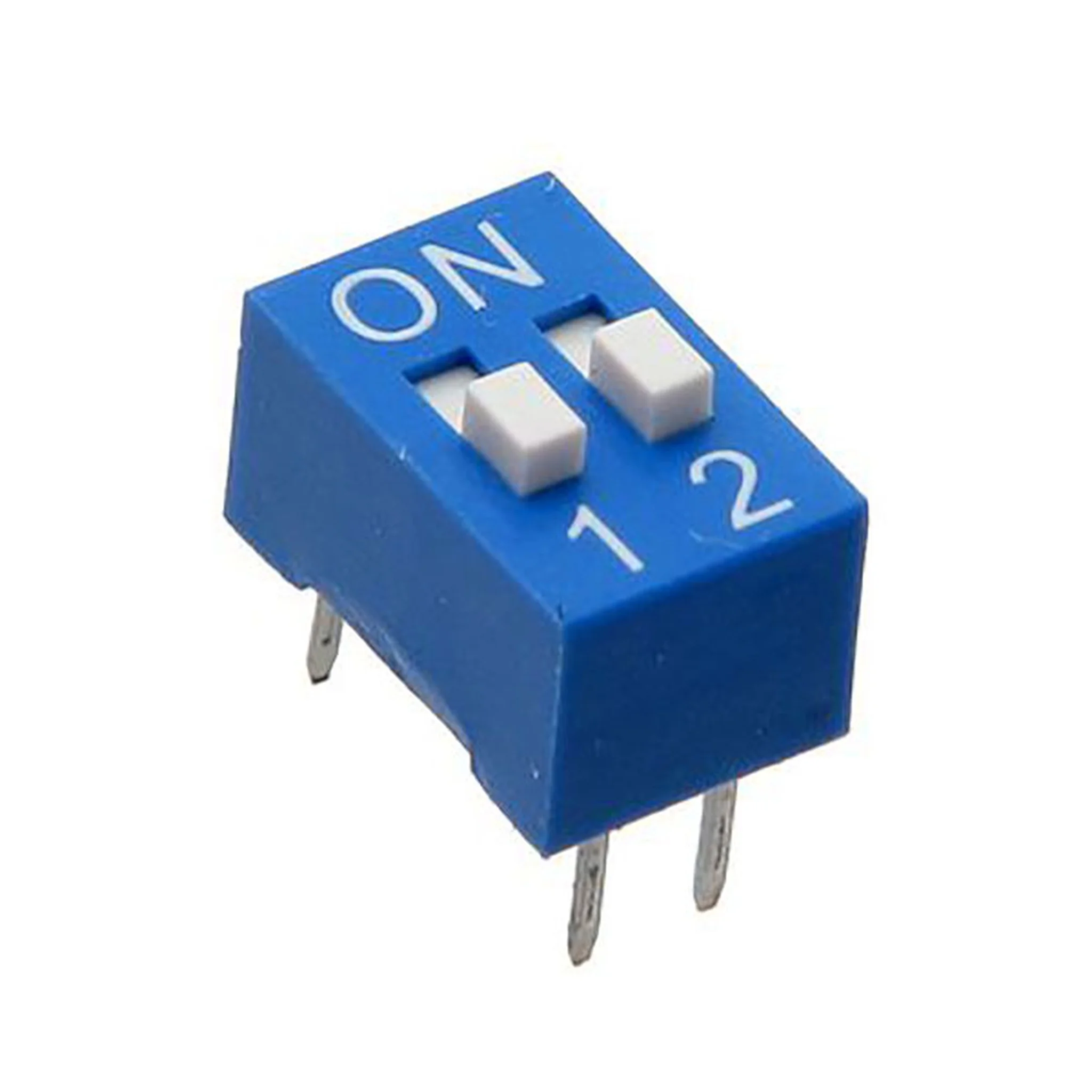

DIP Switch, 2 pole, sealed, pitch 2.54mm

■   FEATURES

– Tactile response is performed directly by larger contact pressure to ensure very stable contact.
– All plastics are UL 94V-0 grade fire retardant.
– Bottom epoxy sealed standard to ensure free of flux immersion during wave soldering.
– Contact wiping on make and break.
– Gold, Silver, or Tin plated contacts to ensure low contact resistance and long mechanical life.
– Ideal for data processing, communications, remote controls and burglar alarm system use, where manual programming is required.
– RoHS Complinat

■   APPLICATIONS

– Numerical setting for computer terminal equipment
– Price setting for vending machines
– Programming for game machines
– Programming for industrial equipment and measuring instruments

■   SPECIFICATIONS

– Contact rating
       switching: 25mA
       non-switching: 100mA
– Contact resistance
       initial: 50mΩ Max.
       after life test: 100mΩ Max.
– Insulation resistance: 1000MΩ Min. at 100VDC
– Dielectric strength: 500VDC Min. for 60 seconds
– Capacitance between adjacent switches 5pF Max.
