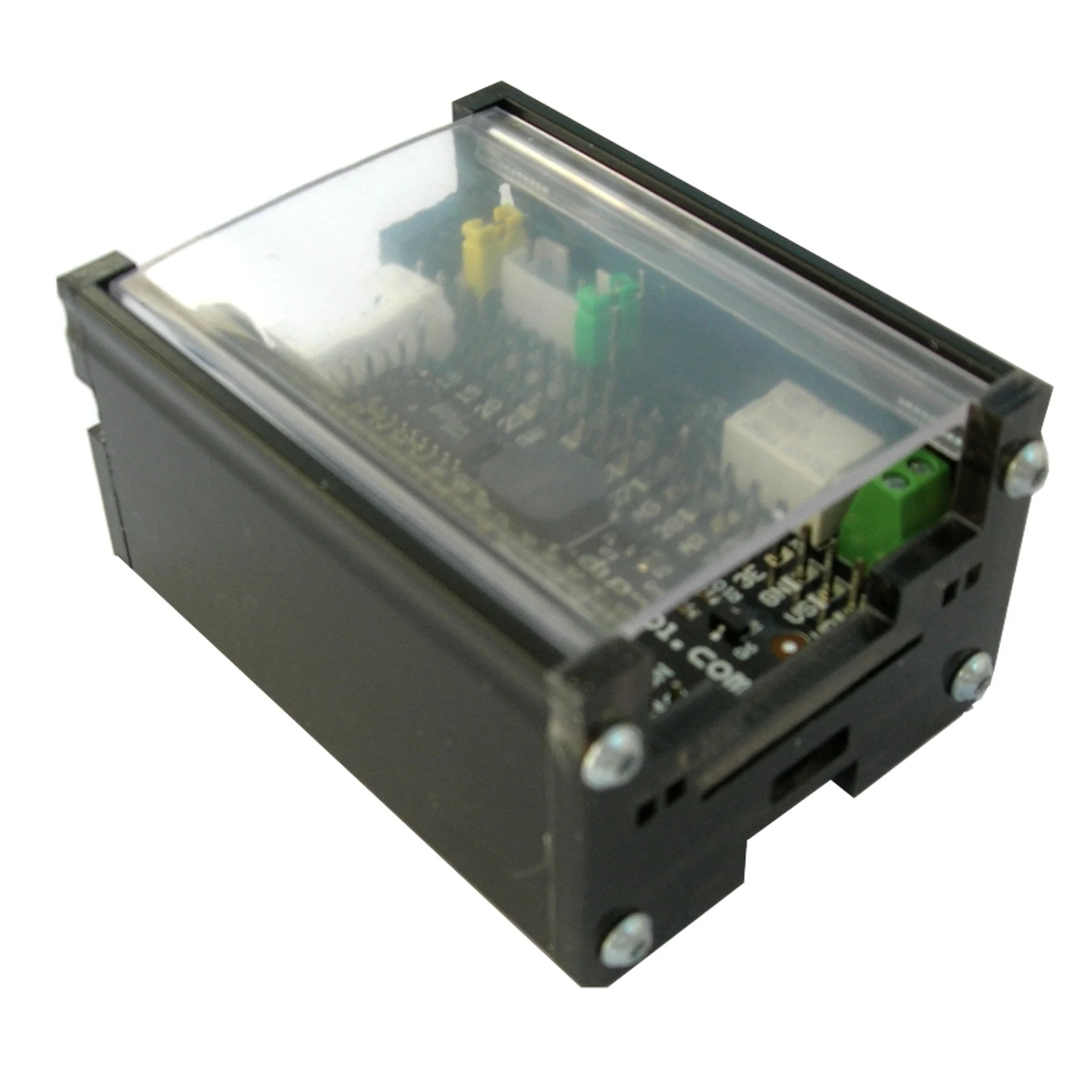

DiP-Pi Pico Universal Case Advanced

Dual in-Line Package Raspberry Pi PICO (DiP-Pi PICO) is a family of self-containing, stackable add-ons to the Raspberry Pi® Pico that decrease to the minimum user involvement for hardware development of application/idea testing based on Raspberry Pi® Pico.
Following this approach our company developed a series of Aluminum Profile based Cases that can held Raspberry Pi® Pico and one additional HAT on Top. Two different types of DiP-Pi Cases have been released. DiP-Pi Cases has been designed on that way, where no need to solder anything or solder just a few pins depending to the application.

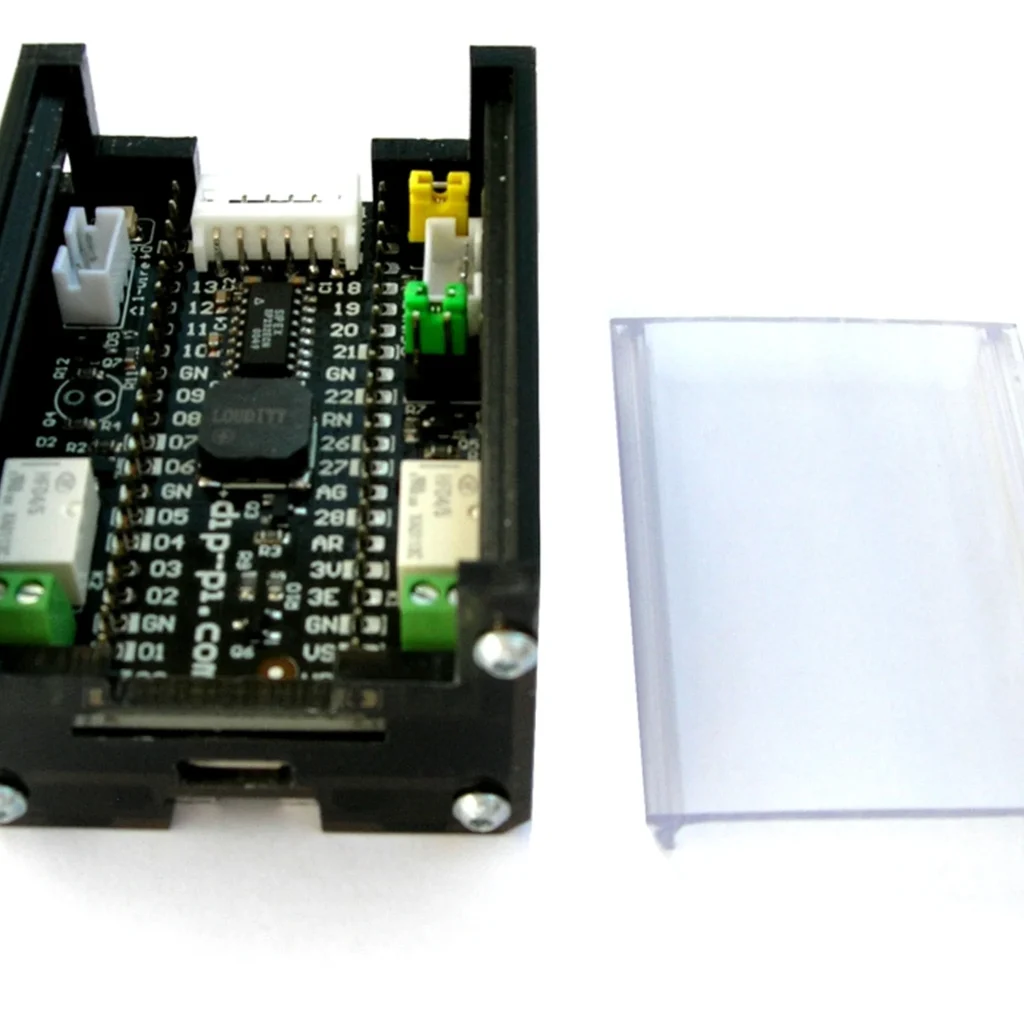

Transparent Top Cover give an opportunity to the user to easy use a display or LED indications. There is also optionally white Top Cover ideal for applications where is no need to have user view to the case/system internals.

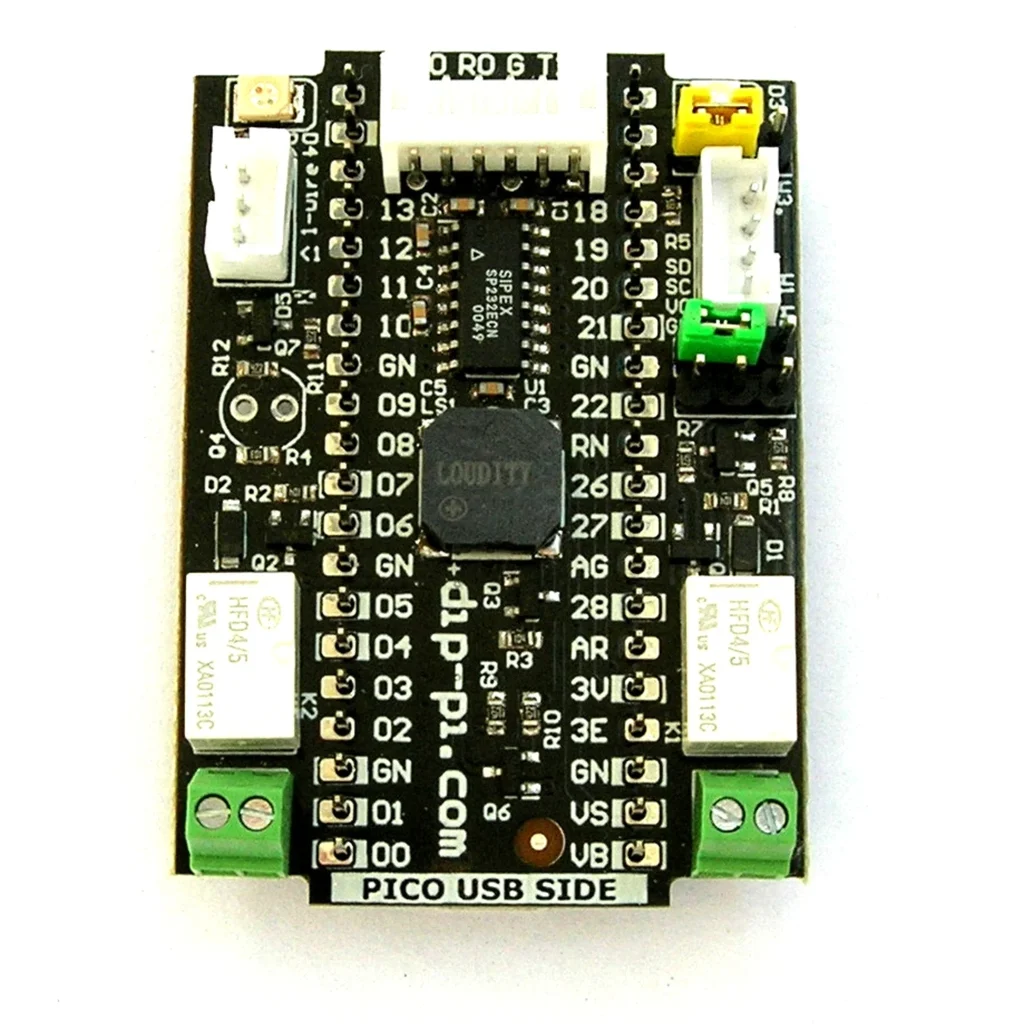

DiP-Pi Cases can be used as a stand-alone device or screwed to rails. Additional embedded functionalities are covering most of the standard applications requirements and are covering +/-12V RS232 double driver, Ambient Light Sensor Interface (Ambient Sensor is not included), 2 independent relays with appropriate Terminals Blocks, Groovy Interface (3V3 or 5V0), Groovy Interface Analog, as also 1-wire interface.

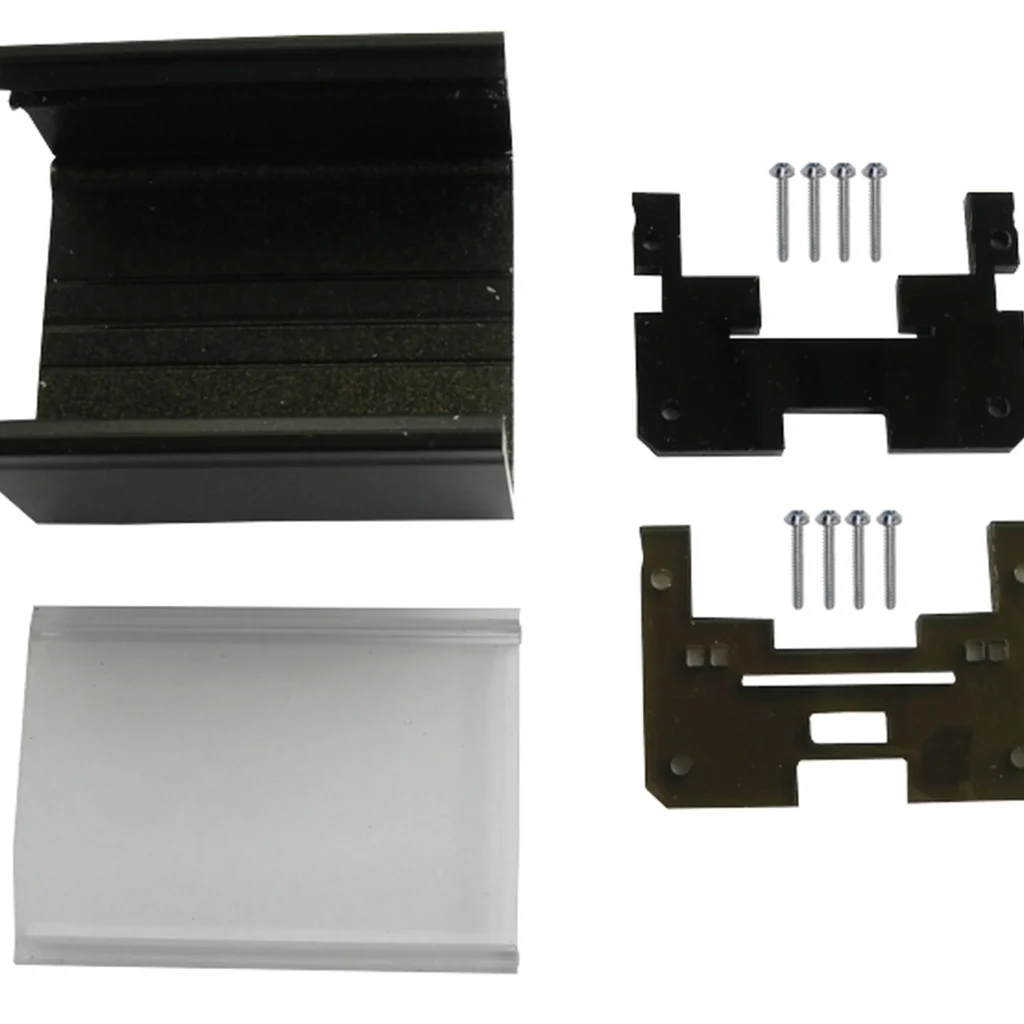

Assembly of the DiP-Pi Cases as also mounting the internals are absolutely simple and easy to be done by any even non-technical user. No soldering is required.
