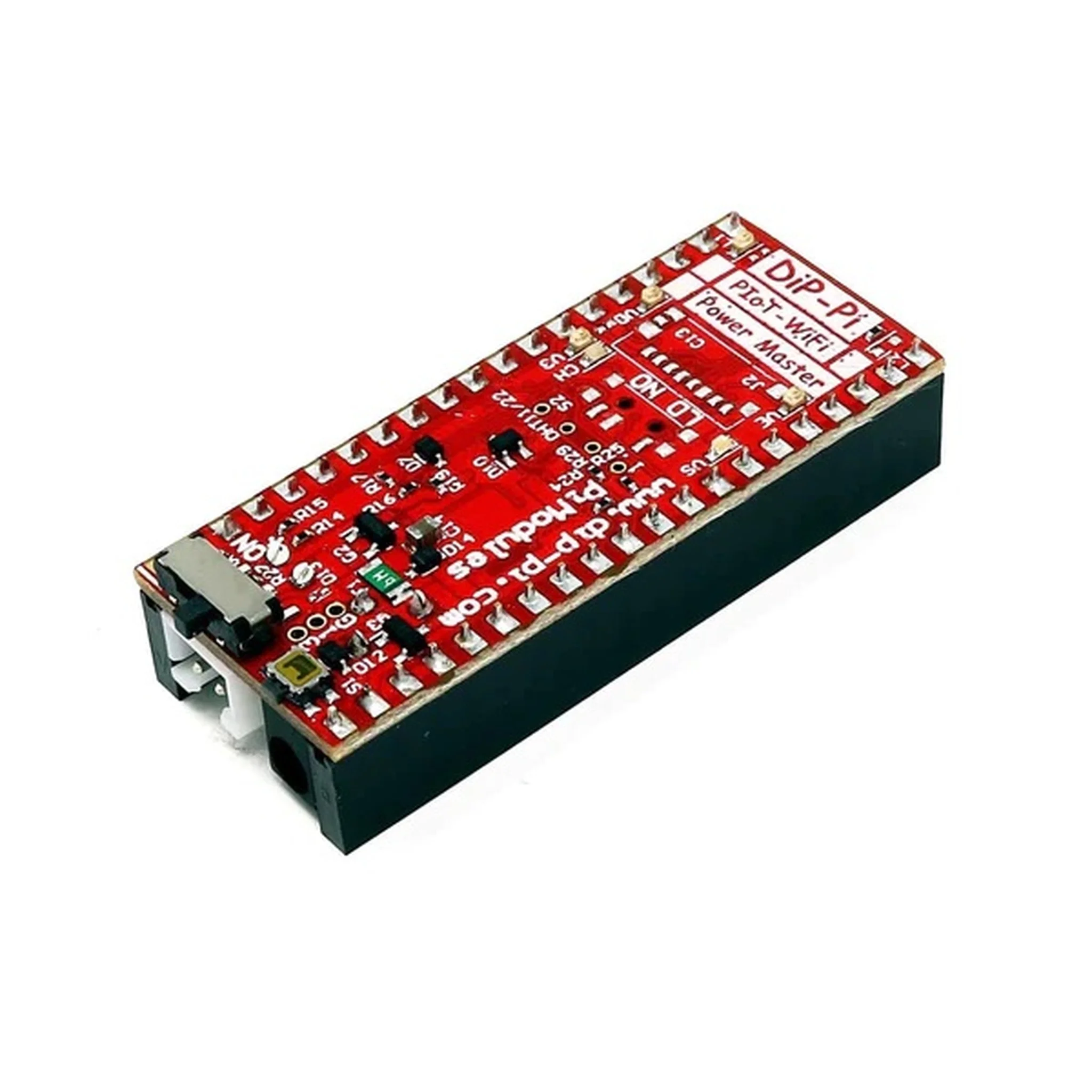

DiP-Pi PICO Power Master

Dual In-Line Package Raspberry Pi Pico

Rapid Prototyping Raspberry Pi Pico Stack-Able Boards

no cables – no solder – no lost time

Next shipment for this product is expected in the first week of May

FUNCTIONALITY FOR DiP-Pi PICO Power Master

• Independent Informative LEDs (VBUS, VSYS, VEPR, CHGR)
• Raspberry Pi PICO RESET Button
• ON/OFF Switch for USB, EPR, Battery Powering
• External Powering 6-18V DC (Cars, Solar Panels)
• External Power (6-18VDC) Level Monitoring
• Battery Level Monitoring
• Charger ON/OFF Automatic/User Control
• Inverse Polarity Protection
• PPTC Fuse Protection
• ESD Protection

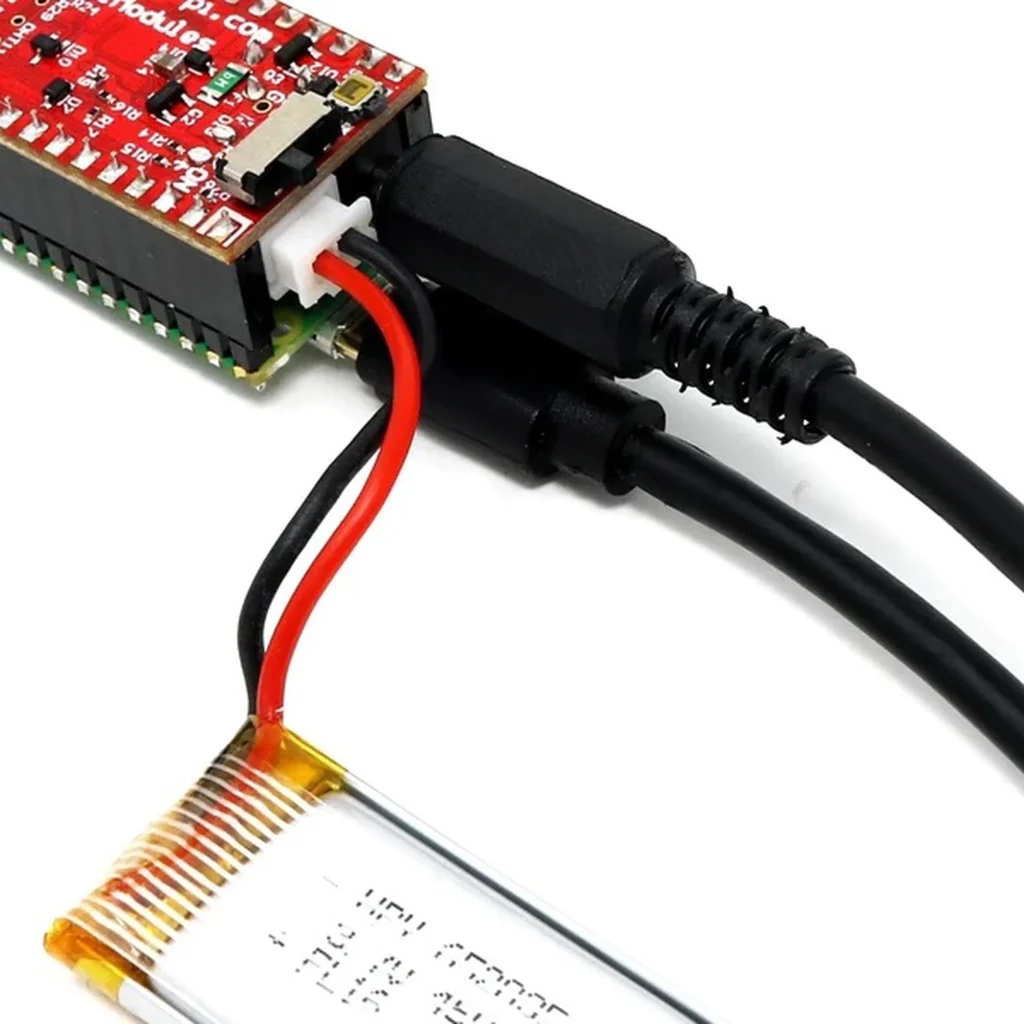

• Battery Charger (for PCB protected LiPo, Li-Ion)
• Automatic Switch from Cable Powering to Battery Powering and reverse (simple UPS)
• Can be used at the same time with USB Powering, External Powering
• 1.5A @5V Buck Converter on EPR
• WT8266 (ESP8266) WiFi Connectivity
• WT8266 Upload Switch

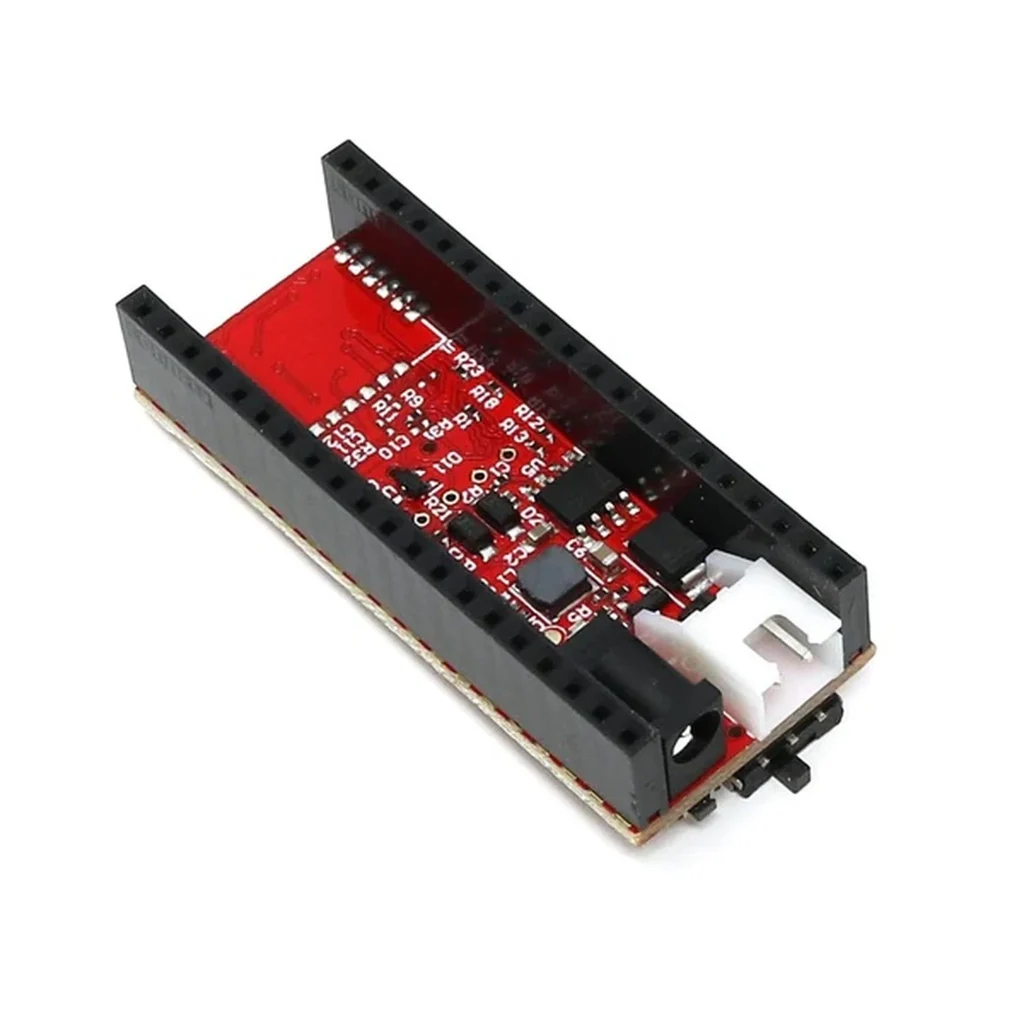

• Available connectors: Stack, Top-End, Pass-Through
