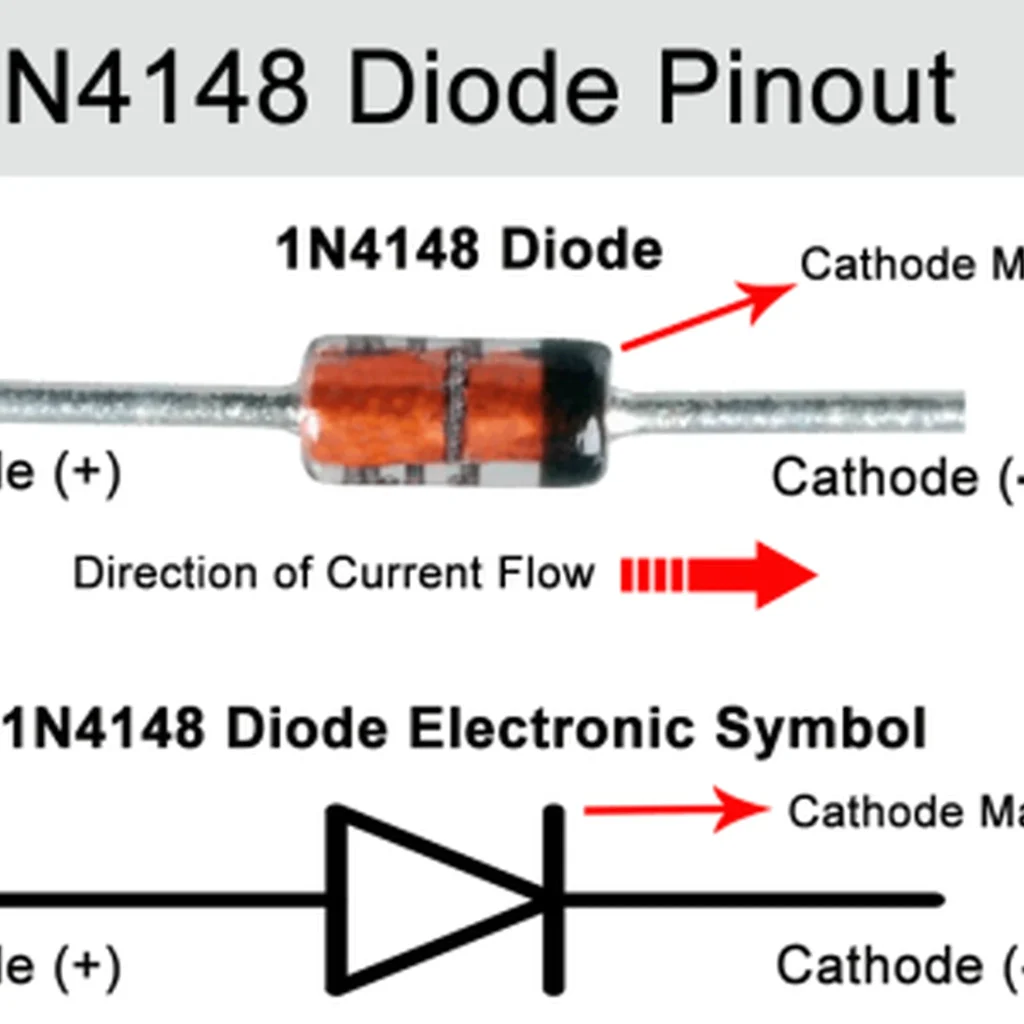

Diode – 1N4148 Small Signal Fast Switching Diode

Περιγραφή:
Common small signal fast switching diode.
Perfect for converting 5V level logic to 3.3V level compatible logic. Connect two of these diodes in series between a 5V level device and a 3.3V level device to get a voltage drop of around 1.4V, effectively converting your 5V logic level to a 3.6V logic level which is usually acceptable on 3.3V logic level devices (check the specifications of your specific device to be sure).

Περιέχει:

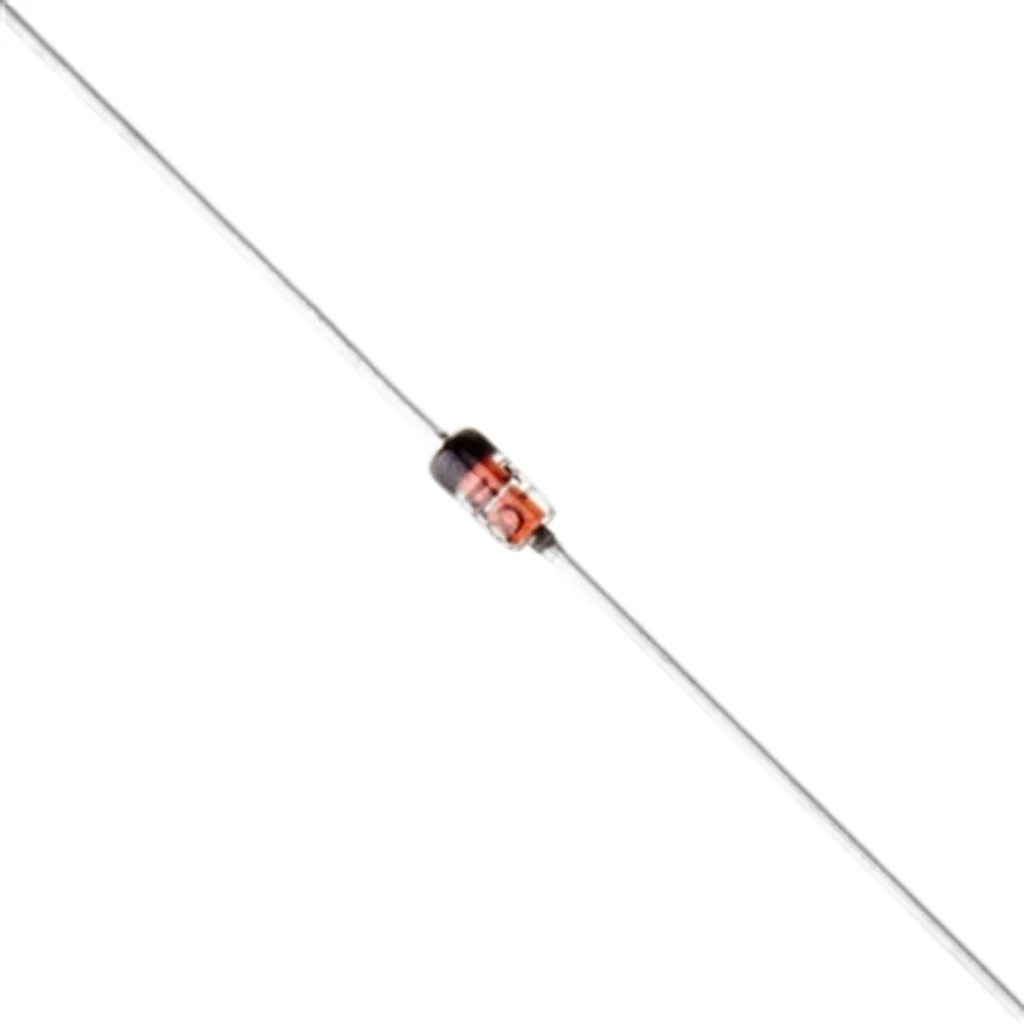

    1 τεμάχιο 1N4148 Small Signal Fast Switching Diode (DO-35)

Χαρακτηριστικά:
    Forward Voltage: 0.4 to 1.2V depending on forward current
    Reverse Breakdown Voltage: 100V
    Diode Capacitance: 4pF
    Absolute Maximum Ratings:
        Peak Forward Surge Current: 4A (1 micro second)
        Repetitive Peak Forward Current: 500mA (1 second)
        Average Forward Current: 200mA
        Repetitive Peak Reverse Voltage: 100V
        Reverse Voltage: 75V
        Power Dissipation: 500mW


Datasheet:

    1N4148.PDF
