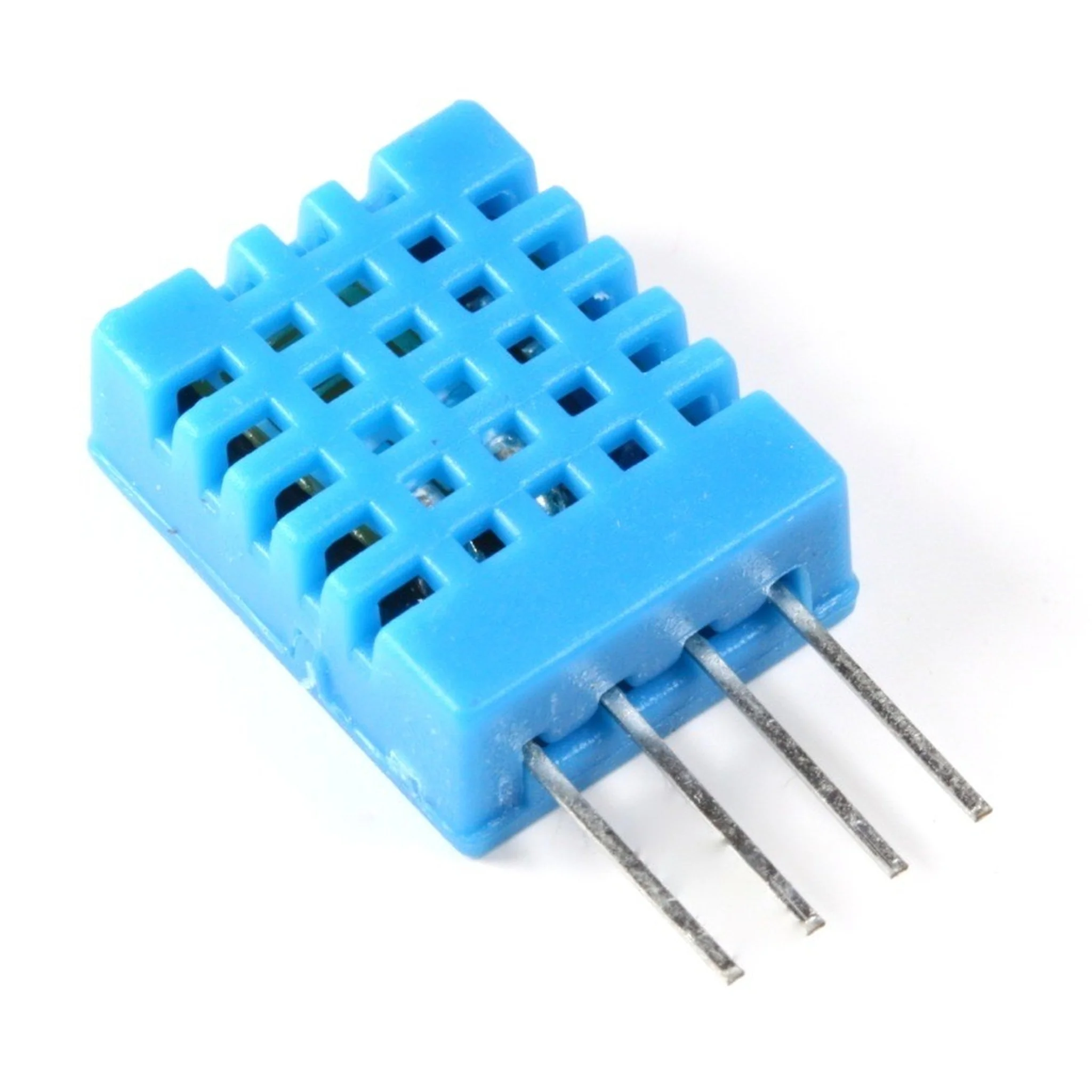

DHT11 Digital Temperature Humidity Sensor Module

Description:

• DHT series numeric humiture sensor
• Humidity measuring range: 20%-90%RH(0-50°Ctemperature compensation)
• Temperature measuring range: 0 to +50°C
• Humidity measurement accuracy: ±5.0%RH
• Temperature measurement accuracy: ±2.0°C
• Response time: <5s
• Low power consumption
• Size: about 2.3cm x 1.2cm x 0.5cm

Applications:

• HVAC Testing and inspection equipment
• Automotive
• Data logger
• Consumer goods
• Automatic control Weather station
• Home appliances
• Humidity regulator
• Medical
• Dehumidifier

DHT11 Pinout Configuration

Where to use DHT11 Sensors

The DHT11 is a commonly used Temperature and humidity sensor. The sensor comes with a dedicated NTC to measure temperature and an 8-bit microcontroller to output the values of temperature and humidity as serial data. The sensor is also factory calibrated and hence easy to interface with other microcontrollers.

The sensor can measure temperature from 0°C to 50°C and humidity from 20% to 90% with an accuracy of ±1°C and ±1%. So if you are looking to measure in this range then this sensor might be the right choice for you.

How to use DHT11 Sensor

The DHT11 Sensor is factory calibrated and outputs serial data and hence it is highly easy to set it up. The connection diagram for this sensor is shown below.

DHT11 Datasheet
