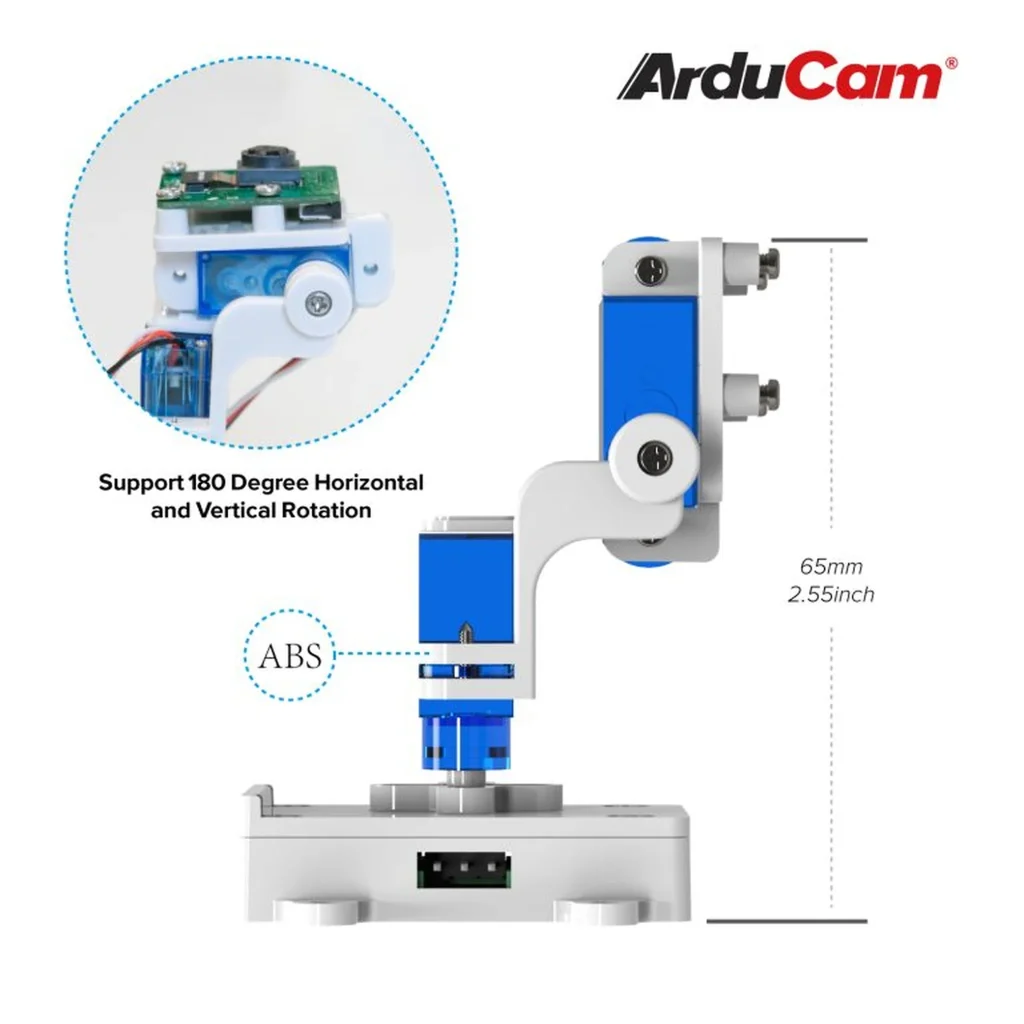

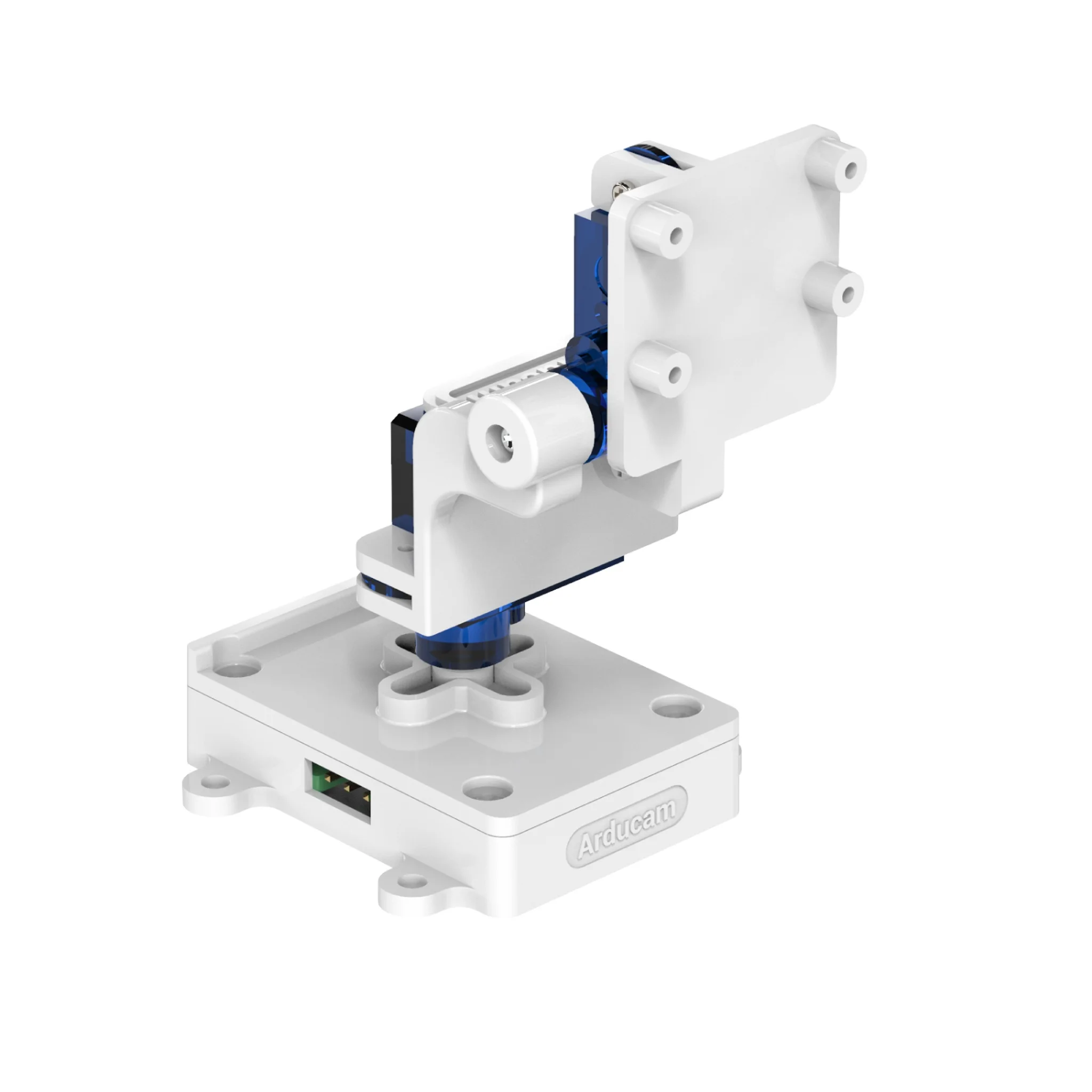

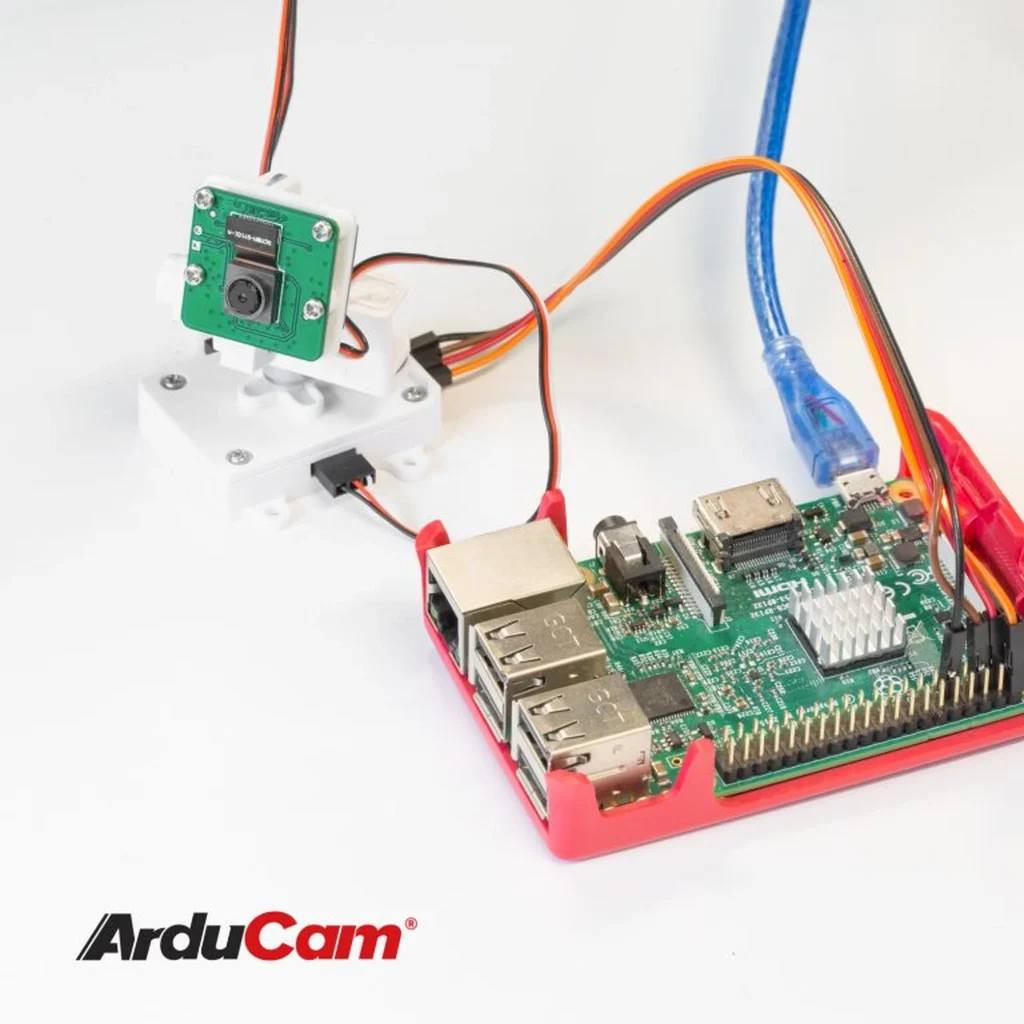

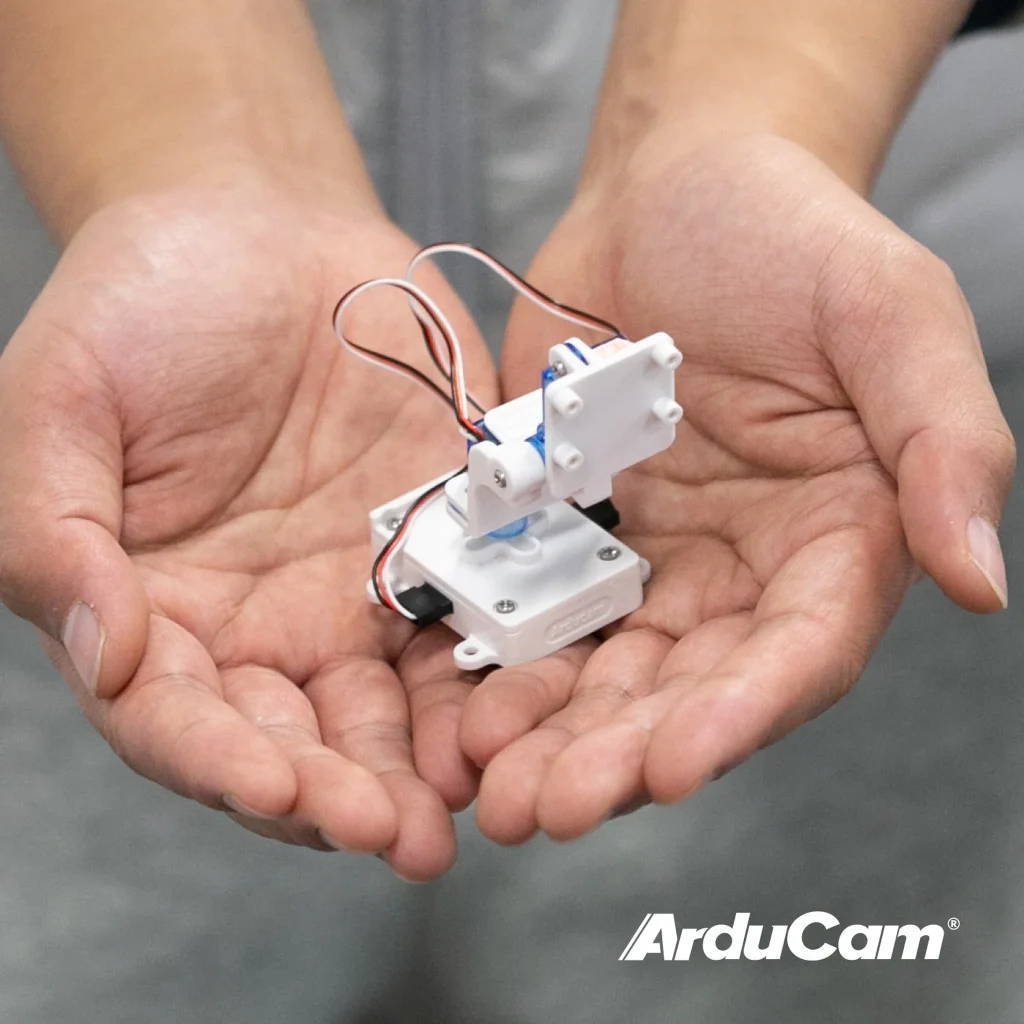

Arducam Upgraded Camera Pan Tilt Platform for Raspberry Pi, Nvidia Jetson Nano/Xavier NX

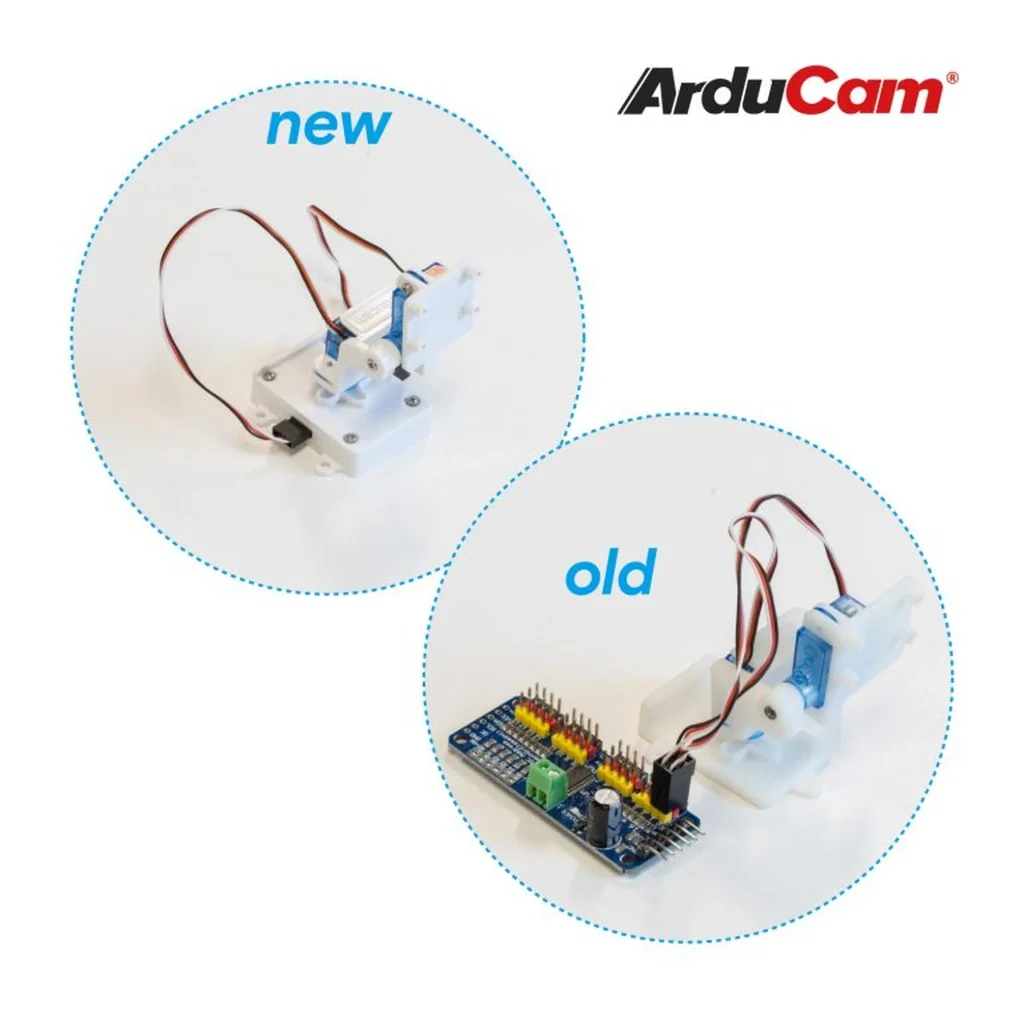

Arducam B0283 is a new member of the family, which is an upgraded version of B0227 with improved bracket quality and a mini customized control board. It can move the camera for pan and tilt directional control, and that means a single camera can be used to monitor places that should be covered by multiple ones.
Features & Specs

Digital Servo

    Torque: 0.6 kg/cm at 3.6V, 0.8 kg/cm at 4.8V
    Operating Speed: 0.13sec/60° at 3.6V, 0.09sec/60° at 4.8V
    Operating Voltage: 3.6v～4.8v
    Operating Current: ＜350mA
    Dead Band: 3 usec
    Dimension: 20mm x 8.75mm x 22mm

Customized Control Board

    PWM resolution: 12-bit
    Communication interface: I2C
    Operating voltage: 3V-5V
    Dimension: 38mm x 28mm

Package Contents

    2 x Digital servos
    1 set upgraded bracket pieces
    1 x Customized control board
    4 x Female to female jumper wires (The wire has no fixed color)
    1 x Screws pack
    1 x Manual
