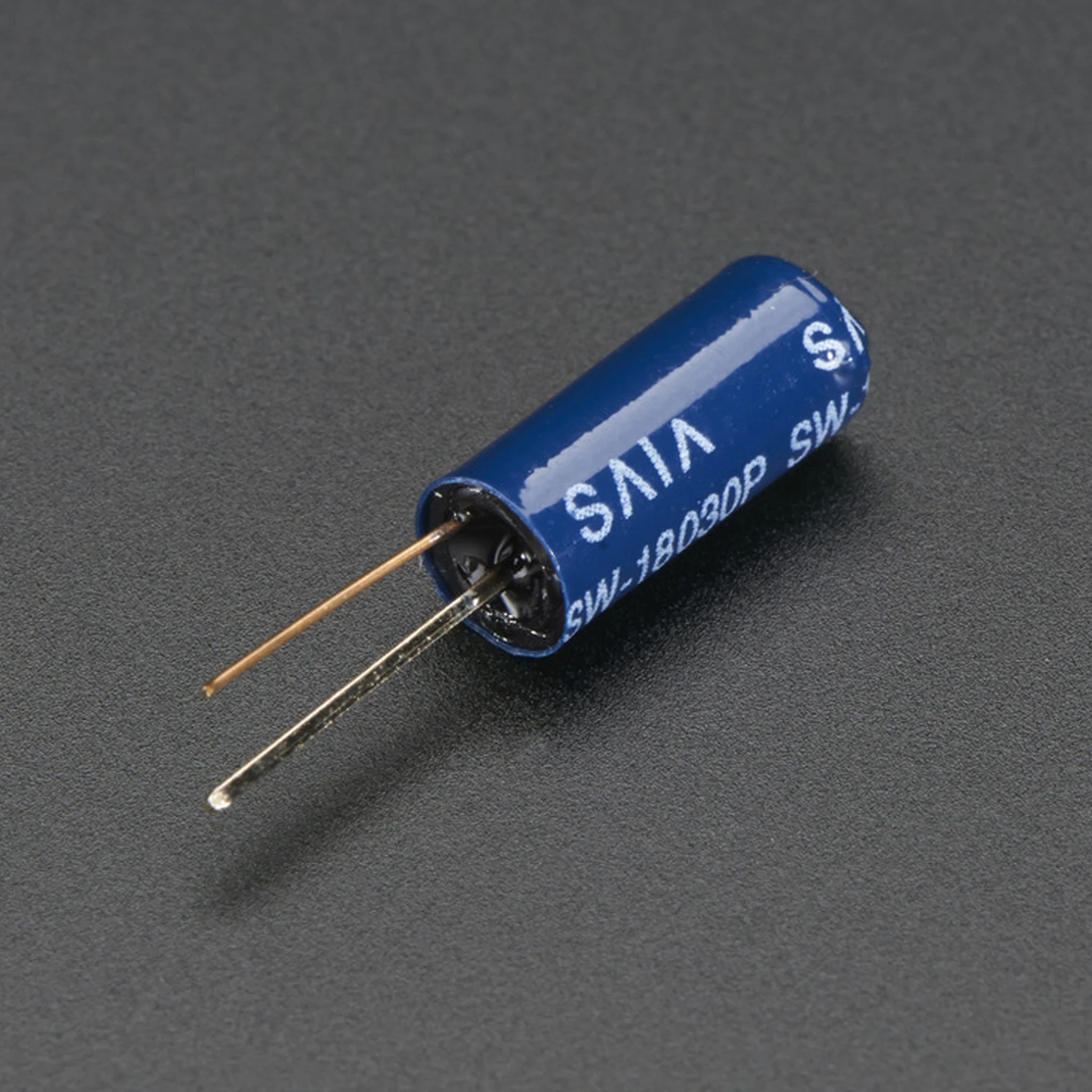

Adafruit Slow Vibration Sensor Switch (Hard to trigger)

€3.00

Product Weight: 0.3000KG

Add To Wishlist Add To Compare

Product Details

SKU : ADA-1767
Stock : Available

Guaranteed Safe Checkout

Hotline Order:

Mon - Fri: 07:00 am - 05:30 pm

(+357) 22 261 615

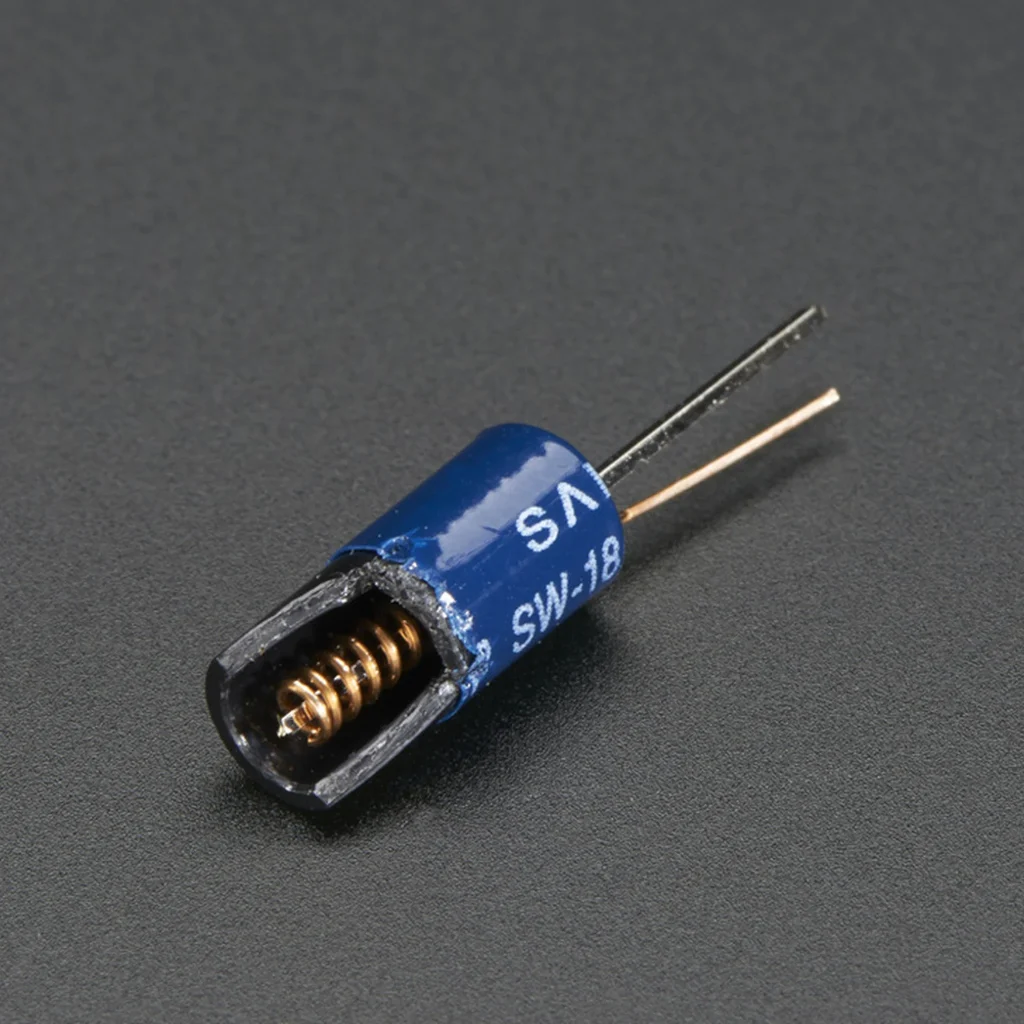

The “poor man’s” accelerometer/motion sensor! These spring-vibration switches are low sensitivity non-directional vibration induced trigger switches. Inside is a stiff spring coiled around a long metal pin. When the switch is moved, the spring touches the center pole to make contact. So, when there’s motion, the two pins will act like a closed switch. When everything is still, the switch is open. Great for basic projects and wearables!

Maximum Voltage: 12V
Contact Resistance:
Contact Time: 2 ms
Maximum Current: 20mA
Insulation Resistance: >10M ohm
Temperature Range: -40 to 80ºC
Operating lifespan: 100,000 cycles

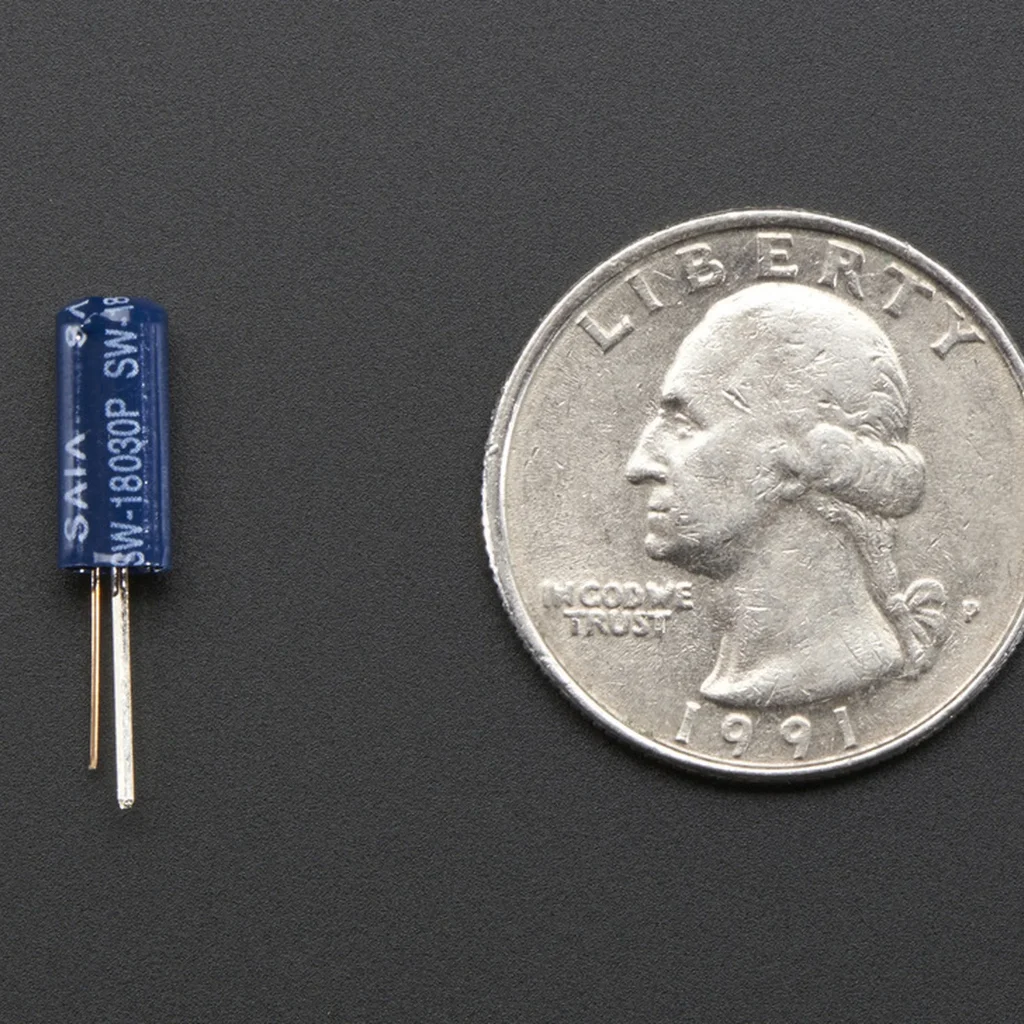

Diameter: 5mm/0.2″
Height (w/ pins): 21mm/0.8″
Height (w/o pins): 11mm/0.4″
Weight: 0.30g
