Αυτό το πακέτο εξαρτημάτων είναι το απόλυτο kit για όποιον θέλει να ασχοληθεί με ηλεκτρονικές κατασκευές. Για όποιο έργο χρειάζεται να δημιουργήσετε το συγκεκριμένο kit θα σας χρησιμεύσει. Περιέχει πολλά από τα πιο δημοφιλή εξαρτήματα και prototype parts όλα σε ένα πακέτο για να τα έχετε όλα μαζεμένα.

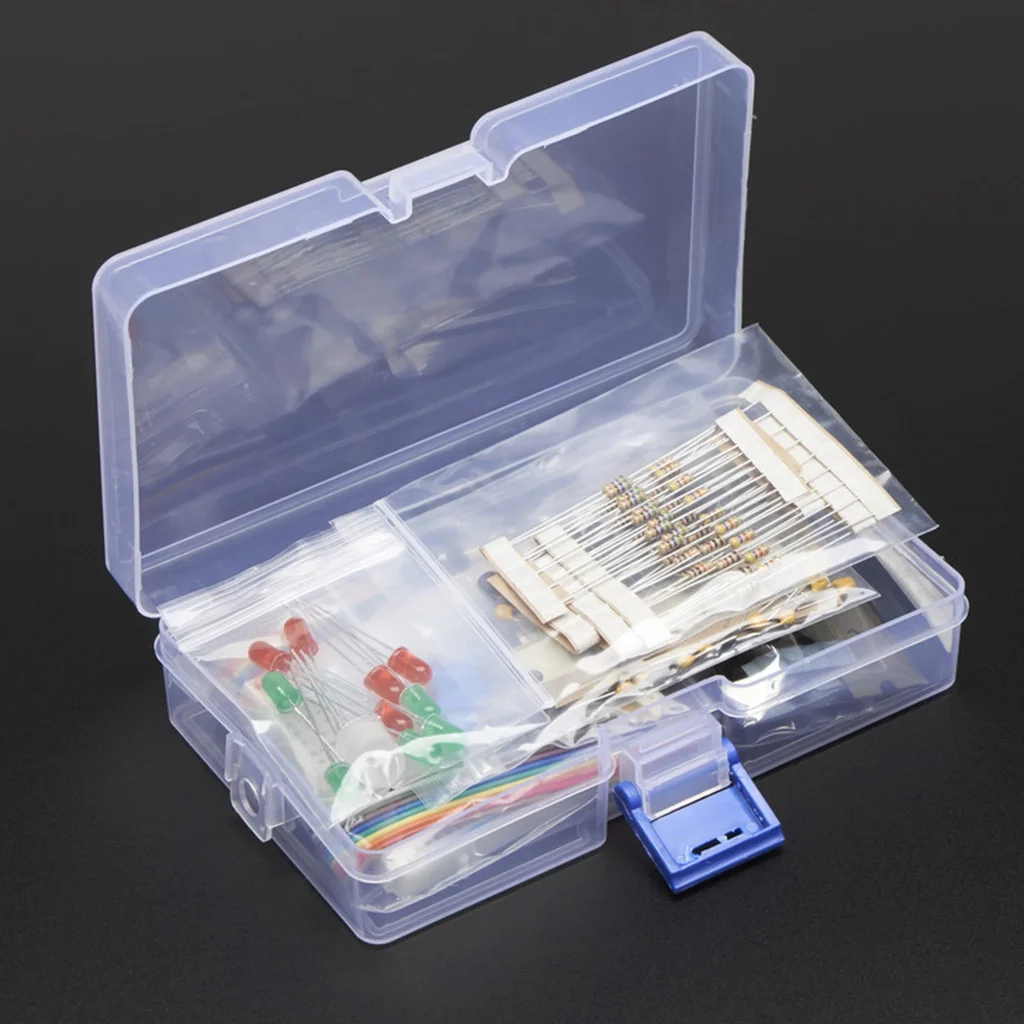

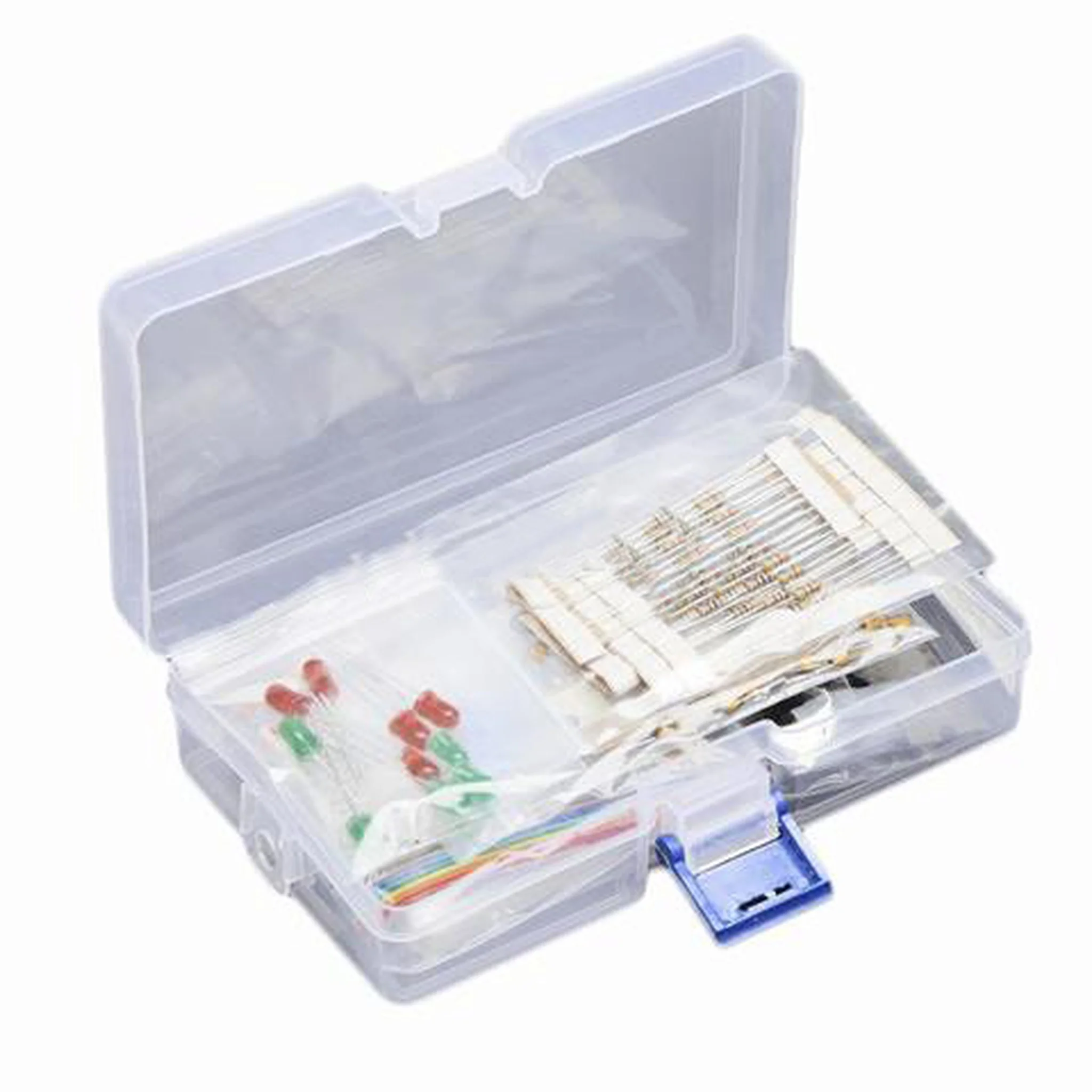

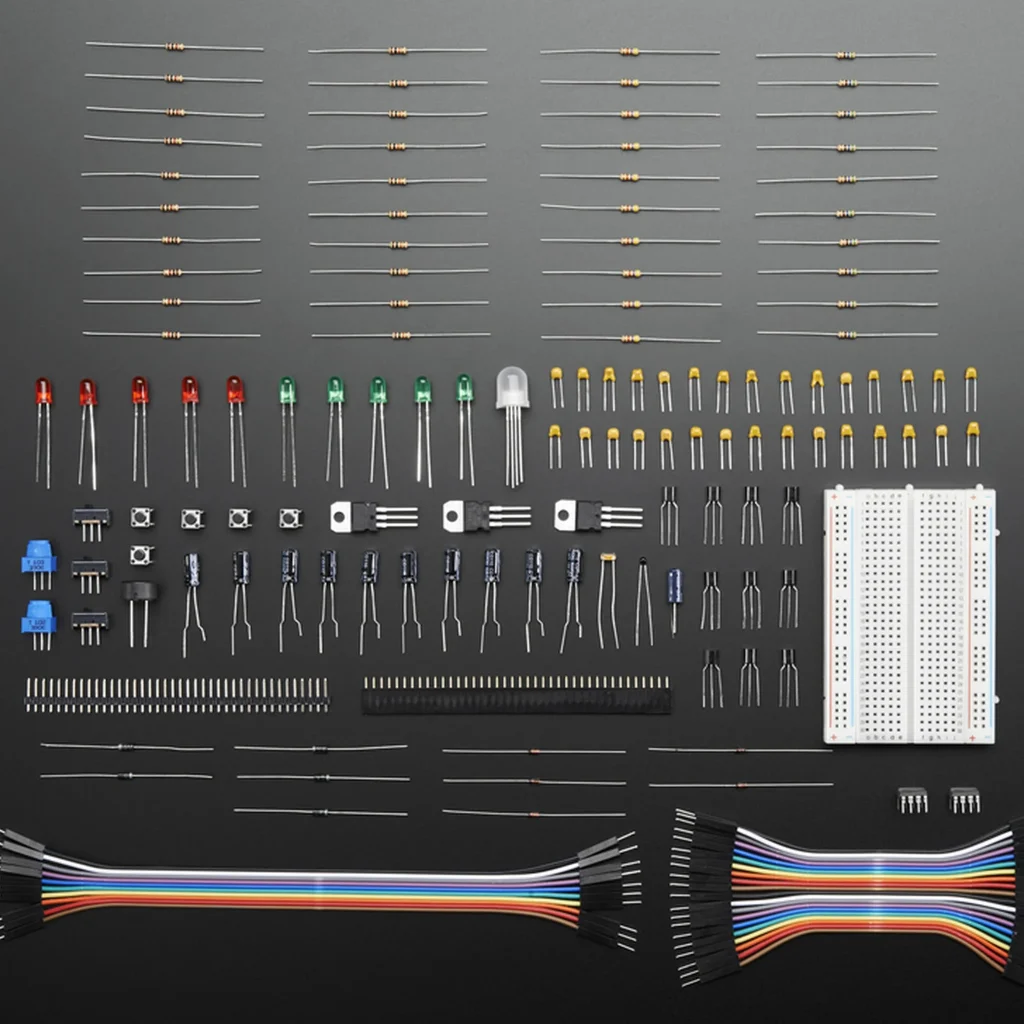

Kit Contents:

Prototyping:

    1x – Storage box with latch
    1x – Half-size breadboard
    20x – Male/male jumper wires – 3″ (75mm)
    10x – Male/male jumper wires – 6″ (150mm)

LEDs:

    5x – 5mm Diffused green LEDs
    5x – 5mm Diffused red LEDs
    1x – 10mm Diffused Common-Anode RGB LED

Capacitors:

    10x – 1.0uF Ceramic capacitors
    10x – 0.1uF Ceramic capacitors
    10x – 0.01uF Ceramic capacitors
    5x – 10uF 50V Electrolytic capacitors
    5x – 100uF 16V Electrolytic capacitors

Resistors:

    10x – 560 ohm 5% axial resistors
    10x – 1K ohm 5% axial resistors
    10x – 10K ohm 5% axial resistors
    10x – 47K ohm 5% axial resistors

Semiconductors:

    5x – 1N4001 Diodes
    5x – 1N4148 Signal Diodes
    5x – NPN Transistor PN2222 TO-92
    5x – PNP Transistor PN2907 TO-92
    2x – 5V 1.5A Linear voltage regulator – 7805 TO-220
    1x – 3.3V 800mA Linear voltage regulator – LD1117-3.3 TO-220
    1x – TLC555 wide-voltage range, low-power 555 Timer
    1x – LM358 Dual operational Amplifier

Sensors:

    1x – Photocell
    1x – Thermistor (Breadboard version)
    1x – Vibration sensor switch
    1x – 10K Breadboard trim potentiometer
    1x – 1K Breadboard trim potentiometer

Mechanical:

    1x – Piezo buzzer
    5x – 6mm Tactile switches
    3x – SPDT slide switches
    1x – 40-pin Break-away male header strip
    1x – 40-pin female header strip

TECHNICAL DETAILS

Revision history

As of July 20, 2016 we now include an LM358 dual opamp!

Datasheets:

TLC555

LM358

PN2222A

MPS2907A

LD1117

L7805CV

Eletrolytic Capacitor

Thermistor

Resistance at 25 degrees C: 10K +- 1%

B25/50 = 3950+- 1%

Thermal time constant <= 15 seconds

Thermistor temperature range -55 °C to 125 °C
