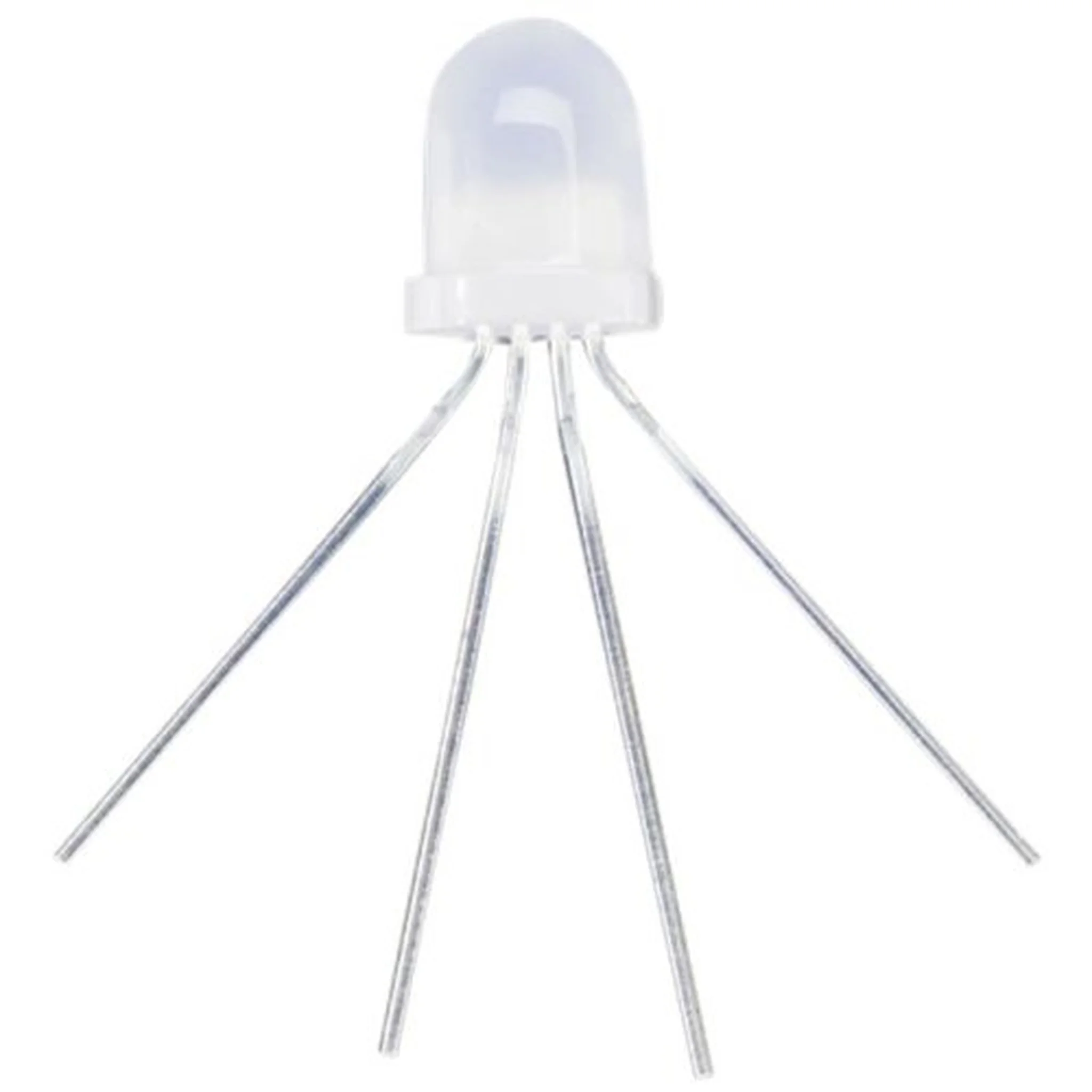

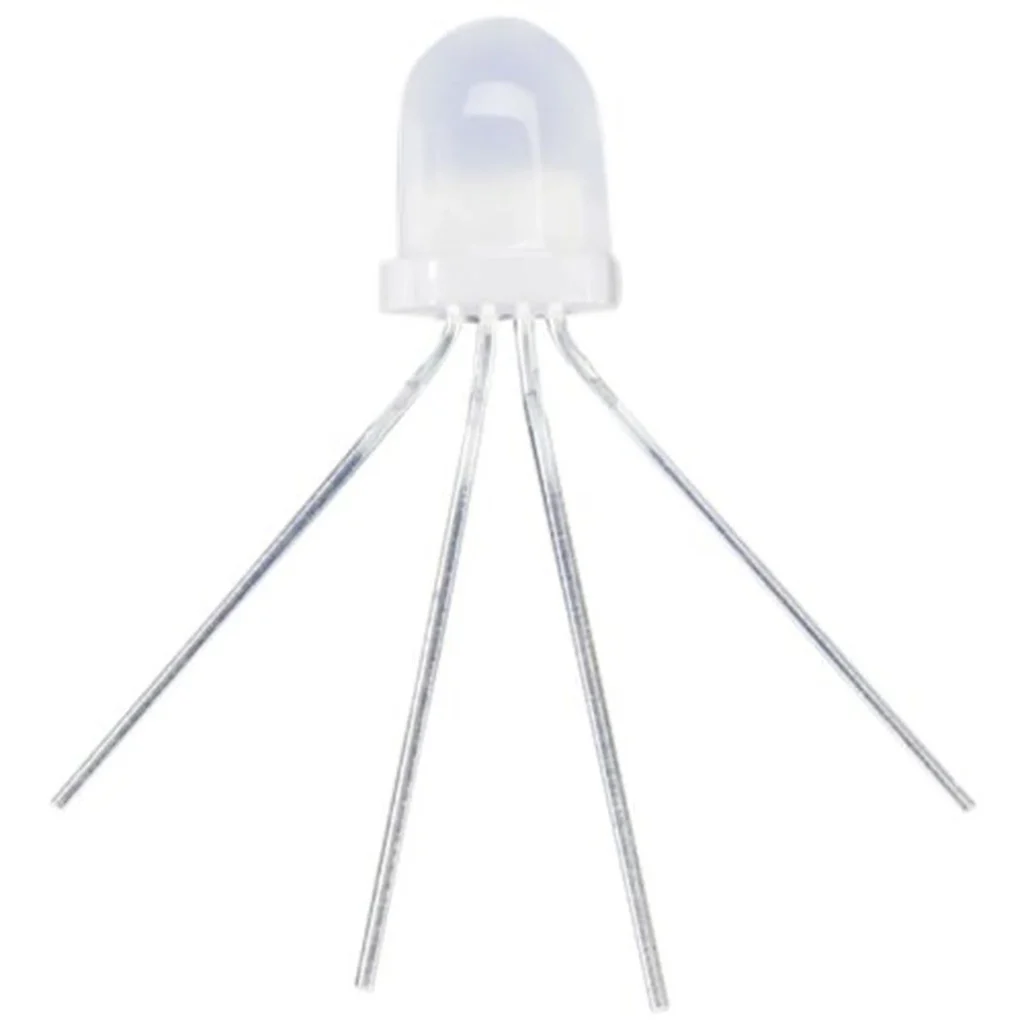

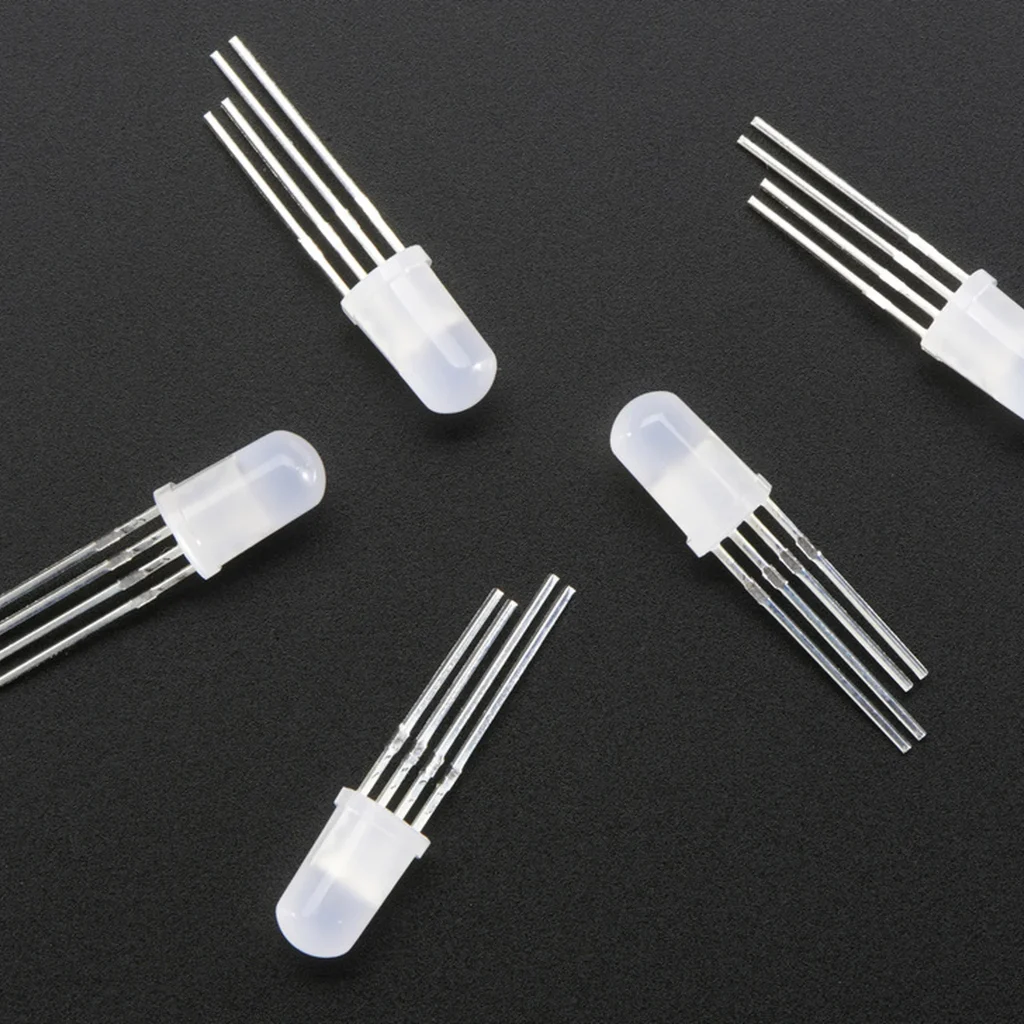

NeoPixel Diffused 5mm Through-Hole LED – 5 Pack Multicolor
LOLwut? NeoPixels in 5mm through-hole variety? Oh yes, we haz them! If you like NeoPixel strips you’ll luv these 5mm diffused through-hole NeoPixels. All the single-pin-controlling-hundreds-of-LEDs goodness in a breadboard friendly format. Each LED looks just like a shorter version of the classic through-hole 5mm RGB LED with 4 legs, but instead of just red/green/blue there’s a little chip inside that can control the LED with high speed PWM for 24-bit color.
These are the diffused type instead of the Neopixel Clear 5mm LEDs. They look a lot like the 8mm variety but are smaller.

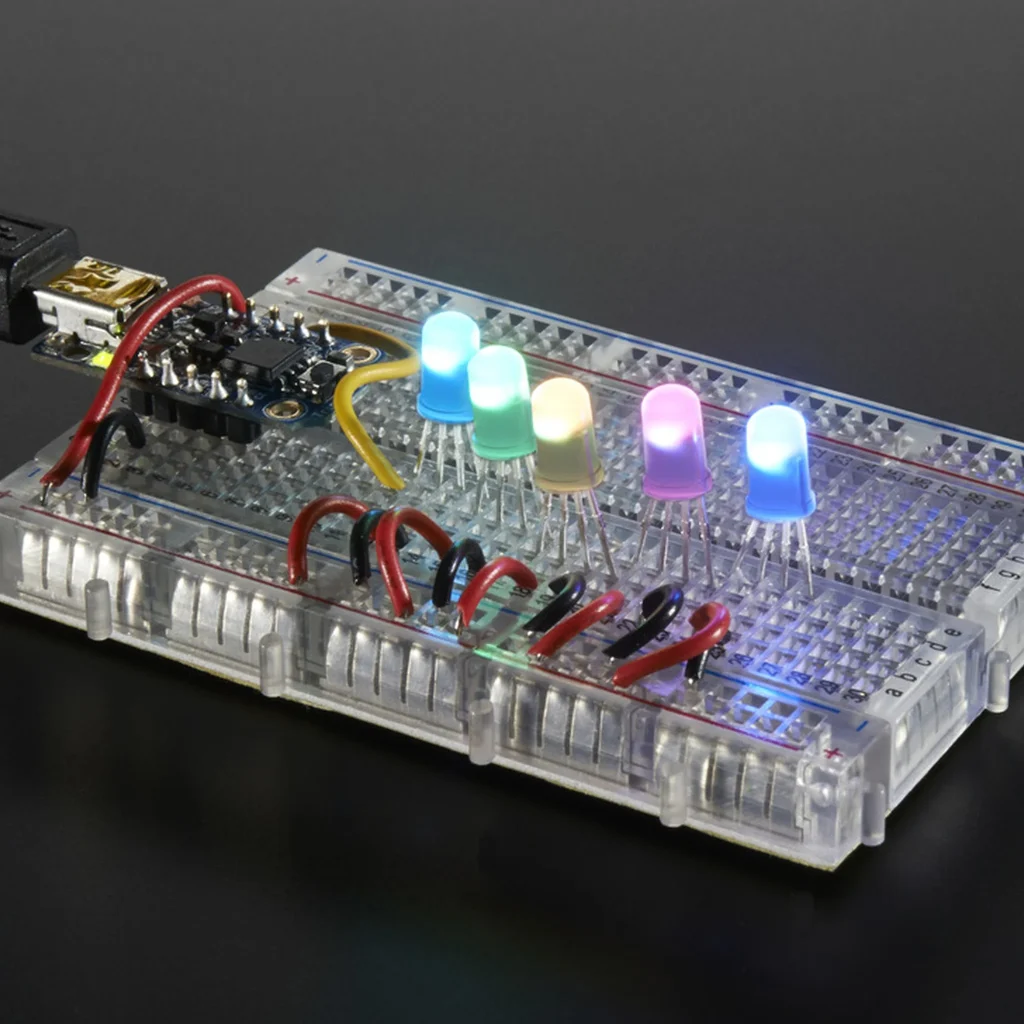

Power them with 5V and chain them together, tying the Data-Out pin of one to the Data-in of the previous one in the chain. If you’re using an Arduino, you can control these LEDs with our wonderfully-written Neopixel library for Arduino. They also work great with our Trinkets. Note that these are “RGB” instead of “GRB” format used in the 5050-sized LEDs you are so used to. Check in the NeoPixel example code for how to swap the colors automagically.

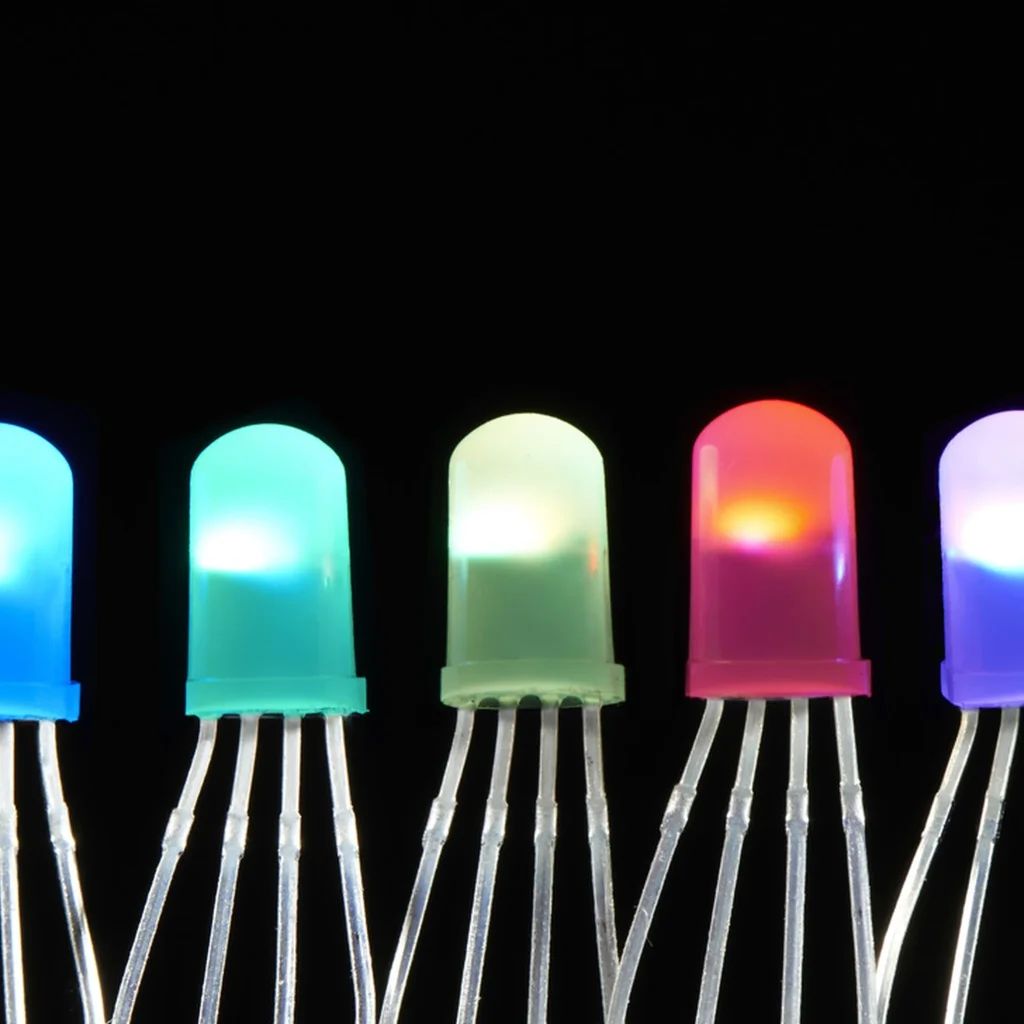

These great looking LEDs are also fast and responsive with a milky-diffusing lens for a soft look.

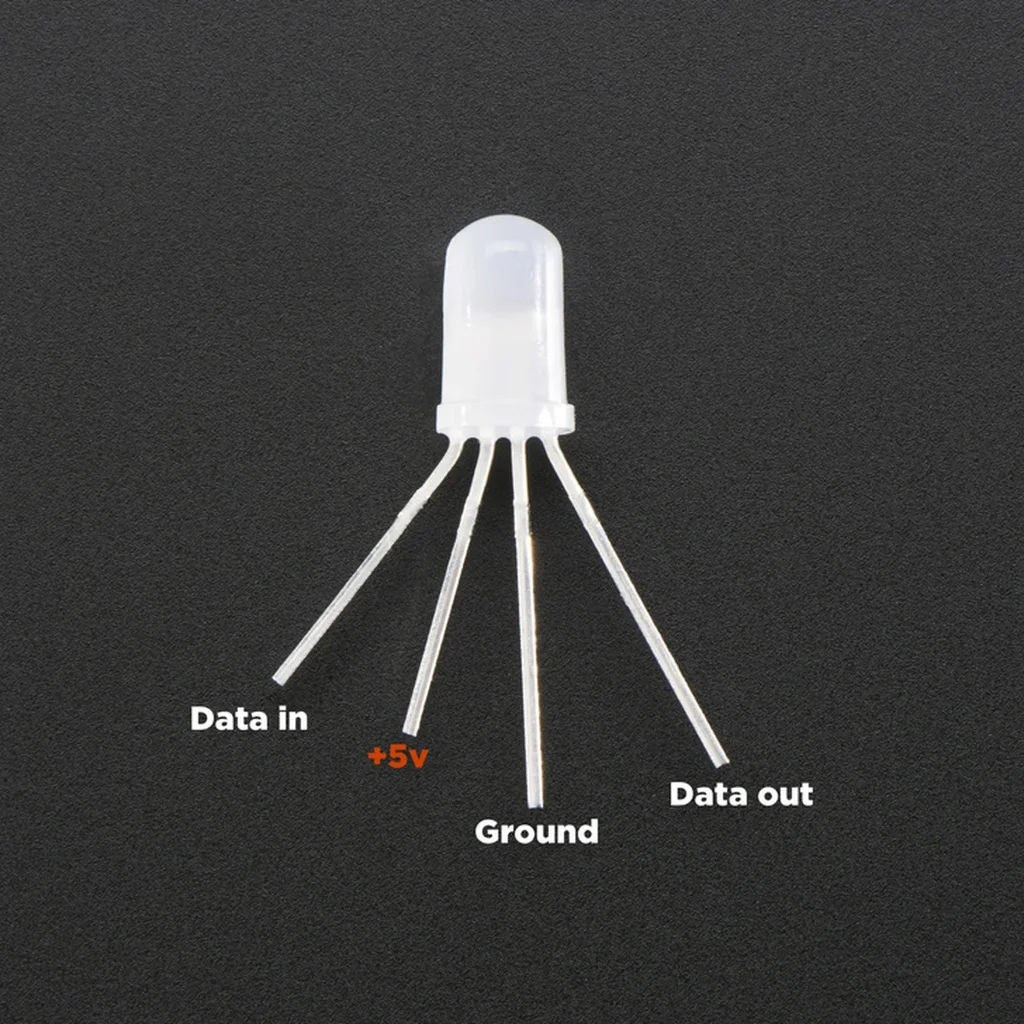

WS2811 datasheet these are running at 800KHz. We don’t have a datasheet for the LEDs themselves yet, see the photos above for the pinouts

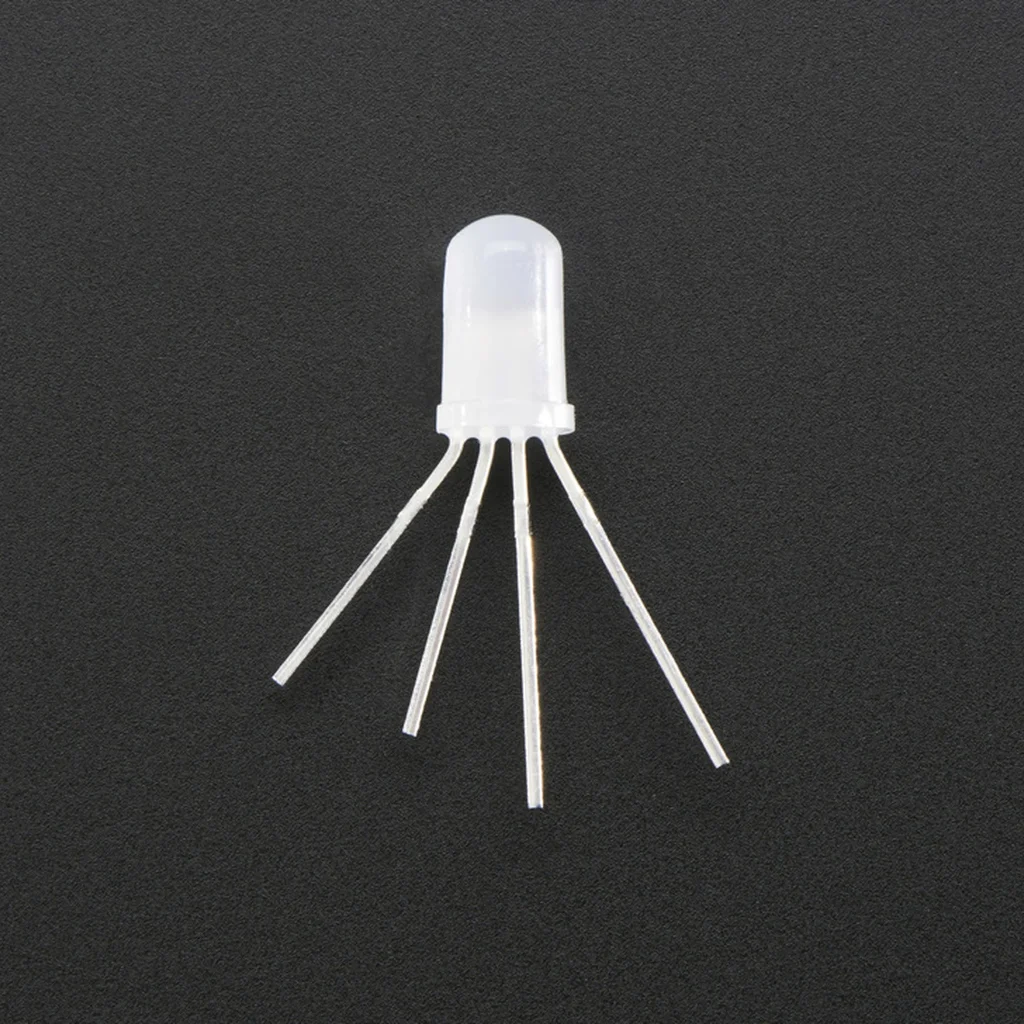

The leads are flexible. The spacing starts at 1.1mm (0.04″) but we were able to bend them as needed.
Weight: 0.3g
