12V 1A Power Supply Module, AC 85V-265V to 12V 1A Isolated DC Switch Step-Down Module, 12W Adapter Voltage Converter

 It is a 12V 1A power switch module. It converts AC 85V-265V into DC 12V1A.

2.Feature:
 1).It uses a wide voltage input AC85-265V.
 2).It uses a brand-new IC solution,selected materials,regulated output,accurate output,and sufficient power and current.
 3).With overload,short circuit and over temperature protection,stable performance and long service life.
 4).The output has low ripple noise, high efficiency,compact size and full functions.
 5).Full load aging test,input and output high and low voltage isolation.
 6).It has an indicator light to show the working status.

3.Parameter:
 1).Product Name:12V1A Power Switch Module
 2).Input Voltage:AC 85V-265V
 3).Frequency Range:47Hz-63Hz
 4).Inrush Current:10A
 5).Leakage Current:2mA(Max)
 6).Ripple:50-60mA
 7).Standby Power Consumption:150mV(Max)
 8).Output Voltage:DC 12V
 9).Rated Current:1A
 10).Current Range:0-1000mA
 11).Rated Power:12W
 12).Conversion Efficiency:85%
 13).Output Accuracy:+/-1%
 14).Voltage Adjustment Rate:+/-1%
 15).Load Regulation Rate:+/-1%
 16).Power Switch Overcharge:10%
 17).Leakage Current:5mA(Max)
 18).Work Temperature:-20℃~70℃
 19).Work Humidity:20%~90%RH
 20).Storage Temperature:-40℃~85℃
 21).Storage Humidity:10%~95%RH

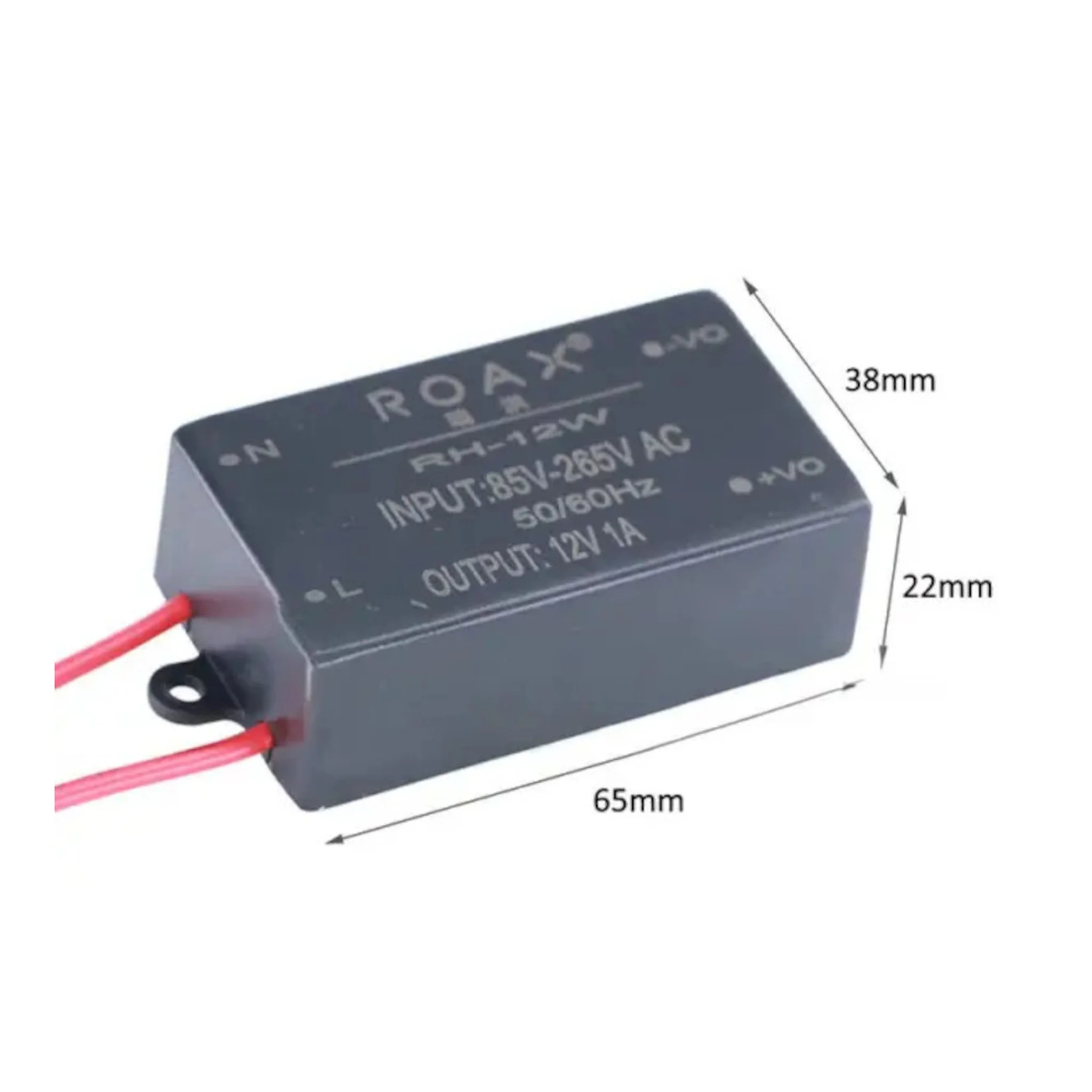

 22).Size:65*38*22mm
