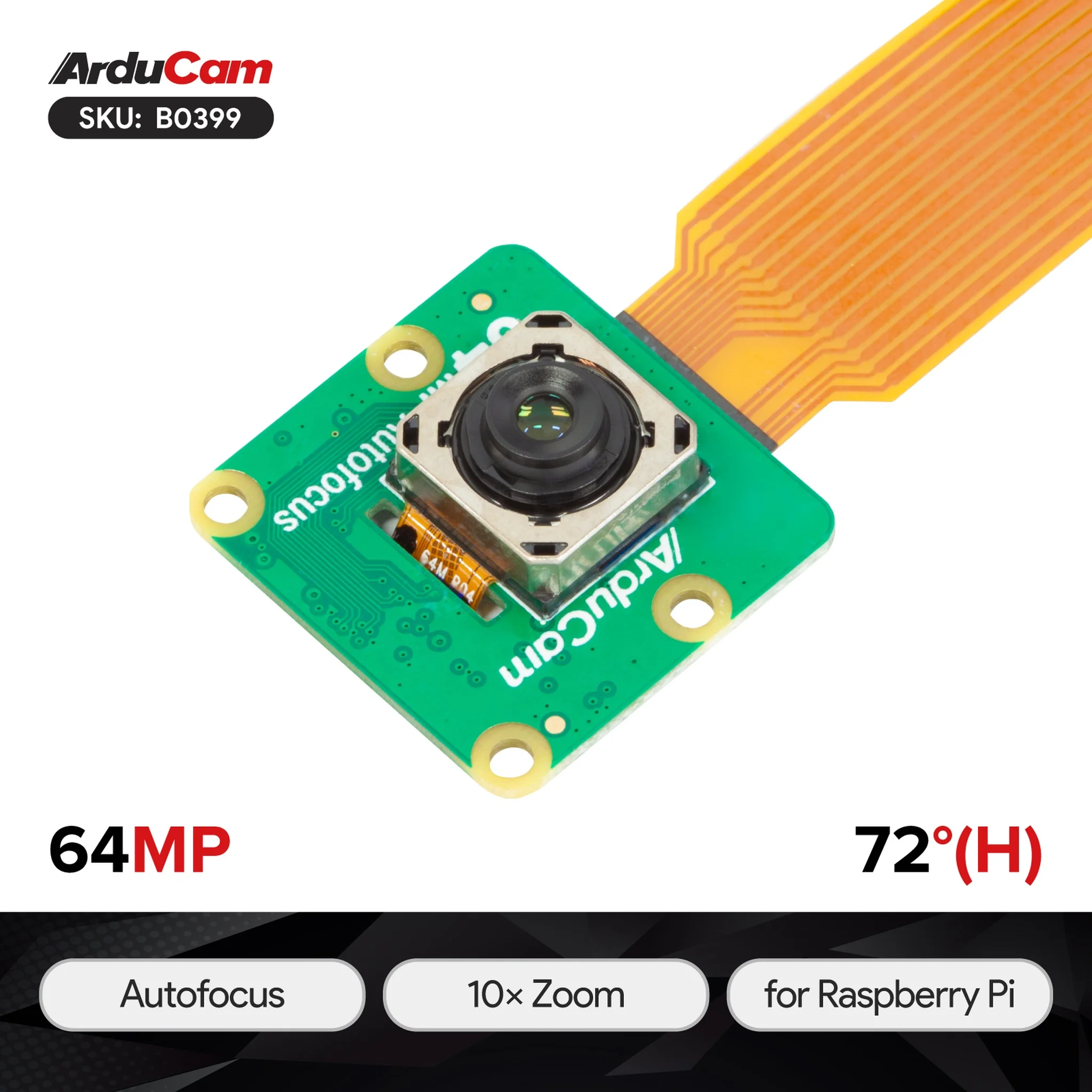

64MPx Autofocus Camera Module for Raspberry Pi – ArduCam B0399

• 64 Megapixels: first camera module for RPi offering specs matching smartphones.
• Autofocus: most versatile AF (Manual/Continuous/etc.) experience on a Pi camera.
• 10x Digital Zoom: ePTZ support for super close-up views and captures.
• libcamera-ready: native software compatibility with a v1/v2-like form factor.
• Smooth Upgrade: works on most Pis with a CSI-2 connection.

Overview

A 64-megapixel ultra high-resolution autofocus camera module exclusively built for the latest and future generations of Raspberry Pis.

By bringing a sensor inside modern-day flagship phones to Raspberry Pi. you can take DSLR-like still images at the maximum resolution of 9152 x 6944. And with an autofocus lens, the ePTZ, and the upcoming continuous-autofocus features.

You now get more horsepower to build more applications, to cover more industries, to unlock more fields, at a much lower cost.

For seasoned makers, Pi Hawk-eye is designed to ensure you a smooth upgrade, it is compatible with everything you already have: the v1/v2 form-factor, the MIPI CSl-2 connection, the latest libcamera software, the standard tripod mount. etc.

Even if you are using Raspberry Pi for the first time, you can follow the hands-on guide without hassle.

Specifications

• Optical Size    1/1.7″ 9.25mm Diagonal(7.4×5.55mm)
• Focus Type    Manual/Auto
• Sensor Resolution    9152×6944
• Video Mode (on Raspberry Pi)    1080p30,720p60 and 640×480p60/90
• Video Mode (Camera Module)*    9152×6944@2.7fps, 8000×6000@3fps, 4624×3472@10fps, 3840×2160@20fps, 2312×1736@30fps, 1920×1080@60fps, 1280×720@120fps
• Color Filter    Quad Bayer Coding(QBC)

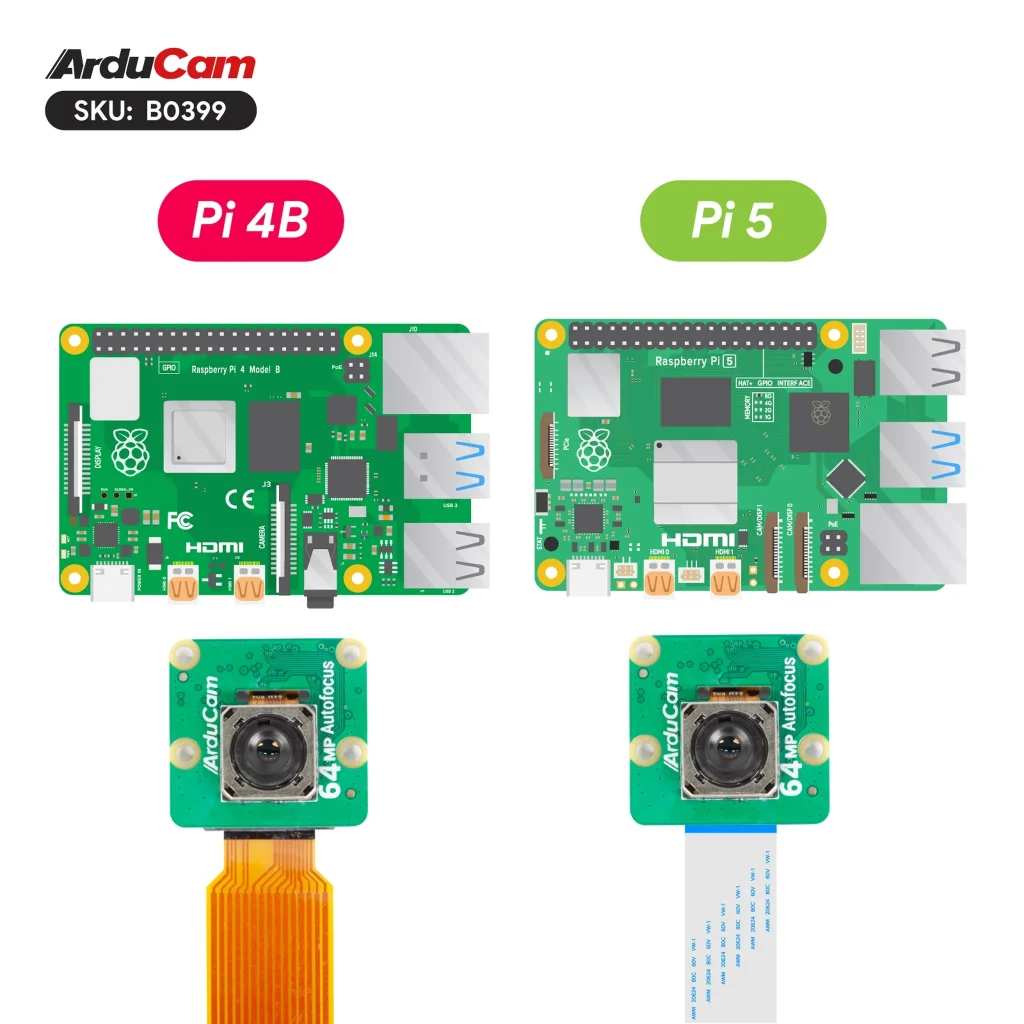

• Supported Platforms    Raspberry Pi 5/4B/Pi 2/3/CM3/CM4/Zero W/Zero 2 W
• Raspberry Pi OS    bookworm/bullseye(32-bit/64-bit) 01/28/22 or later releases
• Focus    8cm~INF
• Focal Length    5.1mm
• View Angle    84 Degrees (Diagonal)
• Dimensions    25×24 mm
• Shutter Type    Rolling
• Output Formats    JPEG/YUV/RGB/RAW10


Documentations

• Specifications
• Optical Size    1/1.7″ 9.25mm Diagonal(7.4×5.55mm)
• Focus Type    Manual/Auto
• Sensor Resolution    9152×6944
• Video Mode (on Raspberry Pi)    1080p30,720p60 and 640×480p60/90
• Video Mode (Camera Module)*    9152×6944@2.7fps, 8000×6000@3fps, 4624×3472@10fps, 3840×2160@20fps, 2312×1736@30fps, 1920×1080@60fps, 1280×720@120fps
• Color Filter    Quad Bayer Coding(QBC)
• Supported Platforms    Raspberry Pi 5/4B/Pi 2/3/CM3/CM4/Zero W/Zero 2 W
• Raspberry Pi OS    bookworm/bullseye(32-bit/64-bit) 01/28/22 or later releases
• Focus    8cm~INF
• Focal Length    5.1mm
• View Angle    84 Degrees (Diagonal)
• Dimensions    25×24 mm
• Shutter Type    Rolling
• Output Formats    JPEG/YUV/RGB/RAW10

Documentations

    64MP-AF Camera Getting Started Guide
    64MP Product brief
    Using Raspberry Pi Camera with Your Smartphone
    How to use Arducam 64MP camera on Raspberry Pi
    3D drawing

Note

*Only kernel version 6.1.21 and later support 48MP and PDAF
**Raspberry Pi 2/3/Zero W may not be able to enable 9152×6944 and 8000×6000 due to RAM, please make sure your platform has more than or equal to 1G of RAM.
Packing List

    1 x 64MP-AF Camera Board
    1 x 15cm 22-22pin FPC Cable
    1 x 15cm 15-22pin FPC Cable
